Summary of Contents for Launch TLT-330M

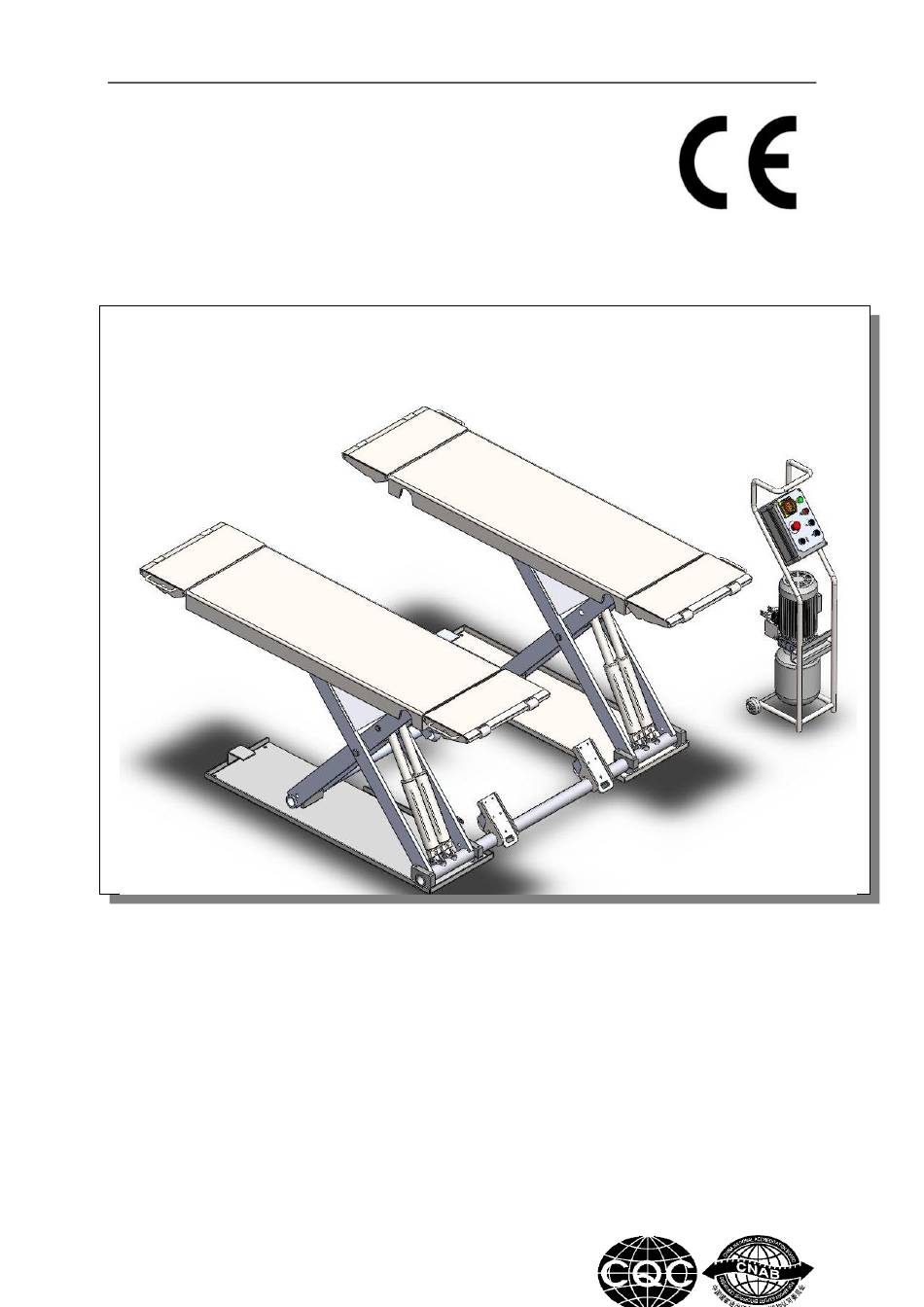

- Page 1 USER’S MANUAL Hydraulic Automobile Lift TLT-330M ’ ’ Operation Manual & Instruction...
- Page 2 USER’S MANUAL MANUFACTURE AND SERVICE HYDRAULIC AUTOMOBILE LIFT TLT-330M Model: Serial No.: Date of Manufacture: Manufacturer: Name: Address: Tel: Fax: E-mail: AUTHORISED SERVICE CENTRE: CONTENTS...
- Page 3 USER’S MANUAL Contents Manufacture and service Packing, transport and storage Introduction ⚫ Description of the machine ⚫ Technical specifications ⚫ Safety ⚫ Installation ⚫ Adjustment ⚫ Operation ⚫ Maintenance and care ⚫ Troubleshooting ⚫ Accessory PACKING, TRANSPORT AND STORAGE...
- Page 4 USER’S MANUAL PACKING (Picture 1) Picture 1 Picture 2) Transport ( Packing can be lifted or moved by lift trucks, cranes or bridge cranes. In case of slinging, a second person must always take care of the load, in order to avoid dangerous oscillations.
-
Page 5: Conserving The Manual
USER’S MANUAL INTRODUCTION This manual has been prepared for workshop personnel expert in the use of the lift operator and technicians responsible for routine maintenance fitter. Workers should read the ‘Maintenance & User Manual’ carefully before carrying out any operation with the lift. This manual contains important information regarding: The personal safety of operators and maintenance workers. -
Page 6: Chapter 1 Description Of The Machine
USER’S MANUAL Chapter 1 DESCRIPTION OF THE MACHINE Machine Application: This lift can lift each kind of vehicle which weight is not over 3000kg, and is suitable for use in vehicle tests, maintenance, and caring for automobiles, which is particularly suitable for use in the basement or on the floor without hole. -
Page 7: Chapter 2 Specification
USER’S MANUAL Chapter 2 SPECIFICATION Main technical parameter Machine type Parameter Drive Electrical hydraulic Lifting weight 3000kg Lifting height 960mm Platform initial height 100mm Platform length 1450mm Platform width 530mm ≤50s Lifting time ≤60s Descent time Whole machine length 2036mm Whole machine width 1850 mm Weight... - Page 8 USER’S MANUAL Chapter 2 SPECIFICATION Lift dimension picture: Picture 3 Motor Pump Type……………………………P1.7 Type………………………Y90L Model…………………………gear pump Power……………… 2.2kw Voltage……………AC 400 or 230V ±5% Max flux…………………………1.6cc/r Power supply…………… 400VAC:20A Joint type………………………direct joint ………………230V:40A Frequency………50Hz (optional Overflow valve Setting pressure………………280 bar choose 60HZ) Poles……………………………...
- Page 9 USER’S MANUAL Chapter 2 SPECIFICATION Supply at the same time -Connect to the power supply jack of control box (400V or 230V) -Connect to the compressed air-entering pipe of control box (ф8×6mm) Requirements: -Concrete type 425#, the period of desiccation is 15 days. -Clean the basic layer, thickness of concrete≥150mm, the leveling of whole length≤5mm.
- Page 10 USER’S MANUAL Chapter 3 SAFETY Read this chapter carefully and completely since important information for the safety of the operator or others in case of improper use of the lift is included. In the following text there are clear explanations regarding certain situations of risk or danger that may arise during the operation or maintenance of the lift, the safety device installed and the correct use of such systems, residual risks and operative procedures to use (general specific precautions to eliminate potential hazards).
-
Page 11: General Precautions
USER’S MANUAL Chapter 3 SAFETY GENERAL PRECAUTIONS The operator and the maintenance fitter are required to observe the prescriptions of safety regulation in force in the country of installation of the lift. Furthermore, the operator and maintenance fitter must: -Always work in the stations specified and illustrated in this manual; -Never remove or deactivate the guards and mechanical, electrical, or other types of safety devices;... - Page 12 USER’S MANUAL Chapter 3 SAFETY Each bottom of oil cylinder is equipped with antiknock valve. When the oil pipe is burst in the circuit of hydraulic pressure, the relevant antiknock valve will work and limit the speediness of platform. (See Picture 9) Picture 8 Picture 9 There is nothing abnormal should be left on the safety modules to prevent safety gear...
-
Page 13: Risk Of Electric Shock
USER’S MANUAL Chapter 3 SAFETY RISK OF SLIPPING (Picture 11) The floor caused by lubricant contamination of around the lift. The area beneath and immediately surrounding the lift and also the platforms must be kept clean. Remove any oil spills immediately. Picture 10 Picture 11 RISK OF VEHICLE IF ITS GRAVITY CENTER NOT INSIDE THE MARKED AREA... -
Page 14: Chapter 4 Installation
USER’S MANUAL Chapter 4 INSTALLATION SKILLED AND AUTHORIZED PERSONNEL ONLY SHOULD BE ALLOWED TO PERFORM THESE OPERATIONS, FOLLOW ALL INSTRUCTIONS SHOWN BELOW CAREFULLY, ORDER PREVENT POSSIBLE DAMAGE TO THE CAR LIFT OR RISK OF INJURY TO PEOPLE. Skilled technicians only appointed by the same manufacturer or by authorized dealers, are allowed to install the car lift. -
Page 15: Line Connection
USER’S MANUAL Chapter 4 INSTALLATION Platform Installation: -Place two platforms on the position of the location. -The bottom of hydraulic cylinder is located in the frontage of machine (the direction of driving on the vehicle) -Use fork lift or other lifting equipments to lift the platform (Picture 14) and insert a wood in the middle part of joint pole. - Page 16 USER’S MANUAL Chapter 4 INSTALLATION -Connection of up limit switch (SQ1) (Picture 16): For detail connection, please see electrical drawing Picture 16 -Connection of lower limit switch (SQ2) (Picture 17): For detail connection, please see electrical drawing. Picture 17 Oil PIPE CONNECTION: Follow “oil pipe diagram “to connect the oil pipes.
-
Page 17: Chapter 5 Adjustment
USER’S MANUAL Chapter 5 ADJUSTMENT Add oil and check the order of phase. After installing lift as Picture 4 required and connecting hydraulic circuit and electric circuit, operate it as following: -open the hydraulic oil tank, add 12L of hydraulic oil into the oil tank, the hydraulic oil is provided by the user. - Page 18 USER’S MANUAL Chapter 6 OPERATION Only skilled and having been trained personnel is allowed to perform the operations. Check proceedings as following. Operation Notices: -Clear obstacles around the lift before operation. -During lifting or lowering, no person is allowed to stand near the two sides and beneath the machine, and no person is allowed on the two platforms.
-
Page 19: Chapter 7 Maintenance And Care
USER’S MANUAL Chapter 7 MAINTENANCE AND CARE Skilled personnel only are allowed to perform the operations. -All bearings and hinges on this machine must be lubricated once a week by using an oilier. -The upper and lower sliding blocks and other movable parts must be lubricated once o month. -
Page 20: Chapter 8 Troubleshooting
USER’S MANUAL Chapter 8 TROUBLESHOOTING Skilled personnel only are allowed to perform the operations. Failure Cause Troubleshooting ① Connection of power Check and correct wire connection supply wires is not correct. If the motor operates when forcing the ② The AC contactor in the contactor down with an isolation rod, check The motor does not circuit of the motor does not... - Page 21 USER’S MANUAL ACCESSORY Hydraulic pressure elements diagram...
- Page 22 USER’S MANUAL ACCESSORY Oil pipe connection diagram...
- Page 23 USER’S MANUAL Explosion diagram (please take the actual machine as standard): PLAFORM...
- Page 24 USER’S MANUAL Explosion diagram (please take the actual machine as standard): CYLINDER...
- Page 25 USER’S MANUAL Explosion diagram (please take the actual machine as standard): CONTROL BOX...
