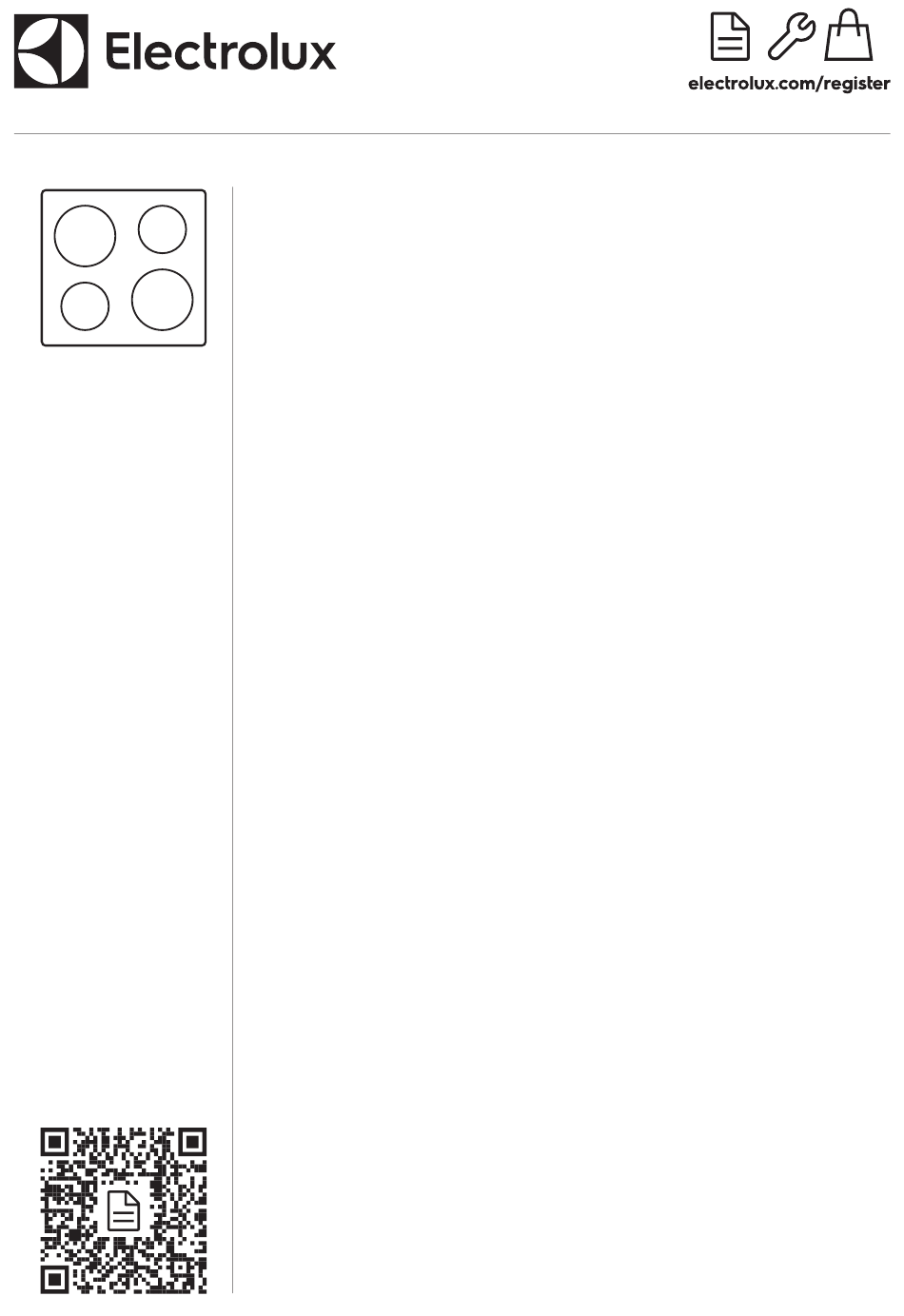

- Page 1 EN User Manual | Hob LRR8438CK...
-
Page 2: Table Of Contents
Welcome to Electrolux! Thank you for choosing our appliance. Get usage advice, brochures, troubleshooting, service and repair information: www.electrolux.com/support Subject to change without notice. CONTENTS 1. SAFETY INFORMATION................2 2. SAFETY INSTRUCTIONS................4 3. INSTALLATION....................6 4. PRODUCT DESCRIPTION................8 5. DAILY USE......................9 6. -
Page 3: General Safety
• Keep all packaging away from children and dispose of it appropriately. • WARNING: The appliance and its accessible parts become hot during use. Keep children and pets away from the appliance when in use and when cooling down. • If the appliance has a child safety device, it should be activated. -
Page 4: Safety Instructions
• Metallic objects such as knives, forks, spoons and lids should not be placed on the hob surface since they can get hot. • Do not use the appliance before installing it in the built-in structure. • Do not use water spray and steam to clean the appliance. •... -
Page 5: Electrical Connection
under the appliance to prevent access to • Use only correct isolation devices: line the bottom. protecting cut-outs, fuses (screw type • The separation panel has to cover the fuses removed from the holder), earth area under the hob completely. leakage trips and contactors. -
Page 6: Installation
• The vapours that very hot oil releases can • Clean the appliance with a moist soft cause spontaneous combustion. cloth. Use only neutral detergents. Do not • Used oil, that can contain food remnants, use abrasive products, abrasive cleaning can cause fire at a lower temperature than pads, solvents or metal objects, unless oil used for the first time. -
Page 7: Protection Box
60 mm min. min. 500mm 50mm Find the video tutorial "How to install your Electrolux Radiant Hob - Worktop installation" by typing out the full name indicated in the graphic below. www.youtube.com/electrolux www.youtube.com/aeg How to install your Electrolux Radiant Hob - Worktop installation 3.5 Protection box... -
Page 8: Product Description
You cannot use the protection box if you install the hob above an oven. 4. PRODUCT DESCRIPTION 4.1 Cooking surface layout Cooking zone Control panel 145 mm 145/210/270 145/210/270 120/180 120/180 4.2 Control panel layout Use the sensor fields to operate the appliance. The displays, indicators and sounds tell which functions operate. -
Page 9: Daily Use
Sensor Function Comment field Timer display To show the time in minutes. To activate and deactivate the outer ring. To activate and deactivate the outer ring. To select the cooking zone. To increase or decrease the time. To set a heat setting. 4.3 Heat setting displays Display Description... -
Page 10: Activating And Deactivating The Outer Rings
To deactivate the outer ring: touch the symbol until the indicator disappears. Heat setting The hob deactivates after 6 hours When you activate the cooking zone but , 1 - 2 do not activate the outer ring the light that 3 - 4 5 hours comes out from the zone may cover the... -
Page 11: Child Safety Device
5.9 Child Safety Device To deactivate the function: touch to set This function prevents an accidental the cooking zone and then touch . The operation of the hob. remaining time counts down to 00. The indicator of the cooking zone disappears. To activate the function: activate the hob with . -
Page 12: Hints And Tips
setting. Change the heat settings of the cooking zones manually, if necessary. Refer to the illustration for possible combinations in which power can be distributed among the cooking zones. 6. HINTS AND TIPS WARNING! Refer to Safety chapters. Cookware made of enamelled steel and with aluminium or copper bottoms can 6.1 Cookware cause a colour change on the glass-... -
Page 13: Care And Cleaning
Heat setting Use to: Time Hints (min) 4 - 5 Cook larger quantities of food, stews 60 - 150 Up to 3 l of liquid plus ingredients. and soups. 6 - 7 Gentle fry: escalope, veal cordon bleu, as neces‐ Turn over when needed. - Page 14 8.1 What to do if... Problem Possible cause Remedy You cannot activate or operate The hob is not connected to an elec‐ Check if the hob is correctly connected the hob. trical supply or it is connected incor‐ to the electrical supply. rectly.
-
Page 15: Technical Data
9. TECHNICAL DATA 9.1 Rating plate Model LRR8438CK PNC 949 599 347 00 Typ 60 HBD 68 AO 220 - 240 V / 400 V 2N, 50 - 60 Hz Made in: Germany Ser.Nr. -
Page 16: Environmental Concerns
10.1 Product Information according to EU Ecodesign Regulation Model identification LRR8438CK Type of hob Built-In Hob Number of cooking zones Heating technology Radiant Heater Diameter of circular cooking zones (Ø) Left front 18.0 cm Left rear 14.5 cm Middle rear 27.0 cm... - Page 20 867384428-B-132024...
