Yamaha ATS-2090 Connection Manual

Before You Begin

• Set up your Fire TV Stick in your Alexa app

What You Need

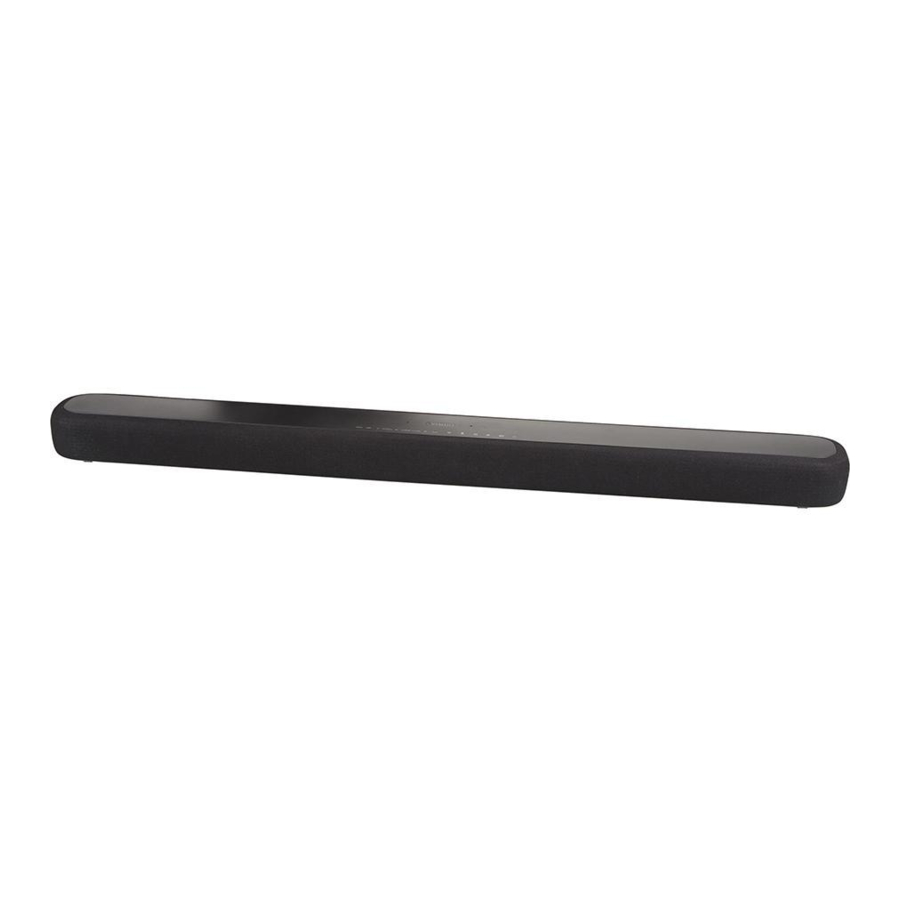

• ATS-2090 sound bar
• Amazon Fire TV Stick, HDMI extender, USB cable, power adapter (all included with Fire TV Stick)
• Amazon Alexa app (download from the app store on your mobile device)
• Yamaha Sound Bar Controller app (download from the app store on your mobile device)
• Home Wi-Fi network

Connect the ATS-2090 to Wi-Fi

Your sound bar should be connected to the Wi-Fi network that your mobile device was on when you used the Sound Bar Controller app to set up the sound bar. See what Wi-Fi network your sound bar is connected to in order to make sure that the Fire TV is on the same network in the next step.

In the Sound Bar Controller app, go to Settings, then Sound Bar Info. You'll see the name of the Wi-Fi network that the sound bar is connected to under Wi-Fi Status.

Connect the Fire TV Stick to the ATS-2090

There isn't much room around the HDMI port on the back of the sound bar for the Fire device, so connect the HDMI extender that came with the Fire TV Stick to the HDMI In port on the sound bar and then connect the Fire TV Stick to the HDMI extender.

Connect the Fire TV Stick to Power

You can't use the sound bar's USB port to power the Fire TV Stick. Use the USB cable and power adapter that came with the Fire TV Stick to connect it to power or to another USB power source.

Set Up the Fire TV Stick

Make sure your mobile device is connected to the same Wi-Fi network as your sound bar. In the Alexa app, set up the Fire TV Stick to be controlled by the sound bar. If you are linking a device for the first time, the list of linked devices (screen G below) will be empty. Tap LINK ANOTHER DEVICE (screen H) to select your ATS-2090.

Verify That You Can Control the Fire TV from the Sound Bar

Turn on the sound bar and the TV. If the blue Alexa light on the sound bar is not on, say "Alexa" or press the Alexa button on the sound bar's remote control. Then try these commands:
"Alexa, go to the home screen."
"Alexa, play Jurassic World on Fire TV."
"Alexa, play Criminal Minds on Netflix."
"Alexa, play Foo Fighters."

Enjoy your Fire TV hands-free through ATS-2090 with Alexa built-in!

NOTE: The default music service is Amazon Prime Music. To change it, in the Alexa app go to Settings > Music > Default Services.
