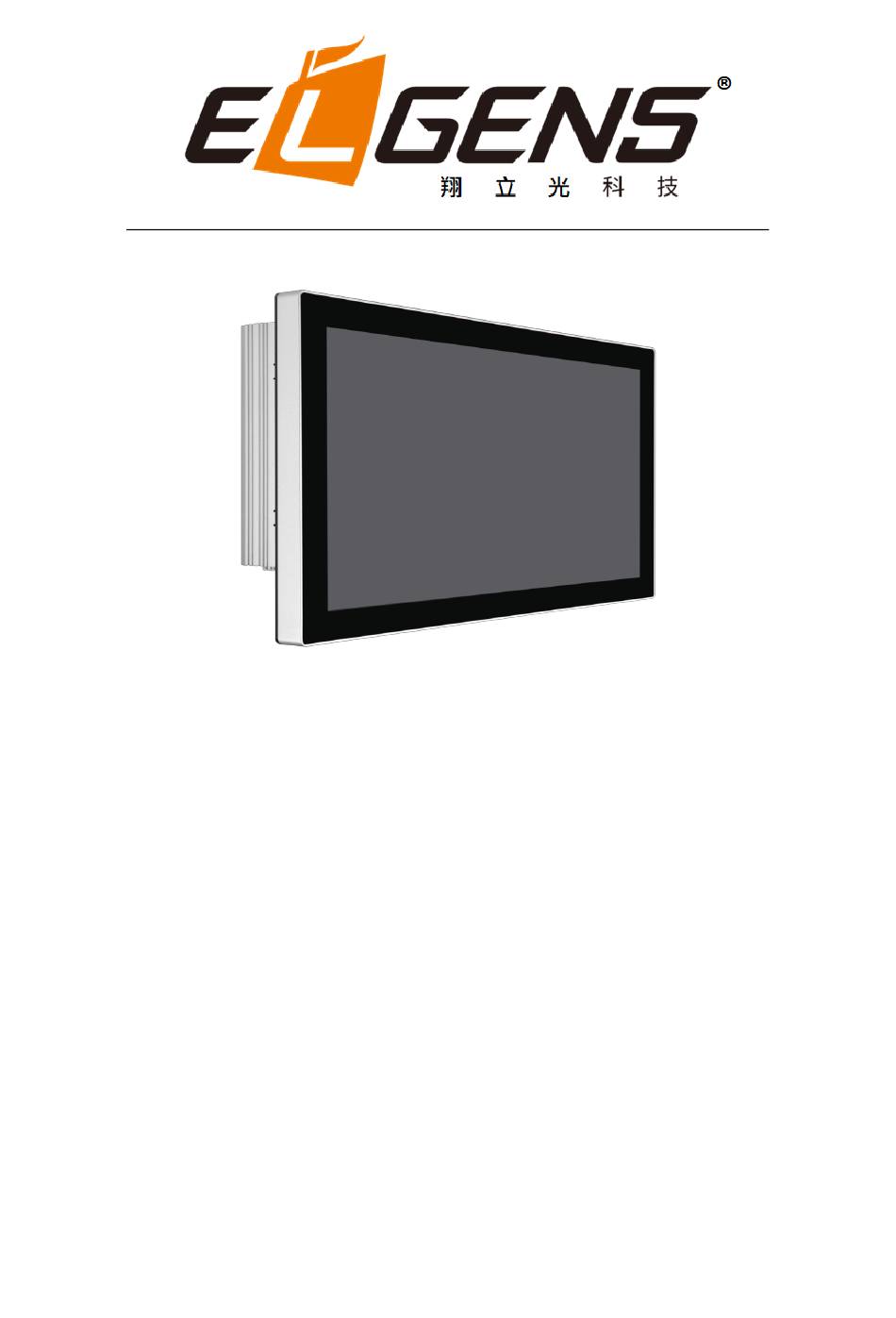

- Page 1 LPC-2Tx Series P-cap Panel PC With 11 Gen., Core-i7/5/3 User Manual Published in Taiwan Release Date : Feb 2024 Revision : V0.1...
-
Page 2: Warning
Disclaimer This information in this document is subject to change without notice. In no event shall ELGENS Co., Ltd. be liable for damages of any kind, whether incidental or consequential, arising from either the use or misuse of information in this document or in any related materials. -
Page 3: Table Of Contents
Entering Setup ..........................20 The Menu Bar ..........................22 Main ............................. 23 Advanced ............................. 24 Boot .............................. 30 Security ............................30 Chipset ............................41 Power ............................42 Save & Exit ..........................43 ELGENS CO., LTD LPC P-cap 2Tx Series User Manual... -
Page 4: Chapter 1 Getting Started
2 Ethernet, and 4 USB 3.2 ports. The unit supports Windows 10 / Windows 11 operation system. The Elgens’ fanless touch panel computer is ideal for use as Web Browser, Terminal, HMI at all levels of automation control or a high-performance system that working on rash environment. - Page 5 3-Pin Terminal Block Mechanical Construction Aluminum Heatsink for 35W IP Rating Front Panel compliant IP65 Mounting Panel/VESA Environmental Operating Temperature -40~70 °C Storage Temperature -40~70 °C Storage Humidity 10~90% @40 °C non-condensing ELGENS CO., LTD LPC P-cap 2Tx Series User Manual...
-
Page 6: Naming Rule
IP65 LPC-Pxxxx-2T7 Aluminum Front Bezel, AG, Removable 2.5" HDD/SSD Tray, DC 12~24V Power Input, -40~70°C WFK-524M2 M.2 Wi-Fi kits w/ cable & Antenna (2.4 & 5GHz, 802.11 a/b/g/n/ac + BT, 2T2R) ELGENS CO., LTD LPC P-cap 2Tx Series User Manual... - Page 7 H = High Brightness 1000 nits LED backlight (Optional, up to 1600 nits backlight) OB = Optical Bonding (Optional) AG = Anti-Glare (Optional) AR = Anti-Reflection (Optional) V = Vandal Proof Glass (Optional) ELGENS CO., LTD LPC P-cap 2Tx Series User Manual...
-
Page 8: Dimension
1.4 Dimension LPC-P150S-2Tx Drawing ELGENS CO., LTD LPC P-cap 2Tx Series User Manual... - Page 9 LPC-P156W-2Tx Drawing ELGENS CO., LTD LPC P-cap 2Tx Series User Manual...
- Page 10 LPC-P170S-2Tx Drawing ELGENS CO., LTD LPC P-cap 2Tx Series User Manual...
- Page 11 LPC-P185W-2Tx Drawing ELGENS CO., LTD LPC P-cap 2Tx Series User Manual...
-
Page 12: General Rear Io Placement
1.5 General Rear IO Placement The default setting of COM ports is RS-232 as below pin definition, adjustable to RS-RS422/485 by BIOS. Power input terminal block pin definition is as below. ELGENS CO., LTD LPC P-cap 2Tx Series User Manual... -
Page 13: Front View Of Lpc- 2Tx Series
1.6 Front View of LPC- 2Tx Series 1.7 Rear View of LPC- 2Tx Series ELGENS CO., LTD LPC P-cap 2Tx Series User Manual... -
Page 14: Top / Bottom Io View
1.8 Top / Bottom IO View Top IO Bottom IO 1.9 Installation of HDD ELGENS CO., LTD LPC P-cap 2Tx Series User Manual... -
Page 15: Chapter 2 Installation
Chapter 2 Installation The LPC 2Tx series is a panel pc with 3.5” motherboard. Before you install the accessories on motherboard, study the installation guide to ensure that the accessories be secured. 2.1 Remove Heatsink The heatsink cover is secured onto the chassis with 18 M3*5 zinc-coated screws located at 4 sides. -
Page 16: Install Dram Modules
3. Please do not intermix different voltage SO-DIMMs on this motherboard. Step 3. Firmly insert the SO-DIMM into the slot until the retaining clips at both ends fully snap back in place and the SO-DIMM is properly seated. ELGENS CO., LTD LPC P-cap 2Tx Series User Manual... -
Page 17: Install Nano Sim Card
2.3 Install Nano SIM Card Step 1. Following CH2.1 to remove heatsink. Step 2. Install USIM1-Nano SIM Holder. This holder is provided for 3G, 4G, LTE, 5G Nano SIM cards. ELGENS CO., LTD LPC P-cap 2Tx Series User Manual... -
Page 18: Install M.2 Expansion Modules
Please install the WWAN Card/ solid-state drive (SATA SSD) into the M2_B1 M.2 slot. 1. M2_E1 slot supports PCIe x 1 & USB 2.0 signal. 2. M2_B1 slot supports PCIe x 1, SATA 3.0, USB 2.0 signal. ELGENS CO., LTD LPC P-cap 2Tx Series User Manual... -
Page 19: Install M.2 Nvme Ssd
Step 1. Following CH2.1 to remove heatsink. Step 2. Please install the M.2 solid-state drive (NVME SSD) into the M.2 slot as shown below. 1. Supports PCIe Gen 4 x4 NVME signal. ELGENS CO., LTD LPC P-cap 2Tx Series User Manual... -
Page 20: Chapter 3 Bios Setup
The items under each BIOS category described in this chapter are under continuous update for better system performance. Therefore, the description may be slightly different from the latest BIOS and should be held for reference only. ELGENS CO., LTD LPC P-cap 2Tx Series User Manual... - Page 21 The BIOS setup program provides a General Help screen. You can call up this screen from any menu by simply pressing <F1>. The Help screen lists the appropriate keys to use and the possible selections for the highlighted item. Press <Esc> to exit the Help screen. ELGENS CO., LTD LPC P-cap 2Tx Series User Manual...
-
Page 22: The Menu Bar
» Save & Exit This menu allows you to load the BIOS default values or factory default settings into the BIOS and exit the BIOS setup utility with or without changes. ELGENS CO., LTD LPC P-cap 2Tx Series User Manual... -
Page 23: Main
(NCQ) and hot-plugging. [RAID] RAID (Redundant Array of Independent Disks) is a virtual disk storage technology that combines multiple physical disks into one unit for data redundancy, performance improvement, or both. ELGENS CO., LTD LPC P-cap 2Tx Series User Manual... -
Page 24: Advanced
Allow users to use the arrow keys on the numeric keypad. » Configurable TDP Boot Mode This feature allows you sets the TDP (Thermal Design Power) Boot mode to either Nominal, Down or Up. ELGENS CO., LTD LPC P-cap 2Tx Series User Manual... -
Page 25: Cpu Configuration
When disabled, the processor will return the actual maximum CPUID (CPU Identification) input value of the processor when queried. ELGENS CO., LTD LPC P-cap 2Tx Series User Manual... -
Page 26: Memory Configuration
Enables or disables In-Band ECC Error Injection. This feature only display when In-Band ECC Support is enabled. ▶ In-Band ECC Error Operation Mode Select an operation mode from 0-2. This feature only display when In-Band ECC Support is enabled. ELGENS CO., LTD LPC P-cap 2Tx Series User Manual... -
Page 27: Super Io Configuration
You can enable the system watch-dog timer, a hardware timer that generates a reset when the software that it monitors does not respond as expected each time the watch dog polls it. ELGENS CO., LTD LPC P-cap 2Tx Series User Manual... -
Page 28: Smart Fan Configuration
This setting enables/disables the Smart Fan function. Smart Fan is an excellent feature which will adjust the CPU/system fan speed automatically depending on the current CPU/system temperature, avoiding the overheating to damage your system. ELGENS CO., LTD LPC P-cap 2Tx Series User Manual... -
Page 29: Network Stack Configuration
3.4.7 PCI/PCIE Device Configuration » Audio Controller This setting enables/disables the onboard audio controller. 3.4.8 GPIO Group Configuration » GPO0 ~ GPO7 These settings control the operation mode of the specified GPIO. ELGENS CO., LTD LPC P-cap 2Tx Series User Manual... -
Page 30: Boot
User Password controls access to the system at boot and to the BIOS Setup utility. » Intel Trusted Execution Technology Intel Trusted Execution Technology provides highly scalable platform security in physical and virtual infrastructures. ELGENS CO., LTD LPC P-cap 2Tx Series User Manual... -
Page 31: Pch-Fw Configuration
This setting enables/disables Communications Hub Support. » JHI Support This setting enables/disables support for Intel Dynamic Application Loader Host Interface (JHI). » Core BIOS Done Message This setting enables/disables Core BIOS Done Message sent to ME. ELGENS CO., LTD LPC P-cap 2Tx Series User Manual... -
Page 32: Firmware Update Configuration
Select TPM (Trusted Platform Module) devices from PTT or dTPM (Discrete TPM). [PTT] Enables PTT in SkuMgr. [dTPM] Disables PTT in SkuMgr. Warning! PTT/ Discrete TPM will be disabled and all data saved on it will be lost. ELGENS CO., LTD LPC P-cap 2Tx Series User Manual... - Page 33 » DOI3 Setting for HECI Disable Setting this option disables setting DOI3 bit for all HECI devices. » MCTP Broadcast Cycle This setting enables/ disables Management Component Transport Protocol (MCTP) Broadcast Cycle. ELGENS CO., LTD LPC P-cap 2Tx Series User Manual...
-
Page 34: Amt Configuration
Enable HW ERB mechanism for current ARB SVN value. FW with lower ARB-SVN will be blocked from execution. The value will be restored to disable after the command is sent. 3.6.2 AMT Configuration » USB Provisioning of AMT Enables or disable USB Provisioning of AMT. ELGENS CO., LTD LPC P-cap 2Tx Series User Manual... -
Page 35: Asf Configuration
This setting changes Secure Erase module behavior. [Simulated] Performs SE flow without erasing SSD. [Real] Erase SSD. » Force Secure Erase Setting this option enables/ disables to force Secure Erase on next boot. ELGENS CO., LTD LPC P-cap 2Tx Series User Manual... - Page 36 This setting enables/ disables the Unconfigure ME. 3.6.2.5 MEBx Resolution Setting » Non-UI Mode Resolution Resolution for non-UI text mode. » UI Mode Resolution Resolution for UI text mode. » Graphic Mode Resolution Resolution for graphics mode. ELGENS CO., LTD LPC P-cap 2Tx Series User Manual...
-
Page 37: Trusted Computing
» TPM 2.0 Interface Type This setting shows the TPM 2.0 Interface Type. » PH Randomization This setting enables/disables PH Randomization. » Device Select Select your TPM device through this setting. ELGENS CO., LTD LPC P-cap 2Tx Series User Manual... -
Page 38: Serial Port Console Redirection
COM port for display on the terminal screen. Besides, all data received from the serial port is interpreted as keystrokes from a local keyboard. ELGENS CO., LTD LPC P-cap 2Tx Series User Manual... - Page 39 » Recorder Mode, Resolution 100x31 These settings enable/disable the recorder mode and the resolution 100x31. » Putty Keypad PuTTY is a terminal emulator for Windows. This setting controls the numeric keypad for use in PuTTY. ELGENS CO., LTD LPC P-cap 2Tx Series User Manual...
-
Page 40: Console Redirection Settings (Out-Of-Band Management)
» Bits per second EMS, Data Bits EMS, Parity EMS, Stop Bits EMS This setting specifies the transfer rate of Console Redirection. ELGENS CO., LTD LPC P-cap 2Tx Series User Manual... -
Page 41: Chipset
This setting controls the intensity of the LED’s backlight output. When lighting conditions are brighter, set it high for a clearer image and low when it is darker. LED’s backlight output [Level 1] [Level 2] [Level 3] [Level 4] [Level 5] 100% ELGENS CO., LTD LPC P-cap 2Tx Series User Manual... -
Page 42: Power
PCIE PME is detected. » RTC When [Enabled], you can set the date and time at which the RTC (real-time clock) alarm awakens the system from suspend mode. ELGENS CO., LTD LPC P-cap 2Tx Series User Manual... -
Page 43: Save & Exit
» Restore User Defaults Restore the user’s default profile. » Launch EFI Shell from filesystem device This setting helps to launch the EFI Shell application from one of the available file system devices. ELGENS CO., LTD LPC P-cap 2Tx Series User Manual... - Page 44 History Revision Date Modification Note ELGENS CO., LTD LPC P-cap 2Tx Series User Manual...
