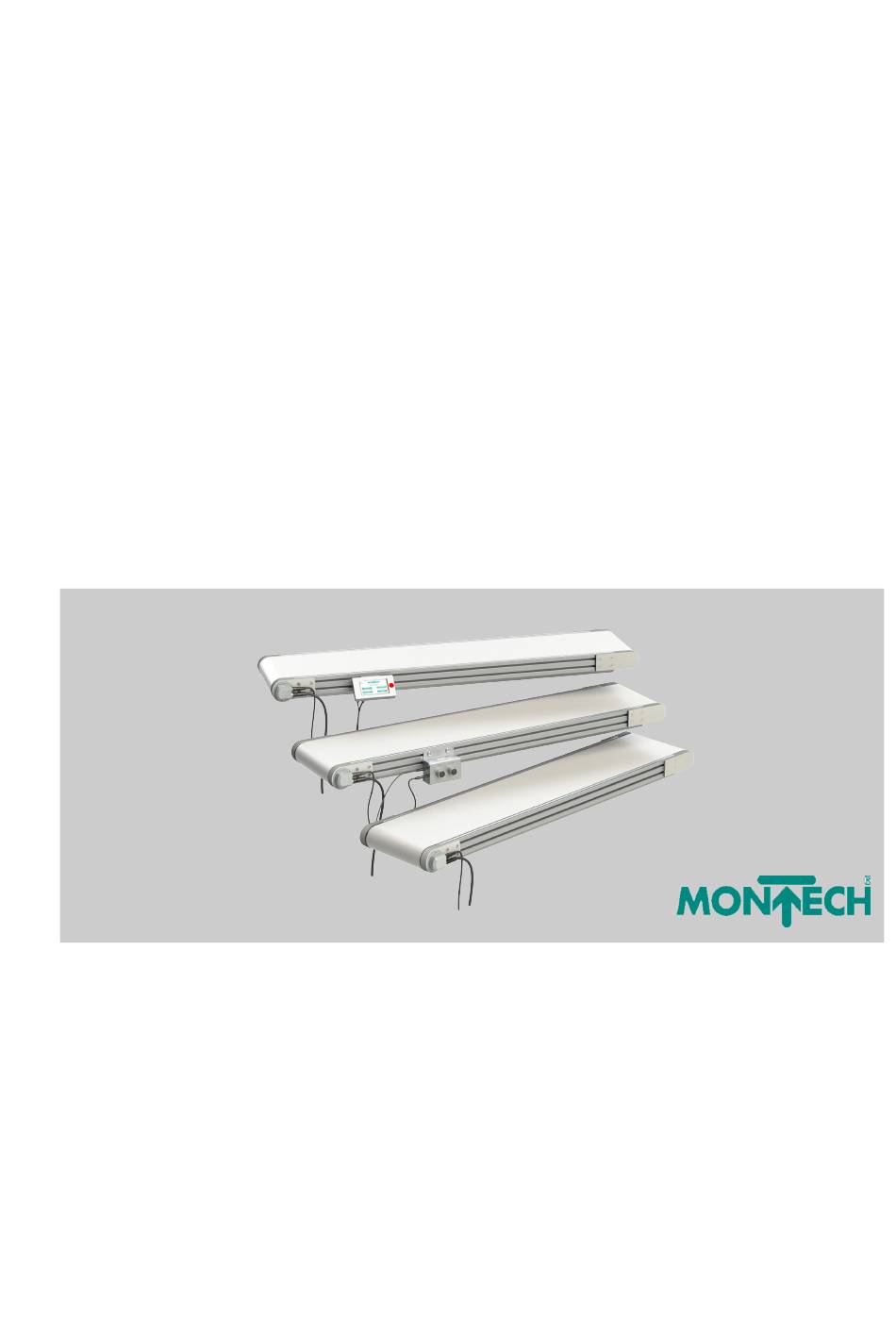

Page 1 Assembly instructions TB40 Conveyor Read this manual prior to performing any task!
Page 2 Montech AG Gewerbestrasse 12 4552 Derendingen SWITZERLAND Telephone: +41 32 681 55 00 E-mail: info@montech.com Internet: www.montech.com Translation of the original assembly instructions MA-100182, 1, en_US © Montech AG 2024 TB40 Conveyor 29.04.2025...
Page 3: Supplemental Directives
Any use beyond this is not permitted without the written consent of Montech AG. This manual may not be reproduced, transferred or adapted, in whole or in part, without prior written permission of Montech AG. Limitation of liability All information and reference notes in this manual have been com- piled in accordance with the applicable standards and regulations, the state of the art, and many years of knowledge and experience.
Page 4 Supplemental directives Address Montech AG Gewerbestrasse 12 4552 Derendingen SWITZERLAND Phone +41 32 681 55 00 E-mail service@montech.com www.montech.com TB40 Conveyor 29.04.2025...
Page 5: Table Of Contents
4.6 Storage............... 36 Installation and initial commissioning......37 5.1 Safety during installation and commissioning..... 37 5.2 Requirements for the installation site......37 5.3 Required installation steps.......... 38 5.4 Folding out the conveyor..........38 5.5 Installing the substructure........... 40 29.04.2025 TB40 Conveyor...
Page 6 6.6.1 “Restart” parameter..........102 6.6.2 Restart acknowledgement........103 Maintenance..............105 7.1 Safety during maintenance........105 7.2 Maintenance schedule..........107 7.3 Maintenance work............. 107 7.3.1 Correcting the belt run........... 107 7.3.2 Checking the conveyor belt........108 7.3.3 Cleaning the conveyor........... 109 TB40 Conveyor 29.04.2025...
Page 7 C.6 Output assignment ..........148 C.6.1 Assignment of outputs Out 1, etc. Out 3 .... 148 C.6.2 Speed alert threshold ........149 C.6.3 Current alert threshold ........150 C.6.4 Temperature alert threshold ....... 151 C.7 Correction factor ............152 29.04.2025 TB40 Conveyor...
Page 8 Table of contents TB40 Conveyor 29.04.2025...
Page 9: Overview
The TB40 conveyor is used for individual infeed and outfeed con- veyors or for linking conveyor systems. The 24 V EC motor is inte- grated into the drive roller. The TB40 is operated via a program- mable logic controller (PLC). The TB40 can optionally be operated via the MonTurn or MonTouch control unit and parameterized via the MonTouch parameterization unit.
Page 10 Risks due to machines with multiple combinations 1.3.6. Risks due to changes in the conditions of use 1.3.7. Risks due to moving parts 1.3.8. Selecting protective devices against risks from moving parts 1.3.8.1 Moving parts of the power transmission TB40 Conveyor 29.04.2025...
Page 11 Emission of hazardous materials and substances 1.5.14. Risk of being trapped in a machine 1.5.15. Risk of slipping, tripping and falling 1.5.16. Lightning bolt 1.6. Maintenance 1.6.1. Maintenance of the machine 1.6.2. Access to the control stations and maintenance service points 29.04.2025 TB40 Conveyor...
Page 12 Information and information display systems 1.7.1.2. Warning devices 1.7.2. Warning of residual risks 1.7.3. Marking of machinery 1.7.4. Assembly instructions 1.7.4.1. General principles for the drafting of assembly instructions 1.7.4.2. Contents of the assembly instructions 1.7.4.3. Sales brochures 1.7.5. Operating instructions TB40 Conveyor 29.04.2025...
Page 13: Security
Tips and recommendations This symbol highlights useful tips and recommen- dations as well as information for efficient and trouble-free operation. Further designations The following designations are used in this manual to emphasize instructions, results, lists, references and other items: 29.04.2025 TB40 Conveyor...
Page 14: Intended Use
The TB40 conveyor is designed exclusively for the horizontal con- veyance of solid bodies or bodies with fixed geometric shapes. The TB40 conveyor can be installed as an incomplete machine in a complete machine or retrofitted to become a complete stand-alone machine.
Page 15: Responsibility Of The Operator
2.3 Responsibility of the operator Operator The operator is the person who operates the TB40 conveyor for commercial or economic purposes or who allows a third party to use it and who bears legal product responsibility for the protection of personnel or third parties during operation.
Page 16: Personnel Requirements
Personal protective equipment is used to protect people from health and safety hazards at work. Personnel must wear personal protective equipment during the various tasks on and with the conveyor, which is referred to sepa- rately in the individual sections of this manual. TB40 Conveyor 29.04.2025...
Page 17: Working And Danger Areas
The manufacturer of the complete machine must define the working and traffic area according to the area of application of the complete machine. Danger areas below and inside the conveyor in the area of the diverter and drive rollers 29.04.2025 TB40 Conveyor...
Page 18: Safety Markings
This poses a risk of injury. – Keep all safety, warning and operating instruc- tions in a legible condition at all times. – Replace damaged signs or stickers immedi- ately. TB40 Conveyor 29.04.2025...
Page 19: Electrical Hazards
Switch off the conveyor and secure it against being switched on again. The operator must establish a lockout/tagout procedure that reduces or isolates hazardous energy and secures the machine against unintentional restarting. – Before restarting, ensure that all protective devices are fitted and functional. 29.04.2025 TB40 Conveyor...
Page 20 If the conveyor is not attached properly, it may tip over, resulting in injuries due to impact and crushing. – Align the conveyor on the ground and anchor if necessary. – Observe the requirements for the installation site. TB40 Conveyor 29.04.2025...
Page 21: Safety Devices
The emergency stop device must be tested regularly. The emergency stop device may not be used for normal stopping. Disconnector A disconnector must be retrofitted by the manufacturer of the com- plete machine. 29.04.2025 TB40 Conveyor...
Page 22: Emergency Shutdown
When the emergency stop device is activated, the conveyor stops immediately. The emergency stop device must be acknowledged before it can be switched on again. Before switching on again, the cause of the fault must be found and rectified. Fig. 3: Emergency stop device TB40 Conveyor 29.04.2025...
Page 23: Securing Against Restarting
Trigger an emergency stop immediately using the emergency dent stop device. Rescue people from the danger zone. Initiate first aid measures. Alert the emergency services. Inform those responsible at the place of use. Clear access routes for emergency vehicles. 29.04.2025 TB40 Conveyor...
Page 24: Environmental Protection
The following environmentally hazardous substances are used: Cleaning fluids Solvent-based cleaning agents contain toxic substances. They must not be released into the environment. Disposal must be car- ried out by a specialist disposal company. TB40 Conveyor 29.04.2025...
Page 25: Structure And Function
A 24 V motor is integrated into the drive roller, which drives the conveyor belt. The drive unit is available in a right-hand and a left-hand version. 3.1.2 Belt infeed The belt infeed is located opposite the drive unit. 29.04.2025 TB40 Conveyor...
Page 26: Conveyor Belt
The conveyor belt (Fig. 6/1) is optionally available with cleats. Cleats are available in different versions. The choice of belt type depends on the area of application. 3.1.4 Substructure Floor stand Floor stands are available in two versions for the conveyor: fixed height-adjustable TB40 Conveyor 29.04.2025...
Page 27 If the conveyor is to be used for mobile applications, swivel castors with locking device or fixed rollers can be selected for the floor stand. Fig. 8: Adjustable feet and rollers 29.04.2025 TB40 Conveyor...
Page 28: Lateral Guide
Adjustable lateral guide type C: antistatic or non-antistatic (Fig. 10/3) The adjustable lateral guides can be adjusted horizontally and ver- tically. This allows adjustment for the desired conveyor width and the height at which the product is to be guided. TB40 Conveyor 29.04.2025...
Page 29: Conveyor Control
Fig. 12: MonTouch control unit vated. When the button is pressed again, Quick Stop mode is deactivated and the conveyor starts up again. The display shows the home screen again. This button does not replace an emergency-off switch. 29.04.2025 TB40 Conveyor...
Page 30: Operating Modes
Start/stop of a repetitive motion sequence with a specified dis- tance in positive or negative conveying direction. Start/stop of a repetitive motion sequence with a specified dis- tance in reversing conveying direction. TB40 Conveyor 29.04.2025...
Page 31: Parameterization
Structure and function Parameterization 3.3 Parameterization MonTouch as a parameterization The following parameters can be set: unit for the TB40 conveyor MonTouch mode parameterization – Total gear ratio – Restart behavior MonTurn mode parameterization – Total gear ratio PLC speed mode parameterization –...
Page 32 Structure and function Parameterization TB40 Conveyor 29.04.2025...
Page 33: Transport, Packing And Storage
Protect packages from moisture and keep them dry. Weight, attached load Indicates the weight of packages. Handle the marked package according to its weight. Focus Indicates the center of gravity of packages. Observe the center of gravity when lifting and transporting. 29.04.2025 TB40 Conveyor...
Page 34: Carrying Out A Transport Inspection
The conveyor can be transported with the following delivery var- iants: The conveyor is fully assembled. The substructure is disman- tled. The conveyor is detached at the separation point. The sub- structure is dismantled. The conveyor and the substructure are transported fully assembled. TB40 Conveyor 29.04.2025...
Page 35: Packaging
Therefore, do not destroy the packaging and only remove it shortly before installation. Handling packaging materials Dispose of packaging material in accordance with the applicable statutory provisions and local regulations. 29.04.2025 TB40 Conveyor...
Page 36: Storage
Do not expose to aggressive media. Protect from sunlight. Avoid mechanical shocks. Storage temperature: 5 to 40 °C Relative humidity: < 95% If stored for longer than three months, regularly check the gen- eral condition of all parts and the packaging. TB40 Conveyor 29.04.2025...
Page 37: Installation And Initial Commissioning
Access to the adjustment and maintenance area must be ensured. The operator must ensure that the ground is sufficiently dimen- sioned to support the operating load on each support leg and that the support legs are anchored. 29.04.2025 TB40 Conveyor...
Page 38: Required Installation Steps
The conveyors are shipped in units of max. 3 m in length. If the total length of a conveyor exceeds the maximum transport length of 3 m, the conveyors are delivered in several parts. Information on conveyor separation can be found in Appendix B. TB40 Conveyor 29.04.2025...
Page 39 Slide the conveyor belt over the entire sloping conveyor. Align the belt in the center. Align the two halves of the conveyor parallel to each other by pressing on the hinge point. This also tensions the conveyor belt. 29.04.2025 TB40 Conveyor...
Page 40: Installing The Substructure
Version 2: Telescopic bar is pre-assembled. Par- allel fasteners, longitudinal and transverse tra- verses are included. The conveyor must be supported at the separation point from a length of 3 meters. Information on conveyor separation can be found in Appendix B. TB40 Conveyor 29.04.2025...
Page 41: Adjusting The Height-Adjustable Floor Stand
5.5.2 Adjusting the height-adjustable floor stand Adjust height-adjustable floor stands before instal- ling the conveyor! Personnel: Specialist staff Protective equipment: Protective gloves Safety shoes If the conveyor is already installed: Secure the conveyor against falling. Loosen the screws of the mounting brackets. 29.04.2025 TB40 Conveyor...
Page 42 Fig. 17: Adjusting the floor stand Slightly loosen the fillister head screws (Fig. 17/1). Set the desired height of the conveyor. Tighten the fillister head screws (Fig. 17/1) again. Tightening torque: 2 Nm Tighten the screws of the mounting brackets. TB40 Conveyor 29.04.2025...
Page 43: Installing The Mounting Bracket
The exact positions depend on the configuration. Place the conveyor on the mounting brackets (Fig. 18/3). Fig. 19: Fastening the conveyor Position the conveyor using the positioning screw (Fig. 19/3). Repeat step 3 for all mounting brackets. 29.04.2025 TB40 Conveyor...
Page 44: Mounting The Conveyor On The Floor Stand
Fasten the floor stand in the lower groove. Swivel two slot nuts (Fig. 20/1) per holder (Fig. 20/3) into the lateral profile (Fig. 20/2) of the conveyor. Distance between the screw holes: 32 mm Place the conveyor on the holders (Fig. 20/3). TB40 Conveyor 29.04.2025...
Page 45: Installing Adjustable Lateral Guides
(Fig. 21/2) and washers (Fig. 21/1). Tightening torque: 6 Nm Repeat step 5 for all mounting brackets. 5.6 Installing adjustable lateral guides The bracket for the adjustable lateral guide is pre- assembled. The lateral guide is supplied loose. 29.04.2025 TB40 Conveyor...
Page 46 Installation and initial commissioning Installing adjustable lateral guides Personnel: Specialist staff Protective equipment: Protective gloves Safety shoes Fig. 22: Swiveling in the slot nut Swivel the slot nut (Fig. 22/1) into the upper groove of the lateral profile (Fig. 22/2). TB40 Conveyor 29.04.2025...
Page 47 Slide the lateral guide holders (Fig. 23/1) into the holders (Fig. 23/2). Insert and tighten the grub screw (Fig. 23/4). Tightening torque: 2 Nm Mount the lateral guide in the holder and tighten it using the cross hole in the rod. Tightening torque: 2 Nm 29.04.2025 TB40 Conveyor...
Page 48: Installing The Monturn Control Unit
(Fig. 25/4) and washers (Fig. 25/3). Tightening torque: 3 Nm Fig. 25: Installing MonTurn 5.8 Installing the MonTouch control unit The MonTouch can be hooked directly into the T-slot of the lateral profile. Proceed as follows for permanent fixation: TB40 Conveyor 29.04.2025...
Page 49 Hook the hammer nuts (Fig. 26/4) into the lateral profile. Hook the MonTouch (Fig. 26/1) into the lateral profile. Fasten the MonTurn (Fig. 26/1) to the hammer nuts (Fig. 26/4) using two countersunk screws (Fig. 26/2) and washers (Fig. 26/3). Tightening torque: 6 Nm 29.04.2025 TB40 Conveyor...
Page 50: Connecting
5.9.2 Connecting the power supply The electrical power supply must be ensured by a qualified electrician. If MonTurn and the conveyor are not connected to the same power supply, equipotential bonding must be ensured between the two ground connec- tions. TB40 Conveyor 29.04.2025...
Page 51: Aligning The Cable Outlet
Turn the cover cap of the cable outlet until the desired cable outlet position of 180° (Fig. 30) is set. Check the fit of the seal. Check that no strands are trapped. Tighten two screws. Tightening torque: 2 Nm Fig. 30: Cable outlet 180° 29.04.2025 TB40 Conveyor...
Page 52: Connecting The Plc
Designation Function Black Up (V+) Power supply +24 V No. 1 or brown Black Ballast Ballast resistor connection* Fig. 32: TB40 power cable polarity No. 2 or diagram gray Black GND (V-) GND power/signal No. 3 or black Green/ Functional earth...
Page 53 Route and wire the signal cable (Fig. 34/2) to the PLC. Plug the TB40 power cable (Fig. 34/3) into the power con- nection (Fig. 34/4) of the drive unit. Fig. 34: Connecting MonTouch The power cable has open strands on the power supply side.
Page 54: Connecting Monturn
27 V is exceeded, the external resistor is switched on. Chopper current = max. 10 A Recommended braking resistor ≥ 3.75 Ω TB40 signal cable - MonTurn TB40 connection polarity diagram MonTurn connection polarity diagram Fig. 36: TB40 signal cable polarity dia- gram - MonTurn TB40 Conveyor 29.04.2025...
Page 55 – Pay attention to the polarity of the connections when connecting the connection cable or TB40 power distribution cable to the power supply unit. 3-pole power cable (M8)
Page 56 Connect the "MonTurn" power cable (Fig. 38/5) to the power connection (Fig. 38/3) of MonTurn. Connect the "TB40" power cable (Fig. 38/6) to the power connection (Fig. 38/7) of the drive unit. Route and wire the "MonTurn" (Fig. 38/5) and "TB40"...
Page 57: Connecting Montouch As A Control Unit
27 V is exceeded, the external resistor is switched on. Chopper current = max. 10 A Recommended braking resistor ≥ 3.75 Ω TB40 signal cable - MonTouch TB40 connection polarity diagram MonTouch connection polarity diagram Fig. 40: TB40 signal cable polarity dia- gram - MonTouch 29.04.2025 TB40 Conveyor...
Page 58 Connecting > Connecting MonTouch as a control unit MonTouch power cable 3-pole connection cable (M8) Color Designation Function Brown Up (V+) Power supply +24 V Blue GND (V-) GND power Black Functional earth Fig. 41: MonTouch power cable polarity diagram TB40 Conveyor 29.04.2025...
Page 59 – Pay attention to the polarity of the connections when connecting the connection cable or TB40 power distribution cable to the power supply unit. Fig. 42: MonTouch connections 29.04.2025...
Page 60: Grounding The Conveyor
Connect the "MonTouch" power cable (Fig. 43/3) to the power connection (Fig. 42/2) of MonTouch. Connect the "TB40" power cable (Fig. 43/4) to the power connection (Fig. 43/5) of the drive unit. Route and wire the "MonTouch" (Fig. 43/3) and "TB40"...
Page 61: Commissioning
8.3.3 “Aligning the conveyor belt” on page 118. Run the conveyor belt with products. If the products are not transported as desired, pre-tension the conveyor belt Ä Chapter 8.3.4 “Slackening and retensioning the conveyor belt” on page 120. 29.04.2025 TB40 Conveyor...
Page 62 Installation and initial commissioning Commissioning TB40 Conveyor 29.04.2025...
Page 63: Operation
Limbs can be crushed between the belt cleats and the lateral guide when the conveyor is running. – Do not handle the end section while the con- veyor is running. – Work on the conveyor may only be carried out by trained, qualified operators. 29.04.2025 TB40 Conveyor...
Page 64: Operation Via Plc
Speed mode input function DIN A DIN B DIN 1 DIN 2 Direction of Value Function rotation Freewheel (drive not energized) Positive Variable speed via AIN 1 TB40 Conveyor 29.04.2025...
Page 65 Overrun 0 mm (inactive) 0 mm (inac- 0 mm (inac- tive) tive) Restart Acknowledgement Acknowl- Acknowl- behavior required edgement edgement after error required required The default values can be subsequently adjusted using the Mon- Touch control unit. 29.04.2025 TB40 Conveyor...
Page 66 Stop (braking and holding) The change in speed via the analog input is limited by the accele- ration and deceleration values. 6.2.2.3 Speed specification via stored values Fig. 45: Speed specification via stored values v1, v2, v3 TB40 Conveyor 29.04.2025...
Page 67 The overrun is performed at every stop (braking and holding) and can vary in length in both the positive and negative direction The overrun can only be set at the factory. Fig. 46: Overrun 29.04.2025 TB40 Conveyor...
Page 68: Plc Position Mode
The speed is specified via an analog setpoint. In positioning mode, a defined distance is traveled. If a pulse is specified, the route is executed once. If x pulses are specified, the route is executed x times. TB40 Conveyor 29.04.2025...
Page 69 1 mm 1 mm pulse Max. permis- 45 m/min 33.5 m/min 12 m/min sible posi- tioning speed ± 0.5 mm ± 0.5 mm ± 0.5 mm DOUT 1 message window Acceleration/ 0.8 m/s² 0.56 m/s² 0.21 m/s² deceleration 29.04.2025 TB40 Conveyor...
Page 70 Variable speed via AIN 1 Positive Variable speed via AIN 1 Negative Variable speed via AIN 1 0 à 1 Positive Transition to overrun positive + stop 0 à 1 Negative Transition to overrun negative + stop TB40 Conveyor 29.04.2025...
Page 71 DIN 1 DIN 2 Direction of Value Function rotation Freewheel (drive not energized) Stop (braking and holding) Stop (braking and holding) 0 à 1 Positive Execute distance one time 0 à 1 Negative Execute distance one time 29.04.2025 TB40 Conveyor...
Page 72: Direction Of Rotation
Execute the route several times (distance = x * positive edge DIN 2*) 0 à 1 Negative Execute the route several times (distance = x * positive edge DIN 2*) * Input frequency DIN 2 < 10 kHz TB40 Conveyor 29.04.2025...
Page 73 Variable speed via AIN 1 0 à 1 Positive Transition to overrun positive + stop 0 à 1 Negative Transition to overrun negative + stop A defined overrun (fixed value) can be activated and changed via the MonTouch control unit. 29.04.2025 TB40 Conveyor...
Page 74: Output Functions
MonTouch. 6.2.4 Output functions DOUT 1 output DOUT 2 output DOUT 3 output No function A track encoder B track encoder Speed message Speed message Speed message Power message Power message Power message TB40 Conveyor 29.04.2025...
Page 75: Parameterizable Values
= 30 m/min v2 = 8 m/min v2, v3 v2 = 20 v3 = 45 m/min v3 = 12 m/min m/min v3 = 30 m/min Acceleration/ 0.80 m/s² 0.56 m/s² 0.21 m/s² deceleration 29.04.2025 TB40 Conveyor...
Page 76: Monturn Control Unit
6.3 MonTurn control unit Parameterizing To operate the TB40 conveyor with the MonTurn control unit, the conveyor drive must be parameter- ized in PLC speed mode. Parameterization is carried out at the factory. Sub- sequent changes can be made using the optional MonTouch parameterization unit.
Page 77 Safety shoes Set the belt speed using the rotary switch (Fig. 51/1). When the conveyor is stopped via the rotary switch, the drive is in freewheel mode and is not energized. Fig. 51: Setting the belt speed 29.04.2025 TB40 Conveyor...
Page 78: Montouch Control Unit
The navigation area (Fig. 53/2) contains controls for navigating through the individual user interfaces. Fig. 53: MonTouch user interface Control elements Symbol Description Function Home Calls up the home screen of MonTouch operation. Back Calls up the previous interface. Settings Calls up the Settings menu. TB40 Conveyor 29.04.2025...
Page 79 Additional information/QR codes For some user interfaces, additional information can be accessed via a QR code. The QR code is shown either directly on the display or by pressing the button Fig. 54: Example QR codes 29.04.2025 TB40 Conveyor...
Page 80: Starting Montouch
Smartphone with QR scanner Active Internet connection Scan the QR code with the QR scanner. ð The link stored on www.montech.com is called up. 6.4.2 Starting MonTouch When the supply voltage is applied to MonTouch and the conveyor, an initialization message appears on the display for approx. 2 seconds.
Page 81: Setting The Language
Operator Protective equipment: Protective cover Protective clothing Protective gloves Safety shoes Prerequisite: The MonTouch home screen is displayed. Press “Information/Firmware” . ð The firmware version of the motor and a QR code are displayed. Fig. 57: Information/Firmware 29.04.2025 TB40 Conveyor...
Page 82: Montouch As A Control Unit
The “MonTouch Mode” home screen is displayed. Select “Speed mode” . Use the button to select the desired belt speed. Press the button to start speed mode. The running direction and belt speed selec- tion can be changed dynamically. TB40 Conveyor 29.04.2025...
Page 83 The “MonTouch Mode” home screen is displayed. Select “Speed mode” . Press the button. Use the button to select the belt speed. Use the buttons to set the belt speed. The value range is limited and adapts to the set total gear ratio. 29.04.2025 TB40 Conveyor...
Page 84 Negative running direc- Start the conveyor in the negative direction. tion Stop Stop positioning cycle. Target position not Positioning order not yet fulfilled. reached Target position reached Positioning order fulfilled. Δ s Route Distance to be covered TB40 Conveyor 29.04.2025...
Page 85 Safety shoes Prerequisite: The conveyor runs in position mode. Press the button. ð The conveyor is stopped with a controlled delay. Or during a quick stop: Press the “QUICK STOP” button. ð The conveyor is stopped immediately. 29.04.2025 TB40 Conveyor...
Page 86 If the limit is changed, the other value must also be changed. The dwell time can be set in the range 0.1 to 999.9 s. The belt speed value shows the maximum speed reached during the posi- tioning job. TB40 Conveyor 29.04.2025...
Page 87 Select “Settings” . Select “Acceleration ramp” . Use the button to select the acceleration or deceleration value. Use the buttons to set the desired value. The value range is limited and depends on the total gear ratio. 29.04.2025 TB40 Conveyor...
Page 88 EEPROM memory after the parameterization process has been com- pleted. This means that the parameter values are retained even if the supply voltage fails or is removed. If the button is pressed, the original values are retained. TB40 Conveyor 29.04.2025...
Page 89 Displays the current winding current in steps of 0.1 A. The winding current is not the current consumption of the drive. The displayed value is a calculated value. Current drive temperature Displays the current PCB temperature in steps of 1 °C. 29.04.2025 TB40 Conveyor...
Page 90 Ä “Customer service” on page 3. tomer service Calling up drive status overview Personnel: Operator Protective equipment: Protective cover Protective clothing Protective gloves Safety shoes Prerequisite: The “Position Mode” or “Speed Mode” screen is displayed. Press the button. TB40 Conveyor 29.04.2025...
Page 91: Parameterizing The Conveyor
Eliminate the cause of the error. Press the button. ð The error is acknowledged. 6.5 Parameterizing the conveyor 6.5.1 Connecting MonTouch as a parameterization unit The parameterization unit with the corresponding cable set can be connected to an existing system. 29.04.2025 TB40 Conveyor...
Page 92 Fig. 63: Connecting MonTouch Plug the power distribution cable of the parameterization unit into the connection (Fig. 62/2) on one side. Plug the signal cable of the parameterization unit into the connection (Fig. 62/1) on one side. TB40 Conveyor 29.04.2025...
Page 93: Using Montouch As A Parameterization Unit
MonTurn control unit. No external control unit can be Ä Chapter 6.5.2.3 “Parameterizing MonTurn mode” used. on page 96 The following MonTurn mode parameters can be set via the parameterization unit: MonTurn mode parametrization – Total gear ratio – Restart behavior 29.04.2025 TB40 Conveyor...
Page 94 Restart behavior – Correction factor – Output messages for Out1, Out2, Out3 - A track encoder - B track encoder - Speed alert threshold - Current alert threshold - Message window in position - Temperature alert threshold TB40 Conveyor 29.04.2025...
Page 95 Protective cover Protective clothing Protective gloves Safety shoes Prerequisite: The "Parameterization" home screen is displayed. Select “TB40” . ð The operating modes are displayed. Press the button to select the desired operating mode. Press the button. ð The selected operating mode is confirmed.
Page 96 6.5.2.3 Parameterizing MonTurn mode Personnel: Operator Protective equipment: Protective cover Protective clothing Protective gloves Safety shoes Prerequisite: The “Parameterization” home screen is displayed. Select “TB40” . ð The operating modes are displayed. TB40 Conveyor 29.04.2025...
Page 97 6.5.2.4 Parameterizing PLC speed mode Personnel: Operator Protective equipment: Protective cover Protective clothing Protective gloves Safety shoes Prerequisite: The “Parameterization” home screen is displayed. Select “TB40” . ð The operating modes are displayed. 29.04.2025 TB40 Conveyor...
Page 98 Use the buttons to set the positive and negative overrun values. If both values are set to 0.000 m, no over- travel is performed. Ä Appendix For further information, see “Overrun” on page 147. Press the button. TB40 Conveyor 29.04.2025...
Page 99 For further information, see Ä Appendix “Output assignment” on page 148. Press the button. Use the buttons to set the correction factor. Ä Appendix For further information, see “Correction factor” on page 152. 29.04.2025 TB40 Conveyor...
Page 100 Protective cover Protective clothing Protective gloves Safety shoes Prerequisite: The “Parameterization” home screen is displayed. Select “TB40” . ð The operating modes are displayed. Press the button to select “PLC positioning mode” . Press the button. ð The selected operating mode is confirmed.
Page 101 For further information, see Ä Appendix “Output assignment” on page 148. Press the button. Use the buttons to set the current alert threshold. Ä Appendix For further information, see “Output assignment” on page 148. 29.04.2025 TB40 Conveyor...
Page 102: Restart Behavior
The drive cannot be operated while safety- critical faults are pending. If there are no more safety-critical faults, the drive must be started by acknowledgement to make it ready for operation. 0 = Automatic restart 1 = Acknowledgement required TB40 Conveyor 29.04.2025...
Page 103: Restart Acknowledgement
The rising edge causes the error to be acknowledged. On the output side, the switchover to "ready for operation" is made by the acknowledgement, i.e., only after the start signal has been given. 29.04.2025 TB40 Conveyor...
Page 104 Operation Restart behavior > Restart acknowledgement TB40 Conveyor 29.04.2025...
Page 105: Maintenance
There is a risk of injury from impact, crushing, shearing and drawing in when working on a moving conveyor. – Work should only be carried out by qualified personnel. – Take particular care when working near moving parts. – Wear personal protective equipment. 29.04.2025 TB40 Conveyor...
Page 106 Sharp corners or edges may be exposed throughout the machine area during certain activ- ities, which can cause injuries such as cuts, abra- sions, or punctures. – Wear the prescribed personal protective equip- ment for all work. TB40 Conveyor 29.04.2025...
Page 107: Maintenance Schedule
Qualified electrician 7.3 Maintenance work 7.3.1 Correcting the belt run The conveyor belt must run centrally over the diverter roller and the drive roller. The edges of the conveyor belt must not touch the sides of the conveyor. 29.04.2025 TB40 Conveyor...
Page 108: Checking The Conveyor Belt
8.3.1.1.1 “Pre-loading the conveyor belt” on page 115, Ä Chapter 7.3.1 “Correcting the belt run” on page 107. Check the conveyor belt for damage (especially the joints). Ä Chapter 8.3.1 Replace the conveyor belt if damaged “Replacing the conveyor belt” on page 114. TB40 Conveyor 29.04.2025...
Page 109: Cleaning The Conveyor
Ä “Suitable solvents” on page 110). Remove stubborn dirt by brushing with soapy water or washing with a suitable solvent. Special requirements apply to the cleaning and disinfection of synthetic conveyor belts in the food industry. Dry off the conveyor belt. 29.04.2025 TB40 Conveyor...
Page 110 - Resistant in normal climate (23 °C, 50% relative humidity) o - Conditionally stable. Depending on the concentration, development time, thermal and mechanical stress, discoloration, swelling, embrittlement or abrasion is possible. x - Not stable even at low concentrations. TB40 Conveyor 29.04.2025...
Page 111 - Vinegar, citric acid - Javel water (sodium hypochlorite solution < 1%) - Ethanol, methanol, methylated spirits Unsuitable solvents – Aromatic compounds (benzene, toluene, xylene) – Chlorinated hydrocarbons (trichloroethylene, tetrachloroethylene, hydrogen tetrachloride) – Ketones (acetone, methyl ethyl ketone) 29.04.2025 TB40 Conveyor...
Page 112 Maintenance Maintenance work > Cleaning the conveyor TB40 Conveyor 29.04.2025...
Page 113: Malfunctions
3. Overcurrent fault Winding current is > Check the conveyor for mechanical damage. Check for 20,000 mA. blockages caused by foreign objects. Check the belt run and correct if necessary. 29.04.2025 TB40 Conveyor...
Page 114: Troubleshooting Work
Fig. 70: Thermofix running direction 8.3.1.1 Replacing endless belts We recommend installing endless belts if the conveyor is easily accessible or if the necessary equipment for welding continuous splicing is not available. TB40 Conveyor 29.04.2025...
Page 115 The pre-load of the conveyor belt is individual and is specified on the conveyor’s rating plate Ä Chapter 10.7 “Rating plate” on page 129). The conveyors are supplied with pretensioned con- veyor belts. The conveyor belt must be preten- sioned when replacing it. 29.04.2025 TB40 Conveyor...
Page 116 Tighten the clamping screws (Fig. 73/1) evenly until the required pre-load is achieved. ð The measuring marks move away from each other. Check that the pre-load is the same on both sides. Fig. 73: Tightening the clamping screws TB40 Conveyor 29.04.2025...
Page 117: Replacing The Drive Unit
Disconnect the signal cable and power cable from the drive unit. Place markings at a predetermined distance (e.g., 1 meter) on the conveyor belt and note the distance. Slacken the conveyor belt by alternately loosening the clamping screws (Fig. 74/1). Fig. 74: Tightening the clamping screws 29.04.2025 TB40 Conveyor...
Page 118: Aligning The Conveyor Belt
– All drive and diverter rollers must be clean. Replace damaged or badly worn parts. – After each adjustment, allow the belt to run a few rotations in the new direction before making any further corrections. TB40 Conveyor 29.04.2025...
Page 119 The knife edge beam is therefore fitted and aligned before delivery. The belt pre-load and belt run are adjusted at the factory before delivery using the diverter roller located underneath. The belt run can be adjusted as required using the diverter roller. 29.04.2025 TB40 Conveyor...
Page 120: Slackening And Retensioning The Conveyor Belt
8.3.4 Slackening and retensioning the conveyor belt Retensioning a loosened conveyor belt using the method described for initial tensioning will result in overtensioning, as the new elongation is added to the initial elongation that has not yet been fully released. TB40 Conveyor 29.04.2025...
Page 121: Alternative Procedure
Note the original distance between the measuring marks of the tensioned belt. Release the clamping device. ð The distance between the measuring marks becomes shorter. ð The conveyor belt is slackened. 29.04.2025 TB40 Conveyor...
Page 122: Tensioning The Conveyor Belt For The First Time
If the distance between the markings increases to 1,005 mm, the correct tension has been reached (at 0.5% pre-expan- sion). Turn the belt at least one round and measure the distance between the markings again. Tension the belt to the required initial elongation. TB40 Conveyor 29.04.2025...
Page 123: Disassembly And Disposal
Switch off the conveyor and secure it against restarting Ä Chapter 2.11 “Securing against restarting” on page 23. Disconnect the conveyor from the power supply. Ä Chapter 7.3.3 “Cleaning the conveyor” Clean components on page 109. Disassemble and collect components according to material type. 29.04.2025 TB40 Conveyor...
Page 124: Disposal
If no take-back or disposal agreement has been made, disassem- bled components must be recycled: Scrap metals. Recycle plastic components. Dispose of the remaining components, sorted according to material properties. TB40 Conveyor 29.04.2025...
Page 125: Technical Data
Value Unit Length 150 mm Width 85 mm Height 32 mm 10.2 Performance data Data Value Unit Speed (± 10%) 0.25 to 45 m/min Load, max. 200 kg Permissible line load 100 kg/m Warranty period 3 Years 29.04.2025 TB40 Conveyor...
Page 126: Connected Loads
Protection against polarity reversal and voltages In case of cable breakage Logic level 0 5.4 kΩ Input impedance ≤ 10 kHz Input frequency Input frequency with setpoint specifi- 15 kHz cation PWM/frequency via IN 1/IN 2, max. TB40 Conveyor 29.04.2025...
Page 127 Output frequency at = 100 mA /out * There is no general reverse polarity protection. If the logic voltage is equal to or higher than the voltage applied to the output, it will not cause a defect. 29.04.2025 TB40 Conveyor...
Page 128: Security And Monitoring Function
* Without consideration of slip and elasticity 10.6 Operating conditions Data Value Unit Ambient temperature +10 to 40 °C Relative humidity (non-condensing) < 95 % Storage temperature +5 to 40 °C Storage humidity (non-condensing) < 95 % Protection class (MonTurn/MonTouch) IP50 TB40 Conveyor 29.04.2025...
Page 129: Rating Plate
The rating plate contains the following information: Manufacturer Address Order number Belt type Belt width Belt length BA (operating instructions) Belt type Speed Pre-load Max. load Year of manufacture 10.8 Noise emission Data Value Unit Sound level < 65 dB(A) 29.04.2025 TB40 Conveyor...
Page 130 Technical data Noise emission TB40 Conveyor 29.04.2025...
Page 131: Index
Index TB40 power cable ....52, 54, 57 Checking delivery ..... . . 34 Acceleration ramp .
Page 132 Stopping speed mode ....83 User interface ......78 TB40 Conveyor 29.04.2025...
Page 133 Overrun ......67, 73 TB40 ......52, 54, 57 Overtemperature .
Page 134 Working areas ......17 Starting ......82 TB40 Conveyor 29.04.2025...
Page 135: Appendix
Appendix Appendix 29.04.2025 TB40 Conveyor...
Page 136: A Declaration Of Incorporation
Declaration of incorporation Declaration of incorporation TB40 Conveyor 29.04.2025...
Page 137: B Belt Separation
Belt separation Belt separation Mechanical structure of the TB40 Conveyor belt transport length The conveyors are shipped in units of max. 3 m in length. If the total length of a conveyor exceeds the maximum transport length of 3 m, the conveyors are delivered in several parts.
Page 138 Belt separation Fig. 83: Belt separation UR 2,180–3,000 mm Fig. 84: Belt separation UR 3,000–4,168 mm Fig. 85: Belt separation UR 4,168–4,192 mm TB40 Conveyor 29.04.2025...
Page 139 Adjustable lateral guide; length in mm (min. 500 mm) Fixed lateral guide, length in mm C, C1, C2 Lateral profile length Separation point for transport Fig. 87: Belt separation MK 0–2,084 mm Fig. 88: Belt separation MK 2,084–3,000 mm 29.04.2025 TB40 Conveyor...
Page 140 Belt separation Fig. 89: Belt separation MK 3,000–4,000 mm Fig. 90: Belt separation MK 4,000–4,168 mm Fig. 91: Belt separator MK 4,168–6,000 mm TB40 Conveyor 29.04.2025...
Page 141: C Montouch Parameters
The overall gear ratio has an influence on most of the following parameters. The more precisely the overall gear ratio is set, the more precise the speeds and positioning of the conveyor will be. 29.04.2025 TB40 Conveyor...
Page 142: Belt Speeds
[mm/rev] Total gear ratio total Ä Appendix “Total gear ratio” on page 141 Correction factor corr Ä Appendix “Correction factor” on page 152 [m/min] = 12 * i total corr [m/min] = 400 * i total corr TB40 Conveyor 29.04.2025...
Page 143: Positioning
MonTouch parameters Positioning C.3.1 Travel distance (pulse) The travel distance can be used via the digital inputs (bit pattern). Min. Value Max. value Travel distance Δ s 0.001 9.999 29.04.2025 TB40 Conveyor...
Page 144: Positioning The Belt Speed
The belt speed set corresponds to the maximum speed of the conveyor. It is controlled via the analog input. Min. Value Max. value N [m/min] Ä Appendix Ä Appendix “Belt speeds” “Belt speeds” on page 142 on page 142 TB40 Conveyor 29.04.2025...
Page 145: Positioning Window
To receive feedback as to whether the target posi- tion or the positioning window has been reached, an output must be parameterized with "Positioning Ä Appendix “Assignment of out- window reached" puts Out 1, etc. Out 3” on page 148. 29.04.2025 TB40 Conveyor...
Page 146: Acceleration Values
Max. value a [m/s Calculation of the limit values Symbol Designation [mm/rev] Total gear ratio total Ä Appendix “Total gear ratio” on page 141 [m/s ] = 0.0133 * i total [m/s ] = 0.3333 * i total TB40 Conveyor 29.04.2025...
Page 147: Overrun
MonTouch parameters Overrun Min. Value Max. value Positive overtravel 9.999 Negative overtravel 9.999 29.04.2025 TB40 Conveyor...
Page 148: Output Assignment
Ä Appendix Temperature mes- Out 1...Out 3 sage “Temperature alert threshold” on page 151 RS485-controlled Out 1...Out 3 When the respective alert threshold is reached, the output signal on the motor is switched to 24 V. TB40 Conveyor 29.04.2025...
Page 149: Speed Alert Threshold
The speed alert threshold can be parameterized to one of the three outputs (Out 1 ... Out 3). Min. Value Max. value Default [m/min] thres Ä Appendix Ä Appendix “Belt speeds” “Belt speeds” on page 142 on page 142 29.04.2025 TB40 Conveyor...
Page 150: Current Alert Threshold
MonTouch parameters C.6.3 Current alert threshold The current alert threshold can be parameterized to one of the three outputs (Out 1 ... Out 3). Min. Value Max. value Default thres TB40 Conveyor 29.04.2025...
Page 151: Temperature Alert Threshold
MonTouch parameters C.6.4 Temperature alert threshold The temperature alert threshold can be parameterized to one of the three outputs (Out 1 ... Out 3). Min. Value Max. value Default thres 29.04.2025 TB40 Conveyor...
Page 152: Correction Factor
Calculation of the correction factor Symbol Designation Target value Set value Actual value Measured value [%] = 100 * target value / actual value fcorr The same unit must be used for the target value and actual value. TB40 Conveyor 29.04.2025...

Montech TB40 Assembly Instructions Manual

Quick Links

Need help?

Questions and answers

Related Manuals for Montech TB40

Summary of Contents for Montech TB40

Table of Contents
