THOMSON ICC20 Service Manual

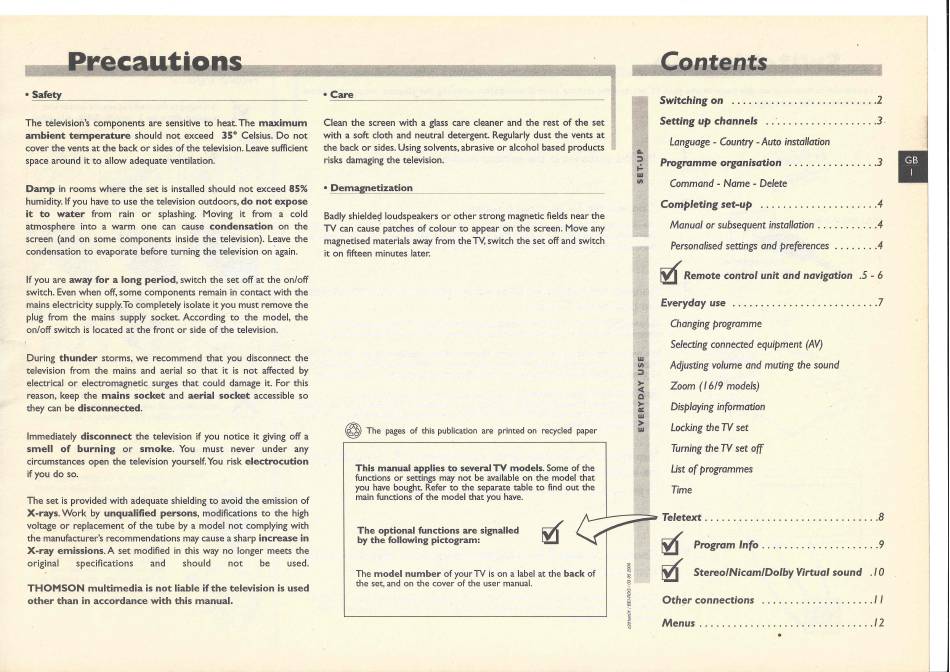

• Safety
The television's components are sensitive to heat. The maximum
ambient temperature should not exceed 35° Celsius. Do not
cover the vents at the back or sides of the television. Leave sufficient
space around it to allow adequate ventilation.
Damp in rooms where the set is installed should not exceed 85%
humidity. If you have to use the television outdoors, do not expose
it to water from rain or splashing. Moving it from a cold
atmosphere into a warm one can cause condensation on the
screen (and on some components inside the television). Leave the
condensation to evaporate before turning the television on ·again.
If you are away for a long period, switch the set off at the on/off
switch. Even when off, some components remain in contact with the
mains electricity supply.To completely isolate it you must remove the
plug from the mains supply socket. According to the model, the
on/off switch is located at the front or side of the television.
During thunder storms, we recommend that you disconnect the
television from the mains and aerial so that it is not affected by
electrical or electromagnetic surges that could damage it. For this
reason, keep the mains socket and aerial socket accessible so
they can be disconnected.
Immediately disconnect the television if you notice it giving off a
smell of burning or smoke. You must never under any
circumstances open the television yourself. You risk electrocution
if you do so.
The set is provided with adequate shielding to avoid the emission of
X-rays. Work by unqualified persons, modifications to the high
voltage or replacement of the tube by a model not complying with
the manufacturer's rec~mmendations may cause a sharp increase in
X-ray emissions. A set modified in this way no longer meets the
original specifications and should not be used.
THOMSON multimedia is not liable if the television is used
other than in accordance with this manual.
• Care
Clean the screen with a glass care cleaner and the rest of the set
with a soft cloth and neutral detergent. Regularly dust the vents at
the back or sides. Using solvents, abrasive or alcohol based products
risks damaging the television.
• Demagnetization
Badly shielde9 loudspeakers or other strong magnetic fields near the
TV can cause patches of colour to appear on the screen. Move any
magnetised materials away from the TY, switch the set off and switch
it on fifteen minutes later.
@
The pages of this publication are printed on recycled paper
This manual applies to several TV models. Some of the
functions or settings may not be available on the model that
you have bought. Refer to the separate table to find out the
main functions of the model that you have.
II.
::>
.:.
Ill
Ill
Switching on ......................... . 2
Setting up channels .. · ................. .3.
Language - Country -Auto installation
Programme organisation ............... .3
Command - Name - Delete
Completing set-up .................... .4
Manual or subsequent installation ..........
.4
Personalised settings and preferences ....... .4
~
Remote control unit and navigation .5 - 6
Everyday use ....... . .................. 7
Changing programme
Selecting connected equipment (AV)
Ill
111
Adjusting volume and muting the sound
:::,
~
· Zoom ( 16/9 models)
0
~
Displaying information
Ill
~
Locking the TV set
Turning the TV set off
Ust
of
programmes
Time
J..---=
Teletext ............................... 8
The optional functions are signalled
by the following pictogram:
The model number of your TV is on a label at the back of
the set, and on the cover of the user manual.
~
Program Info ..................... 9
~
Stereo/Nicam/Dolby Virtual sound . I 0
Other connections .................... I I
Menus .............................. . 12
•
