Summary of Contents for VonHaus 3519006

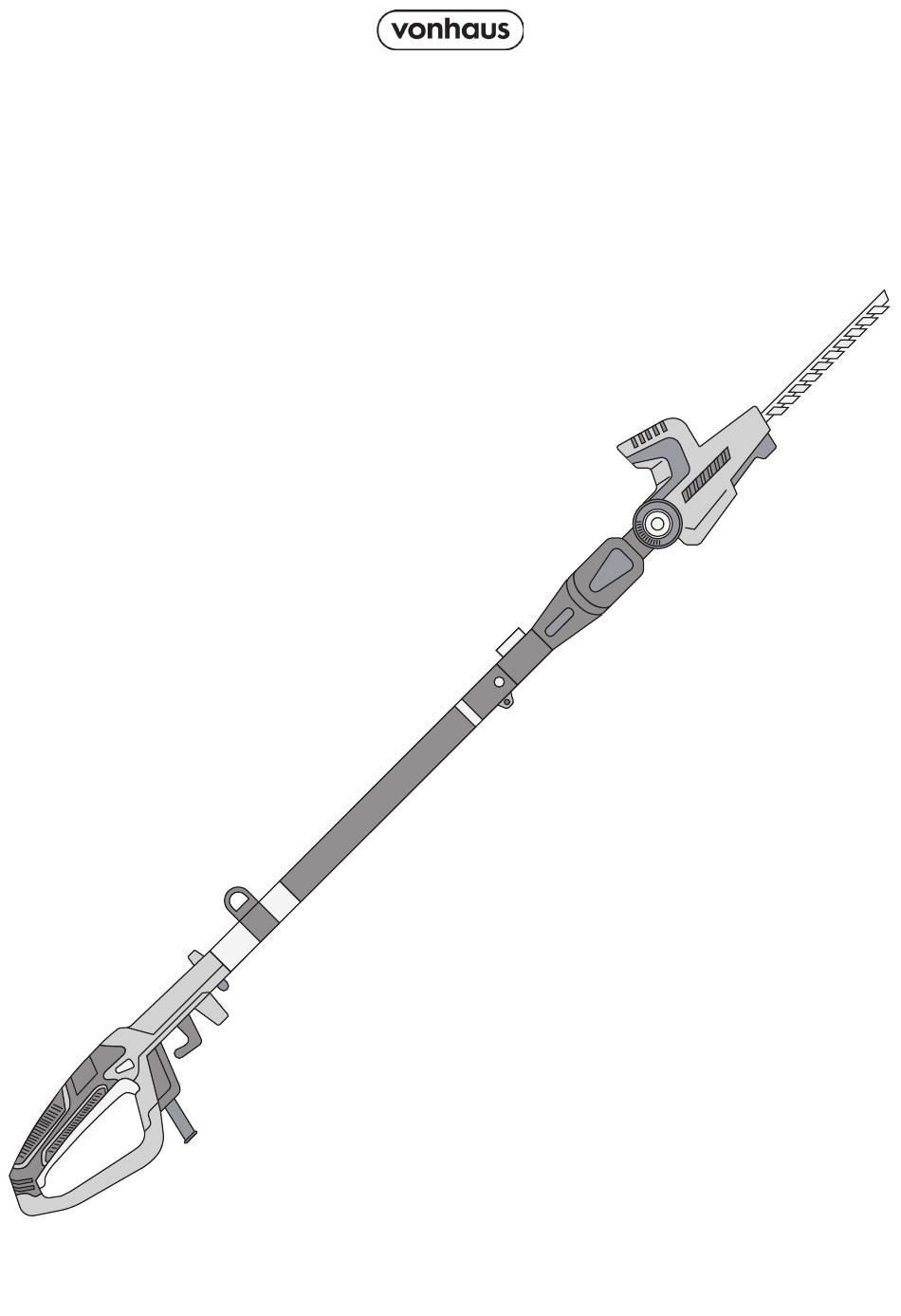

- Page 1 POLE HEDGE TRIMMER Setup Instructions Product No. 3519006...
- Page 2 Need further help? See our full range at support@vonhaus.com www.vonhaus.com Besoin d’aide supplémentaire ? Découvrez notre gamme complète sur support@vonhaus.com www.vonhaus.com Benötigen Sie weitere Hilfe? Entdecken Sie unser gesamtes Sortiment auf support@vonhaus.com www.vonhaus.com Necesita más ayuda? Descubra toda nuestra gama en support@vonhaus.com...
-
Page 3: Parts And Components
Parts & Components A. Cord Retainer B. Back Handle C. Lock-off Button D. Trigger E. Handle Grip F. Telescopic Pole G. Connecting head for telescopic pole H. Connecting head for hedge trimmer I. Angle Adjustment Button J. Blade K. Blade Cover L. - Page 4 Assembly...
-
Page 5: Operation
Operation Plug the garden tool into a power supply. To turn the hedge trimmer ON, push and hold the safety lock switch (C) located on the handle forward with your thumb, then squeeze the trigger switch (D) with your fingers. Once the tool is running, you can release the safety lock switch. - Page 6 Adjusting the Telescoping Pole Pull the switch upwards to unlock the Telescopic Pole (F) Extend only as needed to reach the hedge. Lock the pull by pulling the switch back down once adjusted. WARNING: Failure to lock the telescoping lock prop- erly after adjusting could result in personal injury.
- Page 7 Adjusting the Multi-Angle Head WARNING: Keep hands away from the 1. Disconnect Power: Unplug the tool. 2. Position the Tool: Place the hedge pivoting head and base to avoid pinch trimmer on a flat surface. injuries. 3. Adjust Head: Push the pivot button to set the trimmer head into one of the 10 positions.
- Page 8 How to Use the Harness Place the large upper loop of the shoulder strap over your head and let it rest on your shoulder.
- Page 9 How to Use the Harness Take the lower strap portion and wrap it around your waist, then secure the buckle at the back until it clicks.
- Page 10 How to Use Harness Locate the attachment clip hanging from the harness and connect it to the designated mounting point on your pole hedge trimmer. WARNING: Ensure all buckles are securely fastened and the harness fits snugly before operating the equipment.
-
Page 11: General Safety
Information General Safety Safe Operation • Read all instructions before use • Ensure tool is switched off before connecting • Keep work area clean and well-lit power • Wear proper protective equipment: eye • Remove adjustment keys/wrenches before protection, dust mask, non-skid shoes, hard starting hat and hearing protection •... -
Page 12: Application Range
Information Application Range Cutting Tips WARNING: The pole hedge trimmer is designed exclusively for cutting and trimming hedges, bushes, and shrubs around your home. Any other usage not • Always use both hands on the hedge specified in this manual may damage the device trimmer. -
Page 13: Preparation For Cutting
Information Limbing and Pruning Read the safety information for safe operation when using the blade. Extreme care is essential to ensure safe operation. Refer to the Important This unit is designed for trimming small branches Safety Instructions and Specific Safety Rules. and limbs up to 16 mm in diameter. -
Page 14: Maintenance And Servicing
Information Maintenance and Servicing agents like garden chemicals and de-icing salts. • Use the blade cover: Always attach the WARNING: When servicing, use only identical scabbard to the saw bar when transporting replacement parts. Using any other parts may or storing the pole hedge trimmer. Carefully create hazards or cause product damage. -
Page 15: Usage & Safety
Usage & Safety Sharp edges Protect your ears Protect your eyes Protect your hands Wear suitable footwear Protective clothing must be worn Beware of Potential finger Maintain a safe distance kickback trap points from bystanders Do not use in wet conditions Grass Sweeper No. - Page 16 VonHaus is a registered trademark of DOMU Please retain a proof of purchase receipt or Brands Ltd. statement as proof of the purchase date.
- Page 17 Product No. 3519006...
