Abode Levarto AB2785 Manual

Installation:
1. Screw in the fixing studs (E) into the base of the tap body (A).
2. Place the base plinth (B) then upper seal (C) onto the base of the tap body (A).
3. Screw the hot & cold water tail pipes (I) into the base of the tap (A).
4. Place the mixer (A, B, C, E) and tails (I) straight and central to the basin tap hole (D) as shown and
pass through.
5. Pass the lower seal (F) and then metal horseshoe (G) over fixing studs (E) and around the tail pipes
(I).
6. Fasten fixing nuts (H) securely onto fixing stud (E) to fix the tap (A) into its correct location.
7. Connect the tail pipes (I) to the water mains using ½" BSPx15mm compression fittings.
After Installation:
Once you have visually checked the new fittings and connections, ensure that all taps and drains are closed
except the new product which should be left open. Turn on (reconnect) the water supplies, check carefully for
leaks around the installation and product function. Once you are sure of no leaks, close the new product and
recheck for leaks, turn on the water heating power.
Clean and dry the product of any marks from installation then cover the product with the bag provided to
protect it until use.
Maintenance:

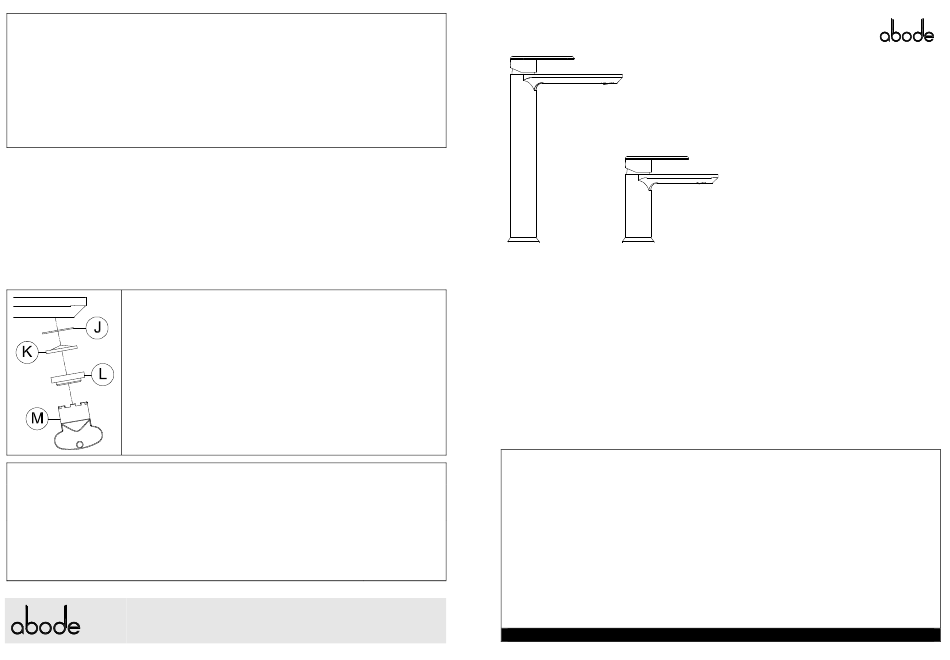

This tap has a removable aerator on the spout exit which can be removed and
cleaned periodically to maintain optimum flow performance.
To clean the aerator:
1. Unscrew aerator (L) using aerator key (M) provided taking care not to lose
washer (J).
2. Re-insert aerator (L) by using aerator key (M) ensuring washer (J) is in place.
To increase flow:
1. Unscrew aerator (L) using aerator key (M) provided taking care not to lose
washer (J).
2. Remove orange limiter (K) using fingernail or small tool.
3. Re-insert aerator (L) by using aerator key (M) ensuring washer (J) is in place.
Important Technical Data
Minimum operating pressure: 0.4 bar
Maximum operating pressure: 5.5 bar*
*If these temperatures or pressures are exceeded, even for short periods, damage can result and will void your warranty.
In these instances, reduce the incoming water temperature and or install a pressure reducing valve. Ensure that your Abode
product is fitted in accordance with Local Water Byelaws or regulations by a qualified installer.
These installation guidelines have been prepared for your direction and you must exercise due care at all times. We do not
accept responsibility for problems that may occur through improper installation. Whilst installing the product take care not to
accidentally loosen any screwed assemblies.
Manufacturers Product Reference: AB2780, AB2781, AB2785, AB2786
Flow characteristics: Single flow
Maximum hot water temperature: 60°C*
Recommended hot water temperature: 46°C
