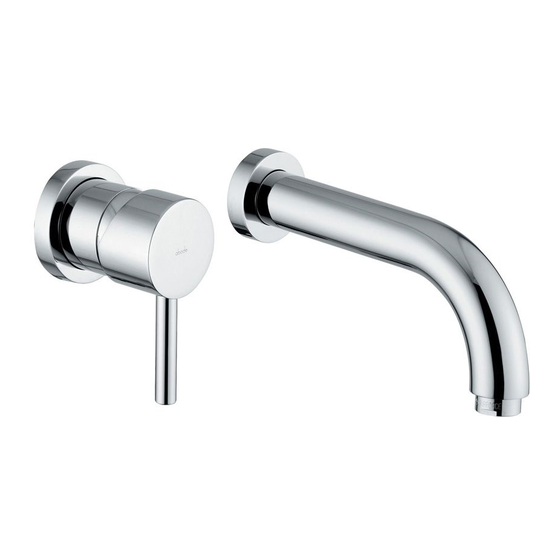

Abode Harmonie AB1201 Manual

Important Technical Data
Minimum operating pressure (Basin) 0.75 bar
Minimum operating pressure (Bath) 1.75 bar
Maximum operating pressure 5.0 bar*
Maximum hot water temperature 70°C*
Recommended hot water temperature 46°C
Note: If these temperatures or pressures are exceeded,
even for short periods, damage can result. In these
instances a thermostatic mixing or pressure reducing
valve should be installed.
For manual mixing products we recommend the
installation of a separate TMV2 product to reduce the
risk of accidental scalding.
All thermostatic products should be tested and cleaned
at least once a year.
Hot and cold supply pressures should be as closely
balanced as possible for best results. Supply pipes
should maintain the maximum diameter until
immediately before the fitting. The differential between
the hot and cold water supply temperatures should be
sufficient to allow correct mixing function.
Manufacturers Product Reference
AB1201
AB2637
©Abode
01/2021
Abode Home Products Limited, Unit L, Zenith Park, Whaley Road, Barnsley, S75 1HT.
Tel: 01226 283434 Fax: 01226 282434 www.abode.eu
All errors and omissions excepted.
All Abode taps are either WRAS approved or
manufactured in accordance with recognised
European standards. Please ensure that your
Abode product is fitted in accordance with Local
Water Byelaws.
Where hot and cold water mix within any product,
then suitable non return valves should be
installed to the hot and cold supplies to prevent
backflow.
Whilst assembling this product take care not to
accidentally loosen any screwed assemblies.
PTFE tape can be used to ensure watertight joins
on threaded connections, do not over tighten
connections or allow pipes to be twisted or
folded.
The installation should be periodically checked
for damage, if the property is left unattended for a
prolonged period we recommend isolating water
supplies.
Abode is a registered trademark of Abode Home
Products Limited. All errors and omissions
excepted.
