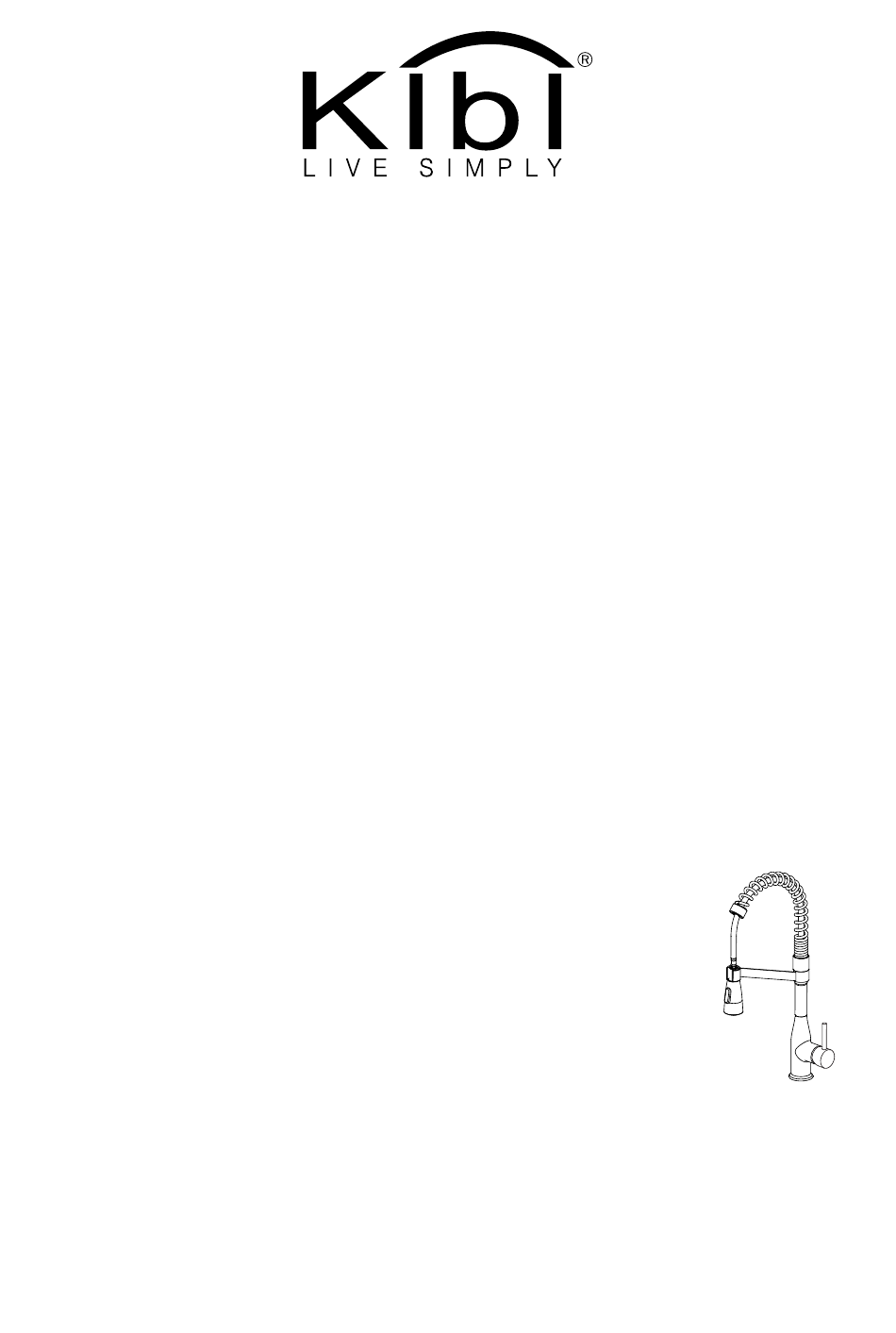

- Page 1 Installation Guide Largo KKF2006 www.kibiusa.com...
-
Page 2: Before Installation
Contact KIBI VOLUME-C 855-883-0888 ✉ support@kibiusa.com �� www.kibiusa.com PRIOR TO INSTALLATION 1- For best results, we recommends that this unit be installed by a licensed, professional plumber. - Page 3 Dimensions Critical dimensions show in mm 4-9/16” (116 mm) 8-11/16” (220 mm) Supply line with 3/8" compression...
-
Page 4: Parts List
Parts List Spring Holder Assembly Bracket Hose Assembly Sprayer Head Check Valve Retainer Cartridge Base 402001000 Aerator CT35CF061 Cartridge Bonnet Nut Handle Assembly Internal Hex Screw M5x4 Plug Mounting Part Quick Connect Hose Allen Key 2.5mm Water Line M8_3/8”_27-1/2” Weight Balance Check Valve... -
Page 5: Faucet Installation
Faucet Installation Shut off water suppliers. Remove the old faucet, clean the Remove the mounting hardware from the mounting mounting surface. pipe. Note: For first time install, flush the pipes first by open the angel valve to run 60s. For Single-Hole Sinks: For Three-Hole Sinks: Put the rubber O-ring into the bottom gap of faucet then Place stainless (non-staining) deck plate and deck plate... - Page 6 Faucet Installation Adjust position of faucet body if necessary, Then tighten Connect and tighten the supply hoses by using two the mounting nuts with phillips screwdriver until snug. adjustable wrenches (avoid twisting or kinking). Note: Do not remove the net filter that attached into the connecting end! Click Turn on water suppliers.
-
Page 8: Troubleshooting
Here are the details of our warranty policy: Kibi USA warrants the structure and finish of the faucets and accessories to be free from defects in material and workmanship under normal usage for as long as the original purchaser resides in the residence in which the product was first installed.
