POOL HEAT PUMP
ITEM #75210 (53000 BTU/H) - 75212 (137000 BTU/H)
OWNER'S MANUAL AND SAFETY INSTRUCTIONS
SAVE THIS MANUAL: KEEP THIS MANUAL FOR SAFETY WARNINGS, PRECAUTIONS, ASSEMBLY,
OPERATING, INSPECTION, MAINTENANCE AND CLEANING PROCEDURES. WRITE THE PRODUCT'S
SERIAL NUMBER ON THE BACK OF THE MANUAL NEAR THE ASSEMBLY DIAGRAM (OR MONTH
AND YEAR OF PURCHASE IF PRODUCT HAS NO NUMBER).
FOR QUESTIONS PLEASE CALL OUR CUSTOMER SUPPORT: (909) 628 0880 MON-FRI 9AM TO 3PM PST
Advertisement
Table of Contents
Related Manuals for XtremepowerUS 75210
Summary of Contents for XtremepowerUS 75210

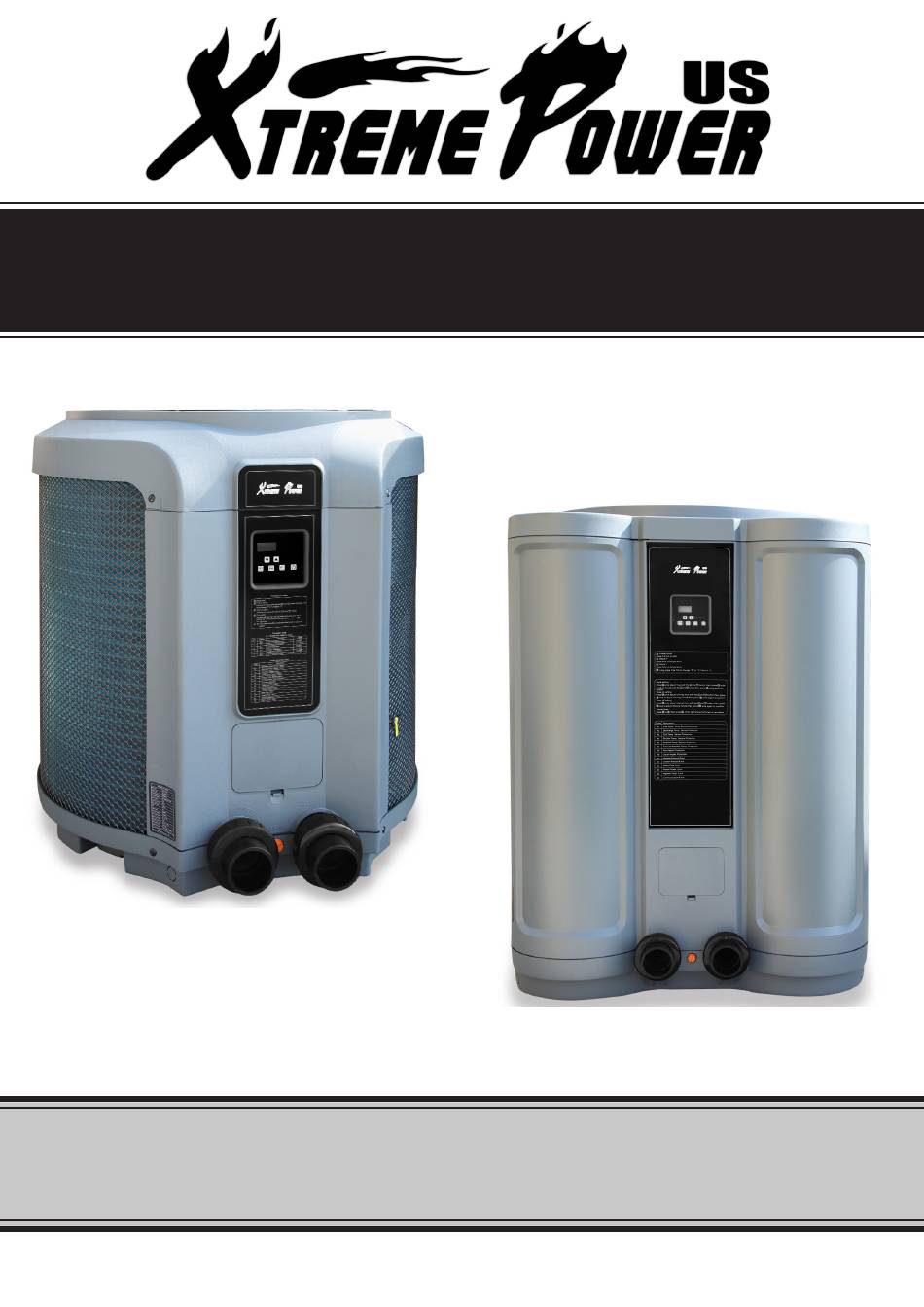

- Page 1 POOL HEAT PUMP ITEM #75210 (53000 BTU/H) - 75212 (137000 BTU/H) OWNER’S MANUAL AND SAFETY INSTRUCTIONS SAVE THIS MANUAL: KEEP THIS MANUAL FOR SAFETY WARNINGS, PRECAUTIONS, ASSEMBLY, OPERATING, INSPECTION, MAINTENANCE AND CLEANING PROCEDURES. WRITE THE PRODUCT’S SERIAL NUMBER ON THE BACK OF THE MANUAL NEAR THE ASSEMBLY DIAGRAM (OR MONTH AND YEAR OF PURCHASE IF PRODUCT HAS NO NUMBER).
-
Page 2: Important Safety Information
IMPORTANT SAFETY INFORMATION GENERAL SAFETY WARNINGS Read all safety warnings and instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The warnings, precautions, and instructions discussed in this instruction manual cannot cover all possible conditions and situations that may occur. -
Page 3: Product Information
PRODUCT INFORMATION 75210 75212... -
Page 4: Parts Information
PARTS INFORMATION 75210... - Page 5 PARTS INFORMATION 75212 1. Fan Guard 7. Electrical Box 2. Roof Cover 8. Front Panel 3. Fan Motor 9.Compressor 10. Titanium Heat Exchanger 4. Fan Blade 11. Chassis 5. Cooper Aluminum Chiller 6. Electrical Expansion Valve...
- Page 6 PARTS INFORMATION 75210...
- Page 7 PARTS INFORMATION 75212...
-
Page 8: Installation
INSTALLATION LOCATION The placement of the pool heater is very important in keeping installation costs to a minimum while providing for maximum efficiency of operation, as well as allowing adequate access for service and maintenance. The pool heat pump is designed for outdoor installation and should not be installed in a fully enclosed area, such as a shed, garage, etc. - Page 9 INSTALLATION WATER PIPING Single Unit Installation Figure 6 illustrates the standard plumbing layout with a single heat pump unit. Following the diagram from right to left, the plumbing sequence is as follows: Pool > Pool Pump > Filter > Heat Pump > Check Valve > Chemical Feeder > Pool. Note For normal installations, do not install a shutoff valve or any kind of variable restriction in the water piping between the heat pump outlet and the pool/spa.
-
Page 10: Standard Plumbing Layout
STANDARD PLUMBING LAYOUT... - Page 11 HEAT PLUMBING PUMP LAYOUT...
- Page 12 HEAT PLUMBING LAYOUT...
-
Page 13: Electrical Connections
ELECTRICAL CONNECTIONS ELECTRICAL The wiring of your pool heat pump should be performed by a qualified electrician in accordance with local requirements. A properly-sized breaker and copper wire must be used. Check the heat pump data label for required maximum breaker size. IMPORTANT The unit must always be powered off before opening the access panel. - Page 14 ELECTRICAL SUPPLY OF ELECTRICAL BOX POWER REQUIREMENTS : 230VAC, 1PH, 60HZ Look at the nameplate located on the heat pump to know the required amperage Please refer to your local electrical code for additional wiring requirements...
-
Page 15: Wiring Diagram
WIRING DIAGRAM... - Page 16 WIRING DIAGRAM 75212...
-
Page 17: Service Analyzer Control
SERVICE ANALYZER CONTROL... - Page 18 SERVICE ANALYZER CONTROL...
- Page 19 SERVICE ANALYZER CONTROL...
-
Page 20: Troubleshooting
TROUBLESHOOTING... - Page 21 TROUBLESHOOTING...
-
Page 22: Operation And Maintenance
OPERATION AND MAINTENANCE Initial Startup ² Before starting the pool heater for the first time, it is important to verify that the breaker is in the ON position. ² Also make sure that the water circulates freely and that the pool pump is activated. ²... - Page 23 HEAT PLUMBING PUMP LAYOUT RECORD YOUR MODEL’S INFORMATION Please complete and mail in the ownership registration card provided with this guide. The return address is displayed on the front of your registration card. Simply mail it as you would a postcard. The card helps us notify you about any new information about your heater. Whenever you call to request service for your heater, you must know your complete model and serial numbers.
