YOODA MAGNETIC Series Manual

General information

  1. Control: can control single motor
  2. Memory: up to 20 transmitters
  3. Range: 200 meters outdoor, 35 meters indoor
  4. Power supply: 230 V / 50 Hz
  5. Output voltage: 230 V / 50 Hz
  6. Output power: 300 W
  7. Dimensions: 80 x 80 x 43 mm
  8. Operating temperature: frim 0°C to 50°C
  9. Protection degree: IP 30
  10. Time of settings being saved in case of power shortage: up to 4 hours

Illustrations (from the top):

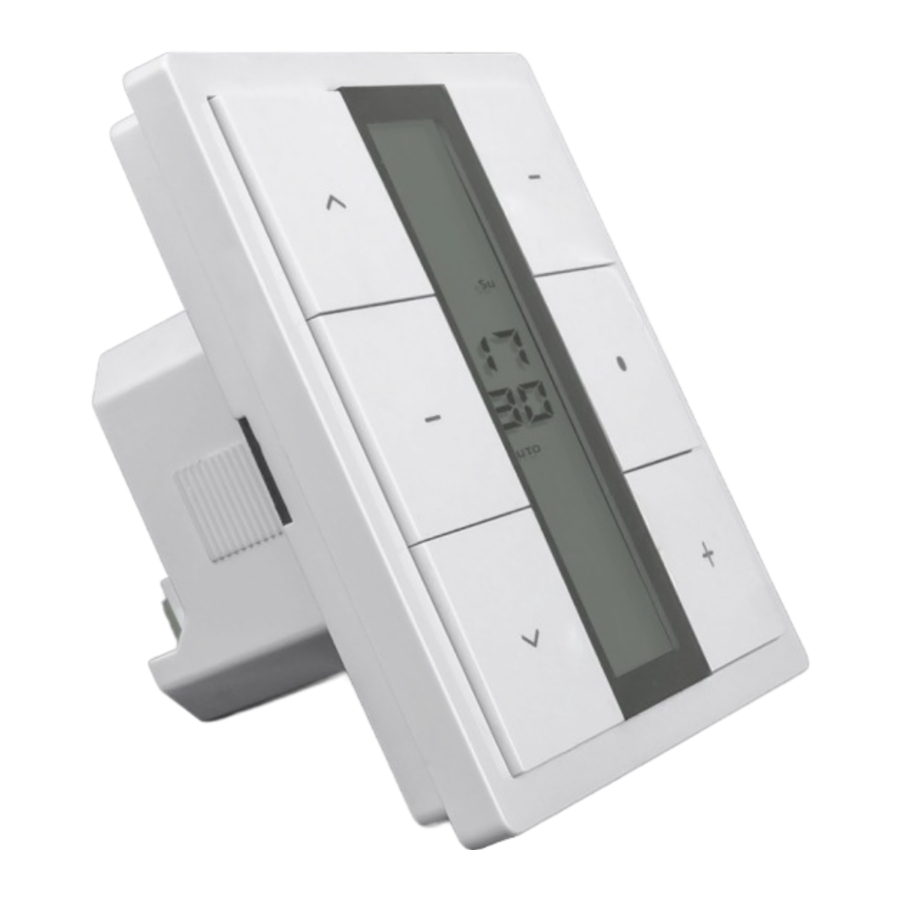

Fig. 1. Single-channel CAMELEO control unit, white, front

Fig. 2. Single-channel CAMELEO control unit, white, back

danger
Radio receiver range is a variable value and can differ from declared values depending on conditions in which device operates. Possible sources of changes in range are building construction, interference caused by other radio transmitters etc.

Detailed description

Detailed description

Connection

danger
Optimal mounting parameters:
Connection

  1. Minimal length from the ground > 1,5 m,
  2. Minimal length from the wall and ceiling > 0,3 m,
  3. Minimal length from the receiver > 0,2 m.

danger
Installation of the tubular motor should be performed by specialists with 1kV or higher SEP-certified electrician's licence (SEP - Association of Polish Electrical Engineers) or equal license. Device is designed to operate in places shielded from unfavourable weather conditions. Motor should be installed in accordance with all provisions of regional law and professional standards. All cables connecting power receiver with electric source should be protected from overload and short-circuits effects with devices automatically disconnecting power. Device should be powered with a separate source and protected only with a fast-blow fuse (never slow-blow fuse). Creating electrical system using inadequate fuse may result in loosing rights under the provisions of warranty. When connecting device to power source with cables with adequate cross-section should be used. Long-lasting output load capacity table should be the ground for choosing adequate cables.

Changing work mode

danger
Changing work mode

  1. Manual work mode (Displays MAN symbol: standard mode without using time programming function.
  2. Automatic mode (displays AUTO symbol): standard mode with activated automatic work time.
  3. Random work mode (displays programmed time).

Setting current time

danger
Time can be set only when device is in manual working mode. Longer than 60 seconds pause between series of button clicks during programming will cause device to switch off from time setting mode without saving any changes.
Setting current time

Changing automatic opening and closing time

danger
Changing automatic opening and closing time

  1. Difference between automatic time of roller shutter opening and closing cannot be shorter than 32 minutes. In case of smaller than minimal time difference fault message will appear.
  2. Changes to opening and closing time can be done only in automatic mode.
  3. Longer than 60 seconds pause between series of button clicks during programming will cause device to switch off from time setting mode without saving any changes.
  4. If while setting time of automatic opening or closing '--:--' symbol appears, it means that this time is not active in automatic mode.
  5. To leave time programming mode without saving any changes press STOP button.

Changing automatic opening and closing time

Programming transmitters

danger
Programming transmitters

  1. Longer than 6 seconds pause between series of button clicks during programming will cause device to switch off from programming mode without saving any changes.
  2. Procedure described below is to be used for programming first and all other transmitters. Receiver can hold in its memory up to 20 different transmitters. Programming another transmitter will cause for the first transmitter on the list of 20 already programmed to be deleted.

Deleting transmitter

danger
Longer than 6 seconds pause between series of button clicks during programming will cause device to switch off from deleting mode without saving any changes.
Deleting transmitter

Deleting all transmitters

danger
Proceeding with this instruction will cause for all transmitters to be deleted form receivers memory.
Deleting all transmitters

Activating impulse mode

danger
When impulse mode is activated, single push of UP or DOWN button forces motor to make single part of a full turn, and when UP or DOWN button is being held for 2 seconds it will force motor to run constantly (to the pint it reaches its limit position).
Activating impulse mode

Changing motors direction

danger
Procedure should be performed when motor works in direction other than expected (e.g. when pressing UP button roller shutter is being lowered).
Changing motors direction
