In order to fully explore available functions of MAGNETIC series please take a moment and read this manual before using the device. MAGNETIC transmitters
are compatible with all YOODA brand devices.
General information
Radio receiver range is a variable value and can differ from declared values depending on conditions in which device
operates. Possible sources of changes in range are building construction, interference caused by other radio transmitters
etc.
Detailed description
L1 TIMER
PROGRAMMING button
WORK MODE button
P1 CONFIGURATION
CHANGE button
MAGNETIC_1CfT
1. Control:
can control single motor
2. Memory:
up to 20 transmitters
3. Range:
200 meters outdoor,
35 meters indoor
4. Power supply:
230 V / 50 Hz
5. Output voltage:
230 V / 50 Hz
6. Output power:
300 W
7. Dimensions:
80 x 80 x 43 mm
8. Operating temperature:
frim 0°C to 50°C
9. Protection degree:
IP 30
10. Time of settings being saved
in case of power shortage:
up to 4 hours

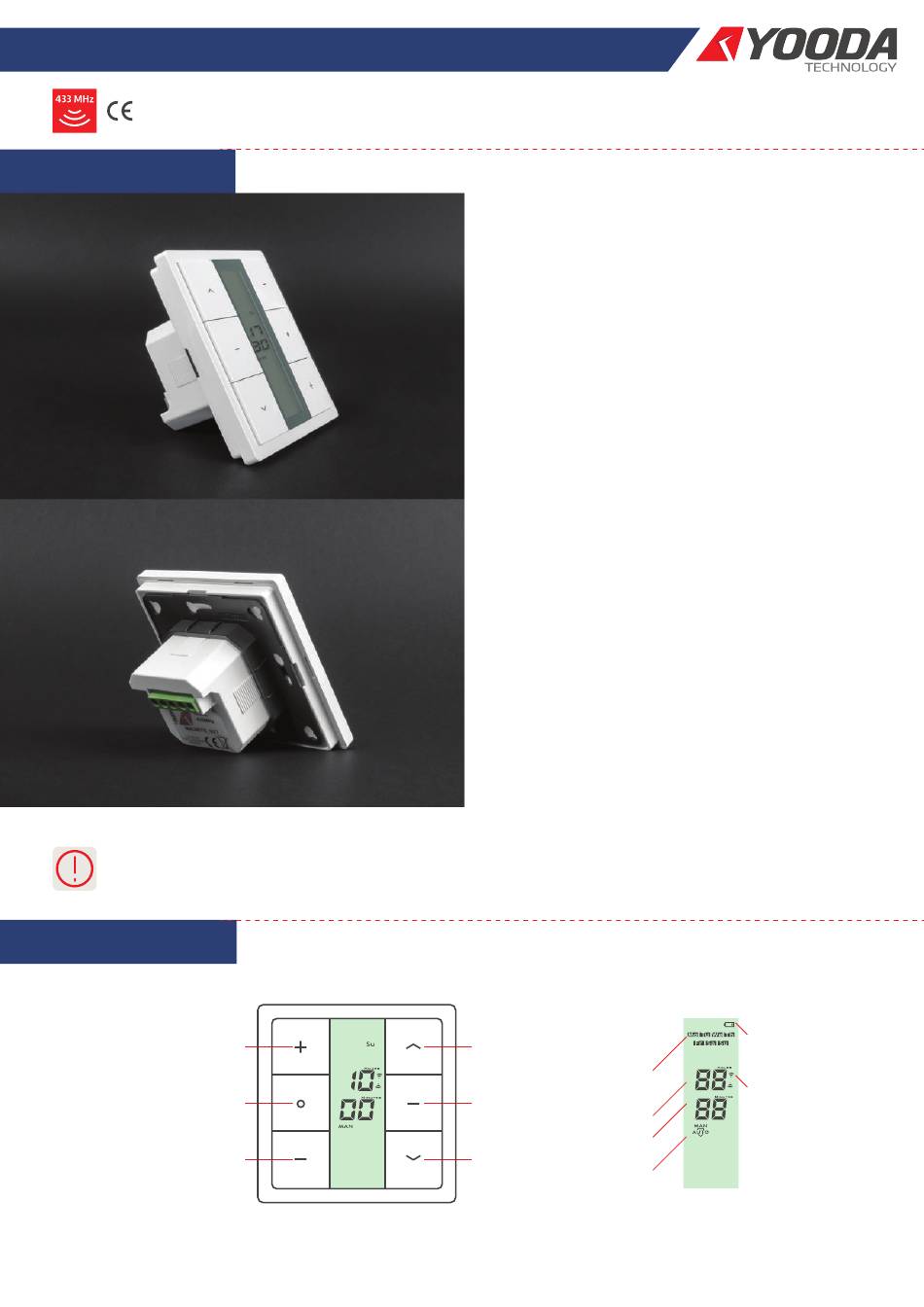

Illustrations (from the top):
Fig. 1. Single-channel CAMELEO control unit, white, front
Fig. 2. Single-channel CAMELEO control unit, white, back
UP button
STOP button
DOWN button
day of the week
hour
minute
current work mode
lack of power
supply information
roller shutter
direction
