YOODA Smart Home 2 Quick Start Manual

www.sukcesgroup.pl
In order to fully explore available functions of YOODA SMART HOME unit please take a moment and read this manual before using the device.
All devices work on 433 MHz frequency.
YOODA SMART HOME 2 unit is dedicated to two-way communication.

1. General information

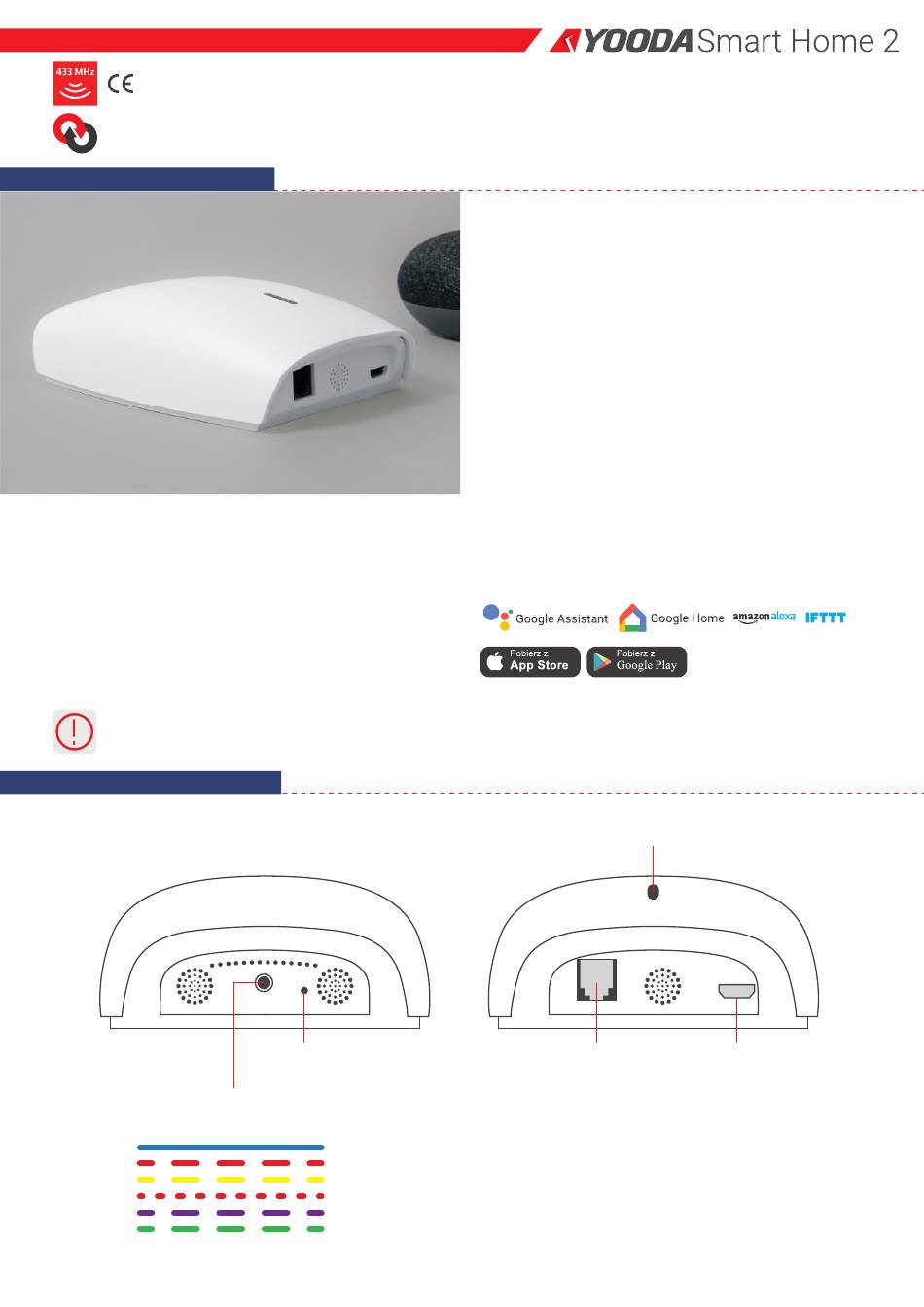

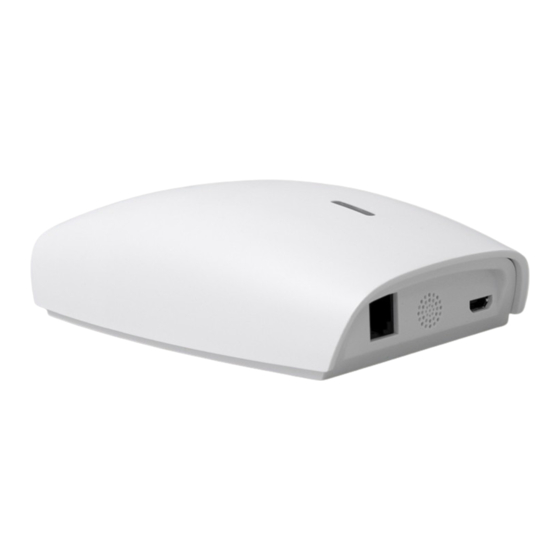

Two-way unit control YOODA Smart Home 2 (YSH2_UNIT)
Radio receiver range is a variable value and can differ from declared values depending on conditions in which device operates.
Possible sources of changes in range are building construction, interference caused by other radio transmitters etc.

2. Detailed description

programming button
YOODA SMART HOME 2 UNIT
reset
1. Solid blue - normal device operation
2. Slow flashing red - no connection to the Wi-Fi network
3. Slow flashing yellow - connecting to a Wi-Fi network
4. Fast flashing red - device reset
5. Slow flashing purple - adding new devices to the control panel
6. Slow flashing green - update of the central unit.
1. Power supply:
5 V / 1 A DC
Do not use PC, laptop or other low or unstable power source.
2. Operating temperature:
from 0°C to 40°C
3. Interface:
A) Communication between the control unit and receivers:
• ISM 433 MHz
• Range to 30 m
• Signal strength 10 dBm
B) Communication with access point:
• Wi-Fi 2,4 GHz, 802.11b/g/n
• Range: 5m max.
4. Dimensions:
133 x 75 x 36 mm
5. IP: 20
6. Compatible with:
indicator
socket RS485
1
power supply 5V/1A
