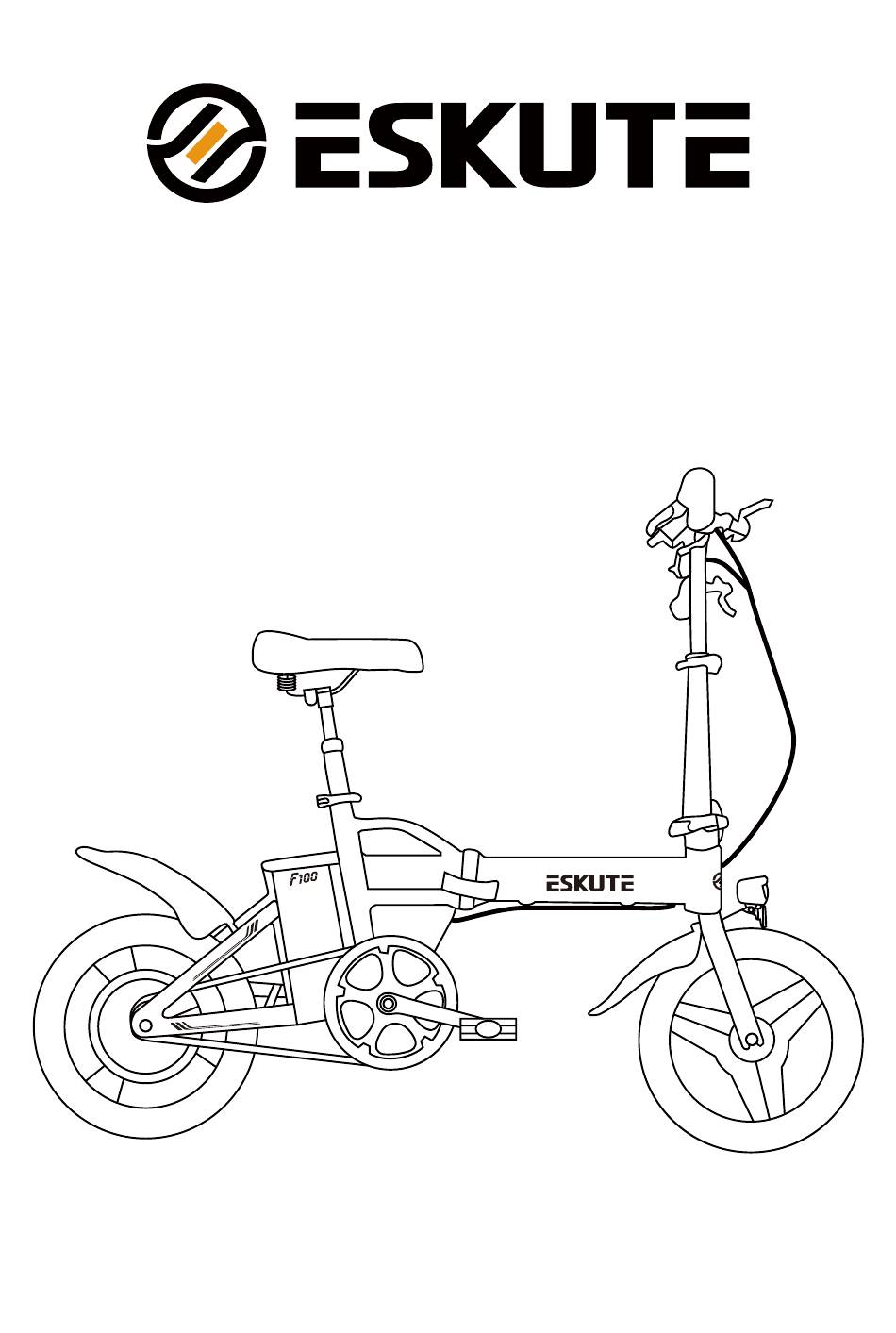

- Page 1 User Manual Electric Bike Model: F100 eskute.co.uk...
- Page 2 WELCOME! Congratulations on the purchase of your new F100 and welcome to the Eskute team! About this User Manual It is important for you to understand your new electric bike. Even if you have ridden an e-bike before, it is important for every person to read this manual before riding - you’ll know...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Section 1. What's in Box Section 2. Specification Section 3. Assembling Your Bike Install the Handlebars Attach the Pedals Section 4. Deployment and Folding Section 5. Charging the Battery Section 6. Meter Instructions Brakes Disc Brakes TIRES Section 7. -
Page 4: Section 1. What's In Box
What's in Box 1 x E-Bike 1 x Saddle 1 x Tools 1 x Charger 1 x Cable tie 1 x Wheel Nut Guard THANKS FOR SUPPORTING ESKUTE! Infinite power at your feet 1 x Warranty card 2 x Foldable pedals... -
Page 5: Section 2. Specification
Specification Model F100 Frame Material Carbon Steel Battery 36V 9Ah 60KM (75kg weight, flat road, PAS 1) Range Charger DC42V/1.5A Charging Time 6-7 Hour Charging Motor 36V 250W Speed Up to 25 km/h (15.5 mph) Display P6 LCD Sensor Speed Sensor... -
Page 6: Section 3. Assembling Your Bike
Before assembling, check that all parts are complete and in good condition. If you have any questions or cannot find the information you need in the manual, please contact at support.uk@eskute.com STEP 1. Install the Handlebars STEP 1. Install the Handlebars 1. -
Page 7: Attach The Pedals
5. Lock the buckle forward STEP 2. Attach the Pedals 1. Check the end cap on both pedals in order to identify the left and right pedal. Tip: Imagine that you are sitting on the bike to correctly determine left vs. right side. 1. -
Page 8: Section 4. Deployment And Folding
2. Grab the wrench, and screw the pedal tightly into the correct crank. The pedals should thread smoothly and easily if properly aligned. Deployment and Folding 1. Pull the lock lever up 2. Push the lock lever down... - Page 9 3. Pull down state 4. Press the handle to the left 5. Push the front tube 6. Pull out the lock handle backward on the left...
- Page 10 7. Pull the lock handle to the left 8. Fold the frame outward and then lift it upward 9. Push the pedal inward 10. Press the pedal downward...
-
Page 11: Section 5. Charging The Battery
Charging the Battery Tip: The battery can be charged on/off your bike. Make sure that your motor system and battery is turned completely off before beginning any charging procedures. Charging port Green Light: Fully charged Red Light: Charging/Not fully charged... -
Page 12: Section 6. Meter Instructions
Meter Instructions 1.Display Information Brake Indicator Headlight Indicator Throttle Fault Low Battery Controller Fault Walk Assist Charging Indicator Motor Fault Indicator Gear Indicator... - Page 13 Battery Level Speed Display, Speed Unit Combined display functions Single trip distance Total distance Single runtime Voltage display Voltage unit Mileage in miles Mileage in kilometers Numbers represent the values in display mode...
- Page 14 2.Button Instructions M Button (Multi-function Button) Press and hold for 2 seconds to power on or off . (default initial password: 0000). Short press to switch between displaying single trip mileage, total mileage, operating voltage, and operating time. "+" Button Press and hold for 2 seconds to turn the headlight on or off.
- Page 15 Password Setup Guide 1. Enter Password Setting Mode Press and hold "M" + "-" for 2 seconds to enter PA1 (pass word setting menu). 2. Enable/Disable Password (P00) Press "M" to enter P00: Set to 0 → No password required at startup. Set to 1 →...
-
Page 16: Brakes
Walk Assist mode: Long-press and hold "-", the electric bicycle enters the walk assist mode. The electric bicycle will walk at a fixed speed of 5.5 km/h, and the display shows Release "-" to stop the power output immediately and restore to the state before the walk boost. - Page 17 Traditionally, the right brake lever will control the rear brake, while the left brake lever will control the front brake. However, this may vary depending on what country you are in, and can always be adjusted to suit your own preference. To check which configuration your eBike is set up with, squeeze one brake lever and look to see whether the front or rear brake engages.
- Page 18 Sudden or excessive application of the front brake may pitch the rider over the handlebars. TIRES Your F100 will come standard with 14*2.125” tires. It’s important that you understand the appropriate conditions and terrain these tires can handle, in order to ensure safe...
- Page 19 TIRE PRESSURE Size, pressure rating and other information can often be found on the sidewall of the tire. Tire pressure is the most key piece of information for you to remember. Inflating a tire beyond the maximum pressure can blow the tire off the rim, resulting in damage to the bike and potential injury to the rider.
- Page 20 If the battery becomes physically damaged, non-func tional, has been dropped, or involved in a crash, or you notice it performing abnormally, please discontinue use and contact ESKUTE BIKE immediately. CHARGING YOUR BATTERY It’s important to follow these instructions and safety tips in order to preserve the longevity of your battery’s life and ensure proper...
- Page 21 Only charge the battery with the supplied ESKUTE charger, as others may cause damage to the battery or increase the possibility of fire or explosion.
- Page 22 1. For the first initial charge upon receiving your bike (or after long storage time), be sure to charge the battery for at least 8 hours before riding. Note: We recommend that you let the battery charge for at least 8 hours for the first 3 charges to make sure the cells balance properly.
-
Page 23: Section 8. More Tips
More Tips Proper maintenance is essential for your safety and to ensure that you get optimal performance from your eBike. If you are unable to perform the general maintenance yourself, please reach out to a qualified mechanic. Be sure to frequently inspect and tighten your crank bolts as needed. -
Page 24: Section 9. Warranty
Warranty ESKUTE LIMITED WARRANTY TERMS All ESKUTE Bikes and their individual components are protected against all manufacturing defects in material or workmanship for one year after the date of a qualifying purchase. This Limited Warranty is only in accordance with the following terms: This limited warranty applies only to the original owner of an ebike purchased from ESKUTE’s online store or an... - Page 25 Damage or failure due to accident, misuse, abuse, or neglect Damages resulting from improper charging of the battery pack or use of any charger not supplied by Eskute Bike. WARRANTY CLAIMS PROCESS: ESKUTE WILL NOT REPLACE ANY COMPONENT UNDER THIS LIMITED WARRANTY WITHOUT FIRST SEEING PHOTOS OR VIDEO OF THE DAMAGED COMPONENT.
-
Page 26: Welcome To The Family
Welcome to the family Distributor: Shenzhen Longqi Electronics Co., Ltd Manufacture: Guangzhou Lingshang Technology Co., Ltd. Address: Room 201, Unit 2, No. 21 Guangyuan Road, Taiping Town, Conghua District, Guangzhou, China. E-Mail: support.uk@eskute.com Website: eskute.co.uk Made in China...
