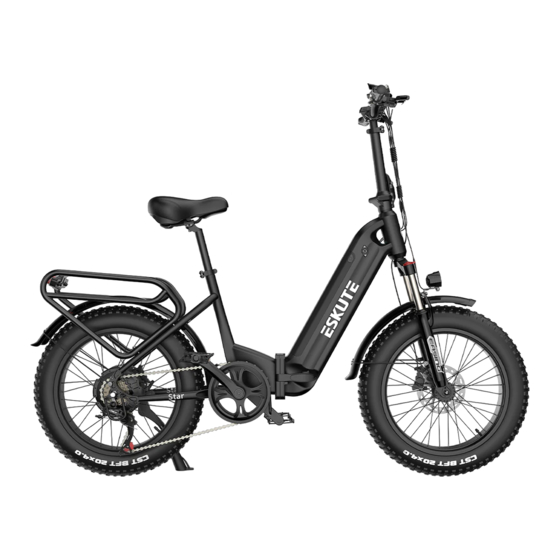

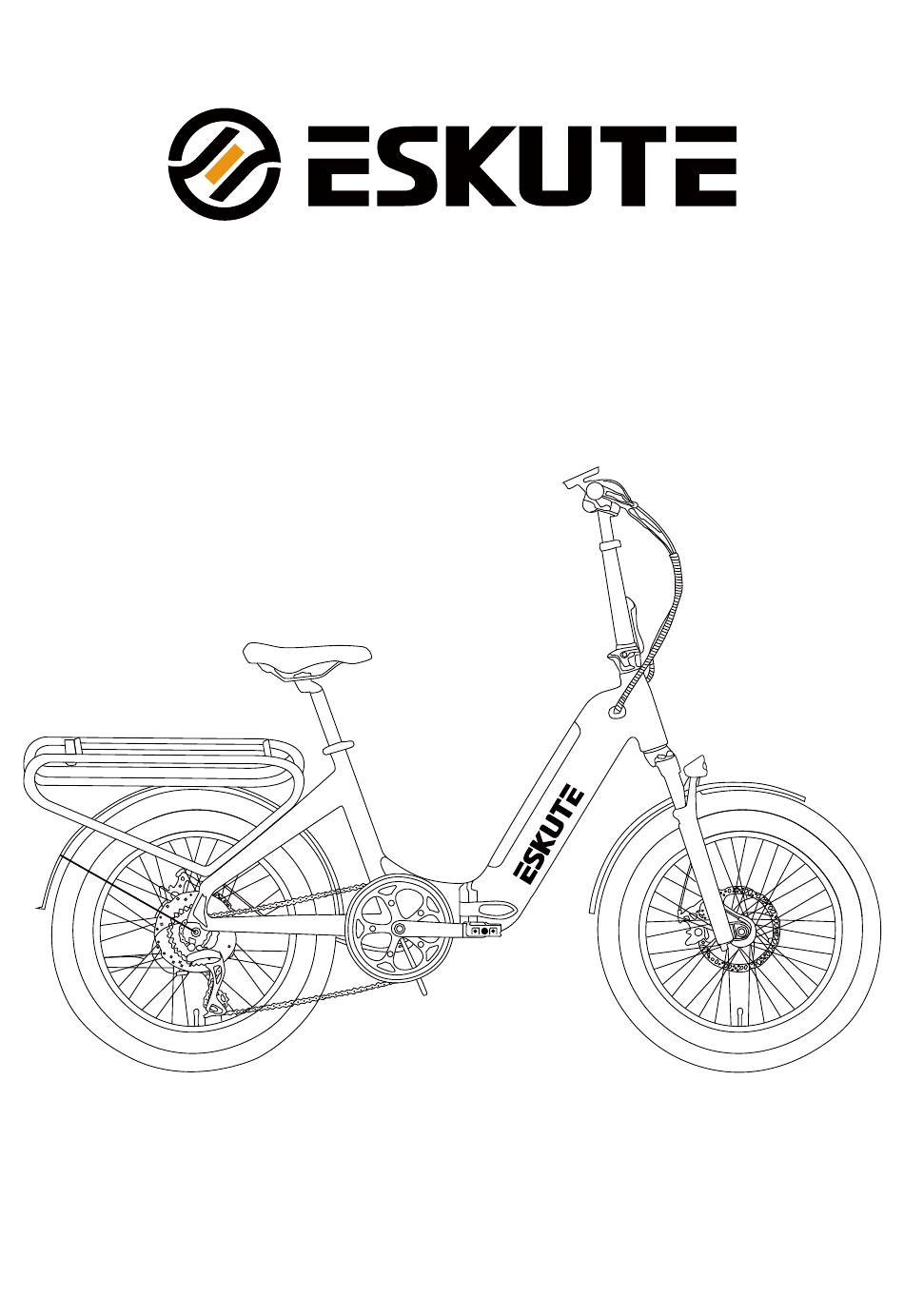

- Page 1 User Manual Electric Bike Model: Star www.eskute.com...
- Page 2 WELCOME! Congratulations on the purchase of your new Star and welcome to the Eskute team! About this User Manual It is important for you to understand your new electric bike. Even if you have ridden an e-bike before, it is important for every person to read this manual before riding - you’ll know...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Section 1. Geometry Section 2. Specification Section 3. Assembling Your Bike Handlebars Front Wheel Seat / Saddle Pedals Section 4. Fold & Unfold the Bike Section 5. Charging the Battery Section 6. Maintenance Instructions Tires Brakes Battery Care Section 7. -
Page 4: Section 1. Geometry
Geometry Display Shifter Handlebar Brake Throttle On/Off Switch Saddle Tail Light Headlight Frame Fat Tire Battery Front Brake Fender Rear Derailleur Front Fork Rear Brake... -
Page 5: Section 2. Specification
Specification Model Star Frame Material 6061 Aluminum Alloy Battery 48V, 20Ah with Samsung/LG Cells 50-80 Miles Average (estimate) Range Charger 54.6V, 3A Charging Time 4-5 Hour Charging Motor 48V, 500W Sutto (Bafang) Hub Motor Speed Up to 22 MPH Display... -
Page 6: Section 3. Assembling Your Bike
Before assembling, check that all parts are complete and in good condition. If you have any questions or cannot find the information you need in the manual, please contact at support@eskute.com. STEP 1. Install the Handlebars 1. Using the Allen wrench, unscrew the 4 bolts and remove the stem plate. - Page 7 STEP 2. Install the Front Wheel 1. Take off the plastic protective gaps on each side, throw these away. 2. Loosen up both bolts untill you are able to slide the wheel into place, making sure the brake caliper slides onto the rotor and both of the forks are properly hooked onto the wheel, fasten and screw the bolts.
- Page 8 2. Fasten both screws STEP 3. Install the Seat 1. Loosen the seat post clamp and insert saddle post. 2. Adjust saddle to the preferred height then tighten clamp. Tip: DO NOT raise the saddle higher than the safety line. 1.
-
Page 9: Section 4. Fold & Unfold The Bike
STEP 4. Attach the Pedals 1. Check the end cap on both pedals in order to identify the left and right pedal. Tip: Imagine that you are sitting on the bike to correctly determine left vs. right side. 2. Grab the wrench, and screw the pedal tightly into the correct crank. -
Page 10: Section 5. Charging The Battery
3. Proceed when you achieve 4. Fasten the latch as pictured. the status as pictured. Fold & Unfold the Handle Stem 1. Loosen quick release. 2. Tilt the stem slowly. 3. Fasten the stem latch upward 4. Jiggle the stem to see If it’s to lock it in place. - Page 11 1. Use your key to unclock the battery pin, then pull the battery up from the bottom and slide it downward to remove it from the frame. Tip: To replace the battery, insert the top end in first, slide it upward, then push in the bottom end until it’s fully seated.
- Page 12 4. Checking the charger indicator 5. You can also check the battery life by pressing the button on the battery pack. The light will indicate how much juice is left in your battery. Green Fully charged Signal 3. Checking battery life 6.
-
Page 13: Section 6. Maintenance Instructions
Cheers! Your Star is now fully assembled in all its glory. Give yourself a pat on the back and admire your work. Take some pictures, call a friend, and take a well-deserved break while charging. Maintenance Instructions BRAKES It’s important that your learn, and remember, which brake lever controls each brake (front/rear) in order to ensure your safety. - Page 14 Disc Brakes Test your brake tension by squeezing your brake levers. If they feel too loose, adjust the tension by twisting the barrel adjusters on either side. Tip: Twist clockwise to decrease tension, and counterclockwise to increase tension. WARNING! Riding with worn brake pads, improperly installed brakes, or wheels where you can visibly see the wear from the brake pads, is dangerous and can result in serious injury or death.
-
Page 15: Tires
Sudden or excessive application of the front brake may pitch the rider over the handlebars. TIRES Your Star will come standard with 26” X 4.0” CST fat tires. It’s important that you understand the appropriate conditions and terrain these tires can handle, in order to ensure safe riding. -
Page 16: Battery Care
If the battery becomes physically damaged, non-func tional, has been dropped, or involved in a crash, or you notice it performing abnormally, please discontinue use and contact ESKUTE BIKE immediately. Charging Your Battery It’s important to follow these instructions and safety tips in order to preserve the longevity of your battery’s life and ensure proper... - Page 17 Only charge the battery with the supplied ESKUTE charger, as others may cause damage to the battery or increase the possibility of fire or explosion.
- Page 18 1. For the first initial charge upon receiving your bike (or after long storage time), be sure to charge the battery for at least 8 hours before riding. Note: We recommend that you let the battery charge for at least 8 hours for the first 3 charges to make sure the cells balance properly.
-
Page 19: Section 7. More Tips
More Tips Proper maintenance is essential for your safety and to ensure that you get optimal performance from your eBike. If you are unable to perform the general maintenance yourself, please reach out to a qualified mechanic. Be sure to frequently inspect and tighten your crank bolts as needed. -
Page 20: Section 8. Warranty
Warranty ESKUTE LIMITED WARRANTY TERMS All ESKUTE Bikes and their individual components are protected against all manufacturing defects in material or workmanship for one year after the date of a qualifying purchase. This Limited Warranty is only in accordance with the following terms: This limited warranty applies only to the original owner of an ebike purchased from ESKUTE’s online store or an... - Page 21 Damage or failure due to accident, misuse, abuse, or neglect Damages resulting from improper charging of the battery pack or use of any charger not supplied by Eskute Bike. WARRANTY CLAIMS PROCESS: ESKUTE WILL NOT REPLACE ANY COMPONENT UNDER THIS LIMITED WARRANTY WITHOUT FIRST SEEING PHOTOS OR VIDEO OF THE DAMAGED COMPONENT.
- Page 22 Welcome to the family Company: Shenzhen Huitong Global Trade Co., Ltd. Add: Saixi Technology Building No.2402, Yuehai Street Binhai Community, Binhai Boulevard No.3398, Shenzhen E-Mail: support@eskute.com Website: www.eskute.com Made in China...
