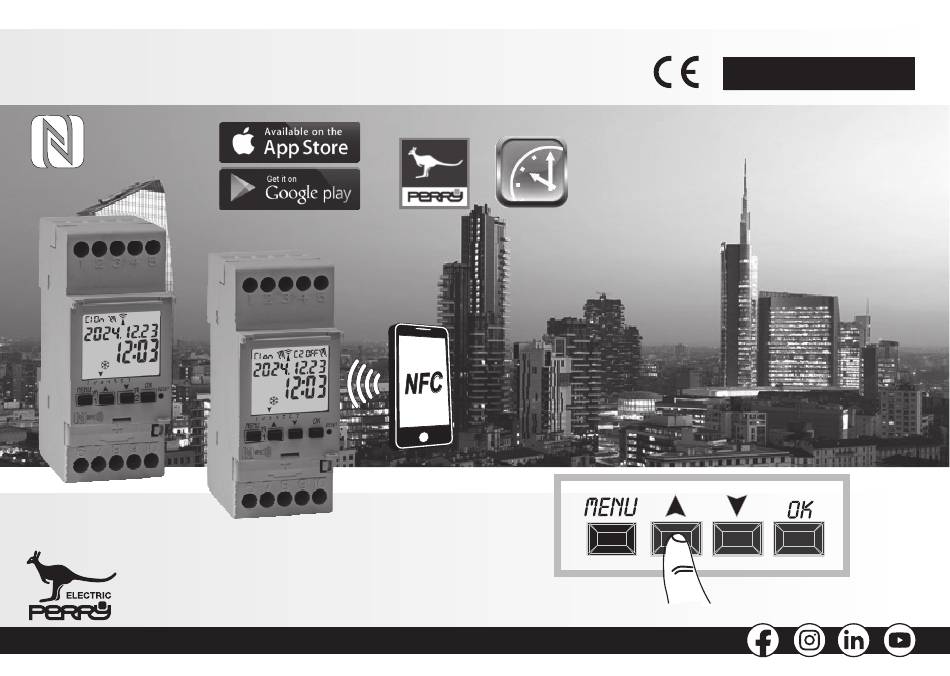

NFC DIGITAL TIME SWITCH
Menu-driven programming - Backlit display
Weekly - 1 channel or 2 channels model
NFC
Art. 1IO7081NFC
Series: V002
PERRY ELECTRIC Srl
Via Milanese, 11 - 22070 VENIANO (Como) ITALY
PE - DEIONN104 (
EN 0
)
7/25
Perry Home
APP:
Art. 1IO7 81NFC
2
Series: V002
Timer
IMPORTANT:
IMPORTANT:
Installation instructions,
Installation instructions,
programming and use
programming and use
only from KEYBOARD
only from KEYBOARD
www.perry.it
ENGLISH
Advertisement
Table of Contents
Related Manuals for Perry Electric 1IO7081NFC
Summary of Contents for Perry Electric 1IO7081NFC
- Page 1 IMPORTANT: Installation instructions, Installation instructions, programming and use programming and use only from KEYBOARD only from KEYBOARD Art. 1IO7081NFC Series: V002 Art. 1IO7 81NFC Series: V002 PERRY ELECTRIC Srl Via Milanese, 11 - 22070 VENIANO (Como) ITALY www.perry.it PE - DEIONN104 (...
-
Page 2: Table Of Contents
Dear Customer, thank you for choosing our product. ENGLISH Contents INFORMATION AND SAFETY 4.1.2.a) Realization of a program with duration pag. 3 PRECAUTIONS pag. 14 beyond midnight 1- Description of the unit pag. 4 pag. 14 4.2) Program memory full warning pag. -
Page 3: Information And Safety Precautions
INFORMATION AND SAFETY PRECAUTIONS IMPORTANT! THIS INSTRUCTION BOOK EXCLUSIVELY CONCERNS PROGRAMMING AND USE VIA KEYBOARD. For the 1st COMMISSIONING OF THE DEVICE VIA APP , consult the manual included in the package. & It is advisable to read the installation and user instructions carefully and to keep them for future reference. The manufacturer reserves therighttomakeallthetechnicalandconstructionchangesitdeemsnecessarywithoutpriornotice. -
Page 4: 1- Description Of The Unit
1h to 24h from 1 min to 59 min Art. 1IO7281NFC Art. 1IO7081NFC from 1 sec to 59 sec • Programming in seconds, ideal for school bell activation or sirens for work start and finish. • Programming for interventions straddling midnight using a single program. -
Page 5: First Battery Insertion
1.2) FIRST BATTERY INSERTION Open the battery door to the left and insert the battery into its housing with the positive side facing up lose the battery compartment door properly to the right Connect and activate the 230V power mains (see paragraph 1.4). Set the required data as described in Chapter 2 - FIRST START-UP . -
Page 6: Technical Specifications
1.4) Electrical connections 1.3) Technical specifications Supply voltage 230 V c.a. +/- 10% 1 channel model Frequency 50 Hz Output type 1st or 2nd relay with changeover, single-pole, voltage free contact: 1 2 3 4 5 NO/COM/NC 16 (2)A 250V~ Type of action, disconnection The electrical connections must only 1 B S U / electronic... -
Page 7: Display
1.5) DISPLAY Channel 1 Field (status of relay 1) Channel 2 Field (status of relay 2) only dual-channel mod. Date / Text indication to browse or program Hour and Minutes / Menu functions / Parameter values indication Browsing arrow (menu o next sub-menu) ATTENTION! icon Holiday icon (suspension of programs in progress) Icon for the set... -
Page 8: 1) Specific Key Functions
1.6.1) Specific key functions 1.6.2) Shortcut keys Any of the functions described below are carried out from the main screen Function Press key/s Function Press the key combination Immediate exit from the 6 sec. until «-- --» is 2 seconds Lock / unlock keys ( menu or sub-menu displayed, when released,... -
Page 9: First Start-Up
2 - FIRST START-UP (language selection, entry of current year, month, day, hour and minutes, summer/winter time setting) The unit is supplied with default settings. After inserting the battery (see paragraph 1.2) and connecting the power supply, the unit resets the display (lamp-test) and then proceed as follows: Select/set the data by pressing the keys and press the OK key to confirm and move on to the next field. -
Page 10: Menu And Programming
3 - MENU AND PROGRAMMING 3.1 Menu - overview 5 menus are listed in the sequence present in the unit: PROG (Programs) Number of free programs main screen Selection of no. of programs - Selection of channel (only dual-channel) Choice of day / groups of days Program TIME start-up data entry... -
Page 11: Forcing And Program Priority
3.2) Forcing and program priority MAXIMUM PRIORITY MAXIMUM PRIORITY A priority is assigned for each type of program/function as shown on the right. The output relay/s will be activated according to the set priorities. IMPORTANT: all programs (TIME) entered are simultaneously active regardless of their Permanent or temporary position;... -
Page 12: Creating A New Time Program
4 - «PROG» menu (Programs) This menu allows you to create, test, modify and delete the TIME programs. 4.1) CREATING A NEW TIME PROGRAM (PROG Press the MENU key to access the first menu . Confirm with The number of free programs will be displayed for about 2 seconds, then the first free program available example: will appear flashing. - Page 13 TIME program: 5. Use the keys to enter the start-up time ON (default 00) Confirm with Use the keys to enter the minutes (default 00) Confirm with Use the keys to enter the seconds (default 00). Confirm with TIME program 8.
-
Page 14: Program Memory Full Warning
4.1.2) Realization of a program with duration beyond midnight If the key is pressed beyond 00:00 while setting the switch-off time , the program will end on the day after activation; the arrow corresponding to the day after start-up will flash. Important: it will only be possible to cross midnight by one day. -
Page 15: Holiday" Program Menu
5 - «HOLIDAY» program menu This menu allows you to create, test, modify and delete the «HOLIDAY» programs. The holiday programs allow you to set different periods during the year when to suspend the on/off programs combined with channel 1 and/or 2 (dual-channel mod.), example for Christmas and summer shutdown of a public or sales department. -
Page 16: Vi Sualiz Ing Or Modifying A Holiday Program
6. Use the keys to select the month when program suspension is to be terminated (ON) (the number of the month flashes). Confirm with 7. Use the keys to select the day when program suspension is to be terminated (ON) (the number of the day flashes). -
Page 17: Deleting A Program
6 - Deleting a program («ERASE PG» menu) MENU PROG SET 1. Press the key to access the first menu ( ERASE PG SET 2. Use the keys to select the menu. Confirm with main screen ERASE PG SING 3. The display shows the screen to delete a single ERASE PG ALL program or use the... - Page 18 7 - «OVERRIDE» menu This menu allows you to manually force the status of the outputs/s (dual- Override Display Channel- Override function mode symbol Condition channel mod.) regardless of the active programs. Generally used to test or No override on the channel, perform maintenance of the connected load.
-
Page 19: Options" Menu
8 - «OPTION» menu The following is possible from this menu: - Language selection - TIME setting - Maintenance - Hour counter - LED light (backlighting) - Warranty main screen - Info MENU PROG SET 1. Press the key to access the first menu ( OPTION SET 2. -
Page 20: Time Setup
8.2) TIME SET UP SETUP SET TIME 1. From the sub-menu confirm with 2. You can edit the data concerning as described in chapter 2 - «First start-up» - current year, month, day, hour, minutes currents - summer or winter time OKAY 3 When you finish editing or viewing the data, confirm with appears on the... -
Page 21: Hour Counter
8.3.a) Managing a maintenance operation - Once the operating hours set for one or both channels (dual-channel model) are reached, MAINTEN will appear on the main screen in cyclic repetition alternating with the current DATE (example in the figure at the side: channel 1 in Maintenance). - In this condition you can override the status of the outputs (from the MANUAL menu) and manage the maintenance intervention. -
Page 22: Backlighting
8.5) BACKLIGHTING This function allows you to set the display backlighting in three modes: Timed = on for 6 seconds after a key is pressed. Fixed ON = always on (default) Fixed OFF = always off BACHLIT 1. From the sub-menu confirm with 2. - Page 24 PERRY ELECTRIC Srl - Via Milanese, 11 - 22070 VENIANO (Como) ITALY & Recycling: PAPER. Check the regulations of your municipality...
