R

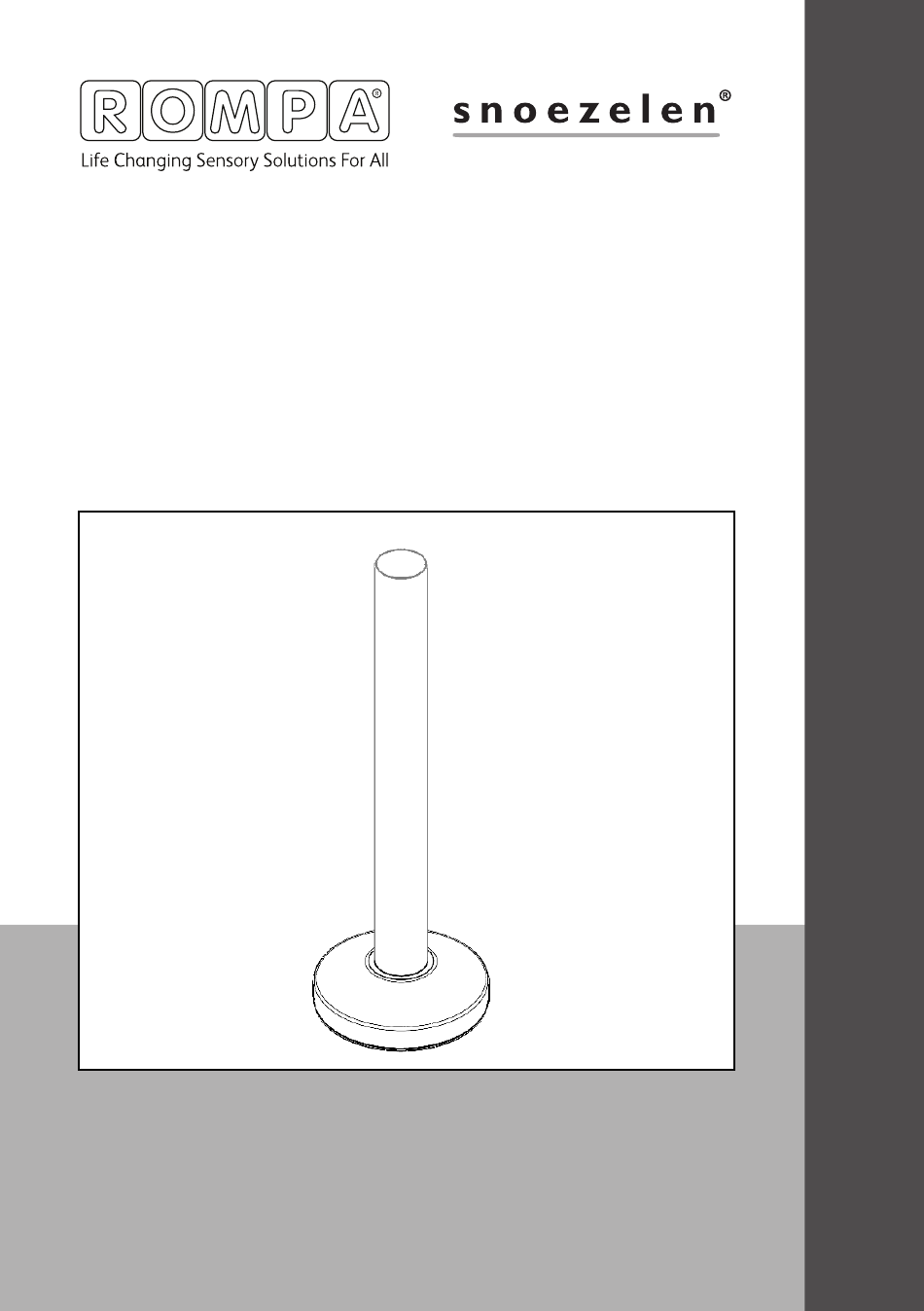

INSTRUCTION
MANUAL
MAXI BUBBLE TUBE
19772 / 19773 / 19774 / 19775

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the snoezelen MAXI BUBBLE TUBE and is the answer not in the manual?

Questions and answers

Summary of Contents for Rompa snoezelen MAXI BUBBLE TUBE

  • Page 1 INSTRUCTION MANUAL MAXI BUBBLE TUBE 19772 / 19773 / 19774 / 19775...
  • Page 2 CONTENTS...
  • Page 3: Table Of Contents

    CONTENTS ABOUT THE PRODUCT ������������������������������������������������������������������������������������ 4 Product Description ����������������������������������������������������������������������������������������������������������������������������������������������������5 User Benefits ����������������������������������������������������������������������������������������������������������������������������������������������������������������5 Product Compatibility ������������������������������������������������������������������������������������������������������������������������������������������������5 TECHNICAL SPECIFICATION ��������������������������������������������������������������������������� 6 Included Parts���������������������������������������������������������������������������������������������������������������������������������������������������������������7 Technical Specification ����������������������������������������������������������������������������������������������������������������������������������������������7 SAFETY AND CARE ������������������������������������������������������������������������������������������� 8 Product Safety and Care Instructions �������������������������������������������������������������������������������������������������������������������9 ASSEMBLY & INSTALLATION GUIDE Product Assembly Guide/Installation ����������������������������������������������������������������������������������������������������������������� 15 Troubleshooting ��������������������������������������������������������������������������������������������������������������������������������������������������������...
  • Page 4: About The Product

    ABOUT THE PRODUCT...
  • Page 5: Product Description

    Use an 8 button controller to control bubbles and the 8 colours – red, white, purple, pink, orange, yellow, blue and green. Please see www.rompa.com for details of this – 19847. Use a Wi Fi controller to remotely control the Bubble Tube, such as the Talking Cubes, 8 Colour Wirefree Controller, Colour Changing Panel etc when used in conjunction with Wi Fi products, the Bubble Tube will be lit in the colour chosen by the user.
  • Page 6: Technical Specification

    TECHNICAL SPECIFICATION...
  • Page 7: Included Parts

    Included Parts • Base Unit (chassis) with Base Cover (white plastic cover): • Bubble Tube Column: • Bubble Tube Cap • Power Supply • Drainage tube • Protective socket cover (supplied in the RJ45 socket of the base) Technical Specification •...
  • Page 8: Safety And Care

    SAFETY AND CARE...
  • Page 9: Product Safety And Care Instructions

    Safety Always supervise the use of this product� • Please check equipment immediately for any damage that may have resulted during shipping and contact Rompa immediately if there are any problems. ® • The layout of the activity area, proper installation and maintenance of your equipment is critical;...
  • Page 10 To Empty the Maxi Bubble Tube • Use the drainage tube provided (see below). • Connect this tube to the white socket on the bubble tube base, next to the POWER IN socket. Push the end with the black stripe into the white socket till you hear a click to indicate that it is secure.
  • Page 11 Disconnecting the drainage tube: Connecting the drainage tube to the filling pump tube (to be purchased separately): Connecting the filling pump to the bubble tube power supply: Before using the tap on the drainage tube, make sure you are aware how turning the tap opens and closes the tube:...
  • Page 12 Alternatively, use an appropriate pump. Remove the cap (round lid at the top of the tube) and remove the water from the top of the tube using your pump. A pump is available separately from Rompa : code 20601. This pump can also be used to fill your bubble tube.
  • Page 14: Assembly & Installation Guide

    ASSEMBLY & INSTALLATION GUIDE...
  • Page 15: Product Assembly Guide/Installation

    Product Assembly Guide/Installation Installation Place on a flat, stable floor that is capable of holding the weight of this product. Remove the plastic base cover from the base unit. Loosen the screws around the perimeter of the base cover, but do not remove them. Slide the base cover free of the screws.
  • Page 16 Attach the cloudy plastic pipe to the blue valve on the Bubble Tube Column...
  • Page 17 Approximate amount of water required: 45 litres. We strongly recommend that you use the drainage tube and a filling pump (e.g. ROMPA®’s 20908) to fill the bubble tube from the bottom of the tube, rather than pouring water into the top of the tube.
  • Page 18 11. There are two screw holes on each side of the Power Supply should you wish to wall mount the unit, or secure it to the floor. Note: please wall mount in a well ventilated area. No fixings are supplied as these depend on the surface the unit will be attached to. The Power Supply box weighs 1.3kg.
  • Page 19 You may wish to use a collar to secure your bubble tube to the wall. The collar 14694 is appropriate for these bubble tubes. We recommend the use of a collar to prevent the bubble tube from being pulled over. Attach your Collar to the wall, to secure the top of the bubble tube.
  • Page 20: User Guide

    USER GUIDE...
  • Page 21: Troubleshooting

    ® changing the setting to ALL. • Press the Right arrow button to make your selection. • Press Play to choose which Rompa product you wish to control. ® • Select Play, then click on the Right arrow button. •...
  • Page 22 Remove them from the tube and ensure that they have not filled with water, if they have tap them gently on a hard surface to remove the water, then return to the tube. If troubleshooting does not solve the issue please contact Rompa Customer Services +44 (0) ®...
  • Page 23: Notes

    NOTES...
  • Page 28 Rompa Limited, Goyt Side Road, ® Chesterfield, S40 2PH customer.service@rompa.com www.rompa.com 19777_310225...
