Summary of Contents for CHOWIS Dermo Pico dpi Viso

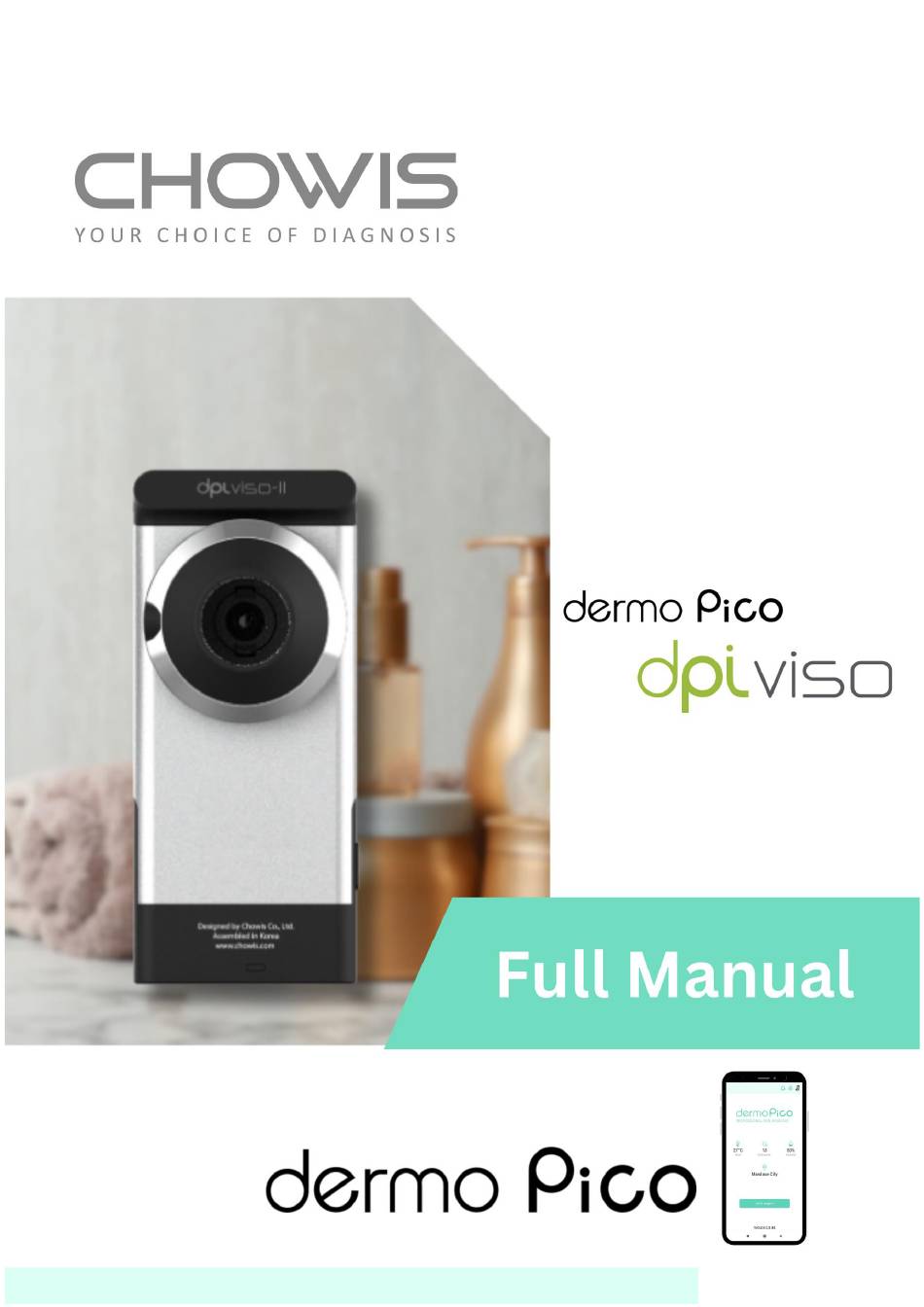

- Page 1 FULL MANUAL...
-
Page 3: Table Of Contents
CONTENTS Device Overview..................i ▪ Package Inclusion..................i ▪ Safety Precautions..................ii ▪ How to use the Device................1 ▪ How to Install................... 2 ▪ How to Sign Up ..................3 ▪ How to Login.................... 4 ▪... - Page 4 CONTENTS Analyzing Sensitivity ................18 ▪ Results ....................19 ▪ • Overall Analysis Results .............. 19 Results ................19-20 Product Recommendation............20 Captured Images & Analyzed Images Preview ......21 Share Results ............... 22 Customer Management ................23 ▪ View Record ................... 24 ▪...
- Page 5 CONTENTS Appendix ....................36 ▪ • Correct Captured Images............36 Incorrect Captured Images............... 37 ▪ Specification ................... 38 ▪...
-
Page 6: Device Overview
CONTENTS DEVICE OVERVIEW 1. Moisture sensor 5. Micro – USB port 2. Magnetic attachment 6. Non – removable lens 3. Serial Number 7. Switch ON/OFF 4. Light Indicator PACKAGE INCLUSIONS Micro – USB Cable dpiViso Calibration Paper Cleaning Cloth Metal Guide Sebum Paper User Manual... -
Page 7: Safety Precautions
SAFETY PRECAUTIONS Please make sure to read these instructions in the manual carefully before using the device for safety and proper use. Do NOT touch or insert any items into the optical unit/lens. Putting foreign substances inside the optical unit or touching the inner part of the lens can affect image quality causing the images to become blurred or unclear. -
Page 8: How To Use The Device
HOW TO USE THE DEVICE CONTENTS ATTACHING DEVICE TO PHONE Press switch button of the dpiViso device for 3 seconds until LED light blinks. Attach the holder to the back camera of mobile phone. Attach the dpiViso device on the metal guide of the smart phone or the phone cover. Mount device to the metal guide. -
Page 9: How To Install
HOW TO INSTALL APP INSTALLATION Launch Google Play Store or Appstore and search “Chowis” or “Dermopico Skin” Select ‘DERMOPICO SKIN” and press 'Install' to proceed... -
Page 10: How To Sign Up
“Register” button. Once registration is successful, a verification email will be sent to your registered email address. Open email from CHOWIS SERVICE and click the “CONFIRM” button to proceed... -
Page 11: How To Login
“Proceed” button to continue. FORGET PASSWORD If you forgot the password, tap on “Forgot Password?” and type the recovery email address and tap on SUBMIT. An email from CHOWIS SERVICE will be received the temporary password on it Email received from CHOWIS SERVICE... -
Page 12: How To Set Up Device
HOW SET UP DEVICE DEVICE ACTIVATION / DEVICE SET UP After the Login is successful, app will automatically search for an available device to connect. Please ensure that dpiVISO device is switched ON prior to app login and phone’s BLUETOOTH is ON as well. -
Page 13: Device Calibration
HOW SET UP DEVICE DEVICE CALIBRATION GUIDELINES ON HOW TO PROPERLY ATTACH DEVICE TO SMARTPHONE AND HOW TO USE CALIBRATION PAPER To perform the calibration, make sure you have the CMA Skin device correctly attached to the smartphone allowing ideal alignment of the camera lens and the CMA Skin device peephole. -
Page 14: Calibrating Device
HOW SET UP DEVICE CALIBRATING DEVICE After adjustment of the device’s preview magnification, next step would be to capture image of the calibration paper. Ensure that the middle red dot is at the center of the field - of – view (FoV), or say at the center of the peephole of the CMA Skin device. -
Page 15: Analysis Flow
ANALYSIS FLOW SELECT MODE OF ANALYSIS The analysis can be performed in one of two modes: ‘Customer and 'Quick Analysis' mode CUSTOMER When selected, this option allows you to manage existing customer profiles or register a new one using the function “Add Customer”, which requires to input specific details of the customer including name, age, and gender, and save all information for the next and succeeding analysis sessions. -
Page 16: Customer
ANALYSIS FLOW CUSTOMER New Customer Registration 1. Press Customer from the main screen and tap on Add Customer button at the bottom of the screen 2. Fill in all the required fields marked with (*). After completing the form, check and agree to the “Privacy Policy”... -
Page 17: Quick Analysis
ANALYSIS FLOW QUICK ANALYSIS... -
Page 18: Analyzing Moisture
ANALYSIS FLOW ANALYZING MOISTURE 1. Moisture icon is automatically selected. 2. Proceed by placing the moisture sensor on the T-ZONE (forehead area) and press on the T-ZONE icon as shown on the app screenshot MOSTURE SENSOR TAP HERE 3. Place the moisture sensor on the U-ZONE (cheek area) of the skin and press on the U- ZONE Icon on the app. -
Page 19: Analyzing Sebum
ANALYSIS FLOW ANALYZING SEBUM 1. Sebum icon is automatically selected on the app. 2. Dab the pink area of the Sebum Paper onto the forehead area for about 3 seconds. The pink area with label T goes to the T-ZONE area of the skin 3. - Page 20 ANALYSIS FLOW 5. Dab the pink area of the Sebum Paper onto the cheek area for about 3 seconds. The pink area with label U goes to the U-ZONE area of the skin 6. Tap U ZONE icon to activate the camera. Place the other side of the pink paper part part of the sebum paper in front of the camera lens then press CAMERA icon to take picture.
-
Page 21: Analyzing Wrinkles
ANALYSIS FLOW ANALYZING WRINKLES 1. Wrinkles icon is automatically selected on the app. 2. Place the camera lens on the side area of the eye and make sure that camera isn't too far nor too close to the eye. Once ready, tap on the camera icon on the app Change focus mode of camera Take Image/Capture button 3. -
Page 22: Analyzing Pores
ANALYSIS FLOW ANALYZING PORES 1. Pores icon is automatically selected on the app. 2. Place the device’s lens on the area to be captured and press the camera button Change focus mode of camera Take Image/Capture button 3. Press the NEXT button on the screen to proceed to next measurement. -
Page 23: Analyzing Impurities
ANALYSIS FLOW ANALYZING IMPURITIES 1. Impurities icon is automatically selected on the app. 2. Place the device’s lens on the area to be captured and press the camera button Change focus mode of camera Take Image/Capture button Press the NEXT button on the screen to proceed... -
Page 24: Analyzing Pigmentation
ANALYSIS FLOW ANALYZING PIGMENTATION 1. Pigmentation icon is automatically selected on the app. 2.Place the device’s lens on the area to be captured and press the camera button Change focus mode of camera Take Image/Capture button 2. Press the NEXT button on the screen to proceed to next measurement. -
Page 25: Analyzing Sensitivity
ANALYSIS FLOW ANALYZING SENSITIVITY 1. Sensitivity icon is automatically selected on the app. 2.Place the device’s lens on the area to be captured and press the camera button Change focus mode of camera Take Image/Capture button 3. Press the NEXT button on the screen to proceed and complete the QUESTIONNAIRE... -
Page 26: Results
RESULTS OVERALL ANALYSIS RESULTS - RESULTS Customer & analysis time information Skin Condition result: There are six possible outputs, which is Very Dry, Dry, Normal, Combination, Oily, Very Oily & Skin Two Focus area to take care of GREEN bar, represent normal skin conditions or balance between sebum and moisture T-ZONE (Forehead Area) -
Page 27: Results
RESULTS DOT INDICATOR When the dot indicator for a specific measurement is positioned closer to the center of the graph, it signifies a favorable skin condition. This suggests that the skin measurement is well within a healthy range. If it is positioned further away from the center, it indicates that more attention to care is required. -
Page 28: Captured Images & Analyzed Images Preview
RESULTS CAPTURED IMAGES and ANALYZED IMAGES PREVIEW Swipe image to the left to view the ANALYZED IMAGE the skin Click on the question mark icon to view the details result interpretation of skin concern and grading scale. -
Page 29: Share Results
RESULTS SHARE RESULTS After performing analysis, you can send results to your customer via the share icon button. Sharing results can have two scenarios. Check two scenarios below: Share icon found below 1. For Online Analysis - press the Share Icon on the lower left side of the screen and a pop-up will show options where results can be sent: Share via E-mail... -
Page 30: View Record
VIEW RECORD MANAGE CUSTOMER Tap “CUSTOMER” from the main screen to view the Customer Page To review or EDIT the customer’s registered information, tap on this icon to proceed To DELETE a customer’s profile, tap on this icon to complete deletion This button leads to downloading of captured skin images This button allows to add or register... -
Page 31: Compare Analysis Record
VIEW RECORD COMPARE ANALYSIS RECORDS From the CUSTOMER PAGE, tap on a customer profile to view result’s history or Customer Record Page To compare results, make sure that specific analysis results from history are chosen. Once done, press on COMPARE button. -
Page 32: Previous Analysis Results
VIEW RECORD PREVIOUS ANALYSIS RESULTS To review the overall results page of a specific analysis that as previously completed, tap on a customer profile and then tap on its analysis result that you wish to review... -
Page 33: Settings Page
SETTINGS PAGE GENERAL OPTIONS 1. On Main page, tap Settings and tap GENERAL OPTIONS. 2. Options may be enabled/disabled by tapping switch at the right side. Automatic Image taking (if switched to ON) – image capture proceeds automatically from one measurement to the next with a 3 seconds interval (starts with Wrinkles measurement to Pores and then Impurities) Hiding mode name (if switched to ON) –... -
Page 34: Device Set Up
SETTINGS PAGE DEVICE SET UP 1. On Main page, tap Settings and tap Device Setup. The page will show the BLE ID (Bluetooth ID) of the device registered on app... -
Page 35: Product Recommendation
SETTINGS PAGE PRODUCT RECOMMENDATION 1. On Main page, tap Settings and go tap Product Recommendation. 2. Page will show input for every measurement, add image and URL for the specific product. another product 3. Uploaded product images will be available on the Overall Result’s Page. -
Page 36: Calibration History
SETTINGS PAGE CALIBRATION HISTORY 1. On Main page, tap Settings and tap Calibration History. 2. Choose and tap the ID number you want to view. - HOW TO CALIBRATE On Main page, tap Settings and tap Calibration History. Press the Calibrate button below the screen. -
Page 37: User Profile
SETTINGS PAGE USER PROFILE On Main page, tap Settings and tap USER PROFILE. - UPDATE PASSWORD To change password, user must first input the old password, before changing to new one. Once done, press on SUBMIT. -
Page 38: Reset Id
SETTINGS PAGE - RESET ID This option allows user to change the email address registered on the device On this section, input the existing email address and password Right here is where the new email and new password will be filled in Once above steps are completed tap on PROCEED - DELETE ACCOUNT... -
Page 39: Analysis Mode
SETTINGS PAGE ANALYSIS MODE 1. On Main page, tap Settings and tap ANALYSIS MODE. 2. App is automatically set to ONLINE MODE by default. To change to OFFLINE mode, press the dropdown button and choose ‘Offline Analysis’ from the option 3. -
Page 40: License Management
SETTINGS PAGE LICENSE MANAGEMENT On Main page, tap Settings and tap LICENSE MANAGEMENT. This page provides information about the ACTIVATION and EXPIRATION DATE of the license, as well as the exact TOTAL NUMBER of remaining days of active license Additional note regarding the app limitations in the event of license expiration... -
Page 41: Faq
DIAGNOSIS SYSTEM IN USE USER AND CUSTOMER REGISTRATION Chowis’ diagnostic system is linked to a unique user ID (email) and only the corresponding ID can be used. If you wish to change your ID, please, do so within the program under settings page. - Page 42 SENT E-MAIL WAS NOT RECEIVED. In order to send email, please check if you have stable internet connection and data synchronization was done, otherwise, it will not send email to customers. In order to do synchronize data, please refer to the Data Synchronization settings section.
-
Page 43: Appendix
APPENDIX APPENDIX: PROPER IMAGE CAPTURING Place the camera flatly and gently onto the skin. The camera should not be too closely pressed against the skin. Improper Device Placement Proper Device Placement The device should be in direct contact with the skin to optimize the lens magnification. -
Page 44: Incorrect Captured Images
APPENDIX CORRECT CAPTURED IMAGES WRINKLES PORES SEBUM IMPURITIES INCORRECT CAPTURED IMAGES Captured image should only SEBUM show the pink paper WRINKLES Blurry wrinkles Vertical eye wrinkles Eyelashes are showing view. Must be horizontal PORES Camera is too pressed Blurry against the skin Camera is too pressed against the skin IMPURITIES... -
Page 45: Specification
Index per measurement (0–99) Analysis result Measurement IMPURITIES SENSITIVITY PIGMENTATION MOISTURE SEBUM PORES WRINKLES DENSITY CONTACT Email: chowis@chowis.com Skype ID: chowisoff icial Chowis Co., Ltd. Homepage: www.chowis.com Tel: +82.31.706.7950 Fax: +82.31.272.7950 Address: A-1301-2, 184, Jungbu-daero Giheung-gu, Yongin- si Gyeonggi-do, Republic of Korea, [17095]...
