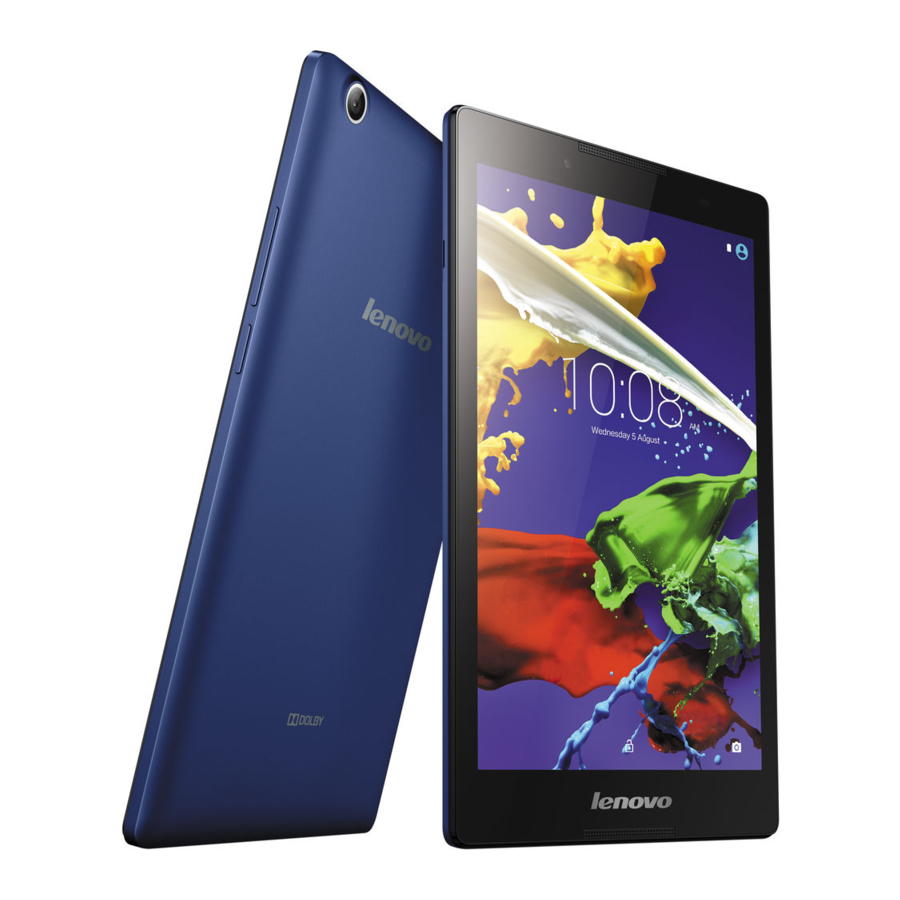

Lenovo TAB2 Manual

Technical specifications

¹ Your Lenovo TAB2 supports LTE Band 1, 3, 8, 20 and 41.

First glance

1. Front camera
2. Speaker/*Receiver
3. Volume key
4. On/Off button
5. Speaker
6. Back camera
7. Micro USB
8. Earphone jack
9. Micro USIM card slot
10. Micro SD card slot
11. Microphone

Preparing your device

You can use cellular services with the LTE model by inserting the Micro SIM card provided by your carrier.
Install the Micro SIM card and the Micro SD card as shown.

1. Open the card slot cover.

2. Pull out the Micro-SIM-card tray and position the Micro SIM card into the tray in correct orientation, then carefully insert the tray with the installed Micro SIM card back into the Micro SIM card slot. Insert the Micro SD card into the Micro SD slot.

3. Carefully replace the slot cover.


Starting to use your device

Before using your Lenovo TAB2, you might need to charge the battery. Charge the battery as shown.

Method 1. Connect your Lenovo TAB2 to a power outlet using the included cable and USB power adapter.
Method 2. Charge the battery using a computer.

Low battery
Fully charged
Charging

Turning on/off

Turn on: Press and hold the On/Off button until the Lenovo logo appears.
Turn off: Press and hold the On/Off button for a few seconds, then tap Power off.

Taking screenshots

Press and hold the On/Off button and the volume down button at the same time.

Important safety and handling information

Plastic bag notice
Plastic bags can be dangerous. Keep plastic bags away from babies and children to avoid danger of suffocation.

Built-in rechargeable battery notice
Do not attempt to replace the internal rechargeable lithium ion battery. Contact Lenovo Support for factory replacement.

Polyvinyl Chloride (PVC) cable and cord notice
Handling the cord on this product or cords associated with accessories sold with this product will expose you to lead, a chemical known to the State of California to cause cancer, and birth defects or other reproductive harm. Wash hands after handling.

Prevent hearing damage
Your device has a headphone connector. Always use the headphone connector for headphones (also called a headset) or earphones.

Excessive sound pressure from earphones and headphones can cause hearing loss. Adjustment of the equalizer to maximum increases the earphone and headphone output voltage and the sound pressure level. Therefore, to protect your hearing, adjust the equalizer to an appropriate level.
Excessive use of headphones or earphones for a long period of time at high volume can be dangerous if the output of the headphone or earphone connectors do not comply with specifications of EN 50332-2.
The headphone output connector of your device complies with EN 50332-2 Sub clause 7. This specification limits the device's maximum wide band true RMS output voltage to 150 mV. To help protect against hearing loss, ensure that the headphones or earphones you use also comply with EN 50332-2 (Clause 7 limits) for a wide band characteristic voltage of 75 mV. Using headphones that do not comply with EN 50332-2 can be dangerous due to excessive sound pressure levels.
If your device came with headphones or earphones in the package, as a set, the combination of the headphones or earphones and the device already complies with the specifications of EN 50332-1. If different headphones or earphones are used, ensure that they comply with EN 50332-1 (Clause 6.5 Limitation Values). Using headphones that do not comply with EN 50332-1 can be dangerous due to excessive sound pressure levels.

Sound pressure warning statement
For the device that is tested in accordance with EN 60950-1: 2006+A11:2009+A1:2010+A12:2011, it is mandatory to perform audio tests for EN50332.
This device has been tested to comply with the Sound Pressure Level requirement laid down in the applicable EN 50332-1 and/or EN 50332-2 standards. Permanent hearing loss may occur if earphones or headphones are used at high volume for prolonged periods of time.

Warning statement:
To prevent possible hearing damage, do not listen at high volume levels for a long period of time.

Service and Support information

The following information describes the technical support that is available for your product, during the warranty period or throughout the life of your product.

Online technical support
Online technical support is available during the lifetime of a product at http://www.lenovo.com/support.

Telephone technical support
You can get help and information from the Customer Support Center by telephone. Before contacting a Lenovo technical support representative, please have the following information available: model and serial number, the exact wording of any error message, and a description of the problem.
Your technical support representative might want to walk you through the problem while you are at your device during the call.

Worldwide Lenovo Support telephone list

Telephone numbers are subject to change without notice. The most up-to-date telephone list for the Customer Support Center is always available at http://www.lenovo.com/support/phone.
If the telephone number for your country or region is not listed, contact your Lenovo reseller or Lenovo marketing representative.

For support on network service and billing, contact your wireless network operator. For instructions on how to use your Lenovo TAB2, go to http://support.lenovo.com/.
