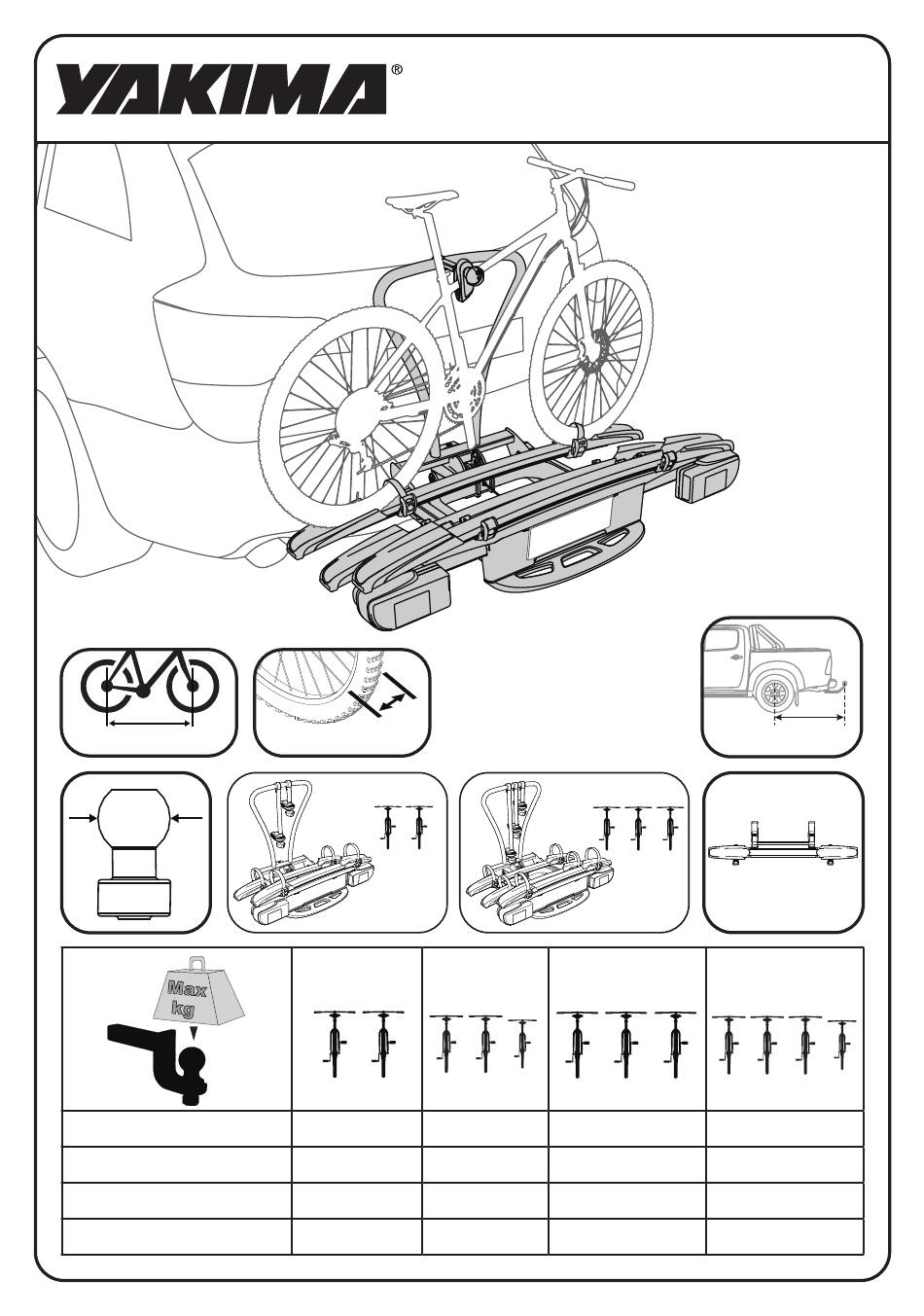

MAX 1250 mm
50 mm
50 kg
60 kg
70 kg
80 kg
6100009517_8002493_8002494_9802404_9802405_Rev5.0
MAX 82 mm (3.25")
JustClick 2
=
17 kg
JustClick 2
JustClick 2
33 kg
43 kg
53 kg
60 kg
JustClick 3
=
20.3 kg
JustClick 3
+1
31.1 kg
29.7 kg
41.1 kg
39.7 kg
51.1 kg
49.7 kg
60 kg
60 kg
JustClick 2
JustClick 3
MAX 1.8 m
=
1.9 kg
JustClick 3
+1
27.8 kg
37.8 kg
47.8 kg
58 kg
+1
1/18
Advertisement
Table of Contents
Related Manuals for Yakima JustClick 2
Summary of Contents for Yakima JustClick 2
- Page 1 JustClick 2 JustClick 3 MAX 1.8 m MAX 1250 mm MAX 82 mm (3.25”) JustClick 2 JustClick 3 50 mm 17 kg 20.3 kg 1.9 kg JustClick 2 JustClick 2 JustClick 3 JustClick 3 50 kg 33 kg 31.1 kg 29.7 kg...
-
Page 2: Kit Contents
KIT CONTENTS ITEM COMPONENT JustClick 2 JustClick 3 JustClick Bike Assembly Bike Frame Grabs Tow Ball 50 mm Bike Carrier Key Set NOTE - JustClick 3 pictured for illustrative purposes 6100009517_8002493_8002494_9802404_9802405_Rev5.0 2/18... -
Page 3: Troubleshooting
COMPATIBLE TOW BALLS ≥ 50 mm ≤ 75 mm Tongue width less than 75 mm Height from base to center of ball to be 50 mm+ ≥ 65 mm > 75 mm Height from base to center of ball to be 65 mm+ Tongue width greater than 75 mm ≥... -
Page 4: Installation
INSTALLATION INSTALL SUPPLIED TOW BALL. PLACE FOLDER CARRIER ONTO TOW BALL. Install supplied tow ball to your hitch receiver. Ensure the carrier remains folded Tighten to 200 Nm. when placing on tow ball. UNFOLD CARRIER. Hold by the hoop and once vertical the carrier should partially unfold. - Page 5 ATTACH NUMBER PLATE. Using self tapping screws (not supplied), secure your number plate to the carrier. Number plate spacers must be used to comply with local regulations. TILT CARRIER. Using one foot on the carrier pedal while holding onto the carrier hoop, press to tilt carrier to gain access to the light plug.
- Page 6 CONNECT LIGHT PLUG. Connect carrier light plug to your hitch power supply. 7 Pin Plug 12 V 24 V REPOSITION CARRIER. Holding onto the carrier hoop, return the carrier to its horizontal position until a “click” is heard. Use caution when opening and closing tailgate.
- Page 7 SLIDE OUT LIGHTS AND WHEEL TRAYS. Slide out lights and wheel trays until a “click” is heard. LOCK CARRIER. Lock the carrier to tow ball using the keys provided. 6100009517_8002493_8002494_9802404_9802405_Rev5.0 7/18...
- Page 8 LOAD BIKES ONTO CARRIER. Bikes can be easily loaded onto the carrier using the optional ClickRamp loading ramp. Order no. 8002492 ClickCover Part #: 8002498 ClickHook Part #: 8002497 ClickTop Part #: 8002499 6100009517_8002493_8002494_9802404_9802405_Rev5.0 8/18...
- Page 9 ATTACH FRAME GRABS. Press knob of frame grabs to expand frame holders (1) and attach to carrier hoop (2). Attach frame clamp to your bike frame and rotate knob clockwise to secure (3). MIN 22 mm MAX 80 mm 6100009517_8002493_8002494_9802404_9802405_Rev5.0 9/18...
- Page 10 MULTI BIKE CONFIGURATION. Load heaviest bikes first and lock bikes to carrier. JustClick 2 JustClick 3 JustClick+1 Order no. 8002488 ºC ºF SECURE BIKE WITH WHEEL STRAPS. Secure bikes to carrier using the wheel straps and buckles. 6100009517_8002493_8002494_9802404_9802405_Rev5.0 10/18...
-
Page 11: Maintenance
MAINTENANCE Recommended maintenance to be performed at least every 6 months. 6100009517_8002493_8002494_9802404_9802405_Rev5.0 11/18... - Page 12 6100009517_8002493_8002494_9802404_9802405_Rev5.0 12/18...
- Page 13 If the vehicle has an electrical hatch or tailgate, switch it off when using the rack. • Do not use any spare parts or accessories other than those provided by Yakima. Using other spare parts and accessories may mean that Yakima will not accept liability for damage that may occur as a result.
- Page 14 REMOVAL UNLOCK CARRIER. Unlock the carrier using the keys provided. DISCONNECT LIGHT PLUG. Disconnect carrier light plug from your hitch power supply. 6100009517_8002493_8002494_9802404_9802405_Rev5.0 14/18...
- Page 15 SLIDE IN LIGHTS AND WHEEL TRAYS. Slide in lights and wheel trays until a “click” is heard. FOLD UP CARRIER. Fold up carrier by pulling up on the foot pedal. 6100009517_8002493_8002494_9802404_9802405_Rev5.0 15/18...
-
Page 16: Safety Instructions
• Yakima is not responsible for personal injuries and/or damage to property or financial loss caused by the incorrect fitting or use of the rack. •... - Page 17 Vehicle Driving and Regulations • The speed driven must be suited to the load transported and to official speed limits. In the absence of any speed limits, we recommend a maximum speed of 130 km/h. • When transporting any load, the speed of the vehicle must take into account all conditions such as the state of the road, the surface of the road, traffic conditions, wind, etc.
- Page 18 YAKIMA AUSTRALIA PTY LTD 17 Hinkler Court Brendale, QLD 4500 Australia 1800 143 548 YAKIMA PRODUCTS, INC. 4101 Kruse Way Lake Oswego, OR 97035-2541 888 925 4621 yakima.com/support ALL CONTENT SUBJECT TO YAKIMA AUSTRALIA PTY LTD COPYRIGHT © 2017 6100009517_8002493_8002494_9802404_9802405_Rev5.0 18/18...
