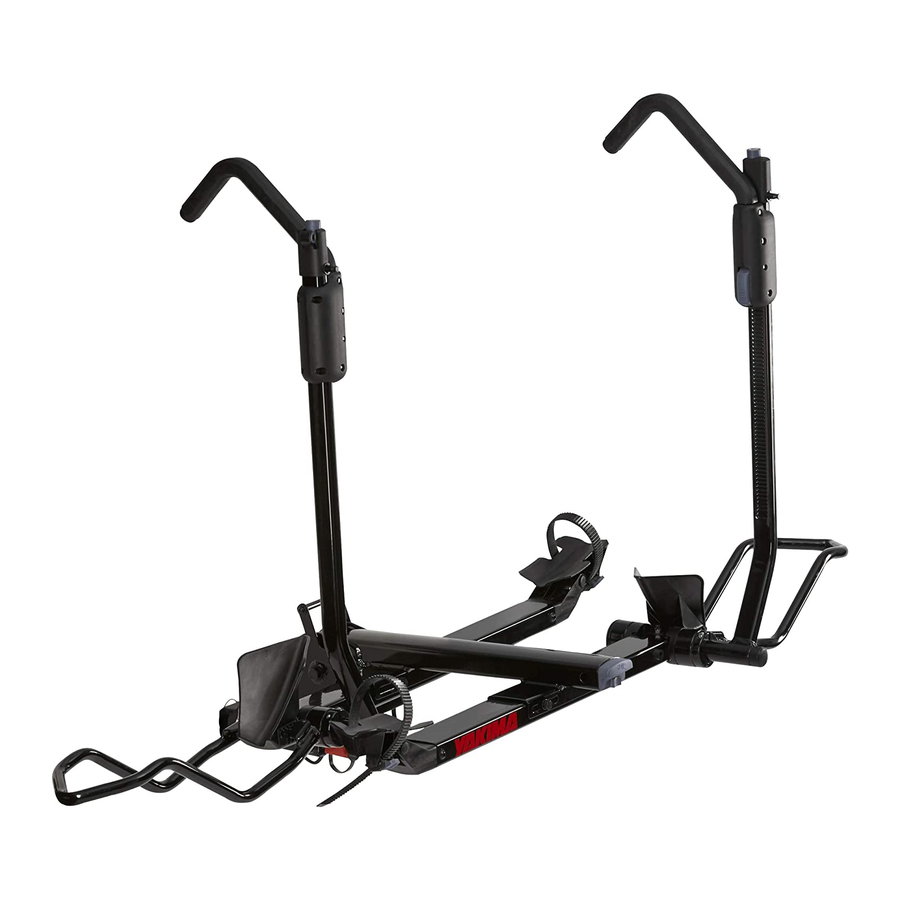

HoldUp Evo
wrench 2X
spine (1X)
washer (2X)
spacer (2X)
tongue (1X)
Key (2X)
nut (1X)
spine bolt (1X)
front tray assembly (1X)
rear tray assembly (1X)
washer (4X)
tray bolt (4X)
tray bolt (4X)
washer (4X)
lock washer (4X)
lock washer (4X)
=
Per Bike
50lbs. / 22.7kg
#8002482
HoldUp EVO +2
(Works only with 2" Hitches)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Yakima HoldUp Evo
Summary of Contents for Yakima HoldUp Evo
- Page 1 (1X) front tray assembly (1X) rear tray assembly (1X) washer (4X) tray bolt (4X) tray bolt (4X) washer (4X) lock washer (4X) lock washer (4X) Per Bike 50lbs. / 22.7kg #8002482 HoldUp EVO +2 (Works only with 2” Hitches)
- Page 2 Insert tongue into hitch receiver. The hole in the base must align to the hole in the hitch receiver. Do not use with hitch adapters, extenders, or reducers. ALIGN Affix the spacers to the base as shown. A. Insert the safety pin. B.
- Page 3 34 Nm (25 ft-lbs) A. Place the the lower tray assembly into position. It's the assembly with the large Yakima sticker. Orient the tray so that the sticker is right side up. B. Install the hardware and fully tighten to 17 ft-lbs (23Nm).
- Page 4 Always load the first bike closest to the vehicle. CAUTION: Do not load a bike if it has a flat tire or a slow leak. Lost tire pressure may result in an insecure load. Always support the spine when lowering HoldUp EVO when loaded with bikes.
- Page 5 Rotate the pivot arm up until the hook rests on the bike tire 1” or less from the brakes or the fork. Failure to place wheel hook in the correct position can cause your bicycle to eject, and cause personal injury, property damage, or death.
- Page 6 IMPORTANT: For bikes with 20" wheels, if the wheelbase is less than 35", the rear wheel may not contact the wheel cup (see image). Ensure that the wheel strap is pulled tightly, and secured in the buckle. Also tires must be fully inflated, and centered on the tray. Push hooks against tires.
- Page 7 Pull the tilt lever and fold the HoldUp EVO all the way up until it locks into position. Periodically it may be necessary to adjust the tension of the swing arms. Use a 5 mm hex Careful: “click” wrench to make the adjustment. Do not overtighten! Use the built...
- Page 8 If you do not know the capabilities of your hitch receiver, consult an automotive professional. Make the most out of your vehicle with Yakima. Check out the roof racks and cargo carriers we offer.
