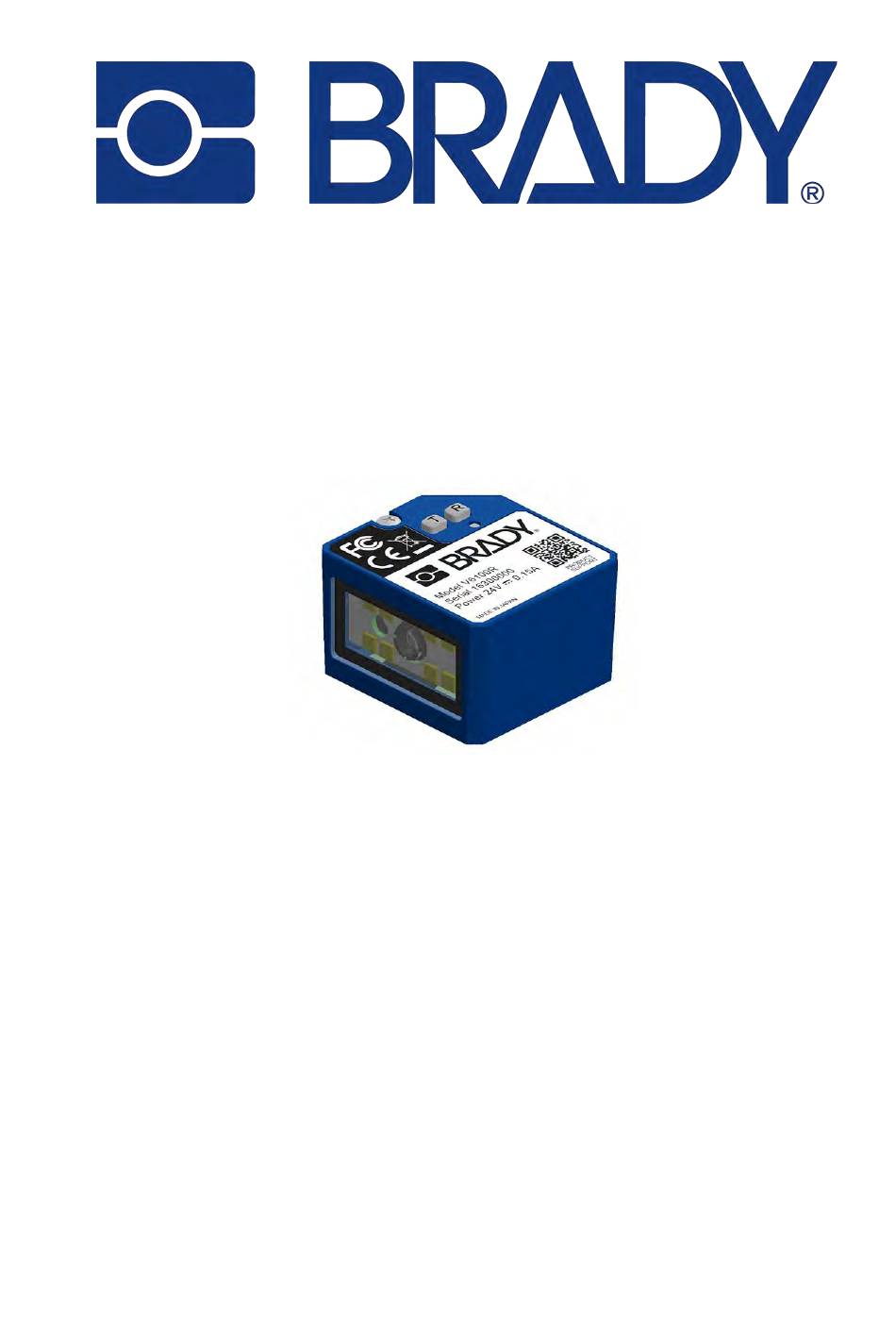

V6100 and V6110
Fixed Barcode Scanners
User Manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the V6100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Brady V6100

Summary of Contents for Brady V6100

  • Page 1 V6100 and V6110 Fixed Barcode Scanners User Manual...

  • Page 2: Safety Notices

    (aircraft, train, automobile), traffic signal, gas leak detector, and safety devices. Brady products are not designed or intended for the use as a component in life support appliances or as surgical implants nor in any other application where failure of the product could cause personal injury or death.

  • Page 3: Handle With Care

    Handle with care DATA BACKUP ⚫ This product has a memory backup function. This backup data restoration cannot be guaranteed if repair, reconstruction, or upgrades are performed on this product. DO NOT use this product at temperature or humidity ranges beyond that documented in the ⚫...

  • Page 4: Long Term Storage

    Locations for operation and storage Avoid the following locations that could cause an accident or damage to the product. - Exposed to ambient temperature outside the rating - Exposed to relative humidity outside the rating - Exposed to rapid temperature fluctuations (causing condensation) - Exposed to direct sunlight or near heaters - Exposed to direct vibration or shock - In the presence of dust, salt, or iron particles...

  • Page 5: Fcc Regulations

    Precautions on Regulation and Standards CE and FCC certified models: V6100U, V6100R, V6100R5 V6110U, V6110R, V6110R5 FCC Regulations NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

  • Page 6: Download Information

    User Manual: This document. Quick Start Guide: Describes basic usage of this product. FixedConfig: Communication & configuration software. Configuration Catalog: Configuration codes for V6100 and V6110 series. NOTE: The terms scanner and scanner are used interchangeably in this document Unpacking Check that the box includes the items listed below.

  • Page 7: Table Of Contents

    Table of Contents Overview ..........................9 Supported symbologies..................... 9 Product lineup ........................ 10 Product description ......................11 Preparation ........................15 RS-232C type ........................15 USB type ......................... 15 Reading flow (Note: in case of default setting) ............. 16 Configuration ........................17 Image data transfer ......................
  • Page 8 Save SETUP / Load SETUP ..................57 Serial Commands (RS-232C, USB)................... 63 Communication settings ....................64 Symbologies settings ...................... 65 Symbol Reading (Operation, Adjustment and Diagnostic mode) ........ 71 Auto Tuning ........................73 Camera Control (1) ......................73 Camera Control (2) (for Table Mode) ................73 Camera Control (3) (for Table Mode) ................

  • Page 9: Overview

    This manual may also refer to 1D / 2D codes as ”barcodes” or “symbols.” (2) V6100 and V6110 series is a compact barcode scanner that can be mounted in a narrow space. IP65 enclosure allow use in harsh environments.

  • Page 10: Product Lineup

    Product lineup V6100 and V6110 series consists of 6 models. Refer to “8.2 Reading Specifications” for details on the reading range. Model name Interface Cable Power Digital Minimum length supply resolution (2D barcode) V6100R RS-232C DC 24V 0.25mm V6100R5 RS-232C DC 5V 0.25mm...

  • Page 11: Product Description

    Product description Operation button / Status LED Serial No. label Reading window Interface cable Read button Teach button LED-R LED-T Restart button Operation button / Status LED...
  • Page 12 1.3.1 Operation button Teach button For Auto Tuning function. In addition, switch to HID mode alternately by turning on the power while pressing the button (only for USB type). Read button For a test / verification and Auto Tuning function, and also trigger input same like the external synchronizing signal.

  • Page 13: Interface Cable

    1.3.3 Interface cable RS-232C type Power V6100R, V6110R: Supply DC24V to the scanner. V6100R5, V6110R5: Supply DC5V to the scanner. RS-232C interface: RxD, TxD, CTS, RTS Used for transmitting the decoded data and status and receiving commands from host device. V6100R5, V6110R5 following functions can be used by cutting the cable at the connector end.
  • Page 14 When changing these parameters, save the settings to the internal flash memory (using the WSETS command) and restart the scanner. When using Busy2 signal, the settings RSCS=1 (Use RS/CS control). Digital input: SYNC This signal is photocoupler isolated digital input used to trigger the reading action. USB type Select the device type (HID mode).

  • Page 15: Preparation

    Preparation RS-232C type (1) Connect with host device. (Refer to “Example of device configuration”) (2) Supply power to the scanner. Default settings of RS-232C communication Baud rate : 9600bps Data length : 8bit Parity : None Stop bit : 1bit Flow control : None USB type...

  • Page 16: Hid Mode

    2.2.1 HID mode (1) Check if USB port of the Windows PC is available. (2) Plug the USB connector into an available USB port while the PC is running. The status LED lights (red ⇒ orange ⇒ off) during start-up. (3) The PC will recognize the scanner as human interface device.

  • Page 17: Configuration

    Configuration Configure settings of the scanner by serial commands. However, the serial commands cannot be used in USB HID mode. For some settings, you can use the 2D barcode menu for settings. Image data transfer The image data that the scanner captured can be transferred to the host PC using the configuration tool “FixedConfig”.

  • Page 18: Operation Mode

    Operation Mode V6100 and V6110 series has four operation modes as follows. Operation mode Command Description Single Reading Mode SYNCMODE=0 Single reading for each SYNC input. After SYNC input, the scanner continues reading during the duration time set by Timeout Mode SYNCMODE=1 the ”TOTALLIM”...

  • Page 19: Single Reading Mode

    Single Reading Mode The barcode scanner performs a single read for each SYNC input. 3.1.1 Soft trigger, Read OK, Data transmission: After decoding SYNC DELAY image1 IMAGE DECODE decode1 DECODELIM SERIAL GOOUT GOOUT 3.1.2 Hard trigger, Read OK, Data transmission: After decoding SYNC DELAY image1...
  • Page 20 3.1.3 Hard trigger, Read NG, Data transmission: After decoding SYNC DELAY image1 IMAGE decode1 DECODE DECODELIM SERIAL NGOUT NGOUT CHATT...

  • Page 21: Timeout Mode

    Timeout Mode The barcode scanner reads the barcode repeatedly during the duration time, set by ”TOTALLIM” after the SYNC input, or continues reading until the decoding is successful. If the barcode scanner cannot decode successfully in the duration time, it stops reading and sends an error code to the host. Typically, MAXIMG is set to a number greater than one.
  • Page 22 3.2.3 Hard trigger, Read OK, Data transmission: After decoding WAITIMG WAITIMG WAITIMG WAITIMG SYNC DELAY image1 image2 image3 image4 image5 IMAGE DECODE decode1 decode2 DECODELIM DECODELIM SERIAL TOTALLIM GOOUT GOOUT CHATT 3.2.4 Hard trigger, Read OK, Data transmission: After SYNC OFF WAITIMG WAITIMG WAITIMG...
  • Page 23 3.2.5 Soft trigger, Read NG, Data transmission: After decoding WAITIMG WAITIMG WAITIMG WAITIMG SYNC DELAY image1 image2 image3 image4 image5 IMAGE DECODE decode1 decode2 DECODELIM DECODELIM SERIAL TOTALLIM NGOUT NGOUT 3.2.6 Soft trigger, Read NG, Data transmission: After SYNC OFF WAITIMG WAITIMG WAITIMG...
  • Page 24 3.2.7 Hard trigger, Read NG, Data transmission: After decoding WAITIMG WAITIMG WAITIMG WAITIMG SYNC DELAY image1 image2 image3 image4 image5 IMAGE DECODE decode1 decode2 DECODELIM DECODELIM SERIAL TOTALLIM NG-OUT NGOUT CHATT 3.2.8 Hard trigger, Read NG, Data transmission: SYNC OFF WAITIMG WAITIMG WAITIMG...

  • Page 25: External Trigger Mode

    External Trigger Mode The barcode scanner reads the barcode repeatedly during the SYNC input is active. Typically, MAXIMG is set to a number greater than one. The multiple MAXIMG enables the Cycle Buffer Function and the parallel processing of the image capturing and decoding. This can reduce the processing time. The below timing charts explain the behavior of Cycle Buffer Function.

  • Page 26: Continuous Reading Mode

    Continuous Reading Mode In Continuous Reading Mode, the barcode scanner reads repeatedly. It is useful for camera tunings. To put the barcode scanner in this mode, send the serial command “continue” to the barcode scanner, and then send the serial command “g” to start reading. To exit this mode, send the serial command “stop”...

  • Page 27: Cycle Buffer Function

    Cycle Buffer Function Cycle Buffer Function is for moving object, especially for the case it is difficult to catch the object within the field of view. In SYNCMODE=1 (Timeout Mode) or SYNCMODE=2 (External Trigger Mode), the Cycle Buffer Function is enabled when the MAXIMG number is greater than 1 (max. 64). If the Cycle Buffer Function is enabled, the barcode scanner captures multiple images after receiving the SYNC signal and then saves the images to the buffer memory (up to 64 images).

  • Page 28: Concept Of Cycle Buffer

    Concept of Cycle Buffer This function focuses to avoid No Read by missing the object from the sight of V6100 and V6110 series. Decoding process can be postponed and the scanner focuses to obtain images which include the moving object. Please try to configure to finish the capture and decode within the time the scanner saves the images whose number is set by MAXIMG.

  • Page 29: Configuration For Barcode Reading

    Configuration for barcode reading Automatic parameter tuning (Auto-Tuning) With this function, the barcode scanner can be configured automatically. This function is available by the communication from the host device as well as an easy button operation on the barcode scanner. For details on the button operation, please refer to 4.1.3 “Auto-Tuning by button operation”.
  • Page 30 4.1.2 Commands for Auto Tuning In Auto Tuning, you can configure the Auto Tuning operation, reference of tuning result, selection of storing method and setting of tuning condition. Start Auto Tuning • *setup This command is to start this function. Force-quit Auto Tuning •...
  • Page 31 Output example of ?ddmtbl ************* STATUS ************* last table number=0(read only) NEXTDDMTBL=1 (1-16) DDMTBLNG=1 (0:OFF 1:ON) ENABLEDDMTBL=1 (1-16) EDITDDMTBL=1 (1-16) TBLTX=0 (0:OFF 1:ON) +++++ table 0 +++++ DDMtblname=table0 DDMcapmode=0,0,752,480 DDMflash=100,100 DDMshutt=3 DDMagain=9 DDMdgain=4 DDMblackval=64 DDMdecodelim=500 DDMlight=3 DDMmirror=2 DDMpreproc=0,0,0,0,0 +++++ table 1 +++++ DDMtblname=table1 DDMcapmode=0,0,752,480 DDMflash=100,100...
  • Page 32 4.1.3 Auto Tuning by button operation Execute Auto Tuning by button operation of the scanner. Place and fix the barcode within the reading distance range. • • Follow the steps below. 1. Start Auto Tuning by holding down the Teach-button. The status LED: Orange ■｜ON ↓...
  • Page 33 Table Mode [AGC=T] V6100 and V6110 series works in Table Mode, which has up to 16 combinations of camera settings (hereinafter, referred to as “tables”) and uses each table in a sequence of the reading. Switch to the table mode with the command “AGC=T”.
  • Page 34 When the reading is successful, the barcode scanner uses the table settings for the next reading. When the reading is unsuccessful, the barcode scanner attempts to read using the next table settings. The flow chart of Table mode is shown below. <...

  • Page 35: Setting Parameters For Table Mode

    Setting parameters for Table Mode 4.3.1 Reading area [DDMcapmode] This command specifies the reading area from an captured image. The parameters are original coordinate and value of width (x) & height (y). [0,0] [a,b] Imaging area Maximum Imaging area [751,479] DDMcapmode=a,b,c,d a: Coordinate origin X (0 to 742) b: Coordinate origin Y (0 to 470)
  • Page 36 4.3.2 Illumination control (ON/OFF) [DDMlight] This command specifies the behavior of internal illumination. DDMlight=a ON when capturing an image Always ON ON during reading (SYMCMODE=1 or 2 only) 4.3.3 Illumination brightness [DDMflash] This command specifies the brightness of each illumination. •...
  • Page 37 • V6110R, V6110R5, V6110U DDMflash=a,b a (Upside illumination), b (Downside illumination) 0 : OFF 1 (dark) to 100 (bright): ON To set to ON, set in the range of 1 to 100, but you can set only the same value for a and b. You cannot set different values.
  • Page 38 4.3.4 Shutter speed [DDMshutt] This command specifies the shutter speed of the scanner. A slower shutter speed makes the image brighter but may introduce motion blur into the image. DDMshutt=a 0: 1/60 1: 1/125 2: 1/250 3: 1/500, 4: 1/1000 5: 1/2000 6: 1/4000 7: 1/6000,...

  • Page 39: Auto Gain Control Mode [Agc=E]

    Auto Gain Control Mode [AGC=E] In Auto Gain Control Mode, the scanner automatically adjusts the parameter (shutter speed, analog gain and digital gain) settings to the ambient brightness. Switch to the table mode with the command “AGC=E”. It cannot be used together with the Table mode. Reading parameters for Auto Gain Control Mode 4.5.1 Reading area [CAPMODE] CAPMODE=a,b,c,d...

  • Page 40: Auto-Sense Mode

    Auto-sense Mode In Auto-sense mode, the scanner automatically detects and reads the barcode. It detects the change in ambient brightness and the movement of the subject, etc., and performs scanning automatically. This function is useful for reading documents with barcodes printed on them in front of the scanner. The Auto-sense mode works with the brightness of normal room lighting, but may not be suitable for ⚫...

  • Page 41: Timing Chart

    Timing chart While in Auto-sense mode, the scanner transitions in three states: detect, decode and wait. Detect change Resume detection Detection LFWAIT Start with Exit with SYNCMODE=3 SYNCMODE=0 Read Repeat until the reader Readable can read the symbol. Timed out Timer LFTOTALLIM State: Detect...

  • Page 42: Output Example

    5.3.3 Reading timeout [LFTOTALLIM] After detection, the reading operation is performed until the barcode reading succeeds or the timeout occurs. Set this time. LFTOTALLIM=a (a: 0 to 10, Unit: seconds) 5.3.4 Wait time for resuming detection [LFWAIT] The scanner waits for a fixed time and resumes processing after a successful barcode read or read timeout.

  • Page 43: Advanced Features

    Advanced Features Preset Mode In Preset Mode, V6100 and V6110 series reads only the barcodes whose data match the preset data. This function has two modes, their registration methods and data collation methods of preset data are different. PREM=0[CR](*): Preset Mode 0 (Preset Mode is disabled)
  • Page 44 e.g.1) Example 1: Only ”12345” is valid 12345: match 1234: mismatch 123456: mismatch 012345: mismatch PREM=2[CR] SET=PRED12345[CR] SET=PREN5[CR] WSETS[CR] e.g.2) Example 2: Valid when first 4 digits are ”ABCD”. ABCD: match ABCD333: match ABCD777777: match ABC: mismatch DABC333: mismatch ABC777777: mismatch PREM=2[CR] SET=PREDABCD[CR]...
  • Page 45 6.1.3 Output the status of Preset Mode ?pre[CR] : Output the preset status (Output example) PREM=0 (0: non 1: power on 2: saved) PRESET LENGTH: 13 DATA(HEX): 34 39 3F 3F 3F 3F 3F 3F 3F 3F 3F 3F 3F DATA(ASCII): 49??????????? (Output format)

  • Page 46: Output Additional Information

    Output Additional Information 6.2.1 Warning Information to avoid Read NG Add warning information that can monitor the reading condition. Output format: (CcccEeeeDddd) ccc: Contrast information eee: Unused error correction rate ddd: Decodability margin e.g.1) Read OK Data Output: (C082E100D091)A123456A The barcode scanner outputs the contrast value of a barcode including quiet zone. The decoder determines a rectangular area for the barcode and calculates the contrast value from its brightness level.
  • Page 47 6.2.3 Decoding Time Add decoding time to the symbol data. 6.2.4 Total Reading Time Information Add the number of images captured after trigger input and total time from trigger input to the serial data output. Total reading time is not added at read NG. Output format: (aa, bbbbbms) aa: Number of images, bbbbb: Total time [ms]...

  • Page 48: Quality Information

    6.2.6 Quality Information The percentage of the Unused Error Correction codeword of the 2D barcode is added to the decoded data. For example, if the decoder does not use any error correction, this value would be 100. The barcode scanner outputs the quality information individually if there are multiple symbols. Quality Information is not added at Reading Error.
  • Page 49 (3) Barycentric / Rectangular coordinates Outputs coordinates of both barycenter and four corners of a symbology. (Example output) 10000000099070(+0007,+0103)(+0269,+0011)(+0455,+0086)(+0386,+0270)(+0198,+0199) (Output format) Header + Data +(B) + (A1) + (A2) + (A3) + (A4) + Terminator (B): Barycentric coordinate (A1)(A2)(A3)(A4): Rectangular coordinates B, A1-A4: (abbbb,acccc) a: + or - bbbb: X coordinate of barycenter and X coordinate of four corners of a symbol (-9999...
  • Page 50 6.2.8 Table Number Adds setting table number used in the last decoding. (Example output) 10000000099070(TBL:3) (Output format) Header + Data + (TBL:a) + Terminator a: Table number 6.2.9 Scanner Name Adds the individual name of the barcode scanner. (Example output) (My Reader)10000000099070 (Output format) Header + (a) + Data + Terminator...

  • Page 51: Save Image

    Save Image Maximum 64 captured images can be stored. The number of cycle buffer memory means the number of storable images. MAXIMG=a[CR] a=1 to 64 Specify number of cycle buffer memory. MAXIMG=1[CR] (*) *: Default 6.3.1 Transmit processed image Select an image to save from the 2 images captured before or after preprocessing. (Only for latest image) IMGSEL=0[CR] Transmit captured image (Raw image)
  • Page 52 6.3.4 Output the settings of saving images ?IMG[CR] Output the status （Output example） ************* STATUS ************* IMODE=a PX=b PY=c WX=d WY=e IMGSEL=f (0:captured image 1:decoded image) MAXIMG=g (1-64) WAITIMG=h (0-1000[ms]) CAPLIM=i (0:OFF 1:ON) ROTATE=j (0:disable 1:enable) GOUTSIZE=k (0:752x480 1:376x240 2:188x120 3:94x60) IMGFRAME=0,l (0:fixed value, 1-64:frame-no.) ************** END *************** V6100U : 064-V1.0a...

  • Page 53: Save Ng (No Read) Image

    Save NG (No Read) Image Up to 10 decoded images can be saved when reading is NG (No Read). The NG Image is cleared when the power is turned off. FixedConfig supports the NG image acquisition function. 6.4.1 Set image type This command specifies image type for the transfer.
  • Page 54 6.4.3 Checking the number of stored NG Images Outputs the number of saved NG Images (status). ?NGFRAME[CR] checking command Sample Output Mark for starting output NGNUM:6 Number of NG Images (6 NG Images can be extracted) Mark of output completion 6.4.4 Preparation for transmitting the NG Image Sets the NG image to be transferred to the host PC.

  • Page 55: Simultaneous Reading Of Multiple Labels

    Simultaneous reading of multiple labels In symbol reading mode, multiple (up to 10) labels can be read simultaneously. The order of reading data output can be configured like the following. By completion of reading process By preset number of digits By preset matching characters By preset symbologies †...

  • Page 56: Register Of Sync On/Off Command

    Register of SYNC ON/OFF command The SYNC ON/OFF command of the barcode scanner can be registered with any 8 alphanumeric characters (available characters are 0x20 to 0x7E in 7.17 Table of Character Code). If an entered arbitrary character string is the same as an existing serial command, the command is not registered. SYNC ON command setting SONCMD=a[CR] (a: Up to 8 alphanumeric characters) The character string a is registered as SYNC ON command.

  • Page 57: Save Setup / Load Setup

    Save SETUP / Load SETUP SETUP: Barcode scanner configuration parameters Up to 20 setups can be stored in the barcode scanner. When the setup is loaded, the settings are reflected in the barcode scanner. 6.8.1 Settings targeted by Setup Save / Read Function Settings targeted by Setup function are as follows.
  • Page 58 Term Command Description Symbologies SET=FM Set Disable/Enable Codabar Codabar CODASS= Start / Stop code output setting of Codabar CODACS= Start / Stop code output setting of Codabar CODACHK= Checksum algorithm setting of Codabar DIGIT=F Set minimum and maximum digit numbers of Codabar EDIT=F Set data output range of Codabar SYMHEAD=F...
  • Page 59 Term Command Description Symbologies SET=eM-RSS Set Disable/Enable GS1 Databar GS1 Databar DIGIT=e -RSS Set minimum and maximum digit numbers of GS1 Databar EDIT=e -RSS Set data output range of GS1 Databar SYMHEAD=e - Set header character of GS1 Databar SYMFOOT=e - Set footer character of GS1 Databar Symbologies SET=dM...
  • Page 60 Term Command Description Reading No read message SONCMD= Register the SYNC ON command SOFFCMD= Register the SYNC OFF command Operation Mode SYNCMODE Set Operation Mode VOUT= Output timing TOTALLIM= Decode timeout continue/stop Continuous Reading Mode Enable/Disable contintvl= Set a time interval of reading Additional CHKBCR= Warning Information...
  • Page 61 Term Command Description Table Mode ENABLEDDMTBL= Specify Number of Tables DDMTBLNG= Specify the operation of Table Mode DDMcapmode= Specify capturing area of the table DDMlight= Set ON/OFF of illumination output DDMflash= Set the brightness of internal illumination source DDMshutt= Set the shutter speed of the table DDMagain= Set the Analog gain of the table DDMdgain=...
  • Page 62 6.8.2 Serial Command for Setup Save / Read Function The commands related to setup are as follows: PSAVE=a[CR] (a: 1 to 20) Saves the current settings of the barcode scanner in the code reader as SETUP “a”. PLOAD=a[CR] (a: 1 to 20) Reflects the settings of SETUP in the code reader.

  • Page 63: Serial Commands (Rs-232C, Usb)

    Serial Commands (RS-232C, USB) The following serial commands can be used through both RS-232C and USB interface unless otherwise specified. (Serial command format) Serial command + [CR] (*): Default (Backward compatible) [Header] + Serial command + [Terminator] To add header and terminator characters to a serial command, send the command "CMDFORM=1". The header and terminator characters are same as the ones to add to decoded data.

  • Page 64: Communication Settings

    Communication settings Term Command Description (*): Default Baud rate BAUD=a Baud rate of RS-232C a=1200: 1200bps, a=2400: 2400bps, a=4800: 4800bps a=9600: 9600bps (*), a=19200: 19200bps, a=38400: 38400bps a=57600: 57600bps, a=115200: 115200bps Frame (Length, Parity, Stop bit) FRAME=0 7 bits, Odd, 1 bit FRAME=1 7 bits, Odd, 2 bits FRAME=2...

  • Page 65: Symbologies Settings

    Symbologies settings Term Command Description (*): Default Common SET=#M0 Disable all symbologies reading SET=#M1 Enable all symbologies reading SYMHEAD Header character (Identifier) for all symbologies a=0: Disable (*) a=1: Enable =#a,\bb bb: Identifier (Hex code (*1)) When omitting ”bb”, configured identifier will not be changed. SYMFOOT Footer character (Identifier) for all symbologies a=0: Disable (*)
  • Page 66 Term Command Description (*): Default Code39 SET=AM0 Disable Code39 SET=AM1 Enable Code39; disable C/D check (*) SET=AM2 Enable Code39; enable C/D check and output SET=AM3 Enable Code39; enable C/D check; disable C/D output SET=AM4 Enable Code39; disable C/D check; enable FULL ASCII mode SET=AM5 Enable Code39;...
  • Page 67 Codabar Set the start digit (b) and number of digits (c) of Codabar EDIT=Fb,c (continued) decoded data output SYMHEAD Header character of Codabar a=0: Disable (*) a=1: Enable =Fa,\bb bb: Identifier (Hex code (*1)) bb=46 (*) character “F” When omitting ”bb”, configured identifier will not be changed. SYMFOOT Footer character of Codabar a=0: Disable (*)
  • Page 68 UPC/EAN/JAN UPCANS=0 UPC-A; enable number system character output (*) (continued) UPCANS=1 UPC-A; disable number system character output UPCENS=0 UPC-E; enable number system character output (*) UPCENS=1 UPC-E; disable number system character output UPCE=0 UPC-E; output in UPC-A format (*) UPCE=1 UPC-E;...
  • Page 69 Term Command Description (*): Default DataMatrix SET=dM0 Disable DataMatrix SET=dM1 Enable DataMatrix; Square, Normal label SET=dM2 Enable DataMatrix; Square, Black/White inverted label SET=dM3 Enable DataMatrix; Square, B/W inverted and Normal label SET=dM5 Enable DataMatrix; Square and Rectangle, Normal label SET=dM6 Enable DataMatrix;...
  • Page 70 Composite SYMFOOT Footer character of Composite Code =ea,\bb-CC a=0: Disable (*) a=1: Enable (continued) bb: Identifier (Hex code (*1)) bb=63 (*) character “c” When omitting ”bb”, configured identifier will not be changed. PDF417 SET=LM0 Disable PDF417 SET=LM1 Enable PDF417 (*) Set the minimum number of digits (b) and maximum number of DIGIT=Lb,c digits (c) of PDF417...

  • Page 71: Symbol Reading (Operation, Adjustment And Diagnostic Mode)

    Symbol Reading (Operation, Adjustment and Diagnostic mode) Term Command Description (*): Default Reading Start reading (SYNC ON) BR=a Read error message a=0: None a=1: "BR" (*) a=2: "ERROR" a=3: "?" a=4: None (Header, Terminator and Additional information are output) a=5: "NO READ" SONCMD=a Register the SYNC ON command (alphanumeric 8 digits) a=None (*)
  • Page 72 a=0-742 a=0(*) Y coordinate of base point of calculation area for Read NG CSY=a a=0-480 a=0(*) X coordinate of width of calculation area for Read NG CWX=a a=10-752 a=752(*) Y coordinate of width of calculation area for Read NG CWY=a a=10-480 a=480(*) Quality QTTX=a...

  • Page 73: Auto Tuning

    Auto Tuning Term Command Description (*): Default Auto-Tuning *setup Start Auto-Tuning Cancel *cancel Cancel running Auto-Tuning Auto-Tuning *?state Get the status of running Auto-Tuning Status STANDBY RECEIVED Running Auto-Tuning SAVEWAIT Waiting for saving the tuning result ABORTED Auto-Tuning failed (No reply) Reading Save Tuning *save Save the tuning result to Table #1 to #3...

  • Page 74: Camera Control (3) (For Table Mode)

    Camera Control (3) (for Table Mode) Term Command Description (*): Default Capturing area DDMcapmode= Specify capturing area of the Table Left, Left 0-742 0(*) Top, 0-470 0(*) Width, Width 10-752 752(*) Height Height 10-480 480(*) Illumination DDMlight=a Specify illumination ON/OFF setting of the Table Control a=0: OFF a=3: ON（When imaging）...

  • Page 75: Camera Control (3) (For Auto Gain Control Mode)

    Camera Control (3) (for Auto Gain Control Mode) Term Command Description (*): Default Camera Control AGC=E Use camera setting in Auto Gain Control Mode Mode Capture area CAPMODE= Specify capturing area Left, Left 0-742 0 (*) Top, 0-470 0 (*) Width, Width 10-752...

  • Page 76: Image Preprocessing

    Image Preprocessing Term Command Description None No Image Preprocessing Black Erosion Erosion 2x2 Erosion 3x3 Erosion 5x5 Erosion 2x1 (w) Erosion 1x2 (h) White Erosion Dilation 2x2 Dilation 3x3 Dilation 5x5 Dilation 2x1 (w) Dilation 1x2 (h) Reverse White & Black Reverse Contrast Cont(L12cut): Truncate the 12% of dark side Enhancement...

  • Page 77: Auto Sense

    7.11 Auto sense Term Command Description (*): Default Aimer / LFILLUM=a Set aimer and illumination in detection state a=0: Aimer OFF, Illumination OFF Illumination a=1; Aimer ON, Illumination OFF (*) a=2; Aimer OFF, Illumination ON Detection LFSENS=a Set detection sensitivity sensitivity a=0: High a=1: Slightly high...

  • Page 78: Save Ng (No Read) Image

    7.13 Save NG (No Read) Image Term Command Description (*): Default Image type IMGSEL=a Select image type a=0: Captured image (raw data) a=1: Decode image (processing data) (*) Storage order IMGFULL=a a=0: Save the latest 10 NG Images a=1: Save the 1st to 9th NG Image and the latest NG Image (*) Number of stored ?NGFRAME Checking the number of stored NG Images...

  • Page 79: General Operation

    7.16 General Operation Term Command Description (*): Default Initialization SET=DFT Reset to factory default Save settings WSETS Save settings to internal flash memory Digital I/O CHATT=a Debouncing time a=0: None a=1: 10[ms] (*) a=2: 20[ms] GOOUT=a Set hold time of GO output (Hold off at next SYNC IN) a=100-20000 [ms] a=300 (*) NGOUT=a Set hold time of NG output (Hold off at next SYNC IN)

  • Page 80: Specifications

    Data Matrix(ECC200), QR Code / Micro QR Code 2D barcode PDF417 / MicroPDF, AztecCode, CompositeCode PITCH: ±35° Reading angle SKEW: ±35° TILT: 360° V6100* Barcode: 0.15 mm 2D barcode: 0.25 mm Minimum resolution V6110* Barcode: 0.125 mm 2D barcode: 0.125 mm sensor 1/3-inch, Monochrome...

  • Page 82: Reading Specifications

    Reading Specifications 8.2.1 Field of view • V6100R, V6100R5, V6100U • Unit: mm Distance L Horizontal Vertical • V6110R, V6110R5, V6110U Unit: mm Distance L Horizontal Vertical...
  • Page 83 8.2.2 Reading range • V6100R, V6100R5, V6100U Unit: mm Narrow bar width / Cell size Near Barcode 0.15 Barcode 0.19 Barcode 0.25 Barcode 0.33 2D barcode 0.25 2D barcode 0.33 2D barcode 0.38 • V6110R, V6110R5, V6110U Unit: mm Narrow bar width / Cell size Near Barcode 0.125 Barcode 0.167...

  • Page 84: Dimensions

    Dimensions 2-M3 Depth 4 Unit: mm DO NOT tighten the screws more than the depth of mounting holes or the maximum tightening torque is as below. M3: 0.7 [N･m]...
  • Page 85 RS-232C type • V6100R, V6110R 2000 D-sub9(F) D-sub15(M) • V6100R5, V6110R5 2000 D-sub9(F) Cut the cable at the connector end when using cable with loose-wires. Refer to 8.4 “Interface” for wire color. USB type 2000 Unit: mm...

  • Page 86: Interface

    Interface 8.4.1 RS-232C type • V6100R, V6110R (1) Power, I/O interface Connector: D-sub 15pin (Male) Lock screw: #4-40UNC (Female) Connector pin assignment 10 11 12 13 14 15 Color Name Function Direction +24V Not connected Sky blue OUT1+ Digital Output 1 Output Yellow OUT2+...
  • Page 87 Connection table for loose-wires Split Position Shi eld gra y gra y Internal brown brown purple Purpl e equivalent SGND green green bl ue bl ue circuit ・ bl a ck bl a ck PGND s ky bl ue s ky bl ue OUT1+ 2.2kΩ/0.4W SYNC+...
  • Page 88 Connector pin assignment Color Name Function Direction Not Connected Gray RS-232C Transmit Data Output Brown RS-232C Receive Data Input Not Connected Purple SGND Signal Ground Not Connected Green RS-232C Clear To Send Input Blue RS-232C Request To Send Output Not Connected...
  • Page 89 • V6100R5, V6110R5 (1) Power Connector: DC Jack [ EIAJ - Type Ⅱ] (2) RS-232C interface Connector: D-sub 9pin (Female) Lock screw: #4-40UNC (Male) Connector pin assignment Color Name Function Direction Not Connected Gray RS-232C Transmit Data Output Brown RS-232C Receive Data Input Not Connected Purple...
  • Page 90 Connection table for loose-wires Internal equivalent circuit 360Ω/0.5W SYNC+ SYNC- 2.2kΩ/0.4W ENCODE+ ENCODE- □：White dot pattern *Ground the shield as FG. ■：Black dot pattern OUT1+ OUT2+ COM(OUT1-,OUT2-) VIN voltage DC5V PGND 8.4.2 USB type USB connector Type-A...

  • Page 91: Accessories

    Accessories Accessories for V6100R, V6110R 9.1.1 Power supply unit Scanner Interface Power Digital I/O Minimum Resolution Models Supply (2D code) V6100R RS-232C DC 24V 0.25 mm V6100R5 RS-232C DC 5V 0.25 mm V6100U USB (Full Speed) DC 5V 0.25 mm V6110R RS-232C DC 24V...
  • Page 92 • V6100R5, V6110R5 Use an AC adapter cable with loose-wires Use the To avoid damage to the scanner, turn off the power to the devices attached to the scanner when plugging in or unplugging the cables.

  • Page 93: Troubleshooting

    V6100R, V6110R: DC24V +/- 10% V6100R5, V6110R5: DC5V +/- 10% Is V6100 and V6110 series properly connected to the host device? ➢ Make sure that the scanner is properly connected to the host device. In the RS-232C interface, all communication conditions including the baud rate must be the same.

  • Page 94: Barcode Cannot Be Decoded

    10.2 Barcode cannot be decoded Is the barcode setting correct? ➢ Make sure that the symbology and number of digits settings are correct. If the barcode type or number of digits is out of the setting, the scanner cannot read. Are the reading distance and the print quality suitable? ➢...

  • Page 95: Warranty Obligations

    One year from the date of purchase. ２． Warranty Coverage Brady shall repair or replace the product at no charge if any defects in the Products are suspected to be due to design or manufacturing error. This warranty does not cover, and Brady will not be held liable, for any damages incurred by the use of this product.
