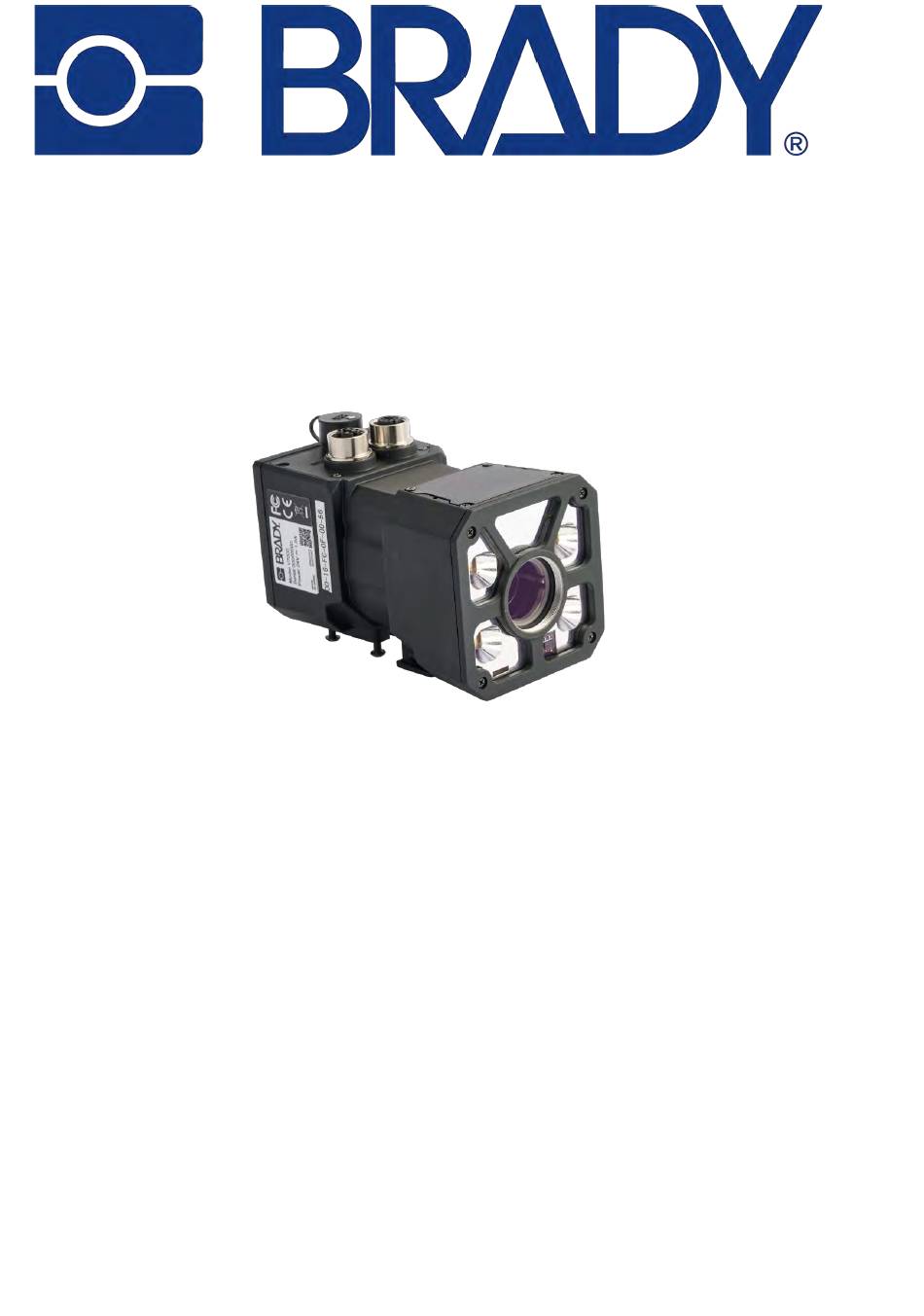

Page 1 V7000 Fixed Barcode Scanner User Manual...
Page 2: Safety Notices
The use of Brady products shall indemnify and hold harmless to Brady and its shareholders against any claims of injury or death associated with unintended authorized use.
Page 3: Handle With Care
Handle with care DATA BACKUP ⚫ This product has a memory backup function. This backup data restoration cannot be guaranteed if repair, reconstruction, or upgrades are performed on this product. DO NOT use this product at temperature or humidity ranges beyond that documented in the ⚫...
Page 4: Long Term Storage
Locations for operation and storage Avoid the following locations that could cause an accident or damage to the product. - Exposed to ambient temperature outside the rating - Exposed to relative humidity outside the rating - Exposed to rapid temperature fluctuations (causing condensation) - Exposed to direct sunlight or near heaters - Exposed to direct vibration or shock - In the presence of dust, salt, or iron particles...
Page 5: Fcc Regulations
Precautions on Regulation and Standards FCC Regulations NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
Page 6: Download Information
Download information The user manuals, software, and device drivers are available from: https://www.bradyid.com/V7000 User Manual: This document V7000 Quick Start Guide: Describes basic usage of this product FixedConfigV7000: Communication & configuration software FixedConfigV7000 Quick Start Guide: Describes basic usage of FixedConfigV7000...
Page 7: Table Of Contents
Table of Contents 1 Contents OVERVIEW ........................10 FLOW TO START OF OPERATION ................11 ..............12 HECKING THE CONTENTS OF THE PACKAGE ......................13 AME OF EACH PART ........................14 TATUS ................... 18 TATUS NOTIFICATION BY BUZZER ................19 XAMPLE OF EVICE CONFIGURATION ..........
Page 8 ................83 UTPUT DDITIONAL NFORMATION ........................91 MAGE .............. 92 IMULTANEOUS READING OF MULTIPLE LABELS ....................... 93 MAGE FLIPPING SYNC ON/OFF ................ 94 EGISTER OF COMMAND ....................94 NDUSTRIAL THERNET ....................95 YMBOL RINTING HECK ............98 UNCTIONS FOR SAVING AND LOADING THE SETUP ETHERNET CONNECTION (TCP SERVER) ..............107 .........................
Page 9 13.2 ........................154 IMENSIONS 13.3 ........................155 NTERFACE 14 PERIPHERAL EQUIPMENT ..................157 14.1 V7000 ................157 EDICATED ACCESSORIES FOR 15 TROUBLESHOOTING ....................158 15.1 ........... 158 ANNOT POWER ON OR COMMUNICATE WITH HOST DEVICE 15.2 ..................159 YMBOL CANNOT BE DECODED 15.3...
Page 10: Overview
Overview (1) V7000 is a fixed mount (stationary type) barcode scanner that applies the latest digital camera technology and image recognition software. It applies a powerful high-speed processing engine equipped with a quad-core CPU to automatically identify and read one-dimensional and two- dimensional codes (hereinafter also referred to as “symbols”).
Page 11: Flow To Start Of Operation
Flow to start of operation 3.1 Checking the contents of the package P.12 3.2 Name of each part P.13 3.3 Status LED P.14 3.4 Status notification by buzzer P.18 3.5 Example of Device configuration P.19 3.6 Cable connection, pin assignment, wiring example P.19 3.7 Reading distance, Field of view P.22...
Page 12: Checking The Contents Of The Package
When you open the package, please check the following items are there without scratches/damages. If you find any shortage, please contact our customer support. Packaged product name Image Quantity V7000 Calibration sheet V7000 Quick Start Guide: Optional accessories Product name Model number AKA-24271A1 24V AC Adapter Interface and Power Jack Cable MFR-CA05-S99-AC NBC-MSX/5.0-94F/R4ACSCO...
Page 13: Name Of Each Part
Name of each part Reading window Screw holes Ethernet cable connector IF cable connector Symbol reading reference plane Teach button Monitor LED Link/Act-LED Speed-LED Read button Explanation Name Reading window Window to read the symbols. Symbol reading reference plane Reference plane for symbol reading distance. Screw holes Holes for mounting the enclosure (M3, depth 4 mm, 4 places).
Page 14: Status Leds
Status LEDs ●Normal operation Panel Color Function description READY Orage The reader is ready to operate. SYNC Green The reader received SYNC signal. Blinks once when the symbol is Green successfully read. Blinks once when symbol reading fails. Industrial Ethernet function is enabled. - EtherNet/IP Green MS/BF...
Page 15 ●Special status display Panel Color Status Function description Blinks 3 times when saving the SYNC Green Blinking configuration is completed. When the data arrival confirmation setting is enabled SYNC Green and reading data cannot be Blinking transmitted, NG blinks 7 times and SYNC lights up until transmission.
Page 16 ●Industrial Ethernet (EtherNet/IP) when enabled Network Status Module Status Module Status : Indicates barcode scanner status when Industrial Ethernet is enabled. Network Status : Indicates connection status when Industrial Ethernet is enabled. Panel Color Status Function description Green MS/BF When the Industrial Ethernet is enabled, the LEDs are lit or Green NS/SF...
Page 17 ●Others Panel Color Status Function description Blinking Green Blinking Blinking Green Blinking The scanner has some error. Please contact our customer support. SYNC Green Blinking READY Orange SYNC Green Blinking Blinking READY Orange Green Blinking...
Page 18: Status Notification By Buzzer
Status notification by buzzer Notifies the reader's status by the length of the buzzer sound and the pattern of the number of times it sounds. Length of Number Function description buzzer sound of times Short When the reader has completed booting. Short When the symbol is successfully read.
Page 19: Example Of Device Configuration
Example of Device configuration An example of the connection configuration of this product is as follows. ●V7000 Item Model Interface & Power Jack Cable MFR-CA05-S99-AC 24V AC Adapter AKA-24271A1 LAN Cable NBC-MSX/5.0-94F/R4ACSCO Note: This product has an engraved mark of "E58085 UL AWM VW-1"...
Page 20 IF cable pin assignment line color Name Function Directions Power supply DC24V Orange Digital output 1 (Initial value: GO) OUT1+ Output (Red mark) (Photocoupler + side) White Digital output 2 (Initial value: NG) OUT2+ Output (Red mark) (Photocoupler + side) Black PGND Power supply GND...
Page 21 3) Powered by DC, VDD (24V) PNP wiring for SYNC input. SYNC+ (IN) 10 SYNC- (IN) PGND (0V) 4) Powered by DC, VDD (24V) and use I/O signals. NG+ (OUT2) GO+ (OUT1) COM- (OUT) PGND (0V)
Page 22: Reading Distance, Field Of View
Reading distance, Field of view In this section you will find the field of view and reading distance ●Reading distance, Field of view If the reading distance exceeds 400 mm, the built-in illumination may not provide enough light. In this case, please prepare external lighting. When the reading distance is more than 1000mm, the built-in distance sensor may not be able to measure the distance.
Page 23 V7000 (Standard) 2D code, when print check is ON (Number of pixels per one cell: 6) Unit: mm Focus adjustment range (Reading depth in Field of view Cell sizes parentheses Note 1) [mm] Near end Far end (Note 2) (22) (30) 0.125...
Page 25 2D code, when print check is OFF (Number of pixels per one cell: 3) Unit: mm Focus adjustment range (Reading depth in Field of view Cell sizes parentheses Note 1) [mm] Near end Far end 198(Note 3) (Note 2) (22) (64) 245(Note 3) 0.125...
Page 27 Bar code (Number of pixels per one cell: 2) Unit: mm Focus adjustment range Field of view Cell sizes [mm] Near end Far end 0.125 368(Note 1) 1319 0.15 444(Note 1) 1571 0.19 573(Note 1) 1983 0.25 769(Note 1) 2500 0.33 1022(Note 1) 2500...
Page 28: Ethernet Connection
* “FixedConfigV7000" can be downloaded from our website. To perform Ethernet communication with the factory default, you need to change the network settings of host device V7000 Communication setting value (default) Item Value (at the time of shipment) IP address 192.168.209.10...
Page 29 ●Connecting to the Configuration Tool 1.Start the configuration tool and click "Connect" button. 2. When connected to the configuration tool, the "Home Screen" is displayed.
Page 30 If IP address of the reader is different from default setting, register IP address of the reader. 1.Start the configuration tool and click "Register" button. 2. Select "V7000" for "Model Name" in "Reader Info". 3. Click on the "Search" button in "LAN".
Page 31 4. Select the reader to be connected and click on the "OK" button. 5. Click on the "Register" button. 6. Select the registered reader and click on the "Connect" button.
Page 32 ●Change IP address If IP address of the readers on the same network are overlapped, change the IP address of the readers according to the following procedure. 1. Perform steps 1 through 3 of "Reader registration”. 2. Select a reader and click "Change" button. †Click on the "Flashing lights"...
Page 33 5. Select the reader with the changed IP address and click on the "OK" button. 6. Click on the "Register" button. 7. Select the registered reader and click on the "Connect" button.
Page 34: Auto Tuning Of Read Parameters (Button Operation)
Auto Tuning of read parameters (button operation) Use the Read button and Teach button to start the adjustment and save the settings. Auto Tuning of read parameters * If you are using the configuration tool, please refer to “3.10 (configuration tool) ”.
Page 35 ●Save the found settings When the status LEDs (SYNC, GO) turn on, press the Read button to save the settings in the configuration table. Configuration Parameters For more information about the configuration table, please refer to ”6.2 ”. * If there is no operation for 40 seconds, it will return to the standby state without saving the result.
Page 36 ●Check the reading When the Read button is pressed in the standby state, the status LED (SYNC) turns on and the read operation is performed. If the reading is successful, the status LED (GO) blinks once, and then the LED (SYNC) turns off. If reading fails, the status LED (NG) blinks once, and then the LED (SYNC) turns off.
Page 37: Auto Tuning Of Read Parameters (Configuration Tool)
3.10 Auto Tuning of read parameters (configuration tool) Auto Tuning of read * When using button operation to start Automatic adjustment, please refer to ”3.9 parameters (button operation) ”. Use the setting tool “FixedConfigV7000” to start adjustment and save the settings. ●Connecting to the Configuration Tool 1.
Page 38: Brightness Adjustment
●Reading target setting 1. Enter the “Cell Size”. 2. Select symbol type to be read. Check "2D Quality Check" if you want to use print quality verification. Clicking on "Distance Range" button will display a list that shows settable Distance Range and field of view range based on the current Cell Size. Select an item and click "Set"...
Page 39: Focus Adjustment
3. Brightness is adjusted automatically. The rectangle is displayed in red during adjustment. When adjustment is completed, the rectangle is displayed in blue. 4. Click the “Stop” button to stop adjustment. ●Focus adjustment 1. Click on the "Focus" button to start the focus adjustment. To adjust the focus distance manually, uncheck "Automatic"...
Page 40 ●Configuration test 1. Enter an arbitrary number of tests in the "Number of Tests" box. 2. Click on the "Setting Test" button and the reader will start reading. About configuration test result items Item Overview Reading Rate Reading rate for the entire test. Decode Time Decode time information for the last symbol read.
Page 41: Basic Reading Operation Flow (Default Setting)
3.11 Basic reading operation flow (default setting) 1) Sync input (the following three ways are available) Serial command Read button of the operation panel Digital input (SYNC input) * Need the optional IF cable When the sync input is turned ON, the reading operation is performed. 2) Result of reading operation When the symbol is read Send the read data.
Page 42: Operation Mode
Operation Mode V7000 has three operation modes as follows. Operation mode Command Description Single reading for each SYNC input. Single Reading Mode SYNCMODE=0 After SYNC input, the reader continues reading during the duration time set by the ”TOTALLIM” command. The reader...
Page 43: Single Reading Mode
Single Reading Mode The barcode scanner performs a single read for each SYNC input. 4.1.1 Soft trigger, Read OK, Data transmission: After decoding SYNC DELAY image1 IMAGE DECODE decode1 DECODELIM SERIAL GOOUT GOOUT 4.1.2 Hard trigger, Read OK, Data transmission: After decoding SYNC DELAY image1...
Page 44: Timeout Mode
4.1.3 Hard trigger, Read NG, Data transmission: After decoding SYNC DELAY image1 IMAGE decode1 DECODE DECODELIM SERIAL NGOUT NGOUT CHATT Timeout Mode The barcode scanner reads the symbol repeatedly during the duration time, set by “TOTALLIM” after the SYNC input, or continues reading until the decoding is successful.
Page 45 4.2.1 Soft trigger, Read OK, Data transmission: After decoding CAPINTVL CAPINTVL CAPINTVL CAPINTVL SYNC DELAY image1 image2 image3 image4 image5 IMAGE DECODE decode1 decode2 DECODELIM DECODELIM SERIAL TOTALLIM GOOUT GOOUT 4.2.2 Soft trigger, Read OK, Data transmission: After SYNC OFF CAPINTVL CAPINTVL CAPINTVL...
Page 46 4.2.3 Hard trigger, Read OK, Data transmission: After decoding CAPINTVL CAPINTVL CAPINTVL CAPINTVL SYNC DELAY image1 image2 image3 image4 image5 IMAGE DECODE decode1 decode2 DECODELIM DECODELIM SERIAL TOTALLIM GOOUT GOOUT CHATT 4.2.4 Hard trigger, Read OK, Data transmission: After SYNC OFF CAPINTVL CAPINTVL CAPINTVL...
Page 47 4.2.5 Soft trigger, Read NG, Data transmission: After decoding CAPINTVL CAPINTVL CAPINTVL CAPINTVL SYNC DELAY image1 image2 image3 image4 image5 IMAGE DECODE decode1 decode2 DECODELIM DECODELIM SERIAL TOTALLIM NGOUT NGOUT 4.2.6 Soft trigger, Read NG, Data transmission: After SYNC OFF CAPINTVL CAPINTVL CAPINTVL...
Page 48 4.2.7 Hard trigger, Read NG, Data transmission: After decoding CAPINTVL CAPINTVL CAPINTVL CAPINTVL SYNC DELAY image1 image2 image3 image4 image5 IMAGE DECODE decode1 decode2 DECODELIM DECODELIM SERIAL TOTALLIM NGOUT NGOUT CHATT 4.2.8 Hard trigger, Read NG, Data transmission: SYNC OFF CAPINTVL CAPINTVL CAPINTVL...
Page 49: External Trigger Mode
External Trigger Mode The barcode scanner reads the symbol repeatedly during the SYNC input is active. Typically, MAXIMG is set to a number greater than one. The multiple MAXIMG enables the Cycle Buffer Function and the parallel processing of the image capturing and decoding. This can reduce the processing time. The below timing charts explain the behavior of Cycle Buffer Function.
Page 50: Continuous Reading Mode
4.3.3 Hard trigger, Read NG, Data transmission: After decoding or SYNC OFF SYNC CAPINTVL CAPINTVL CAPINTVL CAPINTVL DELAY image1 image2 image3 image4 image5 IMAGE DECODE decode1 decode2 decode3 DECODELIM DECODELIM SERIAL NGOUT NGOUT CHATT CHATT Continuous Reading Mode In Continuous Reading Mode, the barcode scanner reads repeatedly. It is useful for camera tunings. To put the barcode scanner in this mode, send the serial command “CONTMODE=1”...
Page 51: Cycle Buffer Function
Standby Concept of Cycle Buffer This function focuses to avoid No Read by missing the object from the sight of V7000. Decoding process can be postponed, and the reader focuses to obtain images which include the moving object. Please try to configure to finish the capture and decode within the time the reader saves the images whose number is set by MAXIMG.
Page 52 [Configuration Example] The relation of Shutter Time (SHUTT), Capture Time (CAPIMG), Capture Interval (CAPINTVL) and Total Imaging Cycle (CAPCYC) are as follows. ① SHUTT+CAPIMG <= CAPINTVL CAPCYC ＝ CAPINTVL ② SHUTT+CAPIMG > CAPINTVL CAPCYC ＝ SHUTT + CAPIMG Moving Time T = L ／ V should be less than (32 ×...
Page 53: Focus/Zoom Adjustment Function
Focus/zoom adjustment function This product is equipped with a mechanical focus and zoom adjustment function. The configuration tool "FixedConfigV7000" makes it easy to set the appropriate combination of focus and zoom. * FixedConfigV7000" can be downloaded from our website. For details on focus and zoom adjustment using the tool "FixedConfigV7000", please refer to the following.
Page 54: Focus Related Command
Focus related command “(*)” indicates the default setting. Reading target (cell size, number of imaged pixels) • FCSRANGE1=a,b a: 0.03 to 10.0(V7000) cell size a=0.0 (*) 0.02 to 10.0(V7000-H) b: 1.0 to 100.0 number of imaged pixels b=0.0 (*) When the cell size and the number of image pixels to be read are set, the settable range is output in mm.
Page 55 Focus adjustment • FCSDIST=a a: -1 or 150 to 2500 (V7000) a=0 (*) a: -1 or 84 to 2500 (V7000-H) a=0 (*) Adjust the focus to the specified distance value. Unit is [mm]. If it is set outside the reading range, the focus adjustment is suspended.
Page 56: Read Setting
Read setting Automatic Parameter Tuning (Auto Tuning) With this function, the barcode scanner parameters (Table and ROI settings) can be configured automatically. This function is available by the communication from the host device as well as an easy button operation on the barcode scanner. Auto Tuning of read parameters (button For the detail of the button operation, please refer to “3.9 operation)
Page 57 long Buzzer state: 4 beeps (2) Save up to 3 types of settings in Table #1 to #3: The status LED: READY｜ON GO｜Blinks 3 times SYNC, NG｜OFF long Buzzer state: 4 beeps Note: If there is no operation for 40 seconds, it will return to the standby state without saving the result.
Page 58 Check the reader state • *?STATE This command is to check the state of the reader. State Response Reading standby STANDBY[CR] Auto Tuning in progress RECEIVED[CR] Auto Tuning success: SAVEWAIT[CR] waiting for save settings Auto Tuning failure ABORTED[CR] Auto Tuning cancel CANCEL[CR] Read in progress (No reply)
Page 59 ### TABLE 1 ### TBL1NAME=table1 TBL1FLASH=100,100,100,100,100 TBL1SHUTT=2 (0-9) TBL1GAIN=1 TBL1BLKLV=0 (0-4095) TBL1TOUT=3000 [ms] TBL1IMGPROC=0,0,0,0,0 TBL1ROINO=1 ### TABLE 2 ### ------------ Omission ------------ ### TABLE 16 ### TBL16NAME=table16 TBL16FLASH=100,100,100,100,100 TBL16SHUTT=2 (0-9) TBL16GAIN=1 TBL16BLKLV=0 (0-4095) TBL16TOUT=3000 [ms] TBL16IMGPROC=0,0,0,0,0 TBL16ROINO=1 -------------------- V7000 108-V0.8a ====================...
Page 60: Configuration Parameters
Configuration Parameters There are the following types of configuration parameters for reading. ・Table settings…Image capture settings. Set the Shutter speed, illumination brightness and image preprocessing. ・Trapezoid correction settings…Trapezoidal correction settings. Set whether or not to use trapezoidal correction and the correction coordinates. ・ROI settings…Decoding settings.
Page 61 1 to 99 is valid only when the shutter speed is from 0(1/60 sec) to 4(1/1000 sec). When the speed is 5(1/2000 sec) or more, the value is 100. : OFF 1(dark) to 100(bright) : ON The internal Illumination locations are as follows. 6.3.2 Shutter speed【TBLnSHUTT】...
Page 62 GAIN【TBLnGAIN】 6.3.3 This command specifies the gain of the camera. A larger gain makes the image brighter. TBLnGAIN=a : Table number (1 to 16) : GAIN (0 to 60) 0 (Lowest gain) to 60 (Highest gain) 6.3.4 Black level【TBLnBLKLV】 This command is used to improve the contrast of an image taken by the reader. The higher the value, the brighter the image is captured, but the lower the contrast.
Page 63 Processing area【TBLnROINO】 6.3.7 MULTIRSY=0 The setting is not applied and only ROI #1 is used. MULTIRSY=1 Set the ROI number used in the Table. TBLnROINO=a,b,c,d,e,f,g,h,I,j : Table number (1 to 16) a,b,c,d,e,f,g,h : ROI number (1 to 20) e.g.) To set the ROI to be used in table number 1 to 1, 3, and 7 TBL1ROINO=1,3,7 6.3.8 Table name【TBLnNAME】...
Page 64: Trapezoid Correction
Trapezoid correction Trapezoid correction is a function that corrects the distortion of the captured image when the barcode scanner is mounted at an angle. Image distortion correction can improve the reading results. When trapezoid correction is enabled, the correction is applied to all captured images. Trapezoidal correction disable Trapezoidal correction enable 6.4.1...
Page 65 From the "Home Screen", click "Table/ROI Settings Screen". Click "Live" in "Table/ROI Settings Screen" to start imaging. Check the displayed image and place the calibration sheet so that it is within the screen. Click in "Table/ROI Settings Screen" to display “Reader Settings Screen”.
Page 66 In the "Reader Settings screen”, click "Operation Settings", "Others", and “Configuration” in that order. Manipulate the four corner rectangles and align the vertices with the largest grid line in the calibration sheet that shows the four corners well.
Page 67 Click on the "Convert execution” button to display the corrected image. Click the "Send settings" button to send the trapezoidal correction settings to the reader.
Page 68 Trapezoid correction commands 6.4.2 “(*)” indicates the default setting. • With or without trapezoidal correction TRPCORRECTION=a a: 0 Disables 1 Enables • Coordinate settings TRPROI=a,b,c,d,e,f,g,h,i,j,k,l,m,n,o,p a: -500 to 2947 Before correction, Upper-left X-coord b: -400 to 2447 Before correction, Upper-left X-coord c: -500 to 2947 Before correction, Upper-right X-coord c=2447...
Page 69 Save trapezoid correction settings WSETT Save the trapezoid correction settings to flash ROM. • Initialize trapezoid correction settings SETTRP Output trapezoid correction settings • ?TRP (Output example) ?TRP ==================== ?TRP -------------------- TRPCORRECTION=0 (0:OFF 1:ON) TRPROI=0,0,2447,0,2447,2047,0,2047,0,0,2447,0,2447,2047,0,2047 (0,0-2448,2048) -------------------- V7000 108-V0.8u ====================...
Page 70: Roi Settings
ROI settings The area in the captured image where reading is performed is called Region of Interest (Hereinafter called “ROI”). By changing the ROI setting, the reading time can be shortened, and reading can be performed only on a specific target. The following settings change the behavior of the ROI.
Page 71 ⑥ DPM option : RSYnDPM ⑦ Matching Mode : RSYnVERIMODE ⑧ Matching data : RSYnVERIDATA ⑨ ROI number for matching : RSYnVERIROINO ⑩ Start digit of matching data : RSYnVERISTART ⑪ Mask strings of matching data : RSYnVERIMASK 6.5.1 ROI size [ROInSIZE] Set the readable area.
Page 72 6.5.2 Processing contents [ROInSET] Set the processing contents for each ROI. ROInSET=a n: ROI number (1 to 20) a: Processing contents (1) 1: Symbol reading 6.5.3 Decode time limit [ROInTOUT] Set the time limit for each ROI. ROInTOUT=a n: ROI number (1 to 20) a: Time limit [ms] (50 to10000)
Page 73 6.5.5 Mirrored image [RSYnMIRROR] Set the settings for normal symbol and mirror image symbol reading. RSYnMIRROR=a n: ROI number (1 to 20) a: Mirror setting (0 to 2) Read only normal type (not mirrored). Read only mirrored type. 2: Read both normal type and mirrored type. 6.5.6 DPM option [RSYnDPM] Set the DPM reading improvement in the DPM option.
Page 74: Read Operation
6.5.10 Start digit of data RSYnVERISTART] matching Set the number of starting digits for matching. RSYnVERISTART=a n: ROI number (1 to 20) a: Start digit (1 to 9999) 6.5.11 Mask strings of data RSYnVERIMASK] matching Set the mask character strings that represent the matching points of the read data. The maximum length of the mask strings that can be set is 50 characters.
Page 75 Percentage of processing time Table time limit Table #1 Image capture Trapezoid correction Image preprocessing ROI time limit ROI #1 MULTIRSY=1 Decode to the processing area set in the ROI (TBL1ROINO=) of Table #1. The number of symbols to be read is the number of processing areas to be used. If there are two or more symbols in one ROI, the symbol that was read first is output.
Page 76 6.6.2 Reading Timeout Mode (SYNCMODE=1) Image capture area ROI #1 ROI #2 ROI #3 MULTIRSY=0 Only ROI #1 is used. The number of symbols to be read conforms to the setting of the number of symbols to be read (LABLES=). The reading result is output when the set number of symbols are read or the time limit of Table #1 (TBL1TOUT=) is exceeded.
Page 77 Percentage of processing time Read timeout Table time limit Table #1 Table #2 Image capture Trapezoid correction Image preprocessing ROI time limit...
Page 78 6.6.3 External Trigger Mode (SYNCMODE=2) Image capture area ROI #1 ROI #3 ROI #2 MULTIRSY=0 Only ROI #1 is used. The number of symbols to be read conforms to the setting of the number of symbols to be read (LABLES=). The reading result is output when the set number of symbols are read or SYNC is turned off.
Page 79 MULTIRSY=1 Reads the ROIs (TBLnROINO=) set in each table. The number of symbols to be read conforms to the setting of the number of ROIs. If there are two or more symbols in one ROI, the symbol that was read first is output. The reading result is output when the set number of ROIs of symbols are read Percentage of processing time SYNC ON period...
Page 80 6.6.4 Table Timeout The table timeout should be set considering the following four factors: image capture time, trapezoid correction processing time, image preprocessing time, and ROI timeout. Table Timeout Set shorter Set longer Image capture time Trapezoidal correction processing time Image preprocessing time ROI timeout...
Page 81: Matching Function
Function Matching By using the matching function, only specified readings can be judged as good reads or compared with readings from other ROIs. The matching function can be set for each ROI. 6.7.1 Matching Mode Check against a registered character string. (RSYnVERIMODE=1) Check the reading data against the character string registered with "RSYnVERIDATA=".
Page 82 Check that the 5th digit is "AB" and the 8th digit is "D" in the read data of ROI #1. Method : RSY1VERIMODE=1 Character string : RSY1VERIDATA=ABCDE Start digit : RSY1VERISTART=5 Mask strings : RSY1VERIMASK=++-+ □: Not checked Matching character Matching Read data string...
Page 83: Advanced Features
Advanced Features Output Additional Information Symbol Type Information 7.1.1 Add symbol type information (data carrier identifier) to the head of decoded symbol. Symbol type is not added at read NG. Symbol Type Example of Data Carrier Identifiers Data Matrix QR Code PDF417 Aztec Code Code39...
Page 84 7.1.3 Imaging Condition Adds the image capture conditions (shutter speed, gain, black level) to the symbol data. (Output format) Data (CAM:[s]a;[g]b;[b]c) a: Shutter speed setting (0-9) b: Gain setting (0-60) c: Black level (Output example) ABC123(CAM:[s]2;[g]5;[b]0) 7.1.4 Reading Time Adds the reading time (sum of imaging time and decoding time for one table) to the symbol data. (Output format) Data (RT:a[ms]) a: Reading Time...
Page 85: Quality Information
7.1.6 Contrast Information Add the Contrast Information of the last decoded image. - Read OK Calculate the contrast value of a symbol including a quiet zone. The decoder determines a rectangular area for the symbol and calculates the contrast value from its brightness level. If there are multiple symbols, the calculated value is for the first decoded symbol.
Page 86 7.1.8 Symbol Coordinates The positional data of the symbol in the image is output along with the decoded data. There are two types of output information: coordinate of the center of gravity and rectangular coordinates. The origin (+0000, +0000) is the left-top edge of a field of view. 1) Coordinate of the center of gravity (Output format) Data (XY:[g]G)
Page 87 3) Both coordinates Output coordinates of the center of gravity and the four corners. (Output format) Data (XY:[g]G;[c]C1/C2/C3/C4) G: Center of gravity coordinates C1-C4: Rectangular coordinates G, C1-C4: ab,ac a: + or – coordinate (+/-0 - +/-9999) c: y-coordinate (+/-0 - +/-9999) (Output example) ABC123(XY:[g]+362,+141;[c]+269,+11/+455,+86/+386,+270/+198,+199) Origin...
Page 88 7.1.9 Table Number Adds setting table number used in the last decoding. (Output format) Data (TBL: a) a: Table number (Output example) ABC123(TBL:3) 7.1.10 Mirror information Adds the mirror information of the read symbol (left/right mirror image inversion ON/OFF) to the read data.
Page 89: Module Information
7.1.12 Comparison Result When the matching function is enabled, the result of the matching is added to the read data. (Output format) Data (VERI:a) a: OK or NG (Output example) ABC123(VERI:OK) 7.1.13 Reader Name Adds the individual name of the barcode scanner. (Output format) (NAME:a) Data a: Reader name...
Page 90 7.1.15 Decode Grade The decode grade of the read symbol is added to the read data. This grade is an evaluation value of the read symbol calculated from the contrast ratio and unused error correction rate. The grade based on the contrast ratio and unused error correction rate is shown below. Contrast Ratio Unused Error Correction Ratio Decode Grade...
Page 91: Save Image
Save Image “(*)” indicates the default setting. Maximum 32 captured images can be stored. The number of cycle buffer memory means the number of storable images. MAXIMG=a[CR] a=1-32 Specify number of cycle buffer memory. MAXIMG=1[CR] (*) 7.2.1 Transmit processed image Select an image to save from the 2 images captured before or after preprocessing.
Page 92: Simultaneous Reading Of Multiple Labels
?IMG -------------------- IMGSEL=a (0:Captured Image 1:Decoded Image) MAXIMG=b (1-32) IMGBUF=c (0-32) -------------------- V7000 108-V0.8a ==================== a : Image type (Captured image, Decoded image) b : Number of cycle buffer memory c : Cycle buffer memory number Simultaneous reading of multiple labels Multiple (up to 20) labels can be read simultaneously at reader.
Page 93: Image Flipping
Image flipping Get an image with its orientation flipped. Subsequent decoding and saving of the image will all use the inverted image. No image inversion (Default)) Flip image left or right [0,0] [0,0] [2447,2047] [2447,2047] Flip image upside down, left side up, or right Flip image upside down side up (180°...
Page 94: Register Of Sync On/Off Command
Register of SYNC ON/OFF command The SYNC ON/OFF command of the barcode scanner can be registered with any 8 alphanumeric characters (available characters are 0x20 to 0x7E in 9.20 Table of Character Code). If an entered arbitrary character string is the same as an existing serial command, the command is not registered. “(*)”...
Page 95: Symbol Printing Check
Symbol Printing Check This function judges a printing quality of a two-dimensional symbol captured by barcode scanner using in-line. It verifies the print quality and output the result by using evaluation parameters of ISO/IEC 15415 or ISO/IEC TR 29158. Printing quality of symbols flowing on manufacturing line is maintained at a certain level by being checked in-line.
Page 96: Supported Symbologies
7.7.1 Supported Symbologies 2D code Data Matrix (ECC200) QR Code 7.7.2 Symbol Printing check Items to be output Evaluation items to be used for overall determination is selectable. The evaluation values are output on a scale of 5 levels (0 to 4) by each evaluation item. 2D code (Select an evaluation item from ISO and Evaluation Items Overall Quality (Lowest value of selected evaluation item)
Page 97 7.7.3 Digital Output of Determination in Symbol Printing Check When Print Check Output is enabled, the determination can be output digitally in check result. Configure a threshold to determine whether the overall judgment is OK (GOOUT) or NG (NGOUT). If a threshold is configured 2: Outputs OK when an overall quality is 2,3, or 4 Outputs NG when an overall quality is 0 or 1 If a threshold is configured 0, the determination is output in a determination of regular symbol...
Page 98: Functions For Saving And Loading The Setup
Functions for saving and loading the setup When multi settings of focus or reading are required according to the reading target or operating environment, setups (up to 20) can be set to switch them. The setup includes read and focus settings, excludes communication ones. Configuration Parameters for Setup See "7.8.2 "...
Page 99: Displaying The Setup Screen
7.8.1 Save and load setup (configuration tool) Use the setting tool “FixedConfigV7000” to save and load the setup. ●Displaying the Setup Screen 1. From the "Home Screen", click on the "Setup" button. ●Display saved setup 1. Click the “View Setup” button. Display the setup parameter stored in the barcode scanner.
Page 100 ●Save the barcode scanner settings as a setup 1. Click the “Write Setup” button. 2. Enter the setup number and name of the destination to save the file. Entering a name is optional. 3. Click the "OK" button. 4. After saving is complete, the settings are displayed on the screen. ●Load a setup 1.
Page 101 7.8.2 Configuration Parameters for Setup The following configuration parameters are available for setup. Term Command Description Communication CMDRES= Command response ON/OFF setting settings Common GS1GS= Data delimiter characters for GS1 series symbols. GS1AI= Set the output method of GS1 AI (AI: application identifier) LABELS= Number of labels OUTFORM=...
Page 102 Term Command Description ITFMODE= Set reading of ITF. ITFDIGIT= Set the minimum and maximum number of digits of reading ITF. ITFEDIT= Set output of the data when reading ITF. ITFHEAD= Set header character of ITF. ITFFOOT= Set footer character of ITF. Code93 C93MODE= Set reading of Code93...
Page 103 Term Command Description CompositeCode CCMODE= Set reading of Composite. Set the minimum and maximum number of digits of reading CCDIGIT= Composite. CCEDIT= Set output of the data when reading Composite. CCHEAD= Set header character of Composite. CCFOOT= Set footer character of Composite. Data Matrix DMMODE= Set reading of Data Matrix.
Page 104 Term Command Description Continuous CONTMODE= Continuous reading mode ON/OFF Reading CONTINTVL= When reading is OK in continuous reading mode, Mode the waiting time until the next reading starts. CONTVRFY= Set ON/OFF for prohibiting reading the same data in continuous reading mode. CONTVTIM= Set the time to prohibit reading the same data in continuous reading mode.
Page 105 Term Command Description Focus FCSRANGE1= Cell size to be read, number of image pixels. Adjustment FCSDIST= Focusing distance. Image CAMFLIP= Image direction. Orientation Table setting ENABLETBL= Number of tables to be enabled. TBLnFLASH= External and internal illumination of tables. TBLnSHUTT= Shutter speed for tables.
Page 106 7.8.3 Serial Commands Related to Setup The setup-related commands are as follows. ” indicates the default setting. “ PSAVE=a[CR] a=1 - 20 Saves the current barcode scanner settings to flash ROM as setup a. PLOAD=a[CR] a=1 - 20 Reflects the settings of setup a to the barcode scanner. If setup a does not exist, the settings are not changed.
Page 107: Ethernet Connection (Tcp Server)
Ethernet connection (TCP server) Preparation To connect this product, it needs to be configured to match the network. IP address Set the IP address of the PC from 192.168.209.1 to 192.168.209.255 excluding the default IP address of this product (192.168.209.10). 1.
Page 108 7. The reader will reboot to reflect the changed settings. Click on the "Reader(R)" and "Reboot...". 8. When the following screen appears, click on the "OK” button. 9. Click on the "File(F)" and "Exit". After rebooting the reader, connect the reader to the configuration tool. Ethernet connection for connection method.
Page 109: Confirm Ethernet Settings
Confirm Ethernet settings Communication state can be checked by UDP (User Datagram Protocol), if the network address is already known. ・ Set the IP address of the host PC to the same network as the reader. ・ Connect the reader to the host PC with an Ethernet cable. ・...
Page 110: Communication Management
Communication management The reader supports 4 types of communication method: TCP server communication (for all commands) TCP client communication (for reading result transmission) TCP client communication (for image data transmission) UDP communication (for administration) [TCP server communication] It works as a TCP server that can be configured with any port number. Two ports can be used, one for sending read data and one for sending image data.
Page 111: Serial Command For Ethernet Settings
TCP client connection for transmission of reading result It works as a TCP client that can set any connection destination (IP address: port number). The timing of the connection is set by TCP1CRTIM (connection request interval) command. Connect every time the reader sends data. Connect automatically every time the reader is powered on.
Page 112 TCP1SVADR=0.0.0.0:27120 (TCP Server Addr.:Port No.) TCP1CRTIM=0 (0:Every 1-100[s]) TCP1STOUT=0 (0:None 1-100[s]) LINKUPTOUT=0 (0-30000 [ms]) -------------------- V7000 108-V1.0a ==================== The setting values are displayed enclosed in "[>>]" and "[ ]". In the case of the above screen dump, the following settings are shown.
Page 113 [Current operating settings] IP address 192.168.209.10 Subnet mask Default gateway 192.168.209.254 Port number (for reading result transmission) 27110 [Settings that will take effect at the next startup] IP address 192.168.209.101 Subnet mask Default gateway 192.168.209.1 Port number (for reading result transmission) 60000 To make the setting effective, save it to the flash ROM with WSETS command, and then reset the power.
Page 114 DISCON=1,<TCP sever port number> Shut down TCP server connection of the specified port number. Set the port number in <TCP server port number> as a decimal number. e.g.; DISCON=1,27110...
Page 115: Initialize Ethernet Settings
Initialize Ethernet settings If the configured address is lost, the following procedure can be used to start the reader with the factory default Ethernet settings. Hold down the Teach button on the control panel and start the reader. Release the Teach button when the status LED-READY lights up. The Ethernet settings stored in the reader will not be changed.
Page 116: Transfer Images To Ftp Server
Transfer images to FTP server After sending the reading data to the host device, the image data and reading data can be transferred to an FTP server. If there is no space on the FTP server, the data will be discarded. Image data transfer ・SYNCMODE=0 Transfer decoded image.
Page 117: Read Data Transfer
Read data transfer Transfer the decoded strings. ・Data format Saves the read data in text format. When the transfer file type is "Read data and image data", the read data and its image file name will be saved in CSV format. (The separator can be set as desired.
Page 118 IP address of the FTP server to connect to. ・FTPCHOST: FTPCHOST=192.168.209.110 (*) (31 characters or less) ・FTPCUSER: User name FTPCUSER=ftpuser (*) Note: The number of valid characters for the user name depends on the specifications of the FTP server. (31 characters or less) ・FTPCPASS: Login password FTPCPASS=password (*) Note: The number of valid characters for the login password depends on the specifications of the...
Page 119 FTPCPASS=ftpcpass (login password, up to 31 chara) FTPCTYPE=0 (0:passive 1:active) FTPCHOSTDIR=/ (working directory, up to 255 chara) FTPCFILETYPE=1 (1:image 2:text 3:both) FTPCTXTNAME=data.csv (text file name, up to 31 chara) FTPCTXTMODE=0 (0:append 1:over-write) FTPCTXTSEPA=0x2C (text data separator, 0x01-0xFF) FTPCNAMEFORM=0 (0:standard 1:8 characters) FTPCCLOSE (disconnect) -------------------- V7000 108-V0.8u...
Page 120: Date Settings
Note that if the DATE command is used, it should be operated so that this time does not elapse. ・?DATE: Get the date and time set by the DATE command. Example of display) ?DATE -------------------- Date & Time : 2021-04-18 16:43 -------------------- V7000 108-V0.8u...
Page 121: Transfer Image Settings
Transfer image settings Set the image type to be transferred. Hereinafter, “(*)” shows the default setting. ・IMGSEL: Select the image to be transferred. IMGSEL=0 Capture image (without image preprocessing) IMGSEL=1 (*) Decoded image (with image preprocessing) ・IMGBUF: Selects the image buffer to be transferred. IMGBUF=0 (*) Buffer with the last decoded image.
Page 122: Save Images To User Area
10 Save images to user area Saves image data and reading data in the ROM area of the reader. The data in the ROM area can be transferred to a PC with FTP client software. To use the FTP client software, enter the following user name and password. User name: ftpuser Password: ftppass If there is no free space in the ROM area, each data will be discarded.
Page 123: Serial Command
・?UA: Status display Displays the settings of the user area. Display example) ==================== -------------------- UAMODE=0 (0:disabled 1:ng 2:ok 3:ok/ng) UAFILETYPE=1 (1:image 2:text 3:both) UATXTNAME=data.csv (text file name, upto 31 chara) UATXTMODE=0 (0:append 1:over-write) UATXTSEPA=0x2c (text data separator, 0x01-0xFF) -------------------- V7000 108-V0.8u ====================...
Page 124: Multi Unit Connection Function
11 Multi Unit Connection Function This function allows one reader to control multiple readers connected via Ethernet. The host device only needs to be connected to one reader to control multiple readers and receive read data. This function uses UDP. The port number used is fixed at 49461.
Page 125: Control Mode
11.1.2 Control Mode This function has two control mode. (1) Multi Unit Leader and Follower act like a single reader. They start reading all at once, and the Leader sends the read data from all the readers to the host device. Read data is transmitted under the following conditions.
Page 126: Serial Command
11.2.2 Repeater Term Leader Follower Serial command (SYNC ON command) ✔ ✔ Digital input (SYNC input) ✔ Continuous Reading Mode (CONTMODE) Multiple symbol reading (MULTIRSY) “MULTIRSY=0” and “MULTIRSY=1” Data output timing (OUTTIMING) ✔ User area (UMAMODE) ✔ Transfer images to FTP server (FTPCMODE) ✔...
Page 127 ・MLTMEMBER: Set the device ID to be connected by the Leader. This setting is valid only for Leader. MLTMEMBER=1,2,3,4,5,6,7,8,9 (*) Device ID connected by Leader e.g.1) When connecting to device IDs 1, 5, and 7 MLTMEMBER=1,5,7 e.g.2) When connecting to device IDs 1 to 9 MLTMEMBER=all ・MLTMODE: Set the Multi Unit Connection function.
Page 128 Flashes internal illumination 5 times. Use this function to check the installation position of the barcode scanner. ・?MLT: Displays the settings of the multi-unit connection. Display example) ==================== ?MLT -------------------- MLTID=0 (0:LEADER,1-9:FOLLOWER) MLTMODE=0 (0:OFF,1:ON) MLTCTRL=0 (0:MULTI UNIT,1:REPEATOR) MLTGROUP=GROUP01 MLTMEMBER=1,2,3,4,5,6,7,8,9 -------------------- V7000 108-V1.2a ====================...
Page 129 Port State a.a.a.a ccccc a.a.a.a ccccc Omission -------------------------- -------------------------- a.a.a.a ccccc -------------------- V7000 108-V1.2a ==================== a.a.a.a …IP Address “0.0.0.0” for disconnected state …TCP Server Port Number “0” for disconnected state ccccc …Barcode scanner status DISCONNECT ：Disconnected IDLE ：Connected, stand-by state WORKING ：Connected, reading operation...
Page 130: Serial Command
12 Serial Command Serial command format ⚫ Serial command + [CR] 12.1 Communication settings Term Command Description Header HEAD Header character Null: None (*) a: 0x00 to 0xff (Hexadecimal code *1) =a,b a,b: 0x00 to 0xff (Hexadecimal code *1) Terminator TERM Set the terminator character to be added to the read data.
Page 131: Symbologies Settings
12.2 Symbologies settings Term Command Description Common SYMDIGIT Set the minimum (a) and maximum (b) number of digits for symbol =a,b reading. A=1 to 9999 b=1 to 9999 SYMEDIT Set the output start digit (a) and the number of digits (b) of the read =a,b data.
Page 132 Term Command Description Code39 C39MODE=0 Disable Code39 C39MODE=1 Enable Code39, checksum disable (*) C39MODE=2 Enable Code39, checksum enable and output C39MODE=3 Enable Code39, checksum enable and not output C39MODE=4 Enable Code39, checksum disable, Full ASCII mode C39MODE=5 Enable Code39, checksum enable and output, Full ASCII mode C39MODE=6 Enable Code39, checksum enable and not output, Full ASCII mode C39SS=0...
Page 133 Term Command Description Codabar CBMODE=0 Disable Codabar CBMODE=1 Enable Codabar, checksum disable (*) CBMODE=2 Enable Codabar, checksum enable and output CBMODE=3 Enable Codabar, checksum enable and not output CBSS=0 Disable Codabar start/stop code output. Enable Codabar start/stop code output. (*) CBSS=1 CBCS=0 Output Codabar start/stop codes in lowercase.
Page 134 Term Command Description Code93 C93MODE=0 Disable Code93 C93MODE=1 Enable Code93 (*) C93DIGIT Set minimum (a) and maximum (b) digit numbers of Code93. =a,b a=1 to 9999 a=1 (*) b=1 to 9999 b=9999 (*) C93EDIT Set the output start digit (a) and the number of digits (b) of Code93. =a,b a=1 to 9999 a=1 (*)
Page 135 Term Command Description GS1 DataBar DBMODE=0 Disable GS1 Databar DBMODE=1 Enable GS1 DataBar (Expanded) DBMODE=2 Enable GS1 DataBar (Expanded Stacked) DBMODE=4 Enable GS1 DataBar (Limited) DBMODE=8 Enable GS1 DataBar (Omnidirectional, Truncated) DBMODE=16 Enable GS1 DataBar (Stacked, Stacked Omni directional) DBMODE=63 Enable GS1 DataBar (all types) (*) DBDIGIT Set minimum (a) and maximum (b) digit numbers of GS1 DataBar.
Page 136 Term Command Description DataMatrix DMMODE=0 Disable DataMatrix DMMODE=1 Enable DataMatrix (Square, Normal label) DMMODE=2 Enable DataMatrix (Square, Black/White inverted label) DMMODE=3 Enable DataMatrix (Square, Black/White inverted and Normal label) DMMODE=5 Enable DataMatrix (Square and Rectangle, Normal label) DMMODE=6 Enable DataMatrix (Square and Rectangle, Black/White inverted label) DMMODE=7 Enable DataMatrix (All types) (*)
Page 137 Term Command Description PDF417 PDFMODE=0 Disable PDF417 PDFMODE=1 Enable PDF417 (*) PDFDIGIT Set minimum (a) and maximum (b) digit numbers of PDF417. =a,b a=1 to 9999 a=1 (*) b=9999 (*) b=1 to 9999 PDFEDIT Set the output start digit (a) and the number of digits (b) of PDF417. =a,b a=1 to 9999 a=1 (*)
Page 138: Symbol Reading (Operating Mode, Adjustment, Diagnostic)
12.3 Symbol Reading (Operating mode, adjustment, diagnostic) Term Command Description Reading Start reading (SYNC ON) BR=a,b,c,d,e No read message a,b,c,d,e=0x00 to 0xff: No read message (Hexadecimal code *1) a=0x42,b=0x52 (*)”BR” SONCMD Set character string for SYNC ON command (8 characters or less). Null: None (*) =a,b,c,d,e,f,g,h a,b,c,d,e,f,g,h=0x00 to 0xff: SYNC ON character string...
Page 139 Term Command Description “(*)” Symbology SYMIDTX=a a=0: Disable addition of SYMIDTX. (*) Information a=1: Enable addition of SYMIDTX. indicates Decoding time DTTX=a a=0: Disable addition of DTTX for each ROI. (*) the default a=1: Enable addition of DTTX for each ROI. setting.
Page 140: Camera Control (1)
12.4 Camera Control (1) Term Command Description Illumination LIGHT=a Set the lighting timing. Control a=0: Illumination OFF a=1: Illumination ON (Capture time) (*) a=2: Illumination ON (SYNC ON period) a=3: Illumination ON (Always) * *: Turn on at 55% brightness setting in standby. Image CAMFLIP=a Set the orientation of the captured image.
Page 141: Image Preprocessing
12.6 Image Preprocessing Term Command Description None No Image Preprocessing Black Erosion Erosion 2x2 Erosion 3x3 Erosion 5x5 Erosion 1x2 (h) Erosion 2x1 (w) White Dilation Dilation 2x2 Dilation 3x3 Dilation 5x5 Dilation 1x2 (h) Dilation 2x1 (w) Reverse White & Black Reverse Contrast Cont(L12cut) Truncates the 12% of dark side.
Page 142: Roi (Region Of Interest )
12.7 ROI (Region of Interest) Term Command Description Multiple MULTIRSY=a Set multiple symbol reading for the ROI. Symbol reading a=0: Batch reading of multiple symbols in a single ROI. A=1: Read one symbol per ROI. Resul output ROIOUTFORM Set the output order of ROI. Order =a,b,c,…...
Page 143: Focus Control
Description Reading range FCSRANGE1 Set the reading range from the cell size and the number of pixels. =a,b a=0.03 to 10(V7000): Cell size [mm] a=0 (*) 0.02 to 10(V7000-H) b=1.0 to 100: Number of imaged pixels b=0 (*) Focus area FCSAREA= Set the adjustment area for focus adjustment.
Page 144: Auto Tuning
12.9 Auto Tuning Term Command Description Auto Tuning *SETUP Start Auto Tuning. Cancel *CANCEL Cancel the running Auto Tuning. Auto Tuning *?STATE Get status the running Auto Tuning. Status STANDBY Standby RECEIVED Auto-Tuning running SAVEWAIT Tuning successful. Waiting for save. ABORTED Tuning failure CANCELED...
Page 145: Industrial Ethernet
12.10 Industrial Ethernet Term Command Description Industrial Ethernet setting Industrial IEMODE=a a=0: Exit (*) Ethernet a=1: Start (EtherNet/IP) “(*)” indicates the default setting. 12.11 Image Output Term Command Description Image IMGSEL=a Select the image to be transferred. Selection a=0: Capture image (without image preprocessing) a=1: Decoded image (with image preprocessing) (*) Transfer IMGBUF=a...
Page 146: Ftp Settings
12.13 FTP settings Term Command Description FTPCMODE=a Conditions for transferring reading results settings a=0: Disable (*) a=1: Transfer on No read. a=2: Transfer on Good read a=3: Transfer on Good read or No read. FTPCHOST= IP address of the FTP server to connect to. Aaa.bbb.ccc.ddd 192.168.209.110 (*) FTPCUSER=aaaaaaa...
Page 147: User Area Settings
12.14 User area settings Term Command Description User area UAMODE=a Set the timing for saving the reading results. a=0: Not saved (*) a=1: When reading is NG a=2: When reading is OK a=3: When reading is both OK and NG UATXTNAME=aaaaa Set the file name.
Page 148: Trapezoid Correction
12.16 Trapezoid correction Term Command Description Enable/Disable TRPCORRECTION= a=0: Disable trapezoid correction. (*) a=1: Enable trapezoid correction. Coordinate TRPROI= Set the coordinates before and after the trapezoid correction. Setting a,b,c,d,e,f,g,h,I,j,k, a=-500 to 2947 a=0 (*) L,m,n,o,p Coordinate pre-correction (upper left) X-coordinate b=-400 to 2447 b=0 (*) Coordinate pre-correction (upper left) Y-coordinate...
Page 149: Setup
12.17 Setup Term Command Description Setup PSAVE=a Save the current barcode scanner settings to ROM as Setup #a. a=1 to 20: Setup number Load the settings of the Setup #a stored in ROM. PLOAD=a a=1 to 20: Setup number PERASE=a Erase the Setup #a stored in ROM.
Page 150: Configuration Reference
12.19 Configuration Reference Term Command Description Configuration Status transmission (First page) reference Status transmission (Second page) Status transmission (Third page) Status transmission (Fourth page) ?IMG Status transmission (Settings for image output) ?TBL Status transmission (Settings for Table Mode) ?ROI Status transmission (Settings for ROI) ?FCS Status transmission (Settings for Focus adjustment) ?TRP...
Page 151: General Operation
12.20 General Operation Term Command Description Initialization SETDFT Reset to factory default. Note: Ethernet-related settings are not subject to initialization. Save WSETS Save settings to internal ROM. a=1: Buzzer ON (*) Buzzer BUZ=a a=0: Buzzer OFF Digital I/O CHATT=a,b Debouncing time a=0: Set by time (*) a=1: Reserved b=0 to 1000...
Page 152: Specifications
13 Specifications 13.1 Specifications V7000 Code39, Code128 / GS1-128 (EAN128), Codabar (NW7), Barcode ITF (Interleaved 2 of 5), UPC / EAN(JAN), Supported GS1 DataBar, Code93 Symbols Data Matrix (ECC200), Composite Code, 2D code QR Code / Micro QR Code, PDF417 / MicroPDF417,...
Page 153 【 Definition of Reading Angle 】 Y-axis X-axis Symbol －－ Tilt ＋ X-axis Y-axis X-axis ＋ Symbol Symbol 軸 Y-axis － Skew Pitch ＋ FOV: Field Of View...
Page 154: Dimensions
13.2 Dimensions Unit: mm The maximum tightening torque of the M3 mounting screws is 0.7 N · m. To avoid damage to the screws or screw holes, DO NOT screw the screws more than the screw depth of the mounting holes.
Page 155: Interface
13.3 Interface 13.3.1 Ethernet Interface LAN Interface (Ethernet) is installed on V7000. Please use a dedicated Ethernet cable for connection. - Network Form : 1000BASE-T/100BASE-TX/10BASE-Te - Maximum Transmission Speed : 1G/100M/10M bps 13.3.2 I/O Interface I/O signals can be controlled by using an IF cable (sold separately).
Page 156 I/O Interface internal circuit SYNC+ 2.2kΩ/0.4W SYNC- 2.2kΩ/0.4W ENCODE+ ENCODE - LIGHT+ LIGHT- COM- Input voltage: DC24V PGND...
Page 157: Peripheral Equipment
14 Peripheral equipment 14.1 Dedicated accessories for V7000 14.1.1 AC Adapter AT072T-P240 (24V/3A) Term Specification Supply voltage Rated AC100-240V Output voltage 24V(IMAGER 24V) Output power External Dimensions UNIT:mm...
Page 158: Troubleshooting
◆Is the V7000 connected with the host device properly? Make sure the V7000 is connected with the host device properly. You can set it to the factory settings by the following methods if you don't know the address you set.
Page 159: Symbol Cannot Be Decoded
15.2 Symbol cannot be decoded ◆Are the symbol-code settings correct? Make sure that the symbologies and the digit number are set up correctly. If the settings differ from the input symbologies, the reader will not decode the image. ◆Are the reading distance and the print quality suitable? To ensure the reading distance from the code to the reading window must be within the specified reading distance.
Page 160: License Library
16 License Library OpenCV License Agreement By downloading, copying, installing or using the software you agree to this license. If you do not agree to this license, do not download, install, copy or use the software. License Agreement For Open Source Computer Vision Library (3-clause BSD License) Copyright (C) 2000-2020, Intel Corporation, all rights reserved.
Page 161 << memorandum >>...
Page 162 << memorandum >>...
Page 163 << memorandum >>...
Page 164: Warranty Obligations
One year from the date of purchase. 2. Warranty Coverage BRADY shall repair or replace the product at no charge if any defects in the Products are suspected to be due to design or manufacturing error. This warranty does not cover, and BRADY will not be held liable, for any damages incurred using this product.

Brady V7000 User Manual

Quick Links

Need help?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Brady V7000

Summary of Contents for Brady V7000

Table of Contents
