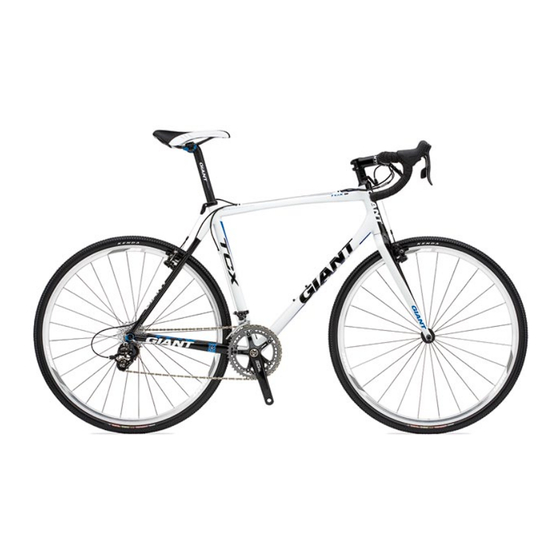

TCX 1 w
Specifications
siZes
XS,S,M
CoLour
White / Blue
FrAme
ALUXX SL-grade aluminum
Advanced-grade composite w/
Fork
alloy OverDrive steerer
shoCk
N/A
hAnDLeBAr
Giant for Women Connect SL 31.8mm
stem
Giant Connect SL
seAtpost
Giant Connect 30.9x370mm
sADDLe
Fi'zi:k Vesta w/ MG rails
peDALs
Not included
shiFters
SRAM Rival
Front DerAiLLeur
SRAM Rival
reAr DerAiLLeur
SRAM Rival
BrAkes
Avid Shorty 6 cantilever
BrAke Levers
Tektro RL721 top mount
CAssette
SRAM Rival 12-27T 10SPD
ChAin
SRAM Rival
CrAnkset
SRAM Rival 38/46T compact
Bottom BrACket
SRAM GXP internal press fit
rims
Giant P-R2 F:24H / R:28H
huBs
Formula Alloy
spokes
Sapim Race 14g
tires
Kenda Small Block 8 700x32c
extrAs
Specifications and availability subject to change without notice.
$
Spec Features
— Complete SRAM Rival 10-speed component group w/ compact crankset
— Giant Connect SL womens-specific handlebar & stem, Connect seatpost
— Wheelset: Giant P-R2 rims/ Formula Alloy hubs
frame geometry
A
B
C
Actual
part
head
seat
Frame size
number
Angle
Angle*
centimeters
degrees
degrees
XS 46.0
2115306
70.5
74.5
S 49.0
2115307
70.5
74.0
M 51.5
2115308
71.0
74.0
*Seat angle is actual
**Toptube is measured from the center of the headtube horizontally back to the top of the effective extension of the seattube
***Standover height is based on the largest size tire that will fit the bike, not necessarily the included size tire
D
E
F
toptube**
headtube
Chainstay
wheelbase
centimeters
centimeters
centimeters
centimeters
51.0
11.5
43.0
100.9
52.5
13.5
43.0
102.1
54.0
15.5
43.0
103.3
139
G
H
standover
height***
inches
28.6
29.8
30.8
