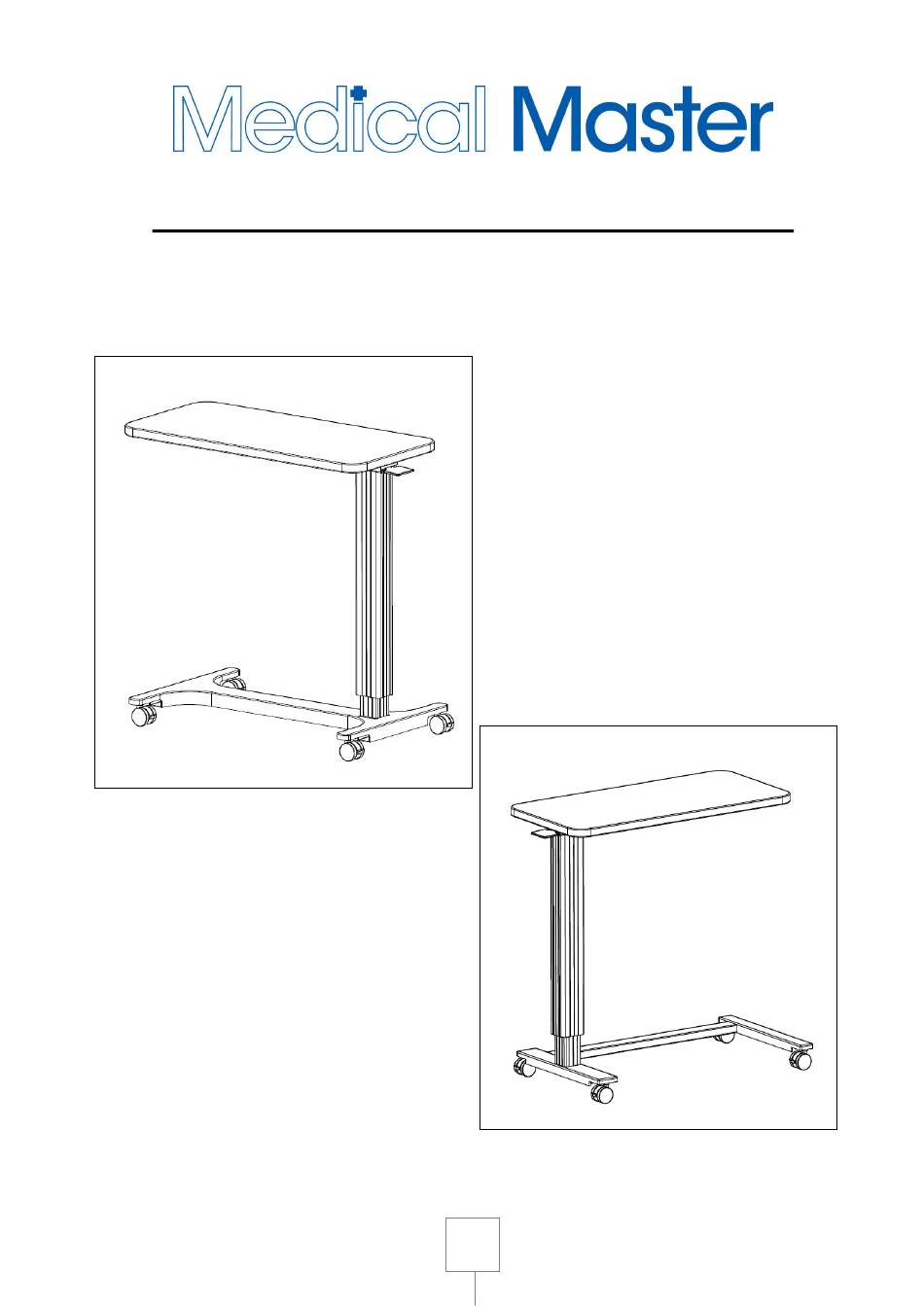

- Page 1 User manual and technical description Model：Hospital bed table Series Version：2020-A-1 Medical-Master Co., Ltd...
-
Page 2: Table Of Contents
Table of Content 1 Component name and location --------------------------------------------------------------------------------------- 1.1 H-shaped table base --------------------------------------------------------------------------------------------- -shaped table base --------------------------------------------------------------------------------------------- ㄇ 2 Hospital bed table basic specification ------------------------------------------------------------------------------ 2.1 H-shaped table base ---------------------------------------------------------------------------------------------- -shaped table base ---------------------------------------------------------------------------------------------- ㄇ 3 Use instructions ----------------------------------------------------------------------------------------------------------- 3.1 Advantage ------------------------------------------------------------------------------------------------------------ 3.2 Operation method -------------------------------------------------------------------------------------------------- a. -
Page 3: Component Name And Location
1 Component name and location 1.1 H-shaped table base E1-V313 Particle Board x 1 M3.5 Phillips flat head screws x 8 Two-section lifting column with gas spring system x 1 ABS cover x 1 H shape table base x 1 Spring washer x 4 M6 Hex socket head screw x 4 2 “... -
Page 4: H-Shaped Table Base
2 Hospital bed table series basic specifications 2.1 H-shaped table base Model MDB-900 Specification Table size L805 x W465 x H770~1105 mm Table top E1-V313 Particle Board Adjustable height system Two-section lifting column with gas spring system Frame Power coating / Electroplate with H shape table base Table base cover ABS cover Casters... -
Page 5: ㄇ-Shaped Table Base
2.2 ㄇ-shaped table base Model MDB-900 Specification Table size L805 x W456 x H770~1105 mm Table top E1-V313 Particle Board Adjustable height system Two-section lifting column with gas spring system Frame Power coating / Electroplate with ㄇ shape table base Casters 2”... -
Page 6: Use Instructions
3 Use instructions 3.1 Advantage 1. Suitable for students, mobility difficulties, single friends, use at work. 2. Pneumatic auxiliary lift, easy to operate. After the side control wrench is pulled up slightly, the table can be pressed down to adjust the height you want. 3. -
Page 7: Consulting And Service
Risk of injury due to lifting the table too quickly! Please Lift the table slowly to avoid risk of injury too quickly! Do not exceed the weight load of the table items WARNING! Ensure there are no body parts or objects are between the desktop and the base. ...
