Summary of Contents for Medical Master MDB-900 Series

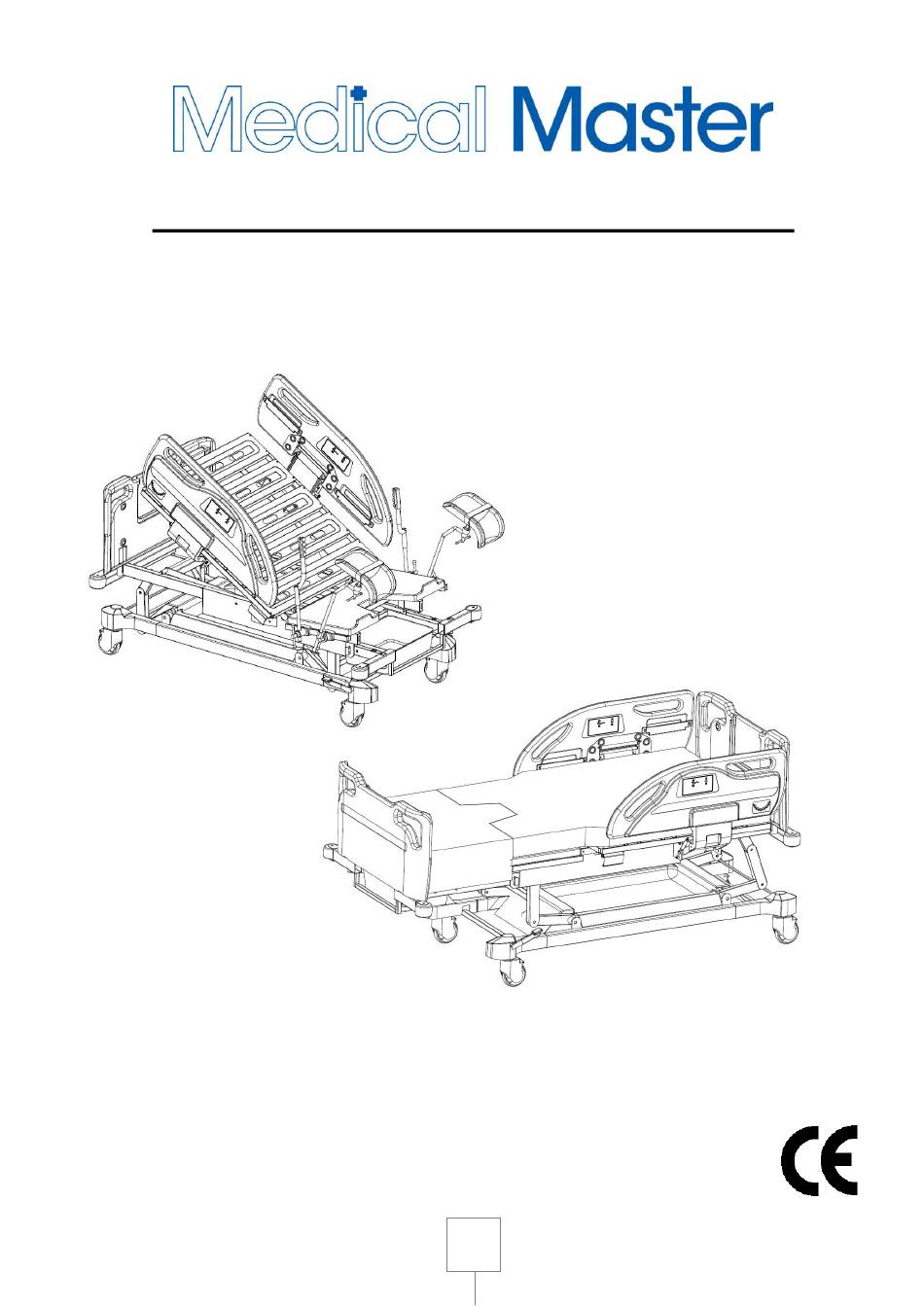

- Page 1 User manual and technical description Model：MDB-900 Delivery Bed Series Version：2019-A-2 Our company reserve rights to revise the technical parameters, appearance, structure, color…etc. of the products including in this user manual without previous notice. Medical-Master Co., Ltd...
-
Page 2: Table Of Contents
Table of Content 1 Component name and location -------------------------------------------------------------------------------------- 2 MDB-900 basic specification ---------------------------------------------------------------------------------------- 3 Symbolic and Safety prevention ------------------------------------------------------------------------------------ 3.1 Symbolic descriptions -------------------------------------------------------------------------------------------- 3.2 Safety prevention -------------------------------------------------------------------------------------------------- 4 Suitable environments for use --------------------------------------------------------------------------------------- 5 Assemble and use instructions -------------------------------------------------------------------------------------- 5.1 How to connect power source ---------------------------------------------------------------------------------- 5.2 Electrical circuit ---------------------------------------------------------------------------------------------------- 5.3 Head and foot board ----------------------------------------------------------------------------------------------... -
Page 3: Mdb-900 Basic Specification
1 Component name and location Head & foot board 16 Caster Extension bedstead 17 Central locking & steering linkage Foot section frame 18 Stainless steel side cover Buttock frame 19 Position lock device Buttock ABS cover 20 Rotating bumper Left hand side rail 21 Slopping pan holder Steel platform for back section 22 Stainless steel accessories rail... - Page 4 2 MDB-900 series basic specifications Model MDB-900 ⚫ Dimension and angle have 5% tolerance. Medical-Master Co., Ltd...
- Page 5 Specification Overall size 2150 x 1060 mm Platform size 190 (back: 97 cm, buttock: 40, feet: 48 cm) x 91 cm +/- 5% Adjustable height 550~870 mm (by 5” caster) 570~890 mm (by 6” caster) Back adjustment 0~85˚ 0~8 ˚ (auto-raising with back adjustment) Knee adjustment Patient loading capacity 230 kg...
-
Page 6: Symbolic And Safety Prevention
3 Symbolic and Safety prevention Take precautions in advance to ensure proper use. Be sure to read these safety instructions. Take precautions in advance to ensure proper use. The safety precautions described here are intended to ensure safe use of the product and prevent accident personal injury. Precautions are classified as “WARNING”, ”CAUTION”... - Page 7 Electric Hazard Do not repair or modify the bed yourself Unplug the item from power source (only available for electric unit) Note! (If the safety label removed or defaced, replace with a new one obtained from your dealer.) Read user manual CE mark of conformity with EU regulation Safe working load Max weight of patient...
-
Page 8: Safety Prevention
3.2 Safety prevention ❖ Bed should be left in its lowest position when the patient is unattended in order to reduce risk of injury due to falls! ❖ Side rails of bed should be located in the “up“ position to reduce the risk of the patient accidentally slipping or rolling off the mattress! ❖... -
Page 9: Suitable Environments For Use
4 Suitable environments for use ❖ Prevent to solarize under the sun. ❖ Prevent to close heating area. ❖ Prevent wet environment. ❖ Prevent to stay with volatility oil/ liquid. ❖ Prevent high temperature, high humidity, low temperature and dry ❖... -
Page 10: Electrical Circuit
5.2 Electrical circuit 5.3 Head and foot board The head and tail plates are common parts that can be removed urgently. Install bed ends before the first use. To insert bed ends into corner posts, hold them by the corner handles on top with both hands. -
Page 11: Split Plastic Guardrail
5.3.1 Head and foot board lockable knob The swivel knob should install into head & foot board pipe. When bed end installation on bedstead, whirl clockwise direction and it can be stopper. When you would like to unlock it from bed, whirl counterclockwise and bed end can remove easily 5.4 Split Plastic guardrail Long panel system (comply with IEC 60601-2-52) ❖... - Page 12 ❖ Long side rail analysis： Patient control element, integrated inside rail Angle Guardrail buffer Back storage space indicator Guardrail locking mechanism Backlight system is available for MEB-903L/ MEB-904 series. When power on, the side control unit backlight will be on. When power off, the side control unit backlight will be off. When power on without operation after 30 seconds, the side control backlight will switch off and power off automatically.
-
Page 13: Manual Cpr Lever
5.5 Manual CPR lever CPR allows quick mechanical lowering of the backrest for emergency resuscitation (CPR) procedures. (a) Before 2019 1 quarter The CPR is located under both sides of the backrest part. ◼ Press and hold lever upwards. ◼ Press the backrest down using: ❖... -
Page 14: Castor Control And Bed Transport
5.6 Castor control and bed transport Material damage due to incorrect transport or involuntary movement! ⚫ Prior to assembly, disassembly and maintenance, ensure the castors are locked. ⚫ Ensure the castors are locked while the bed is occupied and/or not being transported. ⚫... -
Page 15: Embedded Control Unit
5.7 Embedded control unit Outside Inner Power switch Egress position Backrest down Examination position Backrest up Trendelenburg Bed up * 10 Anti-Trendelenburg Bed down * 11 Under bed light ** ❖ * by safety concern, the bed will go flat position (about 63 cm height) before complete bed raise up/ down position. -
Page 16: Handset
5.9 Handset (TMH10, options) Back up Back down Bed up Bed down Trendelenburg Reverse Trendelenburg 5.10 Flashlight handset (TMH1, options) Power indicator Flashlight (3 stage) Nurse call Backrest down Backrest up Bed down Bed up 10 Reverse Trendelenburg Trendelenburg 11 Egress position Exam position 12 LED light source 13 Safety lock (opposite) -
Page 17: Accessories Use
6 Accessories use 6.1 Infusion Stands It is possible to insert infusion stands into the bushings at the head and foot ends of the bed. ❖ Use exclusively infusion stands with 4 hooks for hanging IV bags or baskets for intravenous solutions. ❖... -
Page 18: Leg Crutches & Clamp
6.4 Leg crutches with clamp According to end user demand, the leg crutches can adjustable height, position, forward/ backward, rotating, tilting…etc. The leg holder made by high density PU foam. 1. Insert the clamp into accessories side rail. 2. Insert the leg crutches into clamp socket 3. -
Page 19: Slopping Pan
6.7 Under bed light (option) It is possible to add on MDB-900 series. The switch already embedded on inner control unit. It can lock/ unlock by locking box (item 6.3). It can lighten the floor in the nighttime to prevent fall down and indicate bed location for nurse. -
Page 20: Accessories Cart
6.9 Mobile accessories cart (option) According to safety and room space using, the mobile trolley is option to set up useless accessories on mobile cart. According to patient condition, the trolley can carry all possible parts on time. MDB-900WC Accessories Wheel Cart: Overall size: L930 x D350 x H750 mm +/- 5% Power coating steel/ stainless steel 304 50 mm wheel... -
Page 21: Vertical Oxygen Tank Holder
6.10 Vertical oxygen tank holder (option) Oxygen tank holder is intended for transporting oxygen bottle with a weight of up to 15 kg and a volume of 5L. ❖ Oxygen tank holder install on IV pole socket. Lift bed end and insert to socket and install bed end. -
Page 22: Posture Change
7 Posture change According to different purpose, the bed length could extend and retreat. After natural delivery, the maternity can stay in same bed without moving and prevent possible injury. Position A is natural delivery length. Position B is exam length. -
Page 23: Mattress
8 Mattress (1) LDR bed come with mattress stopper on head side and buttock part. (2) Body mattress has outstanding arm support on both sides and seamless skirt on pelvis parts. (3) Foot mattress come with metal frame for quickly installation. (4) Be sure to choose a correct size of mattress according to bed type. -
Page 24: Cleaning And Disinfection
9 Cleaning and disinfection 9.1 Safety Instructions for Cleaning and Disinfection of the Bed Preparation for cleaning: ❖ Drive the bed on a place where the cleaning process will be performed and then brake the bed. ❖ Position the mattress platform to its highest positions and also position the back rest and thigh rest parts so the back side of those parts are accessible for cleaning. - Page 25 5. Disabling gasoline, organic solvents (pine perfume), chemical cleaning. 6. Do not bake and avoid sun exposure. Second, the steel paint part: 1. Wipe with a dry cloth or a cloth dampened with water. 2. Wipe with a neutral detergent (PH6-8). ...
- Page 26 Part of bed Material Daily C&D Changing Patient Complete C&D(*) C&D Siderail ⚫ ☑ ☑ ☑ Split type PP, S, ABS ⚫ ☑ ☑ ☑ Collapsible S, ALU, ABS ☑ ☑ ☑ Siderail linkage S, ABS ☑ ☑ ☑ Head & foot board PP, S, ABS ☑...
-
Page 27: Regular Maintenance
10 Regular maintenance First, every three months should be implemented: Check the anchor rail group fixing bolts for looseness? Does it fall off? Check the tamper brake latch for wear? Is there a crack? Check if the anchor bolt of the rocker arm is loose or not. There is an oil hole above the rocker arm. -
Page 28: Storage And Inspection
11 Storage and inspection When the bed will not be used for long period of time, follow the instruction as below: Lower the back and knee section base to the horizontal position. Set the bed height to its lowest positions. Don’t place anything on the bed other than mattress. -
Page 29: Trouble Shooting
13 Trouble shooting 13.1 General trouble shooting Error / Fault Cause Solution Adjusting with position buttons not Handset is locked. Unlock the handset. possible Drive motors have no power Check the mains connection. Defective drive motors Notify the service department. Defective battery Plug inserted incorrectly Insert the mains plug correctly. - Page 30 During following conditions, please kindly reset your bed to make sure the bed operation properly. time to operate the bed Battery is not working after power failure Long time store without using Battery change Bed unplug and battery power failure Bed unplug and no battery inside Power shut down and bed has no feedback Step 1: Press button with circle mark at same time by 5 seconds.
-
Page 31: Preventative Maintenance
Preventative Maintenance CHECKLIST Item Date Date Date Date All fasteners secure Side rails move and latch properly Engage brake pedal and push on the bed to ensure all casters lock securely Steer function working properly All casters secure and swivel properly Body restraints/ mattress stopper working properly Fowler operates and latches properly Up leg and lower leg section operate properly... -
Page 32: Consulting And Service
15 Consulting and service If you have Manufacture：Medical-Master Co., Ltd Office: No.59-9, Ying Cheng 1st., Shi-Tung Dist., Taichung City, Taiwan (40749) Factory: No.158, Keliao Rd., Shengang Township, Changhua County, Taiwan (509) TEL：886-4-23171028 FAX：886-4-23171029 E-Mail：info@medical-master.com www.medical-master.com Medical-Master Co., Ltd. No. 59-5, Ying Cheng 1 , Shi-Tung Dist Taichung City, Taiwan (40749) Tel: +886-4-23171028...
