User manual and technical description

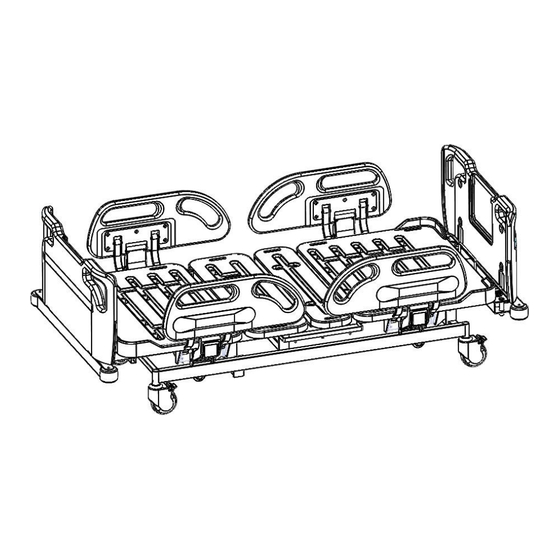

Model：MEB Advanced Electric Bed Series
Version：2020-A-1
❖
Our company reserve rights to revise the technical parameters,
appearance, structure, color...etc. of the products including in this user
manual without previous notice.
Medical-Master Co., Ltd
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MEB Series and is the answer not in the manual?

Questions and answers

Related Manuals for Medical Master MEB Series

Summary of Contents for Medical Master MEB Series

  • Page 1 User manual and technical description Model：MEB Advanced Electric Bed Series Version：2020-A-1 ❖ Our company reserve rights to revise the technical parameters, appearance, structure, color…etc. of the products including in this user manual without previous notice. Medical-Master Co., Ltd...

  • Page 2: Table Of Contents

    Table of Content 1 Component name and location -------------------------------------------------------------------------------------- 2 MEB-903、MEB-904 series basic specifications -------------------------------------------------------------- 2.1 MEB-903 series bed type and equipment ------------------------------------------------------------------ 2.2 MEB-904 series bed type and equipment ------------------------------------------------------------------ 3 Symbolic and Safety prevention ------------------------------------------------------------------------------------ 3.1 Symbolic descriptions -------------------------------------------------------------------------------------------- 3.2 Safety prevention -------------------------------------------------------------------------------------------------- 4 Clinic application -------------------------------------------------------------------------------------------------------- 4.1 Suitable environment for use------------------------------------------------------------------------------------...
  • Page 3 8.2 General Instructions for Cleaning and Disinfection ------------------------------------------------------- 9 Regular maintenance ------------------------------------------------------------------------------------------------- 10 Storage and inspection ---------------------------------------------------------------------------------------------- 11 Waste treatment ------------------------------------------------------------------------------------------------------- 12 Trouble shooting ------------------------------------------------------------------------------------------------------- 12.1 General trouble shooting -------------------------------------------------------------------------------------- 12.2 Electric system reset ------------------------------------------------------------------------------------------- 13 Preventative maintenance ------------------------------------------------------------------------------------------ 14 Statement of Electromagnetic Compatibility ------------------------------------------------------------------- 14 Consulting and service ---------------------------------------------------------------------------------------------- Medical-Master Co., Ltd...

  • Page 4: Component Name And Location

    1 Component name and location Left Head Foot Right 16 Casters Head board Back section board 17 Bed head lifting bar Left head siderail 18 Storage basket 19 Drainage bag hook frame Control element, integrated in side rail Buttock section board 20 Right foot siderail Thigh section board 21 Bed chassis...
  • Page 5 MEB-254 (4 motor) Right Head Foot Left Head & foot board 13 Coroner bumper Back section board 14 Side bumper Remote handset 15 Right siderail Buttock section board 16 Left siderail Thigh section board 17 Manual CPR lever * Leg section board 18 Urinal rail Platform 19 Control box and battery *...

  • Page 6: Meb-903、Meb-904 Series Basic Specifications

    2 MEB-903、MEB-904 series basic specifications 2.1 MEB-903 series bed type and equipment Model MEB-903K ⚫ Dimension and angle have 5% tolerance. Specification Platform size (overall size) 915 x 1910 mm (1105 x 2160 mm) Adjustable height 410~720 mm Back adjustment 0~85˚...
  • Page 7 Model MEB-903 ⚫ Dimension and angle have 5% tolerance. Specification Platform size (overall size) 910 x 1925 (1060 x 2170) mm 860 x 1925 (1010 x 2170) mm Adjustable height 450~760 mm Back adjustment 0~70˚ 0~40˚ Knee adjustment Loading capacity Max.
  • Page 8 Model MEB-903L ⚫ Dimension and angle have 5% tolerance. Specification Platform size (overall size) 910 x 1925 (1060 x 2170) mm 860 x 1925 (1010 x 2170) mm Adjustable height 390~760 mm Back adjustment 0~70˚ 0~40˚ Knee adjustment Loading capacity Max.
  • Page 9 2.2 MEB-904 series bed type and equipment Model MEB-904/ 904ICU ⚫ Dimension and angle have 5% tolerance. Specification Platform size (overall size) 910 x 1925 (1060 x 2170) mm 860 x 1925 (1010 x 2170) mm Adjustable height 440~750 mm Back adjustment 0~70˚...
  • Page 10 Model MEB-904L/ MEB-904LICU ⚫ Dimension and angle have 5% tolerance. Specification Platform size (overall size) 910 x 1925 (1060 x 2170) mm 860 x 1925 (1010 x 2170) mm Adjustable height 390~760 mm Back adjustment 0~70˚ 0~40˚ Knee adjustment Trendelenburg 15゜...
  • Page 11 Model MEB-904B ⚫ Dimension and angle have 5% tolerance. Specification Platform size (overall size) 1100 x 1925 (1200 x 2175) mm Adjustable height 390~760 mm Back adjustment 0~70˚ 0~40˚ Knee adjustment Trendelenburg 15゜ Reverse Trendelenburg 15゜ Loading capacity Max. 350 kg Catis 150 mm twin caster x 4；Central locking &...
  • Page 12 Model MEB-904DS ⚫ Dimension and angle have 5% tolerance. Specification Platform size (overall size)` 910 x 1925 (1060 x 2175) mm Adjustable height 400~770 mm Back adjustment 0~70˚ 0~40˚ Knee adjustment Trendelenburg 15゜ Reverse Trendelenburg 15゜ Loading capacity Max. 250 kg Catis 125 mm twin caster x 4；Central locking &...
  • Page 13 2.3 MEB-253 series basic specifications MEB-253 Model  Dimension and angle have 5% tolerance. Specification Platform size (overall size) 860 x 1910 mm (1000 x 2100 mm) Adjustable height 400~700 mm Back adjustment 0~85˚ Knee adjustment 0~40˚ Loading capacity Max. 200 kg Bed Casters Catis 125 mm caster x 4；Castor control with individual braking system Motor system...
  • Page 14 MEB-254 Model  Dimension and angle have 5% tolerance. Specification Platform size (overall size) 910 x 1910 mm (1000 x 2100 mm) Adjustable height 390~760 mm Back adjustment 0~70˚ Knee adjustment 0~40˚ Max. 200 kg Loading capacity Bed Casters Catis 125 mm caster x 4；Castor control with individual braking system Motor system Timotion motor system；Low voltage Motor system x 4 Supply voltage and frequency...

  • Page 15: Symbolic And Safety Prevention

    3 Symbolic and Safety prevention Take precautions in advance to ensure proper use. Be sure to read these safety instructions. Take precautions in advance to ensure proper use. The safety precautions described here are intended to ensure safe use of the product and prevent accident personal injury. Precautions are classified as “WARNING”,”...
  • Page 16 Electric Hazard Recommend mattress size Do not repair or modify the bed Protective earth (ground) yourself Unplug the item from power source Mandatory to read instruction for (only available for electric unit) Note! (If the safety label removed or Scale calibration expire label defaced, replace with a new one obtained from your dealer.) Read user manual...

  • Page 17: Safety Prevention

    3.2 Safety prevention ❖ Bed should be left in its lowest position when the patient is unattended in order to reduce risk of injury due to falls! ❖ Side rails of bed should be located in the “up“ position to reduce the risk of the patient accidentally slipping or rolling off the mattress! ❖...
  • Page 18 ❖ Don’t climb on the bed in the raised position. Otherwise, the base supports are subjected to excessive weight, and may damage or deformed. ❖ Don’t put anything underneath the bed. It interferes the movement of hi-low. It can lead to a deformation and damage to related parts of the bed.

  • Page 19: Clinic Application

    4 Clinic application 4.1 Suitable environments for use ❖ Prevent to solarize under the sun. ❖ Prevent to close heating area. ❖ Prevent wet environment. ❖ Prevent to stay with volatility oil/ liquid. ❖ Prevent high temperature, high humidity, low temperature and dry ❖...

  • Page 20: Assemble And Use Instructions

    5 Assemble and use instructions 5.1 How to connect power source Use single phase and earthen circuit alternate current power source (3P). Make certain to make one-on-one connection for power cord and outlet to avoid unexpected electricity failure. Star bust connection is strictly prohibited If the outlet is not 3P earthen circuit type, use the 3P adapter which provides earth cord.

  • Page 21: Electrical Circuit

    5.2 Electrical circuit 5.2.1 MEB-903 series electrical circuit (3 motor) 5.2.2 MEB-903L series electrical circuit (4 motor) Medical-Master Co., Ltd...
  • Page 22 5.2.3 MEB-904 series electrical circuit (4 motor) 5.2.4 MEB-904DS series electrical circuit (4 motor) Medical-Master Co., Ltd...
  • Page 23 5.2.5 MEB-253 series electrical circuit (3 motor) Above system is full package with options  Medical-Master Co., Ltd...

  • Page 24: Head And Foot Board

    5.3 Head and foot board The head and tail plates are common parts that can be removed urgently. Install bed ends before the first use. To insert bed ends into corner posts, hold them by the corner handles on top with both hands. To disassemble, pull it up. ⚫...

  • Page 25: Split Plastic Guardrail

    5.4 Split Plastic guardrail Short panel system (comply with IEC60601-2-38) ❖ To fold side rails down: Take hold of the side rail handle and push side rail towards mattress platform 1. Pull out locking mechanism 2 to unlock. Fold side rail down 3. Do not let the side rail fall down when it is unblocked.
  • Page 26 ❖ Long side rail analysis： Patient control element, integrated in side rail Angle indicator Guardrail buffer Back storage space Guardrail locking mechanism Backlight system is available for MEB-903L/ MEB-904 series. When power on, the side control unit backlight will be on.

  • Page 27: Manual Cpr Lever

    5.5 Manual CPR lever CPR allows quick mechanical lowering of the backrest for emergency resuscitation (CPR) procedures. (a) MEB-904/ 904ICU series bed type The CPR is located under both sides of the backrest part. ◼ Press and hold lever upwards. ◼...
  • Page 28 5.6 Leg section board adjust To raise the height, first raise the handle of the lower leg section board and the edge of the lower section board upwards. The lifting pole fixing shaft will be raised from the original ratchet position (A) to the desired height of the ratchet position (B).

  • Page 29: Castor Control And Bed Transport

    5.7 Castor control and bed transport Material damage due to incorrect transport or involuntary movement! ⚫ Prior to assembly, disassembly and maintenance, ensure the castors are locked. Ensure the castors are locked while the bed is occupied and/or not being transported. ⚫...

  • Page 30: Embedded Control Unit

    5.8 Embedded control unit (A) MEB-903 series bed type (3 motor) Inner Outside Backrest down Power indicator Backrest up Auto contour down Auto contour up 10 Knee down Knee up 11 Bed down Bed up 12 Egress position 13 Reading light switch Examination position (B) MEB-904 series bed type (4 motor) Outside...

  • Page 31: Nurse Control Panel (Acp)

    5.9 Nurse control panel (ACP) (A) MEB903 series：ACP03A (TNP6A) Power switch Battery indicator Backrest rise 30° Backrest position Auto contour Egress position Knee position 10 Examination position 11 CPR Height adjustment 12 Under bed lighting Function lock/ unlock switch (B) MEB903 series：ACP03B (TNP6B) Battery indicator Power switch Backrest position...
  • Page 32 (C) MEB904 series：ACP04 (TNP1) 11 Egress position Battery indicator Backrest position 12 Examination position Auto contour 13 Chair position Knee position 14 CPR Height adjustment 15 Anti-shock position Anti-Trendelenburg and 16 Keep press 3 sec to Trendelenburg record or cancel the height Power switch Function lock/ unlock...
  • Page 33 ⚫ Button information: 12 Menu cursor/ number down Power On/ Off 13 Bed exit system/ Zone 2 Total lock/ unlock 14 Scale memory sheet Back position/ 30゜position 15 Bed exit system/ Zone 1 Auto-contour 16 Bed exit system setting and cancel/ alarm off Knee position 17 Scale/ Auto compensation Height adjustment...
  • Page 34 When you press button 8, LCD will display CPR icon and bed will go to flat condition. When you keep press CPR button for 5 secs, it will automatically operate. When you press any button of bed, it will stop immediately. When you press button 9, LCD will display Chair icon and bed will go to cardiac chair position.
  • Page 35 ⚫ Weight scale operation: Press button 20, LCD panel will go to scale monitor. Without operation over 3 minutes, the LCD monitor will return to bed condition monitor. When weight number display “~”, it mean the weight is steady. When weight number display “-“, it mean the weight is negative.
  • Page 36 Scale calibration operation: ⚫ Coroner calibration: Please adjust the bed height over 20 inch height for calibration!! Press “Shift” on coroner calibration. Setting “250 kg” as load cell specification by up/ down button. Press shift until it changes to next step. Setting “3.0000”...

  • Page 37: Remote Backlight Handset

    5.10 Remote handset (A) Backlight handset (TH-10) Power indicator Backrest down Backrest up Auto contour down Auto contour up Knee down Knee up 10 Bed down Bed up 11 Trendelenburg (904 only) Anti-Trendelenburg (904 only) (A) Flashlight handset (TMH1) * Power indicator Flashlight (3 stage) Nurse call...

  • Page 38: Weighting System

    5.11 Weighting system Position the bed on a flat, level surface and apply the brakes. Remove the four transport locking bolts and washers; there are two locking bolts at the head end of the bed and two at the foot end. Retain the bolts and washers in case the bed needs to be transported at a later date.

  • Page 39: Rechargeable Battery

    5.12 Rechargeable battery Risk of reducing battery durability due to incorrect use Use bed on battery only in crisis situations (e.g.: power failure, patient complications during ⚫ transport, etc.) CAUTION! After reconnecting bed to the main charge battery to full capacity (see battery charge status) ⚫...
  • Page 40 The LED on ACP control panel indicates the battery charge status: Battery charge status 3 LED 80~100% 2 LED 50~80% 1 LED < 40% The LED on battery control panel indicated the battery condition: Status Capacity of battery LED indication (color & mode) When charging (when system is connecting to AC power) Charging <...

  • Page 41: Accessories Use

    6 Accessories use 6.1 Infusion Stands (two hand operation) It is possible to insert infusion stands into the bushings at the head and foot ends of the bed. ❖ Use exclusively infusion stands with 4 hooks for hanging IV bags or baskets for intravenous solutions.

  • Page 42: Urine Bag Holder

    6.3 Urine bag holder Urine bag holders are situated on both sides of buttock section of the mattress support platform. Fig. At the location of the MEB-900 bed (before Dec. 2018). Fig. At the location of MEB-900 bed (AfterJan.,2019) 3 hooks are movable according to operation demand Risk of injury due to use of unsuitable accessories! ⚫...

  • Page 43: Bed Extension

    6.6 Bed Extension MEB-900 series medical bed can be delivery in the version with bed shortening. Purpose of this shortened version is to facility bed transport. It is recommended to use mattress (with length of 191 cm) with foam extension (with length 20 cm).

  • Page 44: Vertical Tank Holder

    6.8 Vertical oxygen tank holder Oxygen tank holder is intended for transporting oxygen bottle with a weight of up to 15 kg and a volume of 5L. ❖ Oxygen tank holder install on IV pole socket. Lift bed end and insert to socket and install bed end.

  • Page 45: Nurse Call

    6.11 Nurse call system It is possible to add nurse call system to MEB-900 series. The nurse call device signal transmission by Bluetooth technology and max distance is 10M (it might be decrease by wall/ floor block). This system is including a nurse call bell and handset/ ACP panel (with nurse call bell button).
  • Page 46 6.14 Foot control (wireless) Foot control located on both sides of bed with protection frame. The foot control enables the adjustment of bed height. The foot control is wireless device (comply with EN 300 328/ EN 301 489-1/ EN 301 489-17/ EN 62479: 2010). Wireless device for foot control.

  • Page 47: Orthopedic Frame

    6.16 Orthopedic frame It is possible to install MM Balkan frame on MEB-900 series. The installation socket should add in factory side, so this item is not allowed to add after export. For more details about Balkan frame spec and installation method, please check another user manual for Orthopedic Bed.

  • Page 48: Anti-Decubitus Device

    Installation steps: Install 4 pcs MOF-05 aluminum pipe on sockets at 4 coroners. Fasten 4 pcs MOF-02 clamp on 4 pcs MOF-05 top. Please make sure they are on same level. Fasten step like figure 1. Fasten 2 pcs MOF-04 and 2 pcs MOF-056 by clamp on 4 pcs MOF-02. Fasten 2 pcs MOF-01 on 1 pc MOF-06., like figure 2 Fixed 2 pcs MOF-03 on 1 pc MOF-06 by screw, like figure 3.

  • Page 49: Cleaning And Disinfection

    8 Cleaning and disinfection 8.1 Safety Instructions for Cleaning and Disinfection of the Bed Preparation for cleaning: ❖ Drive the bed on a place where the cleaning process will be performed and then brake the bed. ❖ Position the mattress platform to its highest positions and also position the back rest and thigh rest parts so the back side of those parts are accessible for cleaning.
  • Page 50 Second, the steel paint part: 1. Wipe with a dry cloth or a cloth dampened with water. 2. Wipe with a neutral detergent (PH6-8). 3. Use 75% alcohol to wipe. 4. Disable bleach, organic solvents (pine perfume, toluene, acetone, etc.), chemical substances wipe. 5.
  • Page 51 Machine washing: If the bed is designed for machine washing, then this symbol is located on the frame under the foot board ❖ Maximal lenght of machine washing: 7 minutes ❖ Maximal pressure of washing machine jet: 5-6 bar ❖ Maximal water temperature: 65 °C ❖...
  • Page 52 Part of bed Material Daily C&D Changing Patient Complete C&D(*) C&D Siderail ⚫ ☑ ☑ ☑ Split type PP, S, ABS ⚫ ☑ ☑ ☑ Collapsible S, ALU, ABS ☑ ☑ ☑ Siderail linkage S, ABS ☑ ☑ ☑ Head & foot board PP, S, ABS ☑...

  • Page 53: Regular Maintenance

    9 Regular maintenance First, every three months should be implemented: 1. Check the anchor rail group fixing bolts for looseness? Does it fall off? 2. Check the tamper brake latch for wear? Is there a crack? 3. Check if the anchor bolt of the rocker arm is loose or not. 4.

  • Page 54: Storage And Inspection

    10 Storage and inspection When the bed will not be used for long period of time, follow the instruction as below: Lower the back and knee section base to the horizontal position. Set the bed height to its lowest positions. Don’t place anything on the bed other than mattress.

  • Page 55: Trouble Shooting

    12 Trouble shooting 12.1 General trouble shooting Error / Fault Cause Solution Adjusting with position buttons not Handset is locked. Unlock the handset. possible Drive motors have no power Check the mains connection. Defective drive motors Notify the service department. Defective battery Plug inserted incorrectly Insert the mains plug correctly.

  • Page 56: Electric System Reset

    12.2 Electric system reset During following conditions, please kindly reset your bed to make sure the bed operation properly. time to operate the bed Battery is not working after power failure Long time store without using Battery change Bed unplug and battery power failure Bed unplug and no battery inside Power shut down and bed has no feedback Step 1: Press button with circle mark at same time by 5 seconds.

  • Page 57: Preventative Maintenance

    13 Preventative Maintenance Preventative Maintenance Checklist Item Date Date Date Date All fasteners secure Side rails move and latch properly Engage brake pedal and push on the bed to ensure all casters lock securely Steer function working properly All casters secure and swivel properly Body restraints/ mattress stopper working properly Fowler operates and latches properly Up leg and lower leg section operate properly...

  • Page 58: Statement Of Electromagnetic Compatibility

    14 Statement of Electromagnetic Compatibility Product has been tested for compliance with current regulatory standards regarding its capacity to block EMI (electromagnetic interference) from external sources. Some procedures can help reduce electromagnetic interferences: ⚫ Use only Medical-Master cables and spare parts to avoid increased emissions or decreased immunity which can compromise the correct functioning of the equipment.
  • Page 59 Guidelines and the Manufacturer's Statement - Electromagnetic Immunity If the equipment is expected to be used in the following electromagnetic environment, the purchaser or user should ensure that it will be used in the electromagnetic environment: Electromagnetic Immunity Test IEC 60601 Test Level Coincidence Level Environment –...
  • Page 60 Guidelines and the Manufacturer's Statement - Electromagnetic Immunity If the equipment is expected to be used in the following electromagnetic environment, the purchaser or user should ensure that it will be used in the electromagnetic environment: Coincidence Electromagnetic Environment – Immunity Test IEC 60601 Test Level Level...
  • Page 61 Recommended isolation distance between the portable and mobile radio frequency communication equipment and the equipment The equipment is expected to be used in an electromagnetic environment where radio frequency radiation disturbance is controlled. Based on the maximum rated output power of the communication equipment, the purchaser or user may prevent electromagnetic interference by maintaining the minimum distance between the portable and mobile radio communication equipment (transmitter) and the equipment as recommended below Isolation distance for a different frequency of the transmitter /m...

  • Page 62: Consulting And Service
