Lenovo Thinkpad Edge E530 Quick Start Manual

How to replace the keyboard

Hide thumbs Also See for Thinkpad Edge E530:

Download this manual

How to Replace the keyboard from Lenovo Thinkpad Edge

E530 E530c E535

First of all, you need to unplug the power adapter and remove the battery from

your laptop.

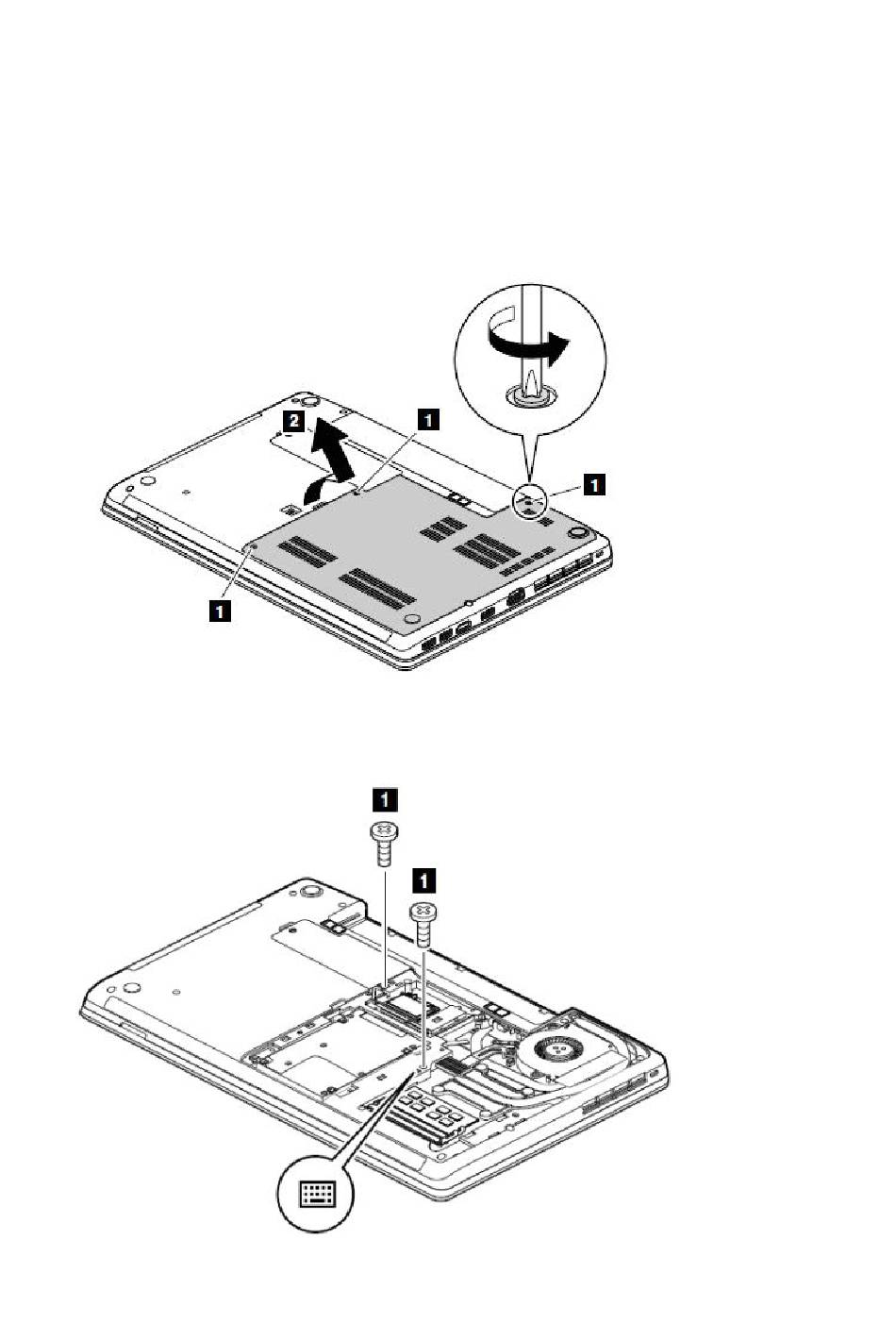

Removal steps of large bottom cover

Note: Loosen the screws [1].

Removal steps of keyboard

Please perform the following steps as shown in the pictures below:

Notes:



Your model might look slightly different from the illustration above.

Need help?

Do you have a question about the Thinkpad Edge E530 and is the answer not in the manual?

Page 1 How to Replace the keyboard from Lenovo Thinkpad Edge E530 E530c E535 First of all, you need to unplug the power adapter and remove the battery from your laptop. Removal steps of large bottom cover Note: Loosen the screws [1].
Page 2  The location of the screws that secure the keyboard might be different from the illustration above. Refer to the watermarks printed on the computer. When installing: Make sure that the screws are fastened and the keyboard is secured. Step Screw (quantity) Color Torque M2 ×...
Page 3 Note: Your computer keyboard might look different from the illustration above. Thinkpad Edge E530 E530c E535 Keyboard installation instruction To install the keyboard, do the following: 1. Attach the connectors. 2. Attach the keyboard and ensure that the keyboard edges are under the...
Page 4 Note: Your computer keyboard might look different from the illustration above. 1. To make sure that the front side of the keyboard is housed firmly, gently press the keys with your thumbs and slide the keyboard toward you until the keyboard is in place. Note: Your computer keyboard might look different from the illustration above.
