Sub-Zero PCG100 Series Instruction Manual

PCG100 Series
Instruction Manual
Introduction
Subzero PCG is the programmable controller designed to be used for general
application. It consists of input block to take input from probes, transducers,
humidifier etc. and able to control various devices like compressor, control
valves, heater etc. indicator to cover any type of application in the air-
conditioning sector, cooling sector and any relative area. As the system is
one of the most technologically advanced, it is flexible and can be
customized for it to be adapted to the user's particular requirements.
Caution for your Safety
ELECTRIC SHOCK: Please do not touch the relay terminal (live parts) or
socket terminal (live parts) while the power is on. This may lead to electric
shock.
WIRING: The probe and its corresponding wires should never be installed in
a conduit next to control or power supply lines. The electrical wiring should
be done as shown in the diagram. The power supply circuit should be
connected to a protection switch. The terminals admit wires of upto 2.5sq
mm.
WARNING: Improper wiring may cause irreparable damage and personal
injury. Kindly ensure that wiring is done by qualified personnel only.
MAINTENANCE: Cleaning: Clean the surface of the controller with a soft
moist cloth. Do not use abrasive detergents, petrol, alcohol or solvents.
Controller: Controller should be installed in a place protected by vibration,
water and corrosive gasses and where ambient temperature does not
exceed the values specified in the technical data.
Probe: To give a correct reading, the probe must be installed in a place
protected from thermal influences, which may affect the temperature to be
controlled.
Items Included
S. No. Items Quantity
1 Controller with side lock 1
6 Way 1 No.
2 Wire Harness
14 Way 1 No.
3 User Manual 1
Note: For PCG100 -121200001, PCG101 -121200701, PCG101 -121200702
wire harness not included.

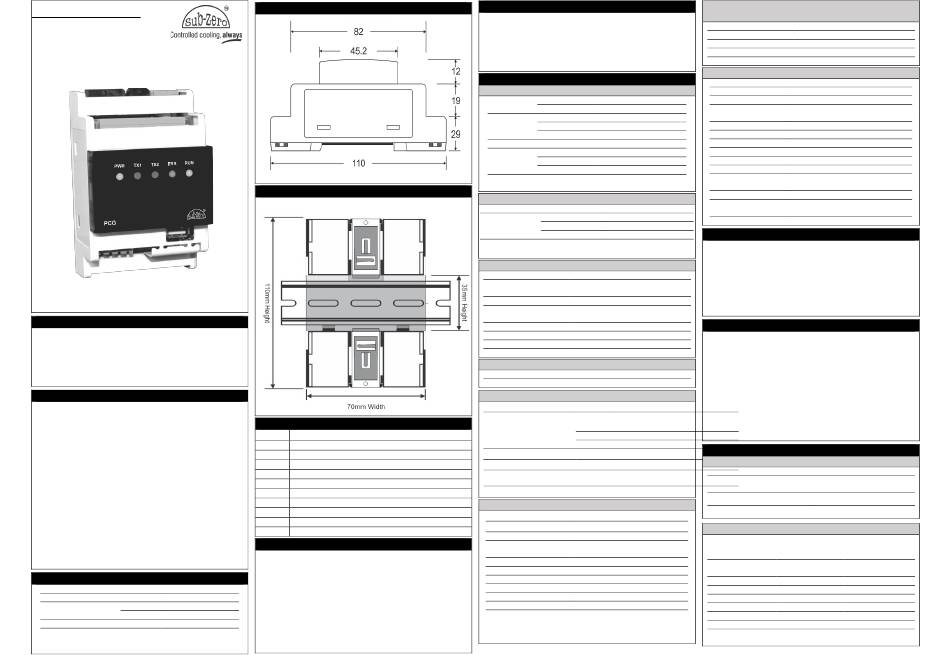

Dimension
Mounting
BACK VIEW
Index
S. No. Description
Dimension
Mounting
1. General Specification
2. Field of Application
3. Technical Specification
4. Programming Environment
5. Onsite Programming
6. Connector Description
7. LED Indication
8. Connection Diagram
1. General Specification
•
The Subzero PCG - 24V operated programmable controller.
•
32-bit Cortex M3 ARM processor operating at 0.1 µs speed makes it
highly efficient.
•
Has a large FLASH memory (150 KB) which makes it possible to have
multiple control routines and test conditions in the software.
•
Fast switching I/O are suitable to drive high speed inputs upto 50kHz
and high-speed outputs upto 100kHz effectively.
•
Software configurable RS485 Master Protocol or Slave Protocol
provide maximum flexibility of integration with the outside world.
•
All the analog inputs and outputs are fully configurable.
2. Field of Application
The possibility of all-round configuration allows the Subzero programmable
controller to be used for any type of application. Following are the existing
applications:
•
HVACR
•
Plant Monitoring
•
Automation
3. Technical Specification
Enclosure
: Base & Top Cover : ABS Plastic V0 Grade
Housing
: Display Lens : Polycarbonate V0 Grade
: Base : Black
Colour : Top Cover : White
: Lens : Transparent Smoke Grey
Mount : DIN rail mount
: Width (W) : 70 mm
Dimension
: Height (H) : 110 mm
(Frontal)
: Depth (D) : 59 mm
Self- : YES
Extinguishing
Electrical Specification
Power Supply : 24 V DC, ± 10%
: Digital Input : Microfit Type
Connectors
: High Speed Output : Microfit Type
: All Other Output : Pluggable Connecter Type
Note: For PCG100 -121200001, PCG101 -121200701, PCG105 -1212007N01
Plugin connecter - wire 1.0sqmm.
Software Specification
Microprocessor : 32-Bit Cortex M3 ARM
Programmable FLASH : 150 KB
Memory
Execution Speed : 0.1 µs
Language : Ladder/C-Programming
(Functional Blocks)
Modbus Protocol : Modbus RTU, MITSUBISHI FX2N
Programming : Type A to Type A USB cable
Onsite Programming : via Pen drive FAT32
Internal RTC : Standard
Operating Conditions
Operating Temperature : -10⁰C to 60⁰C
Relative Humidity : 20 % to 85 %
Analog Input
Number of Inputs : 7
: NTC : SZ make 10K at 25⁰C
Type of Input
: Range : -35⁰C to 90⁰C
(Configurable via hardware
: Voltage : 0-5 VDC / 0-10 VDC
jumpers)
: Current : 0-20 mA
Resolution : 12 Bit
Accuracy : ± 1 % on F.S.
Input Impedance : 100 Ω
Note: For PCG105 -121200701 all Analog input is only NTC
Digital Input
Type 1
:
High Speed Transistor* Opto-Isolated
Input Name
:
X0, X1, X3, X4
No. of Inputs : 4
Maximum Range : 50 kHz
* Ʃ (X0, X1, X3, X4) ≤ 50 kHz
Type 2 : Opto-Isolated 24 V Operated
No. of Inputs : 8
Input Name : X2, X5, X6, X7, X10, X11, X12, X13
* High Speed Transistor Input can be used as Normal Input.
Type 3 : Opto-Isolated 24 V Operated
No. of Inputs : 12
Input Name : X0, X1, X2, X3, X4, X5, X6, X7, X10, X11,
X12, X13
Analog Output
(Configurable via Software Parameter)
Type : Voltage / Current Type
Number of Outputs : 3
Range : 0-10 VDC (or) 0-20mA
Accuracy : ± 1 % on F.S.
Load Impedance : <500 Ω
Digital Output
Type 1 : High Speed Transistor Output*
No. of Outputs : 4
Output Name : Y0, Y1, Y2, Y3
Maximum Range : 100 kHz
* (100 kHz X 2, 20 kHz X 2)
Maximum Load : 0.5A
Type 2 : Relays with Normally Open (NO) contact
No. of Outputs : 8
Output Name : Y4, Y5, Y6, Y7, Y10, Y11, Y12, Y13
Maximum Load : 5A 230V AC (Resistive)
* High Speed Transistor Output can be used as Normal Output.
Type 3 : Opto-Isolated Transistor Output & Relays
with Normally Open (NO) contact
No. of Outputs : 12
Output Name : Y0, Y1, Y2, Y3, Y4, Y5, Y6, Y7, Y10, Y11,
Y12, Y13
Maximum Load : 0.5A - 5A 230V AC (Resistive)
4. Programming Environment
All Subzero PLC use the following software as a processing environment:
• SZ Logic – Customized Programming Software which comes
complementary. It uses popular Ladder Logic Diagrams and "C"
Language.
• Key Feature of SZ Logic – subzero make NTC sensor (10k @ 25deg C)
is readily integrated.
• Online DEBUG allows user to block and force the value of the
variables to speed up the testing and ease fault findings.
5. Onsite Programming
Following is the procedures for onsite USB Programming:
• Compile project in SZ Logic.
• A file with "projectname.szd" will be created in the project folder.
• Rename above file as "PLCPRG.szd" only.
• Insert a pendrive. Format the pendrive as FAT32.
• Copy the "PLCPRG.szd" file to Pendrive. Do not keep in any folder.
Remove pendrive from PC.
• Power off the PLC and insert the pendrive in the PLC.
• Power on the PLC. Upon successful downloading of the program, the
RUN LED on PLC will blink 6 times and then will remain ON.
• If RUN led doesn't blink, repeat previous 2 steps.
• When done, power off the PLC and remove the pendrive.
6. Connector Description
Power Supply
SYMBOL DESCRIPTION
Earthing for Supply
-
Supply -24 V DC
+
Supply +24 V DC
Analog Input
Configurable
(NTC/ 4-20 mA/ 0-5 V/ 0-10 V)
Terminal No. Input Name Description
0 V Ground 0V Reference for all
analog inputs
A0 Pb1 Input 1
A1 Pb2 Input 2
A2 Pb3 Input 3
A3 Pb4 Input 4
A4 Pb5 Input 5
A5 Pb6 Input 6
A6 Pb7 Input 7
