Sonance PROFESSIONAL Series Quick Start Manual

PROFESSIONAL SERIES SURFACE MOUNT MKII
BOX CONTENTS
(1) PS-S43T MKII, or PS-S53T MKII, or PS-S63T MKII,
PS-S83T MKII, or PS-S83WT MKII
(1) Speaker Grille
(1) FastMount Bracket
(1) Wiring Terminal Cover
(1) Speaker Connector
WALL/CEILING MOUNTING
It is important that the bracket is securely mounted
onto a structurally sound surface. Four screws points
must be used at all times. A screw size of #14 to #20
diameter x 2" length or M6 to M8 diameter x 50mm
length is recommended. When mounting onto drywall
or plasterboard, the bracket should be affixed to a
joist or stud. When mounting onto brick or concrete,
wall plugs or concrete anchors should be used. Install
a safety cable from one of the 1/4-20 UNC threaded
holes on the back of the speaker to a secure location
on the adjoining mounting surface (hardware not
included).
POLE MOUNTING
To mount the speaker on a pole, two U-bolts and nuts
should be used to clamp around the pole and bolt
through the four holes on the back of the FastMount
bracket. Spring washers or blue thread lock are
recommended to ensure the nuts do not work loose
through the vibration of the speaker.

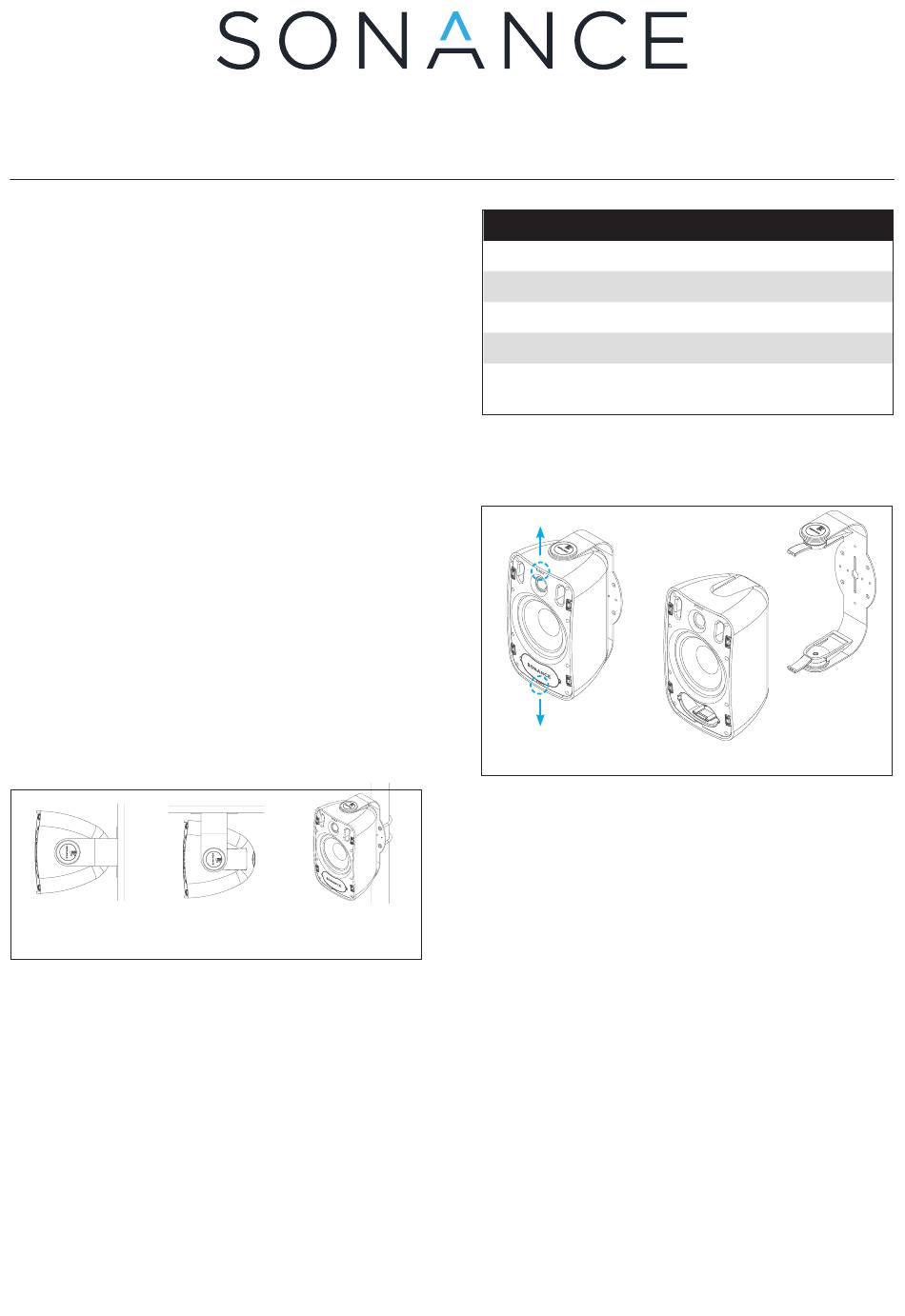

Wall Mount Ceiling Mount
Figure 1: Mounting
PIVOTING THE SPEAKERS
You can rotate the speaker in the bracket to direct the
sound towards the listeners.
1. Unlock the slide locks on the speaker pivots by
moving them towards the rear of the speaker.
2. Rotate the speakers to the desired position.
3. Lock the slide locks by moving them towards the
front of the speaker.
INSTALLING THE SPEAKERS
Place the left and right speakers at ear level, 6–10ft
apart. The speakers should be facing the listening
area. If you are mounting the speakers above or below
ear level, pivot them up or down to direct the sound
towards the listeners.
QUICKSTART GUIDE
Pole Mount
Bracket Carrying Capacity
MODEL
PS-S43T
PS-S53T
PS-S63T
PS-S83T / PS-S83WT
Figure 2: Bracket Carrying Capacity
1. Remove the speaker from the mounting bracket
by pulling the tabs on the front panel outward and
away from each other (see Figure 3).
Figure 3: Surface Mount Bracket Removal
2. Run the speaker wires from the amplifier to the
speaker location and through the holes in the
mounting bracket.
NOTE: BE SURE TO LEAVE ENOUGH WIRE AT THE
SPEAKER LOCATION TO FEED THROUGH THE
TUNNEL IN THE SPEAKER ENCLOSURE AND WIRE
TO THE EUROBLOCK CONNECTOR ON THE FRONT.
3. Attach the mounting bracket to the mounting
surface using hardware (not included) that is
appropriate for the type of surface.
4. If the installation requires that the speaker be
mounted on a pole you can attach the bracket to
poles using 2.5" U-bolts (not included).
5. Feed the speaker wire from the bracket into the
wire entry grommet on the back of the speaker,
through the wire tunnel and out the opening on
the speaker's front panel (see Figure 4).
• The grommet forms a water-resistant seal around
the speaker wire.
• Make sure there is enough slack in the wire to
allow the speaker to pivot on the bracket.
KGS POUNDS
2.81 6.19
3.63 8.00
4.88 10.76
7.02 15.48
