Summary of Contents for Sonance PROFESSIONAL MKII Series

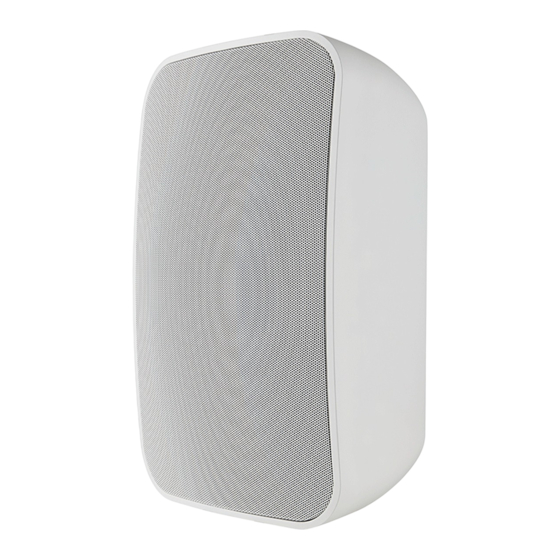

- Page 1 PROFESSIONAL SERIES SURFACE MOUNT MKII MANUAL...
- Page 2 Warranty (2) Speaker Connectors WOOFER (1) PS-S83WT MKII Scan QR code for additional (1) Speaker Grille information and resources. For technical support call (949) 492- (1) FastMount Bracket 7777 or visit www.sonance.com/ (1) Wiring Terminal Cover professionalseries (1) Speaker Connector...
- Page 3 PRODUCT FEATURES Powder Coated Aluminum Grille Tuning Port Chambered Tweeter (excludes PS-S83WT) High Excursion Woofer Transformer Tap and Bypass Selector Euroblock Connector with Loop Through Rotation Lock Paintable Shell (white only) FastMount Bracket Cable Pass-Through...
- Page 4 PRODUCT DESCRIPTION WIRE RESISTANCE IN OHMS VS. LENGTH OF CABLE RUN Sonance Professional Series includes a range of In-Ceiling, Pendant and Surface Mount Speakers that deliver true full DISTANCE IN FEET 50’ 100’ 150’ 200’ 250’ 300’ range fidelity, extremely low distortion, wide dispersion 20 GAUGE 1.73...
- Page 5 PAINTING THE GRILLES AND SPEAKER Run the speaker wires from the amplifier to the speaker locations and through the holes in the Sonance Professional Series Surface Mount MKII speakers mounting brackets. feature a tough polypropylene enclosure that can be painted. Sonance recommends using a weather-resistant NOTE: BE SURE TO LEAVE ENOUGH WIRE AT THE outdoor paint and a spray gun.
- Page 6 (see Figure 10). Figure 10: Transformer Tap SETTING TRANSFORMER TAP SWITCH Sonance Professional Series Surface Mount MKII speakers are factory set for maximum output when used with a Sonamp DSP 2-750 MKII or another 70V/100V amplifier. No additional work is necessary if the speakers are operating in 70V or 100V and can run at their full volume capacity.
- Page 7 FITTING AND REMOVING THE GRILLE When installing the grille, align the grille trim skirt with the groove in the enclosure. To lock the grille in place apply pressure at the locations of the four grille retention clips. An audible click should be heard as the grille locks into place. Figure 12: Pushing the Grille into Place NOTE: To remove the grille, we suggest starting in any one of the four corners using a grille pulling tool (not...
- Page 8 Powder Coated Aluminum, Friction Fit Input Connectors Front-mounted four pin, Euroblock with loop output connections Mounting Bracket Aluminum U-Bracket with Sonance FastMount Environmental and UV Conforms to MIL-STD-810 for humidity, salt spray, temperature, IEC 529 IPX4 splash-proof rating Safety Agency UL-1480, UL-2043, CSA-C22.2 No.205, NFPA-70, and NFPA-90A...
- Page 9 Powder Coated Aluminum, Friction Fit Input Connectors Front-mounted four pin, Euroblock with loop output connections Mounting Bracket Aluminum U-Bracket with Sonance FastMount Environmental and UV Conforms to MIL-STD-810 for humidity, salt spray, temperature, IEC 529 IPX4 splash-proof rating Safety Agency UL-1480, UL-2043, CSA-C22.2 No.205, NFPA-70, and NFPA-90A...
- Page 10 Powder Coated Aluminum, Friction Fit Input Connectors Front-mounted four pin, Euroblock with loop output connections Mounting Bracket Aluminum U-Bracket with Sonance FastMount Environmental and UV Conforms to MIL-STD-810 for humidity, salt spray, temperature, IEC 529 IPX4 splash-proof rating Safety Agency UL-1480, UL-2043, CSA-C22.2 No.205, NFPA-70, and NFPA-90A...
- Page 11 Powder Coated Aluminum, Friction Fit Input Connectors Front-mounted four pin, Euroblock with loop output connections Mounting Bracket Aluminum U-Bracket with Sonance FastMount Environmental and UV Conforms to MIL-STD-810 for humidity, salt spray, temperature, IEC 529 IPX4 splash-proof rating Safety Agency UL-1480, UL-2043, CSA-C22.2 No.205, NFPA-70, and NFPA-90A...
- Page 12 Powder Coated Aluminum, Friction Fit Input Connectors Front-mounted four pin, Euroblock with loop output connections Mounting Bracket Aluminum U-Bracket with Sonance FastMount Environmental and UV Conforms to MIL-STD-810 for humidity, salt spray, temperature, IEC 529 IPX4 splash-proof rating Safety Agency UL-1480, UL-2043, CSA-C22.2 No.205, NFPA-70, and NFPA-90A...
- Page 13 Contact Sonance directly at (949) 492-7777 or at www.sonance.com YOU MUST HAVE PRIOR AUTHORIZATION TO RETURN YOUR UNIT. If you are returning the product directly to Sonance, call us to obtain a return authorization number before shipping. Ship the product via United Parcel Service, Federal Express, or other package delivery service.
- Page 14 PARTICULAR PURPOSE ARE SPECIFICALLY EXCLUDED. No one is authorized to make or modify any warranties on behalf of Sonance. The warranty stated above is the sole and exclusive remedy, and Sonance’s performance shall constitute full and final satisfaction of all obligations, liabilities, and claims with respect to the Product.
