Sonance PROFESSIONAL PS-C43RT Quick Start Manual

PROFESSIONAL SERIES IN-CEILING SPEAKERS
BOX CONTENTS
(1) PS-C43RT, PS-C63RT, PS-C83RT, PS-C43RTLP,
PS-C63RTLP, or PS-C83RWT
(1) Speaker Grille in White (Black Optional)
(2) Tile Support Rails
(1) C-Ring
(1) Cutout Template

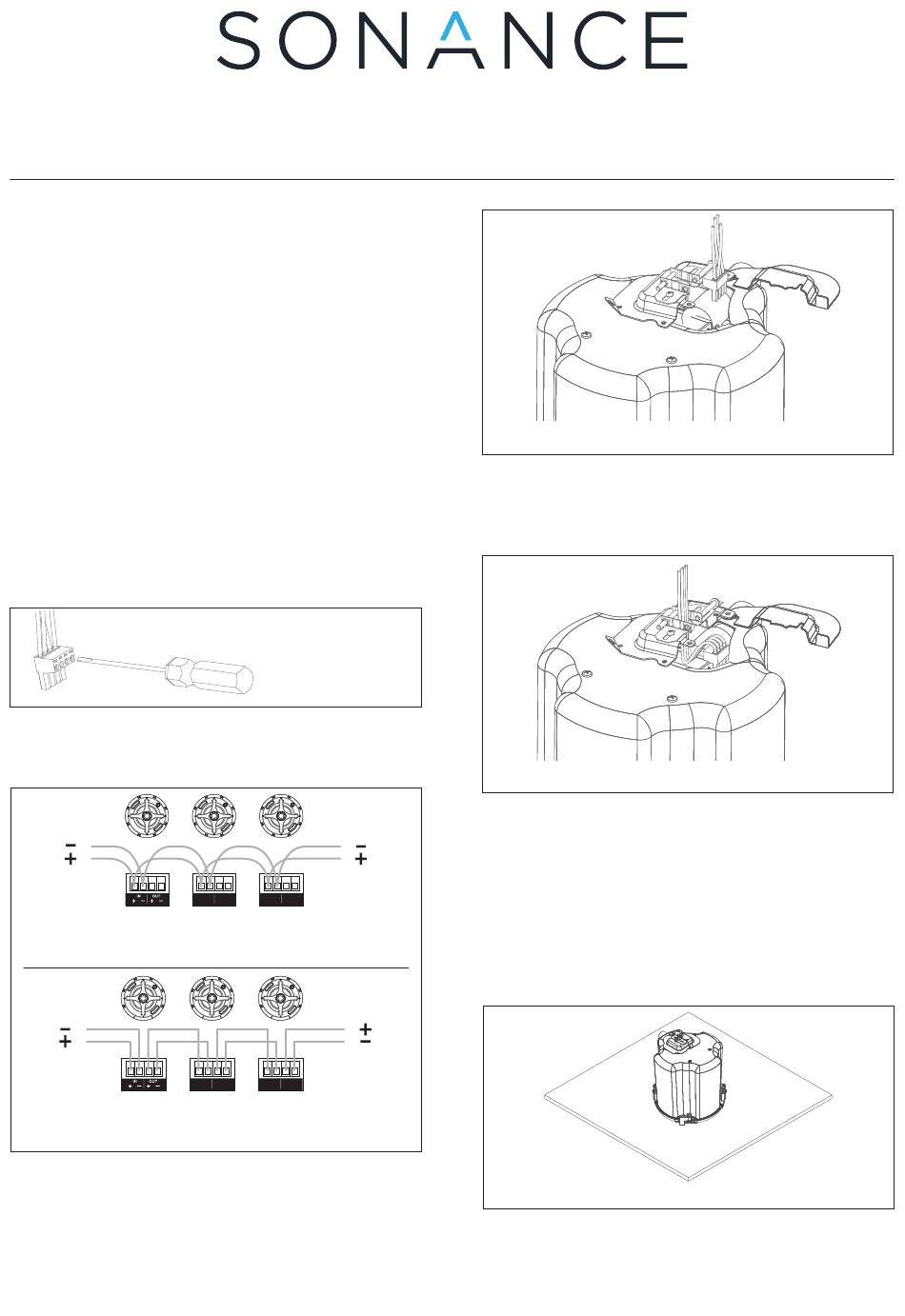

INSTALLATION
1. Cut a hole in the drywall using the supplied cutout
template.
2. Connect the wires from your amplifier to the
Euroblock connector.
3. Strip approximately .1875" (5mm) of the insulation
off each wire. Insert the wire into the correct
square opening on the connector. Use a small flat
head screwdriver to tighten the corresponding
screw to secure the wire (see Figure 1).
When using multiple speakers you can connect the
speakers either in parallel or in the loop through
method as shown (see Figure 2 & 3).
From Power Amplifier
From Power Amplifier
From Power Amplifier
Figure 2: Parallel Connection
From Power Amplifier
From Power Amplifier Loop Thru Connection
Figure 2: Loop Through Connection
NOTE: IF SQUARE GRILLES ARE BEING USED THE
From Power Amplifier Loop Thru Connection
ADAPTER FRAME MUST BE INSTALLED.
4. Once all the wires are terminated, plug the green
Euroblock connector into the back of the speaker
(see Figure 4).
QUICKSTART GUIDE
Figure 1:
Secure the Wire
+ _ IN + _ OUT + _ IN + _ OUT
Parallel Connection To Next Speaker
+ _ IN + _ OUT + _ IN + _ OUT
To Next Speaker
Parallel Connection To Next Speaker
+ _ IN + _ OUT + _ IN + _ OUT
To Next Speaker
To Next Speaker
+ _ IN + _ OUT + _ IN + _ OUT
To Next Speaker
Figure 4: Plug in Euroblock Connector
Route the wires through the Strain Relief Fitting on the
back of the speaker. Tighten the screws on the strain
relief to clamp the wires. Make sure not to over-tighten
the screws and damage the wire (see Figure 5).
Figure 5: Route Wires and Tighten Screws
5. Make sure the Roto-Lock Clamps are in the full
clockwise position so that all the clamps are
tucked within the cutout border. Insert the speaker
into the hole in the ceiling (see Figure 6).
NOTE: THE MAXIMUM CLAMP THICKNESS IS 1.732"
(44MM). TO ACHIEVE MAXIMUM THICKNESS,
UNSCREW AND REVERSE THE FOOT OF THE ROTO-
LOCK CLAMPS. FOR DETAILS ON FLEX BRACKET GO
TO WWW.SONANCE.COM
Figure 6: Insert Speaker Into Hole
