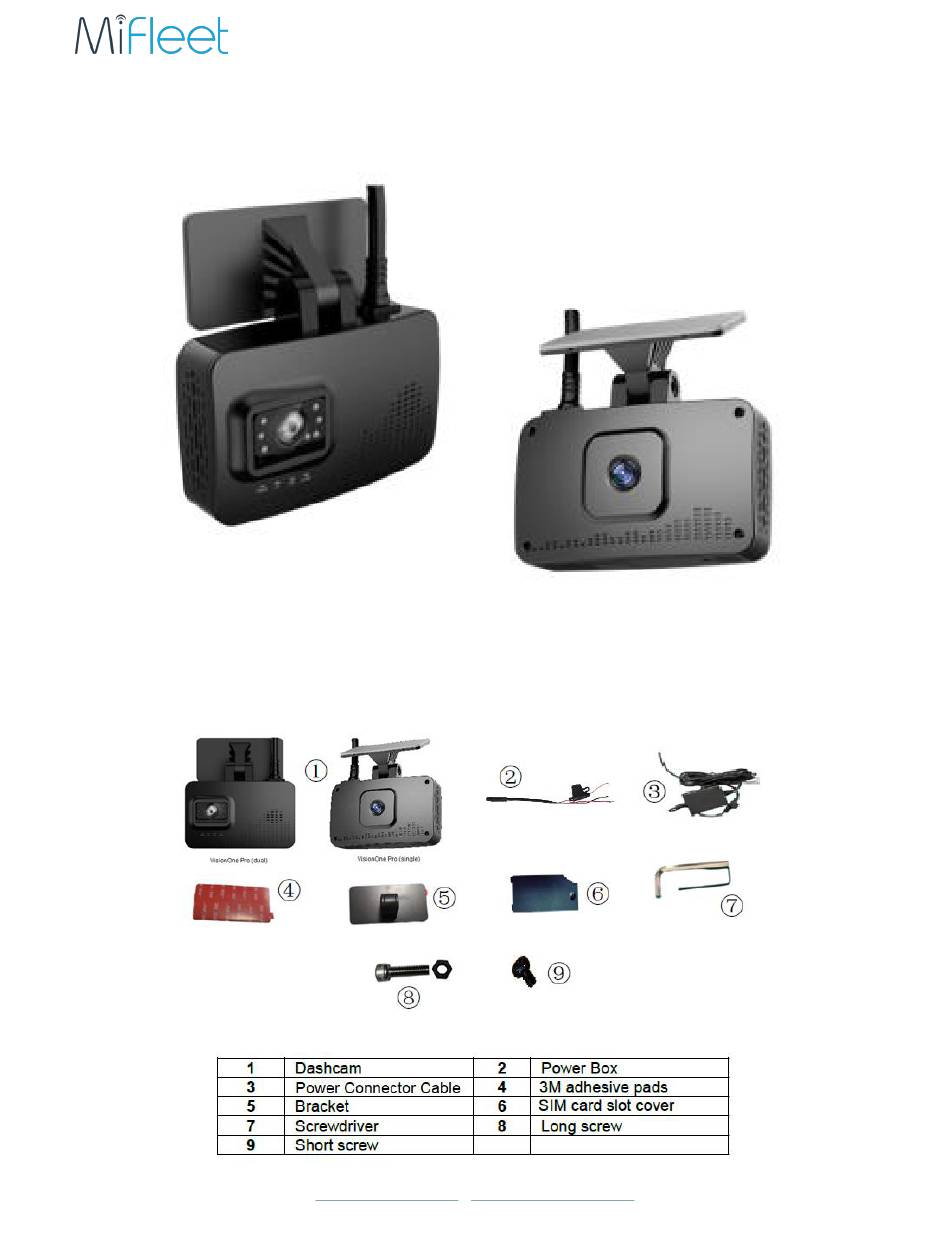

- Page 1 VisionOne Pro Series Installation Guide Box Contents: https://mifleet.us support@mifleet.us...
- Page 2 Tip: Use a card of other tool to apply even pressure and remove any air bubbles. Peel off the 3M tape backing and stick the flat side of the bracket onto the tape on windshield. https://mifleet.us support@mifleet.us...
- Page 3 Connect the black wire (power negative -) to the BAT- terminal on the vehicle battery. Important: Whether using the OBD port or the 3-wire method, always connect the power box to the Dashcam power port first. Then turn on the power from the vehicle battery to avoid damaging the device. https://mifleet.us support@mifleet.us...
- Page 4 Front Camera: Adjust the view of the camera by moving camera into optimal view position. In-cabin Camera*: Use a screwdriver to adjust the in-cabin camera’s view angle of inside the vehicle. *In-cabin Camera is available on the VisionOne Pro dual camera variant only. https://mifleet.us support@mifleet.us...
- Page 5 Step 5: Secure the Device After adjusting the cameras, ensure to tighten the screw to secure the device in place. Step 6: Installation is Complete, VisionOne Pro is ready for use! https://mifleet.us support@mifleet.us...
- Page 6 ADAS setup guide Step1: Adjust the ADAS Camera Access the ADAS calibration view and perform a preliminary adjustment. Ensure that the calibration angle is correct; the horizon line should align with the ground level 98 feet away. https://mifleet.us support@mifleet.us...
- Page 7 4. Adjust the Horizon Blue line so that it overlaps with the marked line on the ruler. Adjust the Car Middle White line to align with the ruler vertically. Note: The ruler or pole must be aligned with the ADAS center line. 5. After adjusting the Horizon and Car Center, click OK https://mifleet.us support@mifleet.us...
- Page 8 Car Center: The offset distance from the camera center that was calibrated. This is measured in pixels. Car Width: Measure the width between the outer edges of the tires. Enter the value in centimeters. https://mifleet.us support@mifleet.us...
- Page 9 Camera Height: Measure the distance from the ground to the center of the camera. Enter the value in centimeters. Camera to Bumper: Measure the distance from the camera to the front bumper. Enter the value in centimeters. For flat cabins, input 0. Camera Center: Set this value to 0 centimeters. https://mifleet.us support@mifleet.us...
- Page 10 Ensure that there are no obstructions between the lens and the driver. The angle of the camera is adjustable (left/right, up/down) to ensure a full view of the driver’s face. Note: The DMS camera cannot be mounted on the vehicle's A-pillar. https://mifleet.us support@mifleet.us...
- Page 11 Please be patient. 4. Successful Calibration: The message "DMS Calibration successful" will appear once the process is complete. 5. If Calibration Fails: Ensure you are facing the center of the lens. Adjust the camera angle and try calibrating again. https://mifleet.us support@mifleet.us...
- Page 12 Need additional support? Visit https://mifleet.us/support Contact MiFleet technical support by email support@mifleet.us or by phone 1.866.MIFLEET. https://mifleet.us support@mifleet.us...
