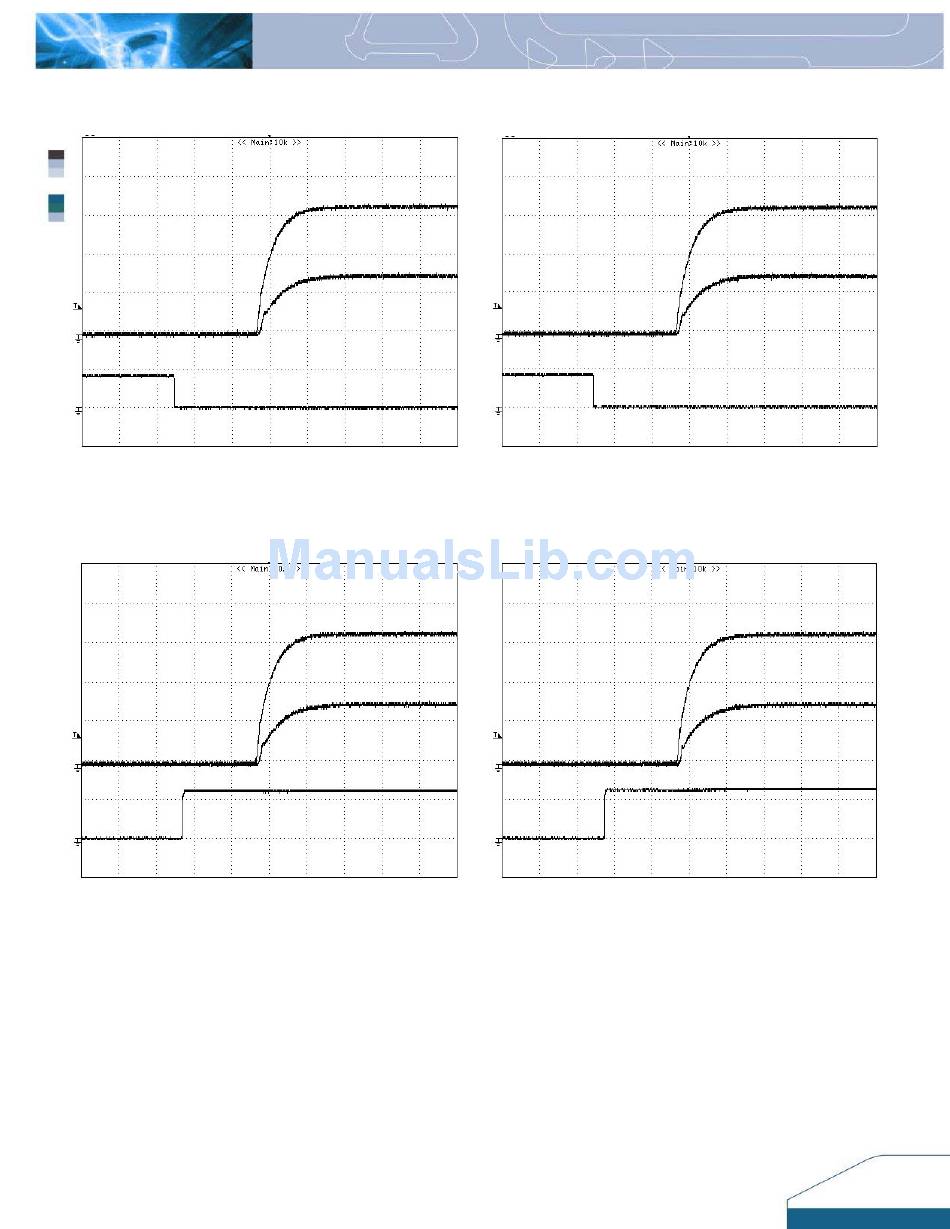

ELECTRICAL CHARACTERISTICS CURVES
Figure 5: Turn-on transient at zero load current(2ms/div).
Vin=48V. Negative logic turn on.
Bottom Trace: ON/OFF input: 5V/div
Figure 7: Turn-on transient at zero load current (2ms/div).
Vin=48V. Positive logic turns on. Top Trace: Vout; 1V/div;
Bottom Trace: ON/OFF input: 5V/div
DS_Q48DR1R533_03152007
Vout2
Vout1
Top Trace: Vout; 1V/div;
Vout2
Vout1
Figure 6: Turn-on transient at full rated load current (resistive
load) (2 ms/div). Vin=48V. Negative logic turn on. Top Trace:
Vout; 1V/div; Bottom Trace: ON/OFF input: 5V/div
Figure 8: Turn-on transient at full load current (2ms/div).
Vin=48V. Positive logic turns on. Top Trace: Vout; 1V/div;
Bottom Trace: ON/OFF input: 5V/div
Vout2
Vout1
Vout2
Vout1
5
