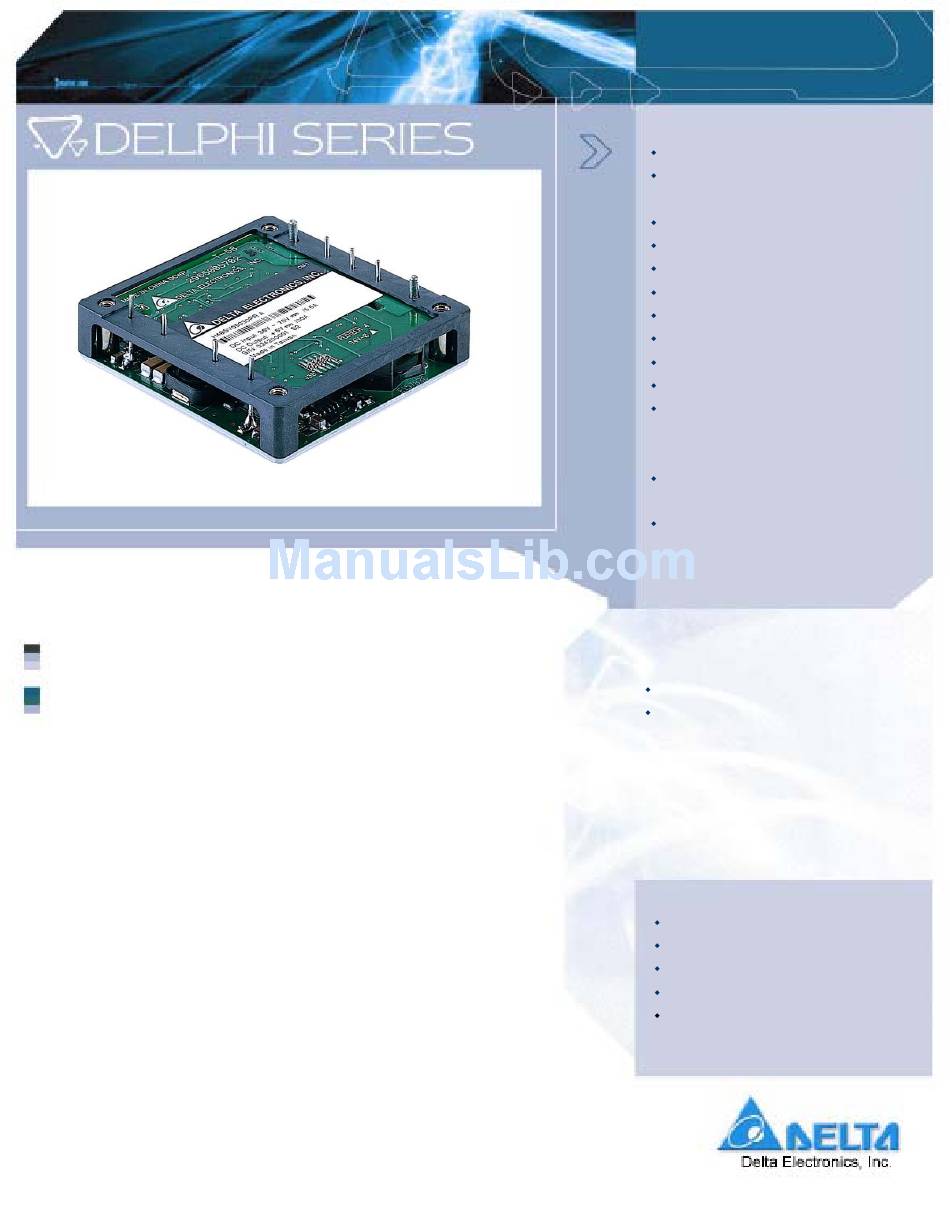

Delphi Series H48SV, 150W Half Brick Family
DC/DC Power Modules: 48V in, 5V/20A out
The Delphi Series H48SV Half Brick, 48V input, single output, isolated
DC/DC converters are the latest offering from a world leader in power
systems technology and manufacturing — Delta Electronics, Inc. This
product family provides up to 150 watts of power or 40A of output current
(3.3V model) in an industry standard footprint. This product family comes
with standard positive trimming method and utilizes standard trim value.
It also comes with output trimming range between +10% to –20%. All
models are fully protected from abnormal input/output voltage, current,
and temperature conditions. The Delphi Series converters meet all
safety requirements with basic insulation.
DATASHEET
DS_H48SV05020_08102007
FEATURES
High Efficiency: 90.0% @ 5.0V/20A
Size: 61.0x57.9x12.7mm
(2.40"×2.28"×0.50")
Standard footprint
Industry standard pin out
Fixed frequency operation
Metal baseplate
Input UVLO, Output OCP, OVP, OTP
Basic insulation
No minimum load required
2:1 Input voltage range
ISO 9001, TL 9000, ISO 14001, QS 9000,
OHSAS 18001 certified manufacturing
facility
UL/cUL 60950 (US & Canada) Recognized,
and TUV (EN60950) Certified
CE mark meets 73/23/EEC and 93/68/EEC
directives
OPTIONS
Positive Remote On/Off logic
Short pin lengths available
APPLICATIONS
Telecom/Datacom
Wireless Networks
Optical Network Equipment
Server and Data Storage
Industrial/Testing Equipment
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Delta Electronics Delphi Series H48SV
Summary of Contents for Delta Electronics Delphi Series H48SV
- Page 1 Delphi Series H48SV, 150W Half Brick Family DC/DC Power Modules: 48V in, 5V/20A out The Delphi Series H48SV Half Brick, 48V input, single output, isolated DC/DC converters are the latest offering from a world leader in power systems technology and manufacturing — Delta Electronics, Inc. This product family provides up to 150 watts of power or 40A of output current (3.3V model) in an industry standard footprint.
-
Page 2: Technical Specifications
TECHNICAL SPECIFICATIONS =25°C, airflow rate=300 LFM, V =48Vdc, nominal Vout unless otherwise noted.) PARAMETER ABSOLUTE MAXIMUM RATINGS Input Voltage Continuous Transient (100ms) Operating Case Temperature Storage Temperature Input/Output Isolation Voltage INPUT CHARACTERISTICS Operating Input Voltage Input Under-Voltage Lockout Turn-On Voltage Threshold Turn-Off Voltage Threshold Lockout Hysteresis Voltage Maximum Input Current... - Page 3 ELECTRICAL CHARACTERISTICS CURVES 36Vin 12.5 Figure 1: Efficiency vs. load current for minimum, nominal, and maximum input voltage at 25 ° Figure 3: Typical input characteristics at room temperature (Io=20A) 14.0 13.0 12.0 11.0 10.0 48Vin 75Vin 17.5 OUTPUT CURRENT(A) Figure 2: Power dissipation vs.
- Page 4 ELECTRICAL CHARACTERISTICS CURVES For Negative Remote On/Off Logic Figure 4: Turn-on transient at full rated load current (resistive load) (2 ms/div).Vin=48V. Top Trace: Vout; 2V/div; Bottom Trace: ON/OFF input: 5V/div For Positive Remote On/Off Logic Figure 6: Turn-on transient at full rated load current (resistive load) (2 ms/div).Vin=48V.
- Page 5 ELECTRICAL CHARACTERISTICS CURVES Figure 8: Output voltage response to step-change in load current (50%-75%-50% of Imax; dI/dt = 0.1A/µs).Vin=48V. Load cap: 10µF, tantalum capacitor and 1µF ceramic capacitor. Top trace: Vout (100mV/div), Bottom trace: Iout (5A/div). Scope measurement should be made using a BNC cable (length shorter than 20 inch).
- Page 6 ELECTRICAL CHARACTERISTICS CURVES Figure 11 Input Terminal Ripple Current, i c , at full rated output current and nominal input voltage with 12 and 33 F electrolytic capacitor (200 mA/div). µ Copper Strip Vo(+) SCOPE Vo(-) Figure 13: Output voltage noise and ripple measurement test setup Figure 12 Input reflected ripple current, i s , through a 12...
- Page 7 ELECTRICAL CHARACTERISTICS CURVES Figure 14: Output voltage ripple at nominal input voltage (Vin=48V) and rated load current (Io=20A) (20 mV/div). Load capacitance: 1µF ceramic capacitor and 10µF tantalum capacitor. Bandwidth: 20 MHz. (See Figure 12) Scope measurement should be made using a BNC shorter than 20 inches).
- Page 8 THERMAL CURVES: NO HEATSINK Figure 16: Case temperature measurement location. Pin locations are for reference only. H48SV05020(Standard) Output Current vs. Ambient Temperature and Air Velocity @ Vin = 75V (Either Orientation, no Heat sink) Output Current(A) Natural Convection 100LFM 200LFM 300LFM Figure 18: Output current vs.
-
Page 9: Design Considerations
DESIGN CONSIDERATIONS Input Source Impedance The impedance of the input source connecting to the DC/DC power modules will interact with the modules and affect the stability. A low ac-impedance input source is recommended. If the source inductance is more than a few µH, we advise adding a 10 to 100 µF electrolytic capacitor (ESR <... -
Page 10: Features Descriptions
FEATURES DESCRIPTIONS Over-Current Protection The modules include an internal output over-current protection circuit, which will endure current limiting for an unlimited duration during output overload. If the output current exceeds the OCP set point, the modules will automatically shut down (hiccup mode). The modules will try to restart after shutdown. - Page 11 FEATURES DESCRIPTIONS (CON.) Output Voltage Adjustment (TRIM) To increase or decrease the output voltage set point, the modules may be connected with an external resistor between the TRIM pin and either the SENSE(+) or SENSE(-). The TRIM pin should be left open if this feature is not used.
-
Page 12: Thermal Considerations
THERMAL CONSIDERATIONS Thermal management is an important part of the system design. To ensure proper, reliable operation, sufficient cooling of the power module is needed over the entire temperature range of the module. Convection cooling is usually the dominant mode of heat transfer. Hence, the choice of equipment to characterize the thermal performance of the power module is a wind tunnel. -
Page 13: Mechanical Drawing
MECHANICAL DRAWING Pin No. Name -Vin Case ON/OFF +Vin +Vout +SENSE TRIM -SENSE -Vout Pin Specification: Pins 1-4, 6-8 1.02mm (0.040”) diameter Pins 5 & 9 2.00mm (0.079”) diameter All pins are copper with Tin plating. Function Negative input voltage Case Ground Remote ON/OFF Positive input voltage... -
Page 14: Part Numbering System
PART NUMBERING SYSTEM Form Input Number of Factor Voltage Outputs H - Half Brick S- Single MODEL LIST MODEL NAME H48SV3R310NRFA 36V~75V H48SV3R320NRFA 36V~75V H48SV3R330NRFA 36V~75V H48SV3R340NRFA 36V~75V H48SV05010NRFA 36V~75V H48SV05020NRFA 36V~75V H48SV05030NRFA 36V~75V Default remote on/off logic is negative and pin length is 0.170”. For different remote on/off logic and pin length, please refer to part numbering system above or contact your local sales.
