Summary of Contents for Defy DTD235

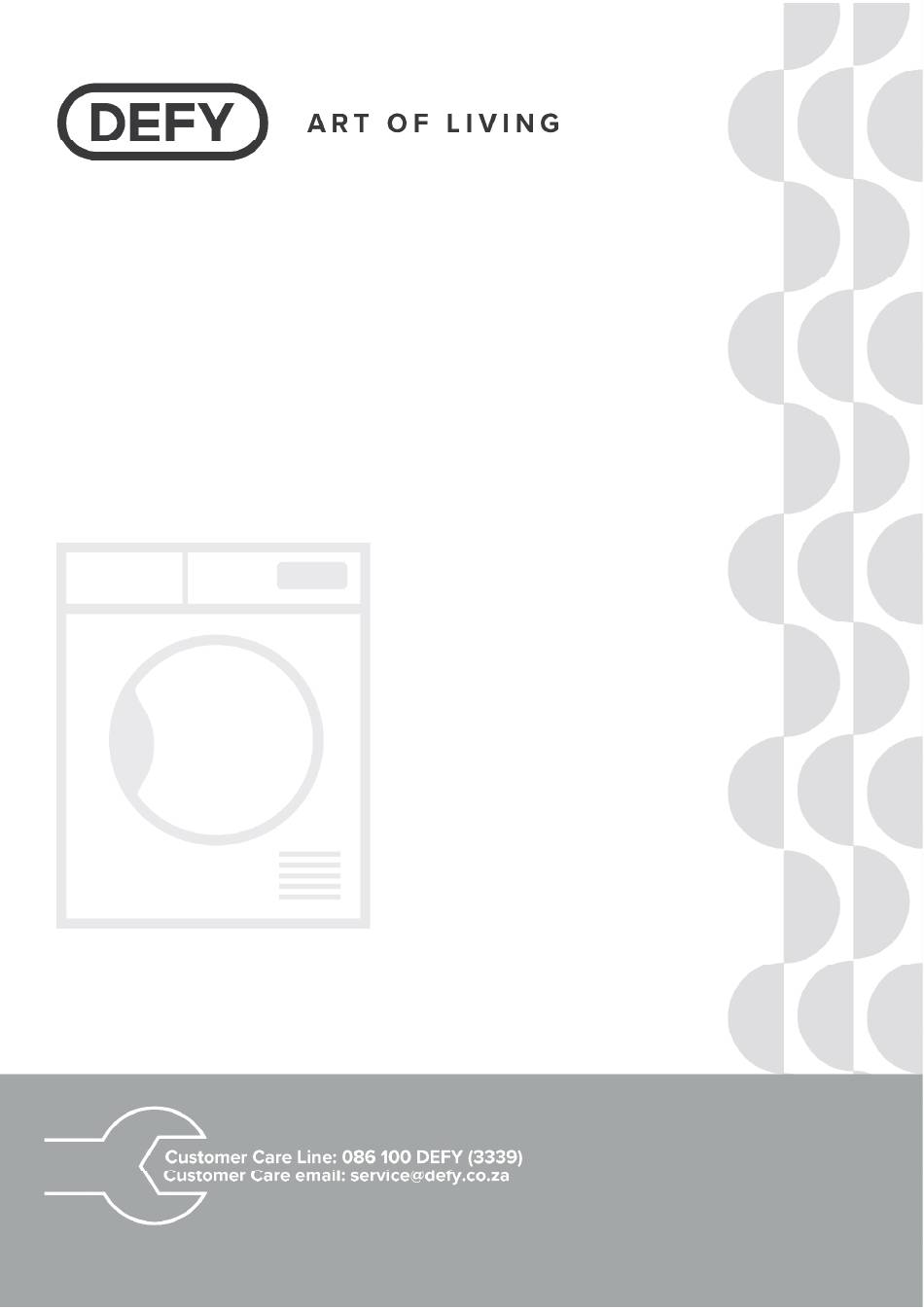

- Page 1 USER MANUAL DTD235-DTD236 TUMBLE DRYER Page 1 Laundry Instruction manual Part number: 3849870100 AC...
- Page 2 Introduction Page Subject 1. Introduction. Dear Customer, Your new Defy tumble dryer was manufactured in 2. Important safety information and Environment a state of the art facility and has passed the 2.1 General Safety strictest quality control procedures. 2.2 Intended Use 2.3 Child Safety...
-
Page 3: Important Instructions For Safety And Environment
Explanation of symbols used in this manual Important safety information. Warning for hazardous situations with regard to life and property. Caution; Warning for supply voltage. Caution; Warning for fire hazard. Caution; Warning for hot surfaces. Useful information. Important information or useful hints about usage. Unpacking Remove all packaging. -
Page 4: Product Safety
2.1.2 Product safety not be liable for any damages that will arise when the dryer is used without grounding in accordance Superheating of the clothes inside with the local regulations. of the dryer can occur if you cancel The voltage and allowed fuse the program or in the event of a •... - Page 5 Below specified laundry or Never attempt to repair the • items must not be dried in dryer by yourself. Do not the dryer due to the fire perform any repair or hazard: replacement procedures on the Garments or pillows bolstered •...
-
Page 6: Intended Use
Voltage 230 V Rated power input 2000 W 2.3 Child safety Model Code DTD235 & DTD 236 Clothing Capacity (kg) Packaging materials are dangerous • for the children. Keep packaging NOTE materials away from children. Technical specifications of the dryer are... -
Page 7: Appropriate Installation Location
2.6 Know your Tumble Dryer Installation Before the calling the nearest Authorized Service for the installation of 2.6.1 Overview the dryer, ensure that electrical installation and water drain is appropriate referring to the user’s manual. If they are not suitable, contact a qualified electrician and technician to make necessary arrangements. -
Page 8: Laundry Not Suitable For Drying In The Dryer
Operate your product in a well 4.2 Laundry not suitable for • ventilated, dust-free environment. drying in the dryer Once the product is installed, it • should stay at the same place where Items with this symbol Do not dry with •... -
Page 9: Things To Be Done For Energy Saving
Remove all objects from pockets, Following weights are given • such as lighters and matches as examples. Fasten the zippers, hooks and buckles and button sheets. Laundry Approximate Weight (g) Cotton quit covers (double) 1500 Cotton quit covers (single) 1000 4.4 Things to be done for Bed sheets (double) energy saving... - Page 10 Operating the product 5.1 Control panel Control Selection Knob LED Display Control Panel Buttons There are a total of 15 program selections available, 9 programs are shown on the control panel and 6 are indicated by graduations. All pro- gram selection options are indicated in the below image: Page 10...
-
Page 11: Explanation Of Symbols Used
5.2 Explanation of symbols used 5.3 Preparation of drying machine Plug in the dryer. • Open the loading door. • Place the laundry in the drying machine without jamming them. • Push and close the loading door. • WARNING! Ensure that no laundry is jammed to the loading door. -
Page 12: Program Selection And Consumption Table
5.4 Program selection and consumption table Drying Spin speed in wash- Program Descrip on Time ing machine (rpm) (minutes) You may dry your cotton laundry to be ironed in this program to have them slightly damp 1000 1000 for ease of ironing. (Shirt, T-shirt, tablecloth, etc.) 1000 You may dry all your cotton laundry in this program. -
Page 13: Auxiliary Functions
start for the selected program. 5.5 Auxiliary functions Changing the delay time Audible warning NOTE Drying machine makes an audible warning when the program is Additional laundry may be loaded/ completed. If you don’t want it to taken out during the delayed start make an audible warning, press the time. -
Page 14: Starting The Program
pressed for 3 seconds. Filter cleaning When the program is completed, the warning indicator for filter NOTE cleaning turns on. When the child lock is activated, 5.7 Starting the program the child lock warning indicator on the screen turns on. Child lock deactivates when the Press the Start/Stand-by button to drying machine is turned off and... -
Page 15: Cancelling The Program
For instance, select Extra Dry NOTE • program by turning the On/Off/ Adding or removing laundry dur- Program selection knob to select • ing drying may be repeated as Extra Dry instead of Iron Dry. many times as you wish. But this Press the Start/Stand-by button •... -
Page 16: End Of Program
Always clean the lint filter before WARNING! • every drying cycle. Never The inside of the drying machine shall be ex- operate the dryer without the lint tremely hot when you cancel the program dur- filter in place. ing machine operation, so run the refresh pro- gram to allow it to cool down. - Page 17 refer to, “Trouble shooting”. FILTER DOOR COVER Cleaning the rear Air Intake Grille The air intake grille, at the bottom rear of the machine, should be • cleaned regularly to maintain optimum drying performance. Remove any obstructions and dust the grille off with a soft brush . •...
-
Page 18: Troubleshooting
refer to, “Trouble shooting”. Drying machine does not turn on or program cannot be started. Drying machine does not run after it is configured. WARNING! Power plug might be unplugged. >>> Make Clogging may arise on the filter sure the power cord is plugged in. surface after using your machine Loading door might be open. - Page 19 Wrinkles are not removed with wrinkle removing program. Excess amount of laundry may have been placed => Place specified amount of laundry. After completion of the program, the laundry may have stayed in the machine for a long time => Take the laundry out as soon as the program finishes, and hang it out.
- Page 20 If you have followed the instructions and still have a problem or have any service or spares queries, please contact the customer care line by sending an email to service@defy.co.za or by calling 0861 00 3339. They will be able to advise you on any aspect of the appliance.
-
Page 21: Warranty
Warranty This certificate is issued by DEFY APPLIANCES (PTY) LIMITED manufacturers of Defy and Ocean products, hereinafter the Company, to the original purchaser only, of the appliance described on the certificate and shall constitute the only warranty given in respect of this appliance.
