  • Page 1 DTD 322 TUMBLE DRYER CONDENSER TECHNOLOGY...

  • Page 2: Please Read This User Manual First

    Please read this user manual first! Dear Customer, WARNING! Thank you for prefering a Defy product. We hope that your product which has been • Warning against hot surfaces. manufactured with high quality and technology will give you the best results. We advise you...

  • Page 3: Important Instructions For Safety And Environment

    1 Important instructions for safety and environment WARNING! NOTE Always have the installation and • This section contains safety repairing procedures carried instructions that will help protect out by the Authorized Service. from risk of personal injury or Manufacturer shall not be held property damage.

  • Page 4: Electrical Safety

    1.1.1 Electrical safety DANGER! DANGER! • Do not use extension cords, multi- plugs or adaptors to connect the • Electrical safety instructions dryer to power supply in order to should be followed while electrical decrease the risk of fire and electric connection is made during the shock.
  • Page 5 DANGER! DANGER! Points to be taken into • Never stop your dryer before the consideration for fire hazard: programme completes. If you must Below specified laundry or items do this, remove all laundry quickly must not be dried in the dryer and lay them out to dissipate the considering fire hazard.

  • Page 6: Mounting Over A Washing Machine

    1.2 Mounting over a washing machine WARNING! • A fixing device should be used between the two machines when installing the • Never attempt to repair the dryer dryer above a washing machine. The by yourself. Do not perform any fitting device must be installed by the repair or replacement procedures authorized service agent.

  • Page 7: Compliance With The Weee Directive And Disposing Of The Waste Product

    1.4 Child safety 1.8 Technical Specifications • Packaging materials are dangerous for the children. Keep packaging materials away from children. Height (Min. / Max.) 84,6 cm / 86,6 cm* • Electrical products are dangerous for the Width 59,7 cm children. Keep children away from the product when it is operating.

  • Page 8: Your Dryer

    2 Your Dryer 2.2 Package Contents 2.1 Overview 1. Water 6. Water drain Filling hose * Container* 2. Filter drawer 7. Pure spare Water* sponge* 3. User Fragrance Manual Capsules Group* 1. Top panel 4. Drying 2. Control panel 9. Brush* basket* 3.

  • Page 9: Appropriate Installation Location

    3 Installation • The rear surface of the tumble dryer shall be placed against a wall. • This dryer is not able to be wall-mounted Before the calling the nearest Authorized as it would be too too heavy for the walls Service for the installation of the dryer, ensure that electrical installation and water drain is appropriate referring to the user’s manual.

  • Page 10: Adjusting The Feet

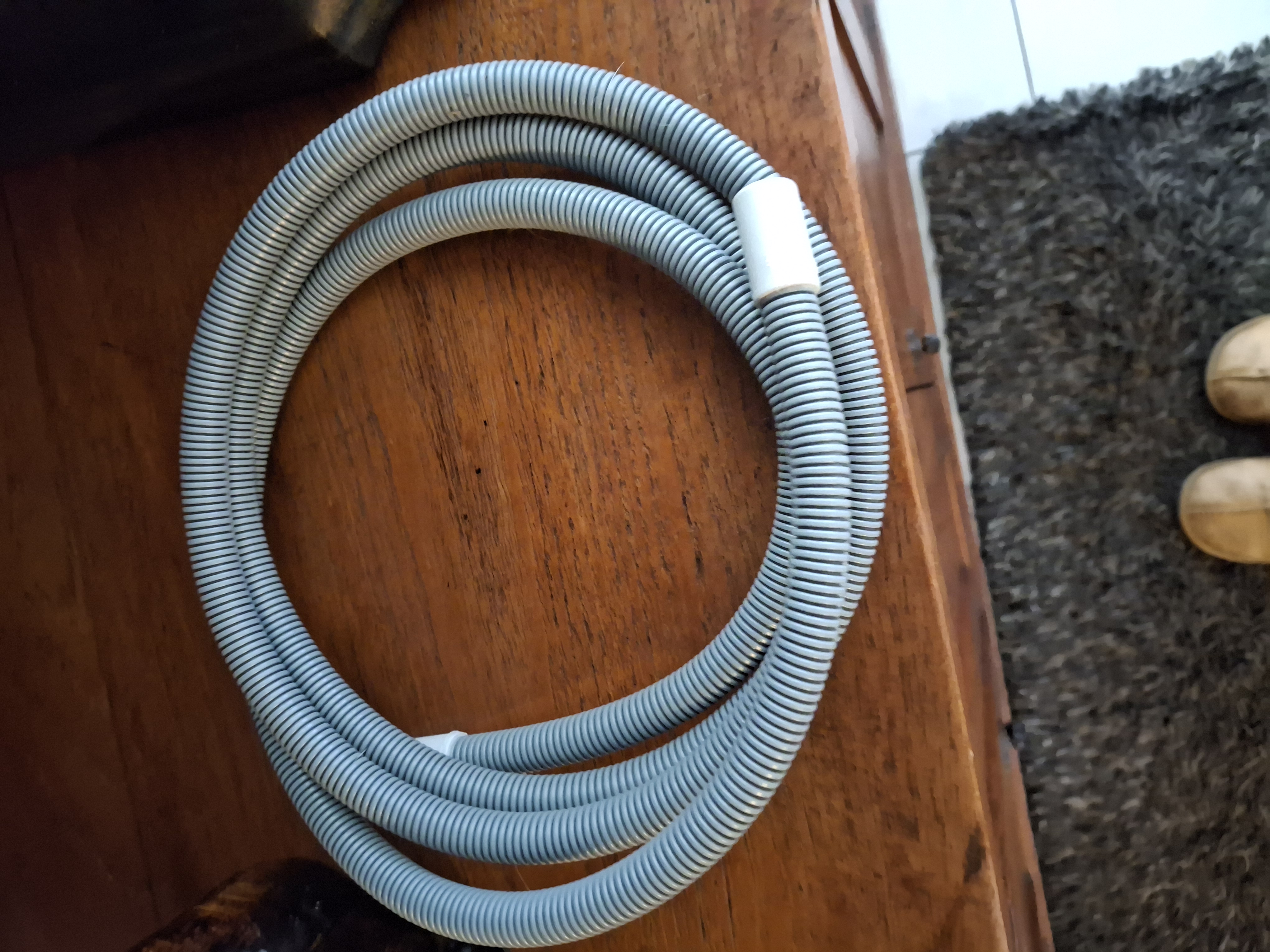

    3 Connect one end of the drain hose supplied with the dryer to the connection point from where you removed the hose of the product in previous step. 4 Connect the other end of the drain hose directly to the wastewater drain or to the washbasin.

  • Page 11: Laundry Not Suitable For Drying In The Dryer

    4 Preparation • For models with a condenser unit: clean the condenser once in a month or after every 30 operations regularly. . 4.1 Laundry suitable for drying in the dryer • Clean the filter periodically.Read the Maintenance and cleaning of filters for Always obey the instructions given on the detalied information.

  • Page 12: Operating The Product

    5 Operating the product 5.1 Control Panel On/Off / Program selection button Drying Level Button Start / Stand-by button Buzzer volume / Time programs selection End Time button button 5.2 Symbols Filter drawer / Child-proof Filter Mute Volume up Tank Delicates Express Shirts...

  • Page 13: Program Selection And Consumption Chart

    5.4 Program selection and consumption chart Programmes Programme Description You may dry your cotton laundry to be ironed in Cottons Iron Dry this program to have them slightly damp for ease 1000 of ironing. (Shirt, T-shirt, tablecloth, etc.) It dries single layer, casual cotton textiles in the Cottons Eco 1000 most economical way.
  • Page 14 You may dry denim pants, skirts, shirts or jackets Jeans 1200 in this program. Use it to dry your clothes made of synthetics, cotton or mixed fabrics or waterproof products Outdoor/Sports 1000 such as functional jacket, raincoat etc. Turn them inside out prior to drying.

  • Page 15: Warning Indicators

    5.5 Auxiliary functions Changing the end time If you want to change the duration during the Buzzer / time countdown: Drying machine makes an audible warning Cancel the program by turning the On/Off/ when the program is completed. If you don’t Program selection knob.

  • Page 16: Child Lock

    5.8 Child Lock Adding and removing clothes during stand-by The drying machine has a child lock which If you want to add or remove clothes to/from prevents the program flow from being the drying machine after the drying program interrupted when the buttons are pressed starts: during a program.

  • Page 17: End Of Program

    WARNING! • The inside of the drying machine shall be extremely hot when you cancel the program during machine operation, so run the refresh program to allow it to cool down. 5.11 End of program When the program ends, the Fibre Filter Cleaning and Water Tank warning symbols on the program observation indicator turn on.

  • Page 18: Maintenance And Cleaning

    A layer can build up 6 Maintenance and cleaning on the filter pores that can cause clogging Service life of the product extends and of the filter after using frequently faced problems decrease if cleaned the dryer for a while. at regular intervals.

  • Page 19: Draining The Water Tank

    NOTE WARNING! • If the direct water draining is used as an • Never use solvents, cleaning agents or option, there is no need to empty the similar substances for cleaning due to the risk of fire and explosion! water tank. 6.4 For the condenser;...

  • Page 20: Troubleshooting

    7 Troubleshooting Filter cleaning warning symbol/LED is on/flashing. Fibre filter might not be cleaned. >>> Clean the filter. The filter slot might be clogged with lints. >>> Clean the filter slot. Drying operation takes too long. A layer of fluff might have accumulated clogging up the lint filter Fibre filter pores might be clogged.
  • Page 21 PRODUCT FICHE Complying Commission Delegated Regulation (EU) No 392/2012 Defy Supplier name or trademark DTD322 Model name 10.0 Rated capacity (kg) Air Vented Type of Tumble Dryer Condenser Energy efficiency class 670,9 Annual Energy Consumption (kWh) Automatic Type of Control...
