Wireless Mouse
Instruction Manual
L13SBUN20 / L14BUN20 / L15BUN20

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the L13SBUN20 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Logik L13SBUN20

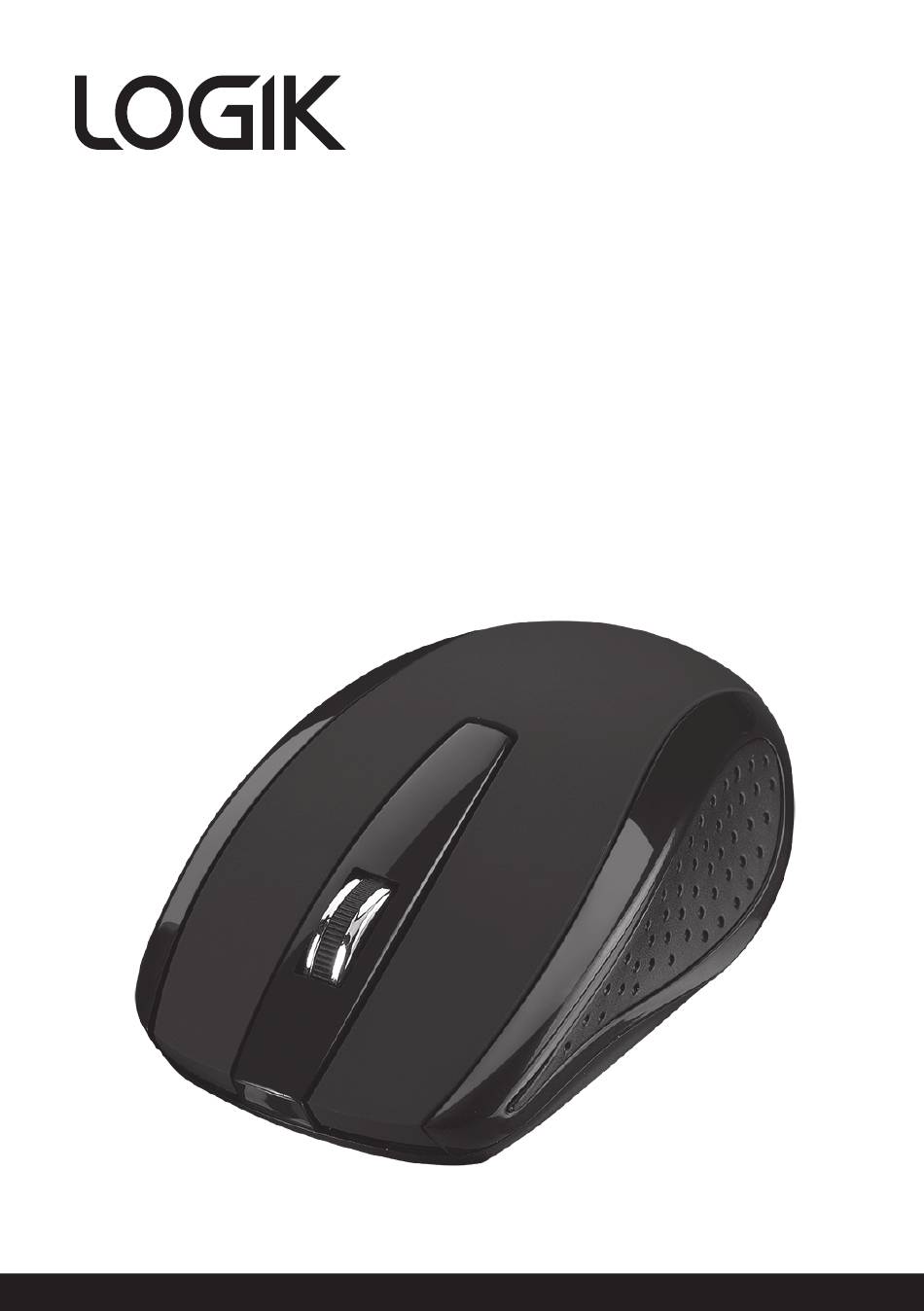

  • Page 1 Wireless Mouse Instruction Manual L13SBUN20 / L14BUN20 / L15BUN20...
  • Page 3: Table Of Contents

    Contents Product Overview ............4 Unpacking ................5 Installing the Batteries ............6 Connecting the Nano Dongle .........6 Activating the Wireless Mouse ........7 Energy Saving ..............7 Hints and Tips..............8 Specifications ..............9...
  • Page 4: Safety Warnings

    Safety Warnings Wireless Mouse Read all the instructions carefully before using the unit and keep them for future reference. Retain the manual. If you pass the unit onto a third party, make sure to include this manual. Optical: Never point the optical sensor towards the face, particularly the eyes, to avoid possible injury.
  • Page 5 This unit is designed for indoor use only. This equipment is a Class II or double insulated electrical appliance. It has been designed in such a way that it does not require a safety connection to electrical earth. AC voltage: This symbol indicates that the rated voltage marked with the symbol is AC voltage.
  • Page 6: Product Overview

    Product Overview Top View Scroll Wheel Right Button Left Button Bottom View ON/OFF Switch Battery Compartment Nano Dongle...
  • Page 7: Unpacking

    Thank you for purchasing your new product. We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers. You will also find some hints and tips to help you resolve any issues. Read all the safety instructions carefully before use and keep this instruction manual for future reference.
  • Page 8: Installing The Batteries

    Installing the Batteries Change the battery if the mouse no longer reacts to input. 1. Lift the battery cover up. 2. Insert 2 x AAA batteries. 3. Close the battery cover. Please ensure the batteries’ polarities (+/–) match the battery compartment’s polarities. Connecting the Nano Dongle Remove the Nano Dongle from the mouse and then plug the Nano Dongle directly into your computer’s...
  • Page 9: Activating The Wireless Mouse

    Activating the Wireless Mouse Switch the ON/OFF button to power on the mouse and then the mouse will automatically connect to the Nano Dongle plugged into your computer. Energy Saving If the mouse is not activated for approx. 3 seconds, it switches to energy saving mode with a current flow of up to 0.3 mA.
  • Page 10: Hints And Tips

    Hints and Tips Mouse not working: 1. Check that the power switch is in the ON position. 2. Check battery installation. Replace battery if needed. 3. Repeat the connection procedure. You can also try moving the mouse closer to the Nano Dongle. 4.
  • Page 11: Specifications

    Specifications Model L13SBUN20 L14BUN20 L15BUN20 Operating Microsoft® Windows® 10 / 11 Systems Operating Range 6m (10m in open space) Resolution 1000 dpi Frequency Band(s) 2403 – 2477 MHz Max. Radio Mouse: 0 dBm Frequency Power Dongle: 4 dBm Transmitted Dimension 100.5 x 61.0 x 35.5 mm...
  • Page 12 Declaration of Conformity (RER) Hereby, Currys Group Limited declares that the radio equipment type [L13SBUN20 / L14BUN20 / L15BUN20] is in compliance with Radio Equipment Regulations 2017 (S.I. 2017/1206). The full text of the UK declaration of conformity is available at the following internet address: https://www.currys.co.uk...
  • Page 14 LxxBUN20-IB-UK-250527-V4...
