Summary of Contents for Logik L13SBUN20

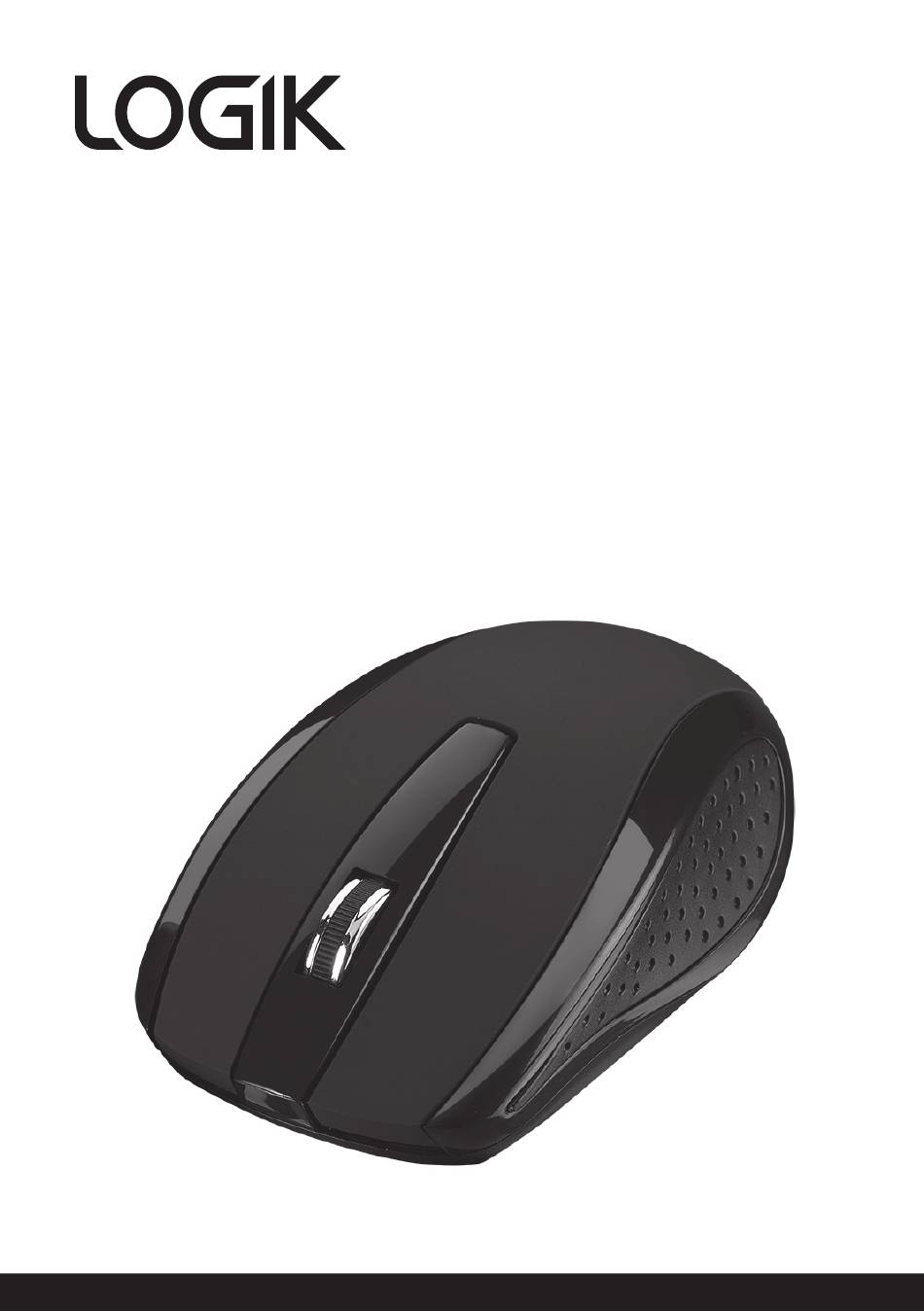

- Page 1 Wireless Mouse Instruction Manual L13SBUN20 / L14BUN20 / L15BUN20...
-
Page 3: Table Of Contents
Contents Product Overview ............4 Unpacking ................5 Installing the Batteries ............6 Connecting the Nano Dongle .........6 Activating the Wireless Mouse ........7 Energy Saving ..............7 Hints and Tips..............8 Specifications ..............9... -
Page 4: Product Overview
Product Overview Top View Scroll Wheel Right Button Left Button Bottom View ON/OFF Switch Battery Compartment Nano Dongle... -
Page 5: Unpacking
Thank you for purchasing your new product. We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers. You will also find some hints and tips to help you resolve any issues. Read all the safety instructions carefully before use and keep this instruction manual for future reference. -
Page 6: Installing The Batteries
Installing the Batteries Change the battery if the mouse no longer reacts to input. 1. Lift the battery cover up. 2. Insert 2 x AAA batteries. 3. Close the battery cover. Please ensure the batteries’ polarities (+/–) match the battery compartment’s polarities. Connecting the Nano Dongle Remove the Nano Dongle from the mouse and then plug the Nano Dongle directly into your computer’s... -
Page 7: Activating The Wireless Mouse
Activating the Wireless Mouse Switch the ON/OFF button to power on the mouse and then the mouse will automatically connect to the Nano Dongle plugged into your computer. Energy Saving If the mouse is not activated for approx. 3 seconds, it switches to energy saving mode with a current flow of up to 0.3 mA. -
Page 8: Hints And Tips
Hints and Tips Mouse not working: 1. Check that the power switch is in the ON position. 2. Check battery installation. Replace battery if needed. 3. Repeat the connection procedure. You can also try moving the mouse closer to the Nano Dongle. 4. -
Page 9: Specifications
Specifications Model L13SBUN20 L14BUN20 L15BUN20 Operating Microsoft® Windows® 7 / 8 / 10 Systems Operating Range 6m (10m in open space) Resolution 1000 dpi Frequency Band(s) 2403 – 2477 MHz Max. Radio Mouse: 0 dBm Frequency Power Dongle: 4 dBm... - Page 10 Declaration of Conformity (RED) Hereby, DSG Retail Ltd. declares that the radio equipment type [L13SBUN20 / L14BUN20 / L15BUN20] is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://www.teamknowhow.com/...
- Page 12 IB-LxxBUN20-200220V1...
