FineTek SEX5 Operation Instructions

SEX5 ROTARY PADDLE LEVEL SWITCH OPERATION INSTRUCTIONS
(GENERAL TYPE/WARNING LIGHT TYPE)

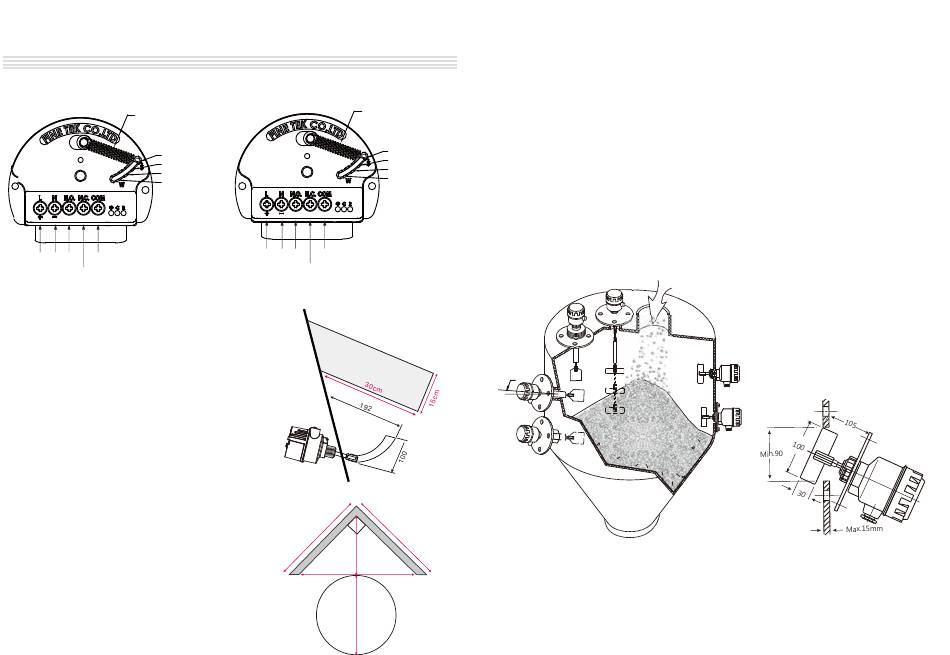

Panel Description
Resetting torque
adjusting spring
strongest
strong
weak
Status lights
weakest
L N NO COM
NC
Available: SEX5 AC TYPE
Guard Board Installation Instructions
It is recommended to use the guard board when the
product is installed near the inlet and material
impact cannot be avoided.
Example: When the blade is sickle-shaped , it is
recommended that the width of the guard board be
1.5x the rotation range of the blade. The length of
the guard board should be at least 1.5x the length of
the guide rod plus the blade, effectively blocking the
probability of impact on the blades on both sides.
The length of the guard board:
19.2×1.5=28.8cm≒30cm
※ The resistance rotation and guard
board must be 15~20˚horizontally downwards.
Installation Precautions
※The length of both sides of the guard board is at
least 22cm and must be 90cm vertical
※The position of the guard buard and the
resistance rotation must be close, otherwise the
length needs to be lengthened.
Resetting torque
adjusting spring
strongest
strong
weak
Status lights
weakest
V+ V-
NO COM
24Vdc
NC
Available: SEX5 DC TYPE
barrel wall
22cm
90°
22cm
15cm
15cm
15cm
20cm
Installation Precautions
1.When safe to install, the switch can be installed at an angle of 15°~20° to reduce the
impact of the material.
2.The wiring thread must be facing down, and the cable fixing screw must be tightly locked.
3.If the tank is equipped with a bridge breaker or vibration damper, please choose our
SA140 series products.
4.Always comply with the warning "Open the lid only after power is off.
5.At the installation site, there should be no gas that can corrode the aluminum alloy.
6.The max temp of the medium should not exceed the temp indicated on the product label.
7.The cover has external grounding screws and should be grounded for installation and
use.
8.Precautions must be taken to wipe the product to ensure that no static electricity will
occur, and a damp cloth must be used to clean it.
Examples of On-Site Installation Methods
SE130
SE141
15°
SE120
※Example of the Size of Storage Tank for Installation
Using SE110 as an example, the method of installing directly on the tank wall is shown
in the figure below. Insert one end of the blade into the tank's hole at 35 degrees, then
wait for the other end of the blade to pass through the tank wall and slowly turn.
SE110
SE111
