Kärcher Puzzi 8/1, Puzzi 8/1 Adv Manual

General notes

Read these original instructions and the enclosed safety instructions before using the device for the first time. Act in accordance with them.
Keep both books for future reference or for future owners.

• If the operating instructions and safety instructions are not observed, the device can be damaged and dangers could arise for users and other persons.
• Notify the dealer immediately in the case of shipping damage.
• Check the package contents when unpacking for missing accessories or for damage.

Intended use

• This spray retraction device is intended for wet cleaning of upholstery, textile covers, and carpets.
• This device is suitable for commercial use, e.g. in hotels, schools, hospitals, factories, shops, offices, and rental companies.

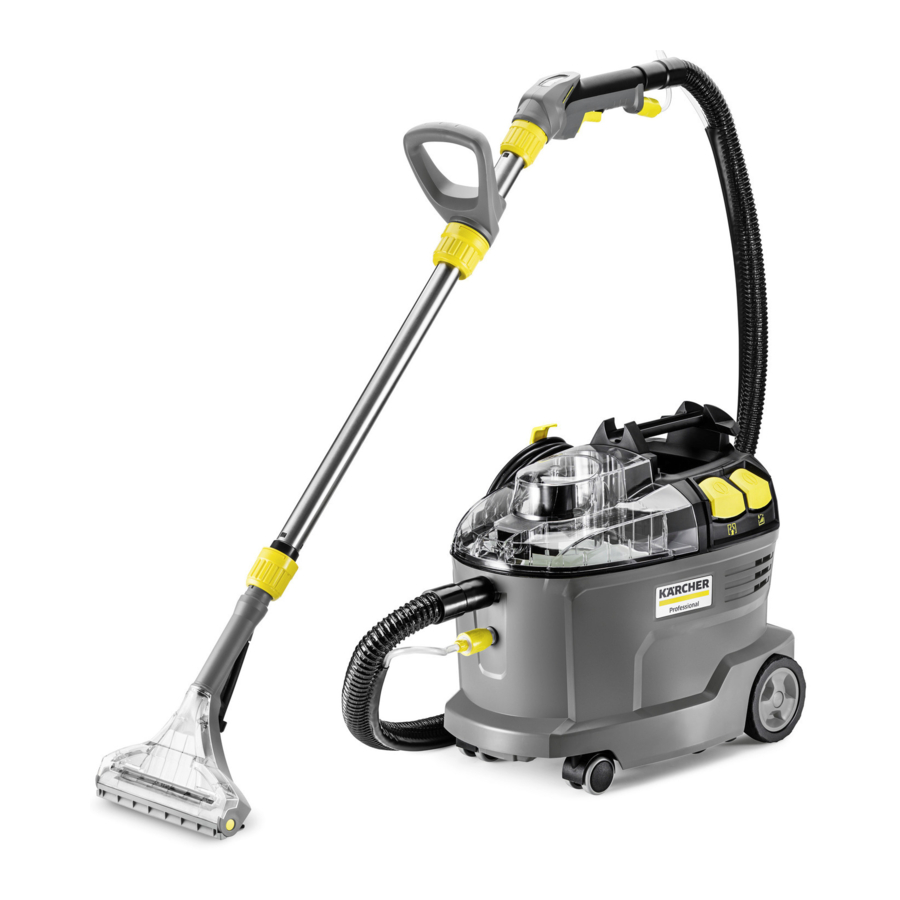

Overview of the device

Quick Start Guide

1. Connecting the spray/suction hose to the device, connect the spray/suction hose to the upholstery nozzle or handle
2. Mixing cleaning solution, filling fresh water tank
3. Selecting operating modes
4. Cleaning
5. Emptying the fresh water tank
6. Emptying the wastewater container
7. Filling the fresh water tank(without detergent), rinsing the device
8. Cleaning the fluff filter, cleaning the fresh water filter
9. Allowing the device to dry

Description of the device

1. Upholstery nozzle
2. Holder for accessories
3. Type plate
4. Mains cable
5. Hook for spray/suction hose or cable hook
6. Spray switch
7. Suction switch
8. Casing
9. Steering roller
10. Spray hose connection
11. Floor nozzle for carpet cleaning (Adv only)
12. Carpet adapter
13. Floor nozzle latch
14. Suction hose connection
15. Cover
16. Fresh water tank
17. Device carrying handle including suction pipe holder
18. Nozzle mouthpiece (red)
19. Union nut
20. Suction pipe (Adv only)
21. Nozzle mouthpiece (brown)
22. D-handle (Adv only)
23. Handle (Adv only)
24. Handle lever
25. Lever on the upholstery nozzle
26. Spray hose
27. Suction hose
28. Spray / suction hose
29. Quick Start Guide
30. Wastewater container, removable
31. Wastewater container carrying handle
32. Cover seal
33. Fluff filter
34. Fresh water filter

Table of nozzle mouthpieces

Start-up

1. Check the power cord, extension cable and hoses for damage before each start-up.

Installing accessories

1. Adv only: Fit the suction pipe onto the floor nozzle and hand-tighten the union nut on the floor nozzle.
2. Adv only: If necessary, slide the D-handle onto the suction pipe and hand-tighten in the desired position. The D-handle is easier to slide on with the help of dishwashing detergent or other lubricant.
3. Adv only: Fit the handle onto the suction pipe and hand-tighten the union nut on the handle.
4. Connect the suction hose to the suction hose connection on the device. Insert the spray hose coupling into the spray hose connection on the device and latch into place.
5. Connect the suction hose to the upholstery nozzle or the handle. Connect the spray hose coupling to the upholstery nozzle or handle and latch into place.

Mixing the cleaning solution

Danger from detergents
Risk of injury and damage
Observe all instructions that are included with the detergents used.
Note
Warm water (maximum 50°C) increases the cleaning effect. Check the temperature resistance of the surface to be cleaned.
Note
Use detergents sparingly to conserve the environment.

1. Mix fresh water and detergent in a clean container (concentration as specified for the detergent). Dissolve the detergent in the water.

Filling the fresh water tank

1. Pour the cleaning solution into the fresh water tank. The filling level must not exceed the "MAX" mark.

Defoaming agent

Note
Foam is generated in the wastewater container when cleaning previously shampooed carpets. Foaming can be prevented by adding defoaming agents.

1. Add defoaming agent (special accessory) to the wastewater container.

Operation

Switching on the device

1. Connect the mains plug.
2. Press the suction switch to switch on the suction turbine.
3. Press the spray switch to switch on the spray pump.

Cleaning mode

Danger from cleaning solution
Risk of damage
Before using the device, check the object to be cleaned for colour fastness and water resistance in an inconspicuous place.

1. Remove loose dirt from the object to be cleaned.
2. Press the lever on the upholstery nozzle or handle to spray the cleaning solution.
3. Run over the surface to be cleaned in overlapping paths. Pull the nozzle backwards (do not push).
4. Adv only: When interrupting work, the suction pipe (with floor nozzle) can be placed on the carrying handle of the device.
5. When changing the nozzle, the upholstery nozzle can be inserted into the holder for accessories.

Switching off the device

1. Switch off the spray switch and the suction switch.
2. Pull out the mains plug.

Empty the wastewater container

1. Switch off the suction switch and the spray switch when the wastewater container is full.
2. Remove the cover.
3. Remove the wastewater container from the device and empty it.

Emptying the fresh water tank

1. Switch off the device.
2. Briefly operate the lever on the upholstery nozzle or handle to relieve pressure.
3. Disconnect the upholstery nozzle or handle from the spray/suction hose.
4. Hang the suction hose in the fresh water tank.
5. Press the suction switch to switch on the suction turbine.
6. Suck the fresh water tank empty and switch off the device.
7. Remove the cover.
8. Remove the wastewater container from the device and empty it.

Flushing the device

1. Connect the upholstery nozzle or handle (with suction pipe and floor nozzle) to the suction hose.
2. Connect the spray hose coupling to the upholstery nozzle or handle and latch into place.
3. Pour approximately 2 litres of tap water into the fresh water tank. Do not add detergents.
4. Press the spray switch to switch on the spray pump.
5. Hold the upholstery or floor nozzle over a drain.
6. Operate the lever on the upholstery nozzle or handle and flush the device for 1 to 2 minutes.
7. Switch off the device.

Each time after use

1. Flush the device.
2. Drain the wastewater container and clean it under running water.
3. Empty the fresh water tank.
4. Clean the exterior of the device with a damp cloth.
5. To avoid unpleasant smells, remove all water from the device before long downtimes.
6. Let the device dry thoroughly: Remove the cover or move it to the side.

Storing the device

1. Wind the mains cable around the carrying handle of the device and the cover.

2. Store the device in a dry room and secure it against unauthorised use.

Cleaning methods

Normal soiling

1. Spray and vacuum up the cleaning solution in one step.

Note
Repeated vacuuming without spraying shortens the drying time.

Heavily soiling or stains

1. Apply cleaning solution with the suction turbine switched off and let it work for 10 to 15 minutes.
2. Clean the area as with normal soiling.

Upholstery cleaning

1. Adv only: Attach the upholstery nozzle instead of the floor nozzle (with suction pipe and handle).
2. Use less detergent for sensitive fabrics and spray the surface at a distance of approx. 200 mm. Then only vacuum.

Cleaning tips

• Spray heavily soiled areas in advance and allow the cleaning solution to work for 5 to 10 minutes.
• Always work from light to shadow (from window to door).
• Always work from the cleaned to the uncleaned area.
• The more sensitive the covering (oriental bridges, Berber, upholstery fabric) the lower the concentration of detergent.
• Carpets with jute backs can shrink and bleed in colour if the work is too wet.
• Brush wet pile carpets in the direction of the pile after cleaning when wet (e.g. with a fibre brush or scrubber).
• Impregnating after wet cleaning prevents the textile from being quickly soiled again.
• To avoid pressure points or rust stains, do not walk on or furnish the cleaned area until after it has fully dried.
• To improve the cleaning result, rinse the object with clean water after using detergents.

Detergent

For further information, please request the product information sheet and the EU safety data sheet for the relevant cleaning agent.

Transport

Failure to observe the weight
Risk of injury and damage
Be aware of the weight of the device during transportation.

1. Wind the mains cable around the carrying handle of the device and the cover. Place the spray/suction hose in the hook. Insert the upholstery nozzle into the accessory holder.

2. Adv only: Place the suction pipe (with floor nozzle) on the carrying handle of the device. Wind up the mains cable and hang it in the cable hook.

3. When transporting the device in vehicles, secure it to prevent it from slipping or overturning in accordance with the respective valid guidelines.

Storage

Failure to observe the weight
Risk of injury and damage
Be aware of the weight of the device during storage.
The device may only be operated indoors.

Care and service

Danger of electric shock
Injuries due to touching live parts Switch off the device.
Remove the mains plug.

Clean the fluff filter

1. Remove the cover.
2. Remove the wastewater container from the device.
3. Pull out the fluff filter.
4. Regularly clean the fluff filter under running water. If very dirty, open the frame and replace the fleece.

Clean the fresh water filter

1. Unscrew the fresh water filter.
2. Clean the fresh water filter under running water.

Clean the nozzle

1. Unscrew the union nut.
2. Clean the nozzle mouthpiece.

Troubleshooting guide

Danger of electric shock
Injuries due to touching live parts Switch off the device.
Remove the mains plug.

The device is not working

1. Check the socket and the power supply fuse.
2. Check the mains cable and the mains plug of the device.
3. Switch on the device.

No water emitted from the nozzle

1. Fill up the fresh water tank.
2. Check the couplings on the spray hose for correct seating.
3. Clean or replace the nozzle mouthpiece.
4. Clean the fresh water filter.
5. Spray pump defective, contact customer service.

Single-sided spray jet

1. Clean the nozzle mouthpiece.

Poor suction performance

1. Check that the cover is seated correctly.
2. Clean the seal on the cover and the contact surface on the device.
3. Clean the fluff filter.
4. Check the suction hose for clogging; clean if necessary.

Spray pump is loud

1. Refill the fresh water tank.

Heavy foaming in the wastewater container

1. Add defoaming agent (special accessory) to the wastewater container.

Customer Service department

If the malfunction cannot be corrected, the device must be checked by the Customer Service department.

Accessories and spare parts

Only use original accessories and original spare parts. They ensure that the appliance will run fault-free and safely.
Information on accessories and spare parts can be found at www.kaercher.com.

Technical data

		Puzzi 8/1 (Adv)
Electrical connection
Mains voltage	V	220-240
Phase	~	1
Power frequency	Hz	50-60
Degree of protection		IPX4
Protection class		II
Maximum fan motor power	W	1380
Blower motor nominal power	W	1200
Spray pump power	W	40
Device performance data
Fresh water filling quantity	l	8
Wastewater filling quantity	l	7
Air quantity (max.)	l/s	71
Vacuum (max.)	kPa (mbar)	27,0 (270)
Spray pressure	MPa	0,1
Spray pressure (max.)	MPa	0,3
Spray volume	l/min	1
Cleaning solution temperature (max.)	°C	50
Dimensions and weights
Typical operating weight	kg	8,6
Length x width x height	mm	525 x 335 x 425
Ambient conditions
Ambient temperature (max.)	°C	+40
Determined values in acc. with EN 60335-2-68
Sound pressure level L pA	dB(A)	71
Uncertainty K pA	dB(A)	1
Hand-arm vibration value	m/s2	<2,5
Uncertainty K	m/s2	0,2
Mains cable
Power cord type	mm2	H05VV-F 2x1,0
Part number (EU)		6.648-437.0
Part number (GB)		6.647-264.0
Part number (CH)		6.647-265.0
Part number (AU)		6.647-266.0
Cable length	m	7,5

Subject to technical modifications.
