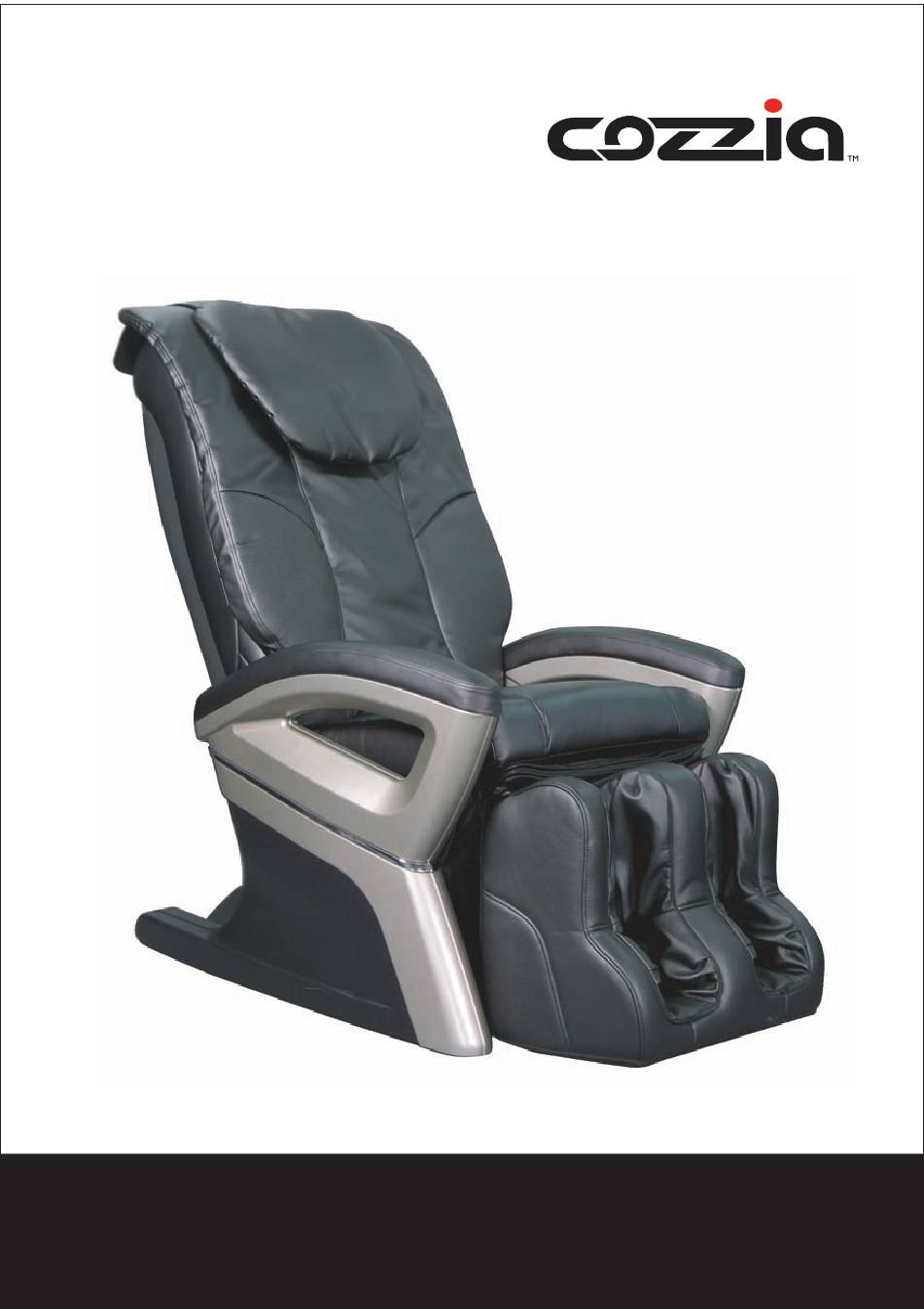

- Page 1 Instruction Manual CZ-430...
-
Page 2: Table Of Contents
Thank you for purchasing the CZ-430 Comfort Massage Chair. Before using your massage chair, please read the contents of this instruction manual and refer to it when needed. Table of Contents Comfort Features ..........2 Safety Precautions ..........3-4 Chair Components ..........5-6 Chair Installation &... -
Page 3: Comfort Features
Cozzia CZ-430 Comfort Massage Chair The Comfort Massage Chair is controlled by a microcomputer that performs a variety of intelligent massage techniques and combinations that are designed to soothe sore muscles, alleviate stress and fatigue, increase metabolism and energy, and improve blood circulation. -
Page 4: Safety Precautions
The massage chair is intended to be used as described in the Instruction Manual. Do not use any attachments other than those recommended by COZZIA. DO NOT attempt to stand or sit on the backrest, armrest or footrest in order to prevent accident, injury or damage to the chair. - Page 5 Please consult your doctor if you are in doubt as to whether or not you should use this massage chair. Please consult a doctor before using the massage chair if you are pregnant, undergoing any medical treatment, using a medical electronic device such as a pacemaker, or are experiencing any of the following: Malignant tumor, heart disease, back pain, abnormal or curved back bone, osteoporosis or acute illness.
-
Page 6: Chair Components
Chair Components Remote Controller Backrest Spare pad Side Panel Wheels... - Page 7 MASSAGING POSITION Roller...
-
Page 8: Chair Installation & Moving
Chair Installation & Moving Step 1: When setting up the chair, make sure there is at least two feet of space behind the backrest and two feet of space in front of the footrest. at least 2 ft. at least 2 ft. PIC 1 Step 2: Unfold the backrest until you hear a “click”... - Page 9 Step 3: Install the seat pad by connecting the vibration socket point as demonstrated in PIC 3. Step 4: Connect the wire plugs. See PIC 4. PIC 3 PIC 4 Step 5: Install the remote controller stand by tightening the screws as demonstrated in PIC 5.
- Page 10 Moving the chair 1. Restore the footrest to its original position. 2. Hold down on the top of the backrest and tilt approximately 45 degrees. Move the chair using the wheels as the fulcrum. Note: 1) Always return the footrest to its original length and restore it to its original position before moving the chair.
-
Page 11: Grounding Instructions
Grounding Instructions Fully insert the plug into an appropriate outlet. An improper equipment-grounding conductor may result in electric shock. Contact a qualified electrician if you are not sure that the product is properly grounded. Do not modify the plug that is included with the massage chair. If the plug does not fit the outlet, contact a qualified electrician to install an outlet to fit the massage chair plug. -
Page 12: Chair Specifications
Chair Specifications Specifications Description Model No. CZ-430 Rated Voltage 120V AC Rated Frequency 60Hz Rated Power Consumption 180W Timer 15 minutes Max Time Rate 60 minutes Shipping dimensions: 47.5" x 30" x 33" Dimensions(LxWxH) Reclined dimensions:72" x 29.5" x 27.5"... -
Page 13: Operation Guide
Operation Guide RELAX THERAPY KNEADING SPOT PARTIAL TAPPING DUAL-ACTION ROLLING HEIGHT WIDTH HEATING... - Page 14 Insert the power cord plug into an electrical outlet. Turn the power switch to the “I” position for idle mode. Five functions are available in idle mode: ON/OFF, Recline Backrest, Raise Backrest, Elevate Footrest and Recline Footrest. 1. ON/OFF Press this button to automatically recline the backrest and to automatically elevate the footrest to a specified position.
- Page 15 10. Tapping Tapping Function Start/Stop Control Button - 3 sizes of width & 3 levels of height Press this button once to activate the tapping function for a full back massage at medium width and high height. Press the button again to stop the tapping massage function. Press the WIDTH button and the HEIGHT button to adjust the tapping width and roller height while the tapping function is activated.
- Page 16 Setting Spot or Localized Back Massage 14. Spot Spot Back Massage Press this button once to activate the massage rollers. Press the ▲ or ▼button to select a spot massage for any part of the back. Press the button again to stop the spot massage function and to resume the full back massage function.
- Page 17 19. Seat Seat Vibration Control Button Press this button to activate the seat vibration function. Press the button again to stop the seat vibration function. 20. Calves Calves Air Squeeze and Vibration Control Button Press this button to adjust the air squeeze and vibration functions in the calves to high, medium or low in the following sequence: M<H<L<off<M 21.
-
Page 18: Troubleshooting & Product Maintenance
Both the remote control and the 2. Turn the power OFF and then ON massage chair are not functioning. again. If you continue to have problems, please read the warranty card and contact the COZZIA service department. -
Page 19: Warnings
COZZIA customer service will not issue Return Material Authorizations (RMAs) for products. COZZIA products will be either repaired by the consumer or by an in-home technician. COZZIA will not issue Return Material Authorizations (RMAs) for buyer’s remorse. -
Page 20: Consumer Warranty
Proof of purchase (original receipt) is required for all warranty repairs or service. PRODUCT REPAIRS Many COZZIA product repairs may be performed by the consumer in their own home with parts and instructions supplied by COZZIA such as remote controller replacements that don’t require a technician. - Page 21 ● COZZIA’s sole liability and the purchaser's exclusive remedy shall be for the repair, or at COZZIA’s option, for the replacement of the defective part. Not withstanding the above, if replacements parts for defective materials are not available, COZZIA reserves the right to make substitutions in lieu of repair or replacement.
-
Page 22: Warranty Card (Attachment)
WARRANTY REGISTRATION FORM Product Serial No. (located on product): Purchase Price: Model No: Date Purchased: First Name: Last Name: Address: City: State: Zip: Phone: Email: Please mail to: Warranty Department Cozzia LLC. 3280 Pointe Parkway, Suite #2400, Norcross, GA 30092, USA...
