Delphi series ipm24s0b0, non-isolated, integrated point-of-load power modules: 11v-36v input, 3.3~6.5v and 3a output

Table of Contents

ELECTRICAL CHARACTERISTICS CURVES

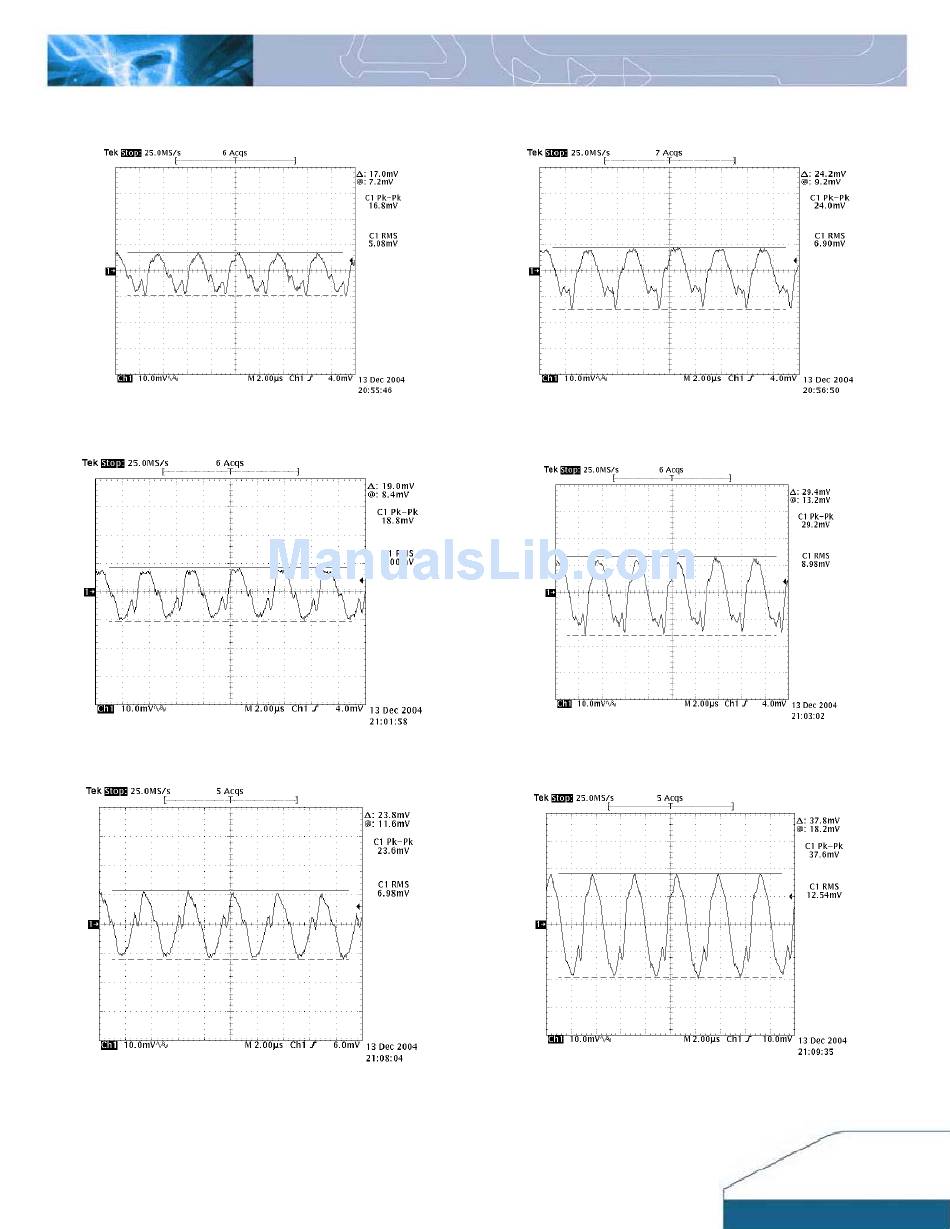

Figure 7: Output ripple & noise at 12Vin, 4.0V/3A out

Figure 9: Output ripple & noise at 12Vin, 5.0V/3A out

Figure 11: Output ripple & noise at 12Vin, 6.5V/3A out

DS_IPM24S0B0_03202007

Figure 8: Output ripple & noise at 24Vin, 4.0V/3A out

Figure 10: Output ripple & noise at 24Vin, 5.0V/3A out

Figure 12: Output ripple & noise at 24Vin, 6.5V/3A out
