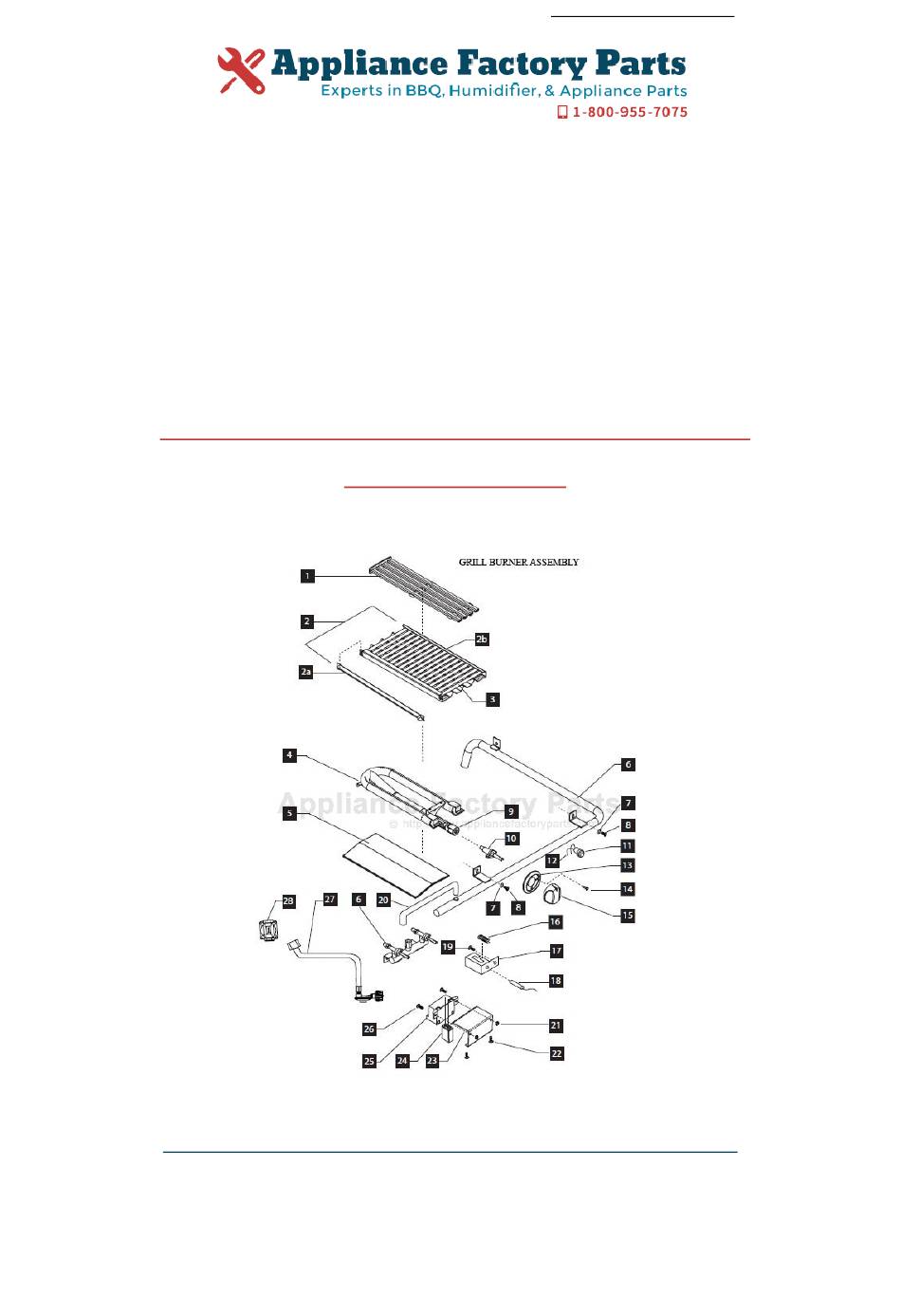

Page 1 This Owner's Manual is provided and hosted by Appliance Factory Parts. DCS BGA36-BQARN Owner's Manual Shop genuine replacement parts for DCS BGA36-BQARN Find Your DCS Grill Parts - Select From 274 Models -------- Manual continues below part list --------...
Page 2 Available Replacement Parts for DCS BGA36-BQARN 54801 grid, porc stl wire, 2.5 x 10.4375; DCS 211717 electrode; DCS 214421P RADIANT 214006P CERAMIC ROD (EACH) (9-1/2 INCH rods) 03360 spark generator; DCS 214030 WARMING RACK FOR DCS 212362 BURNER MAIN BURNER ISB-15...
Page 3 20 INCH ELECTRODE 212334P Battery Igniter, BGB48-BQAR. replaces 18 211834 ELECTRODE, SMOKER 213467 STAINLESS STEEL SMOKER BURNER DCS 12181 550S1 grid, 304 ss wire 0.3125 in. dia., 20.5 214331 SMOKER WOOD CHIP TRAY 03610 ignitor wire, heavy gauge, 1.2m, with 2.
Page 4 THE PROFESSIONAL 36/48” BGA GRILL Use and Care Guide MODELS: BGA36-BQAR BGA48-BQAR BGA48-BQR...
Page 5 A MESSAGE TO OUR CUSTOMERS Thank you for selecting this DCS Professional “BGA” Series Grills. Because of these appliances unique features we have developed this Use and Care Guide. It contains valuable information on how to properly operate and maintain your new appliance for years of safe and enjoyable cooking.
Page 6 TABLE OF CONTENTS SAFETY PRACTICES & PRECAUTIONS .......................3-5 GRILL MODELS ................................6 GAS REQUIREMENTS ..............................7-8 LOCATING GRILL / BUILT-IN CLEARANCES ..................9-10 BUILT-IN CONSTRUCTION DETAILS ......................11 LEAK TESTING ................................12 INSTALLER FINAL CHECKLIST ...........................13 BURNER ADJUSTMENTS ............................14 USING THE GRILL ..............................15-17 LIGHTING INSTRUCTIONS ..........................17-18 USING THE SMOKER SYSTEM ...........................19...
Page 7 SAFETY PRACTICES & PRECAUTIONS IMPORTANT SAFETY NOTICE: Certain Liquid Propane dealers may fill liquid propane cylinders for use in the grill beyond cylinder filling capacity. This “Overfilling” may create a dangerous condition. “Overfilled” tanks can build up excess pressure. As a safety device, the tanks pressure relief valve will vent propane gas vapor to relieve this excess pressure.
Page 8 SAFETY PRACTICES & PRECAUTIONS ■ Do not use aluminum foil to line drip pans or grill racks. This can severely upset combustion air flow or trap excessive heat in the control area. The result of this can be melted knobs or ignitions buttons.
Page 9 SAFETY PRACTICES & PRECAUTIONS ■ When using the open top burners always use flat bottomed utensils which are large enough to cover the burner. Adjust the flame so that it heats only the bottom of the pan to avoid ignition of clothing.
Page 10 GRILL MODELS IGNITION IGNITION BGA48-BQAR BGA48-BQR BGA36-BQAR...
Page 11 GAS REQUIREMENTS Verify the type of gas supply to be used, either natural or LP, and make sure the marking on the appliance rating plate agrees with that of the supply. The rating Bottom of unit plate is located on the inside back wall of the Grill.
Page 12 GAS REQUIREMENTS LP GAS HOOK UP (TYPE 1 OR QCC1 REGULATOR): Grills orificed for use with LP gas come equipped with a high capacity hose/regulator assembly for connection to a standard 20 lb. LP cylinder (Type 1). The LP tank is not included. Connection: 1/2"...
Page 13 Do not build the Grill under overhead unprotected combustible construction. If the Grill is to be placed into a combustible enclosure, an approved insulated jacket is necessary and is available from your dealer. Use only the DCS insulated jacket which has specifically been designed and tested for this purpose.
Page 14 LOCATING GRILL/BUILT-IN CLEARANCES General The Grill is designed for easy placement into masonry enclosures. For non-combustible applications the grill drops into the opening shown in (Fig. 04) and hangs from its side flanges. A deck is not required to support it from the bottom. When using the insulated jacket in a combustible enclosure application, see the bottom of Fig.
Page 15 BUILT–IN CONSTRUCTION DETAILS grill exhaust 3" (to non-combustible construction / minimum lid clearance) 12" (to combustible construction) 14" Bottom of support flange 10-1/16" 2" 3/4" 22-3/4" 25-1/2" Standard layout for non-combustible enclosure: NOTE: If using a backguard apron or rear 48"...
Page 16 LEAK TESTING GENERAL: Although all gas connections on the grill are leak tested at the factory prior to shipment, a complete gas tightness check must be performed at the installation site due to possible mishandling in shipment, or excessive pressure unknowingly being applied to the unit. Periodically check the whole system for leaks, or immediately check if the smell of gas is detected.
Page 17 INSTALLER CHECKLIST/BURNER ADJUSTMENTS INSTALLER FINAL CHECKLIST: ❏ Specified clearances main- ❏ Adjustable low setting satis- ❏ User informed of gas supply tained to combustibles. factory. shut-off valve location. ❏ Nylon straps removed from ❏ Drip pan in place properly ❏ All radiants are assembled burners.
Page 18 BURNER ADJUSTMENTS Burner Air Adjustment: Each grill burner is tested and adjusted at the factory prior to 1-1/2" shipment; however, variations in the local gas supply or a conversion from one gas to another may make it necessary to adjust the burners. The flames of the burners (except the rotisserie burner) should be visually checked and compared to 3/8"...
Page 19 USING THE GRILL GRILL: Each grill section consists of a large stainless steel burner, a stainless steel heat baffles, a series of ceramic rods encased in a stainless steel rack, and a stainless steel heat retaining grate. Each burner is rated at 25,000 Btu/hr. Below burners there is a stainless steel heat baffle which reflects usable heat upward into the cooking area and reduces temperatures of the drip pan below.
Page 20 USING THE GRILL REPLACEMENT OF REGULATORS AND HOSE The pressure regulator and hose assembly supplied with the unit must be used. The replacement pressure regulators and hose assembly must be the type specified by the manufacturer. Do not use the grill if the odor of gas is present. If the unit is LP, screw the regulator into the tank and leak check the hose and regulator connections with a soap and water solution before operating the grill.
Page 21 USING THE GRILL/LIGHTING INSTRUCTIONS Grilling Method Note: Indirect cooking method is a popular alternative to direct heat grilling. Indirect cooking uses heat from adjacent burners to cook food and in many cases, reduces the possibility of overcooked or overly browned food. Foods most appropriate for indirect grilling included breads, thicker pieces of chicken or steaks.
Page 22 LIGHTING INSTRUCTIONS TO LIGHT DUAL SIDE BURNERS (48BQR MODELS ONLY): CAUTION: The side burner cover may be hot if the grill burners are in operation. First remove the burner cover and any cooking utensils from the burner grate. Push and hold the ignition button, turn the control knob to the “HI”...
Page 23 USING THE SMOKER SYSTEM The smoker system on each grill consists of a stainless steel slide out tray which is positioned above a 3,500 Btu/hr burner. The burner is controlled by a precision brass valve which is capable of being turned down to very low heat levels. The system may be used alone for low temperature roasting and smoking or in conjunction with any combination of other burners.
Page 24 USING THE ROTISSERIE The grill rotisserie system is designed to cook items from the back using infrared heat. The location of the burner allows the placement of the rotis basting pan (included) beneath the food to collect juices and drippings for basting and gravy. To flavor the contents of the basting pan, you can add herbs, onion, garlic, or spices.
Page 25 USING THE ROTISSERIE WARNING: Never have the grill burners (bottom burners) on during Rotisserie cooking. It will burn your meat and make it very dry. Use only one thing on at a time, grill or rotisserie. PREPARATION Recommended: Dental floss or butcher string, scissors, broiler pan (bottom only), pliers, instant read thermometer, foil, and hot pads.
Page 26 USING THE ROTISSERIE COOKING ON ROTISSERIE 1. Place prepared rod into motor, lay across to other side in groove. (Fig.27) 2. Verify placement as shown in Fig. 28. 3. Ignite Burner, start Rotisserie Motor, and keep on High for cooking all meats on the Rotisserie. 4.
Page 27 USING THE ROTISSERIE TO LIGHT THE ROTISSERIE BURNER: The location of the rotis burner makes it more susceptible to strong wind conditions, more so than the protected grill burners. For this reason you should avoid operating the rotis during windy conditions. As an added safety feature we’ve equipped the burner with an automatic safety valve which will not allow gas to flow to the rotis burner unless the following conditions are present with the knob on: 1.
Page 28 CARE AND CLEANING BATTERY REPLACEMENT: 1. Remove drip pan. 2. Open cart door. 3. Pull battery downwards (This may require use of pliers.) 4. Re-install upward and push to snap - Fig. 32. (Polarity is shown in FIG. 32 FIG. 33 Fig.
Page 29 BURNER REMOVAL AND CLEANING SIDE BURNERS: The grill side burners (BGA48-BQR models only) are cast Venturi Tube iron and occasionally it will be necessary to remove Flash Igniter Tubes surface rust to ensure proper performance. Frequency of cleaning will depend on the climate & location, and how often you use the grill.
Page 30 You may save the cost of a service call. Troubleshooting is for general purposes only. If the problem persists and you feel you require service, contact your dealer or the nearest authorized agency to perform service. Only authorized agencies can perform warranty service. Call DCS Customer Service at (888) 281-5698.
Page 31 Ignition Button 18353 Tube Burner 18408 Wire With Terminals Heat Shield, Fire Box 41190 BGA36-BQAR 16438-04 Manifold Assembly BGA48-BQR BGA36-BQARL 41207-01 BGA48-BQAR 16438-05 BGA36-BQARN 41207-02 Bezel 14006-PL 41207-03 Screw 15001-29 BGA48-BQRL 41208-01 Knob BGA 14351 41207-04 NI-Chrome Wire Coil 32313 BGA48-BQRN...
Page 32 GRILL BODY PARTS LIST ITEM DESCRIPTION PART NO. ITEM DESCRIPTION PART NO. Lid Assembly, BGA36-BQAR, BGA48-BQR 32992 Service Panel, BGA36-BQAR, BGA48-BQR 41196 Lid Assembly, BGA48-BQAR 32992-01 Service Panel, BGA48-BQAR 41196-01 Lid,BGA36-BQAR, BGA48-BQR 32993 Firebox, BGA36-BQAR, BGA48-BQR 32981 Lid,BGA48-BQAR 32993-01 Firebox, BGA48-BQAR 32981-01 Bolt 15003-06...
Page 33 ROTISSERIE ASSEMBLY ITEM DESCRIPTION PART NO. ITEM DESCRIPTION PART NO. Bolt 15003-15 Fork Rotisserie 18365 Bulb 16235 Rotisserie Rod, BGA36-BQAR,BGA48-BQR 19496-01 Rotisserie Rod, BGA48-BQAR 19496-02 Rotisserie, Motor Assembly Handle, Rotisserie Rod 18040 Right Side Mounting (Standard Configuration) 33060-01 Left Side Mounting (Special Order) 33060-02 Screw 15001-26...
Page 34 SMOKER BURNER ASSEMBLY ITEM DESCRIPTION PART NO. Chip Tray 32957 Screw 15001-23 Smoker Burner 30639-1 Electrode, Smoker 16441-02 Screw 15002-42 15004-19 Smoker Burner Support 32226 Control Valve 13017-01 Bezel 14006-PL Knob BGA 14351...
Page 35 48 GRILL CART PARTS LIST ITEM DESCRIPTION PART NO. ITEM DESCRIPTION PART NO. Drawer Box 33029-02 Side Shelf Tray 41067 Pull Handle 18462 Side Shelf End Cap 14205 Rubber Bump 18403 Side Shelf Assembly 18212 Tank Tray Pullout Assembly 33024 Bolt 15003-06 Door Catch...
Page 36 36 GRILL CART PARTS LIST ITEM DESCRIPTION PART NO. ITEM DESCRIPTION PART NO. Drawer Box 33029-01 Side Shelf Tray 41067 Pull handle 18462 Side Shelf End Cap 14205 Rubber Bump 18403 Side Shelf Assembly 18212 Tank Tray Pullout Assembly 33024 Bolt 15003-06 Left Body Panel...
Page 37 WIRING DIAGRAM BGA36-BQAR MODELS I/R Burner Electrode #16440-03 Smoker Burner Electrode Burner Electrodes Burner Electrode IgnitionModule 6 Output #18351 9 Volt Battery #18354 Ignition Switch #18353 Wiring Diagram P/N # 32826...
Page 38 WIRING DIAGRAMBGA48-BQR MODELS I/R Burner Electrode #16440-03 Smoker Burner Electrode Burner Electrodes Burner Electrode IgnitionModule 6 Output #18351 9 Volt Battery #18354 Side Burner Electrode #16439-01 Ignition Switch #18353 Wiring Diagram P/N # 32828...
Page 39 WIRING DIAGRAM BGA48-BQAR MODELS I/R Burner Electrode #16440-03 Smoker Burner Electrode Burner Electrodes Burner Electrodes IgnitionModule 6 Output #18351 9 Volt Battery #18354 Ignition Switch #18353 Wiring Diagram P/N # 32827...
Page 40 SERVICE HOW TO OBTAIN SERVICE: For warranty service, contact DCS Customer Service at (888) 281-5698. Before you call, please have the following information ready: ■ Model Number ■ Serial Number ■ Date of installation ■ A brief description of the problem Your satisfaction is of the utmost importance to us.
Page 41 DCS to be defective. Replacement will be F.O.B. DCS, and DCS will not be liable for any transportation costs, labor costs, or export duties. This warranty shall not apply, nor can we assume responsibility for damage that might...
Page 42 5800 Skylab Road, Huntington Beach, CA 92647 Tel: 714.372.7000 • Fax: 714.372.7001 Customer Service: (888) 281-5698 www.dcsappliances.com As product improvement is an ongoing process at DCS, we reserve the right to change specifications or design without notice. Part No. 17555 Rev. C Litho in USA 12/04...
