ELECTRICAL CHARACTERISTICS CURVES

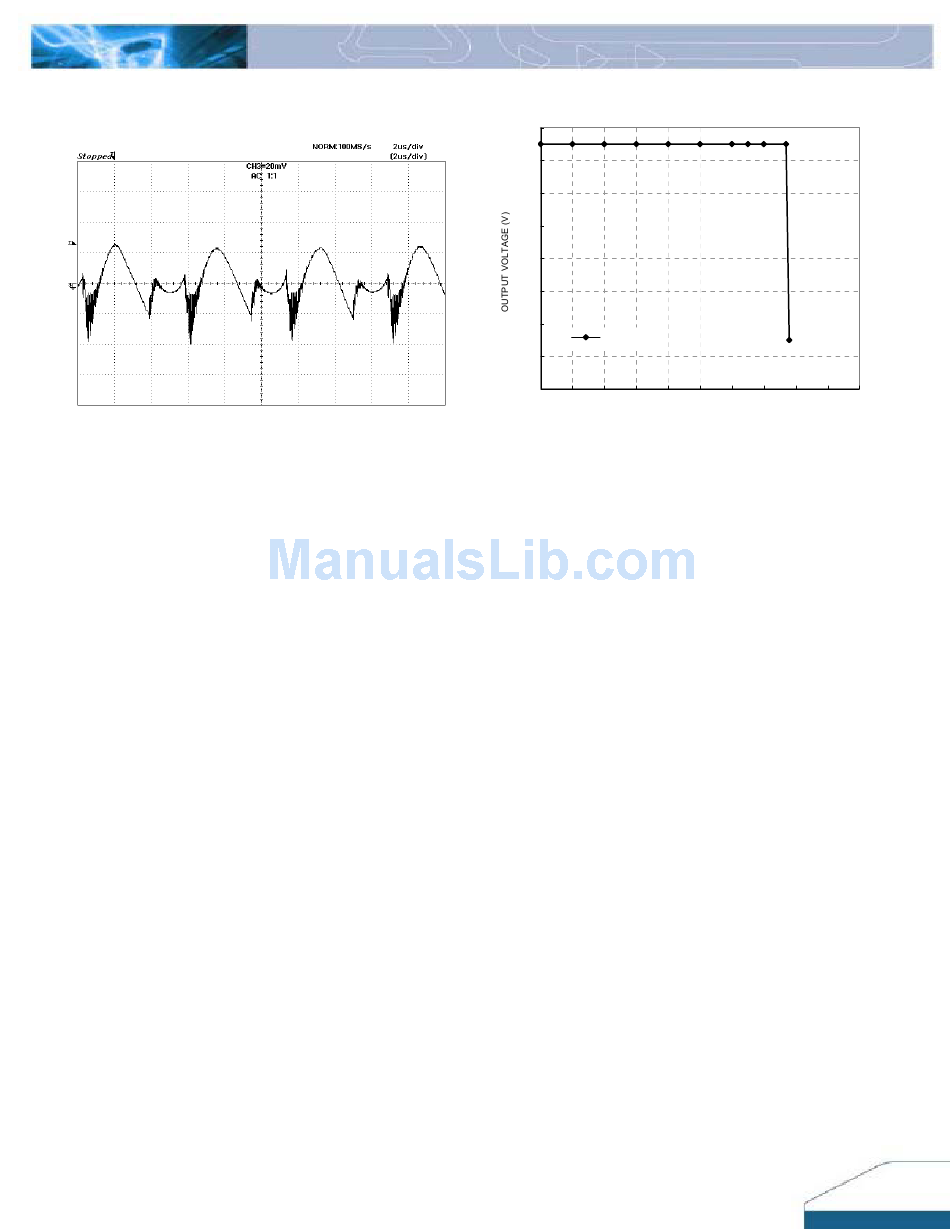

Figure 14: Output voltage ripple at nominal input voltage and
rated load current (20 mV/div). Load capacitance: 1µF ceramic
capacitor and 10µF tantalum capacitor. Bandwidth: 20 MHz.
Scope measurement should be made using a BNC cable
(length shorter than 20 inches). Position the load between 51
mm to 76 mm (2 inches to 3 inches) from the module.
DS_H48SL1R560_10302006
1.6
1.4
1.2
1.0
0.8
0.6
0.4
48Vin
0.2
0.0
0 10 20 30 40
Figure 15: Output voltage vs. load current showing typical
current limit curves and converter shutdown points.
50 60 70 80 90 100
LOAD CURRENT (A)
