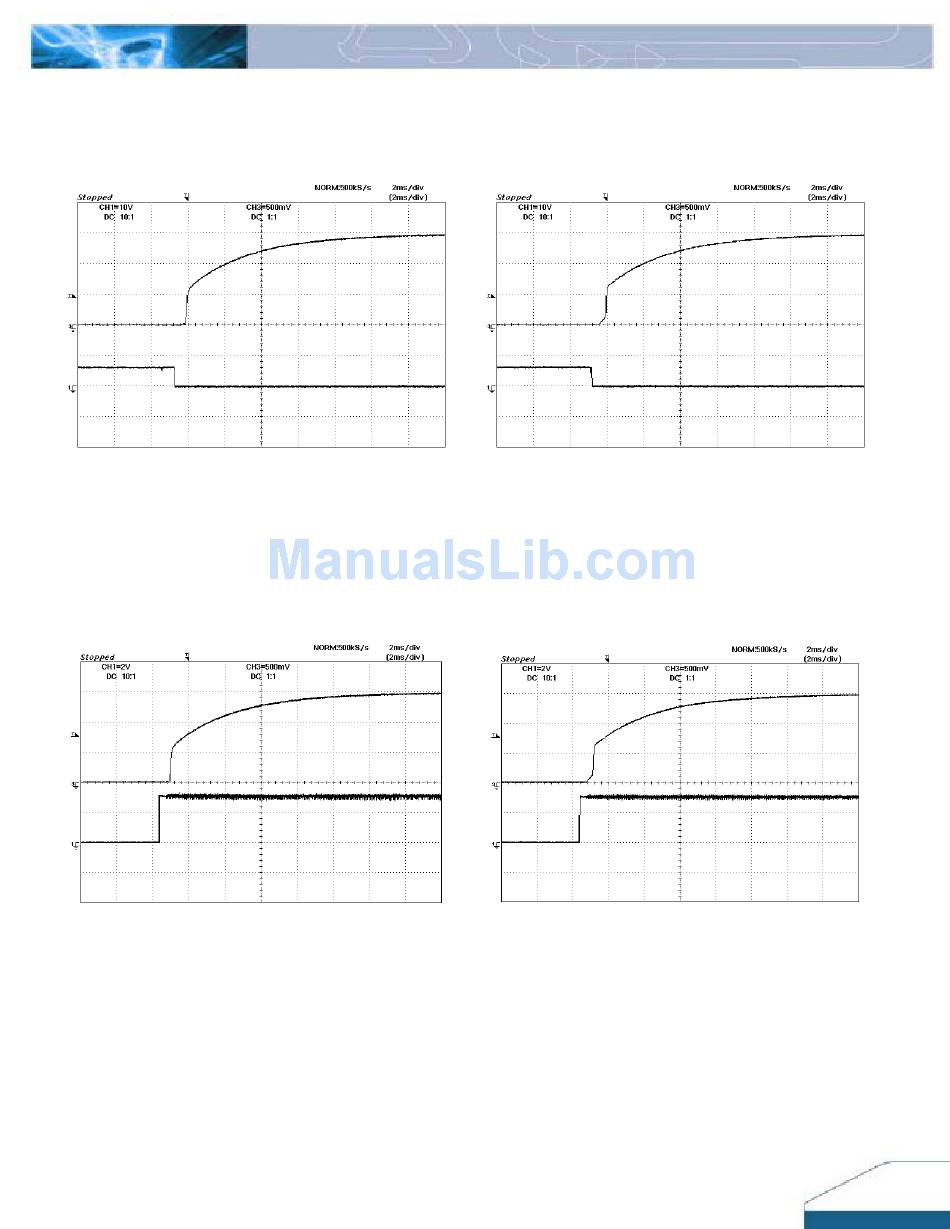

ELECTRICAL CHARACTERISTICS CURVES
For Negative Remote On/Off Logic
Figure 4: Turn-on transient at full rated load current (resistive
load) (2 ms/div). Top Trace: Vout; 500mV/div; Bottom Trace:
ON/OFF input: 10V/div
For Positive Remote On/Off Logic
Figure 6: Turn-on transient at full rated load current (resistive
load) (2 ms/div). Top Trace: Vout; 500mV/div; Bottom Trace:
ON/OFF input: 2V/div
DS_H48SL1R560_10302006
Figure 5: Turn-on transient at zero load current (2 ms/div). Top
Trace: Vout: 500mV/div; Bottom Trace: ON/OFF input: 10V/div
Figure 7: Turn-on transient at zero load current (2 ms/div). Top
Trace: Vout: 500mV/div; Bottom Trace: ON/OFF input: 2V/div
4
