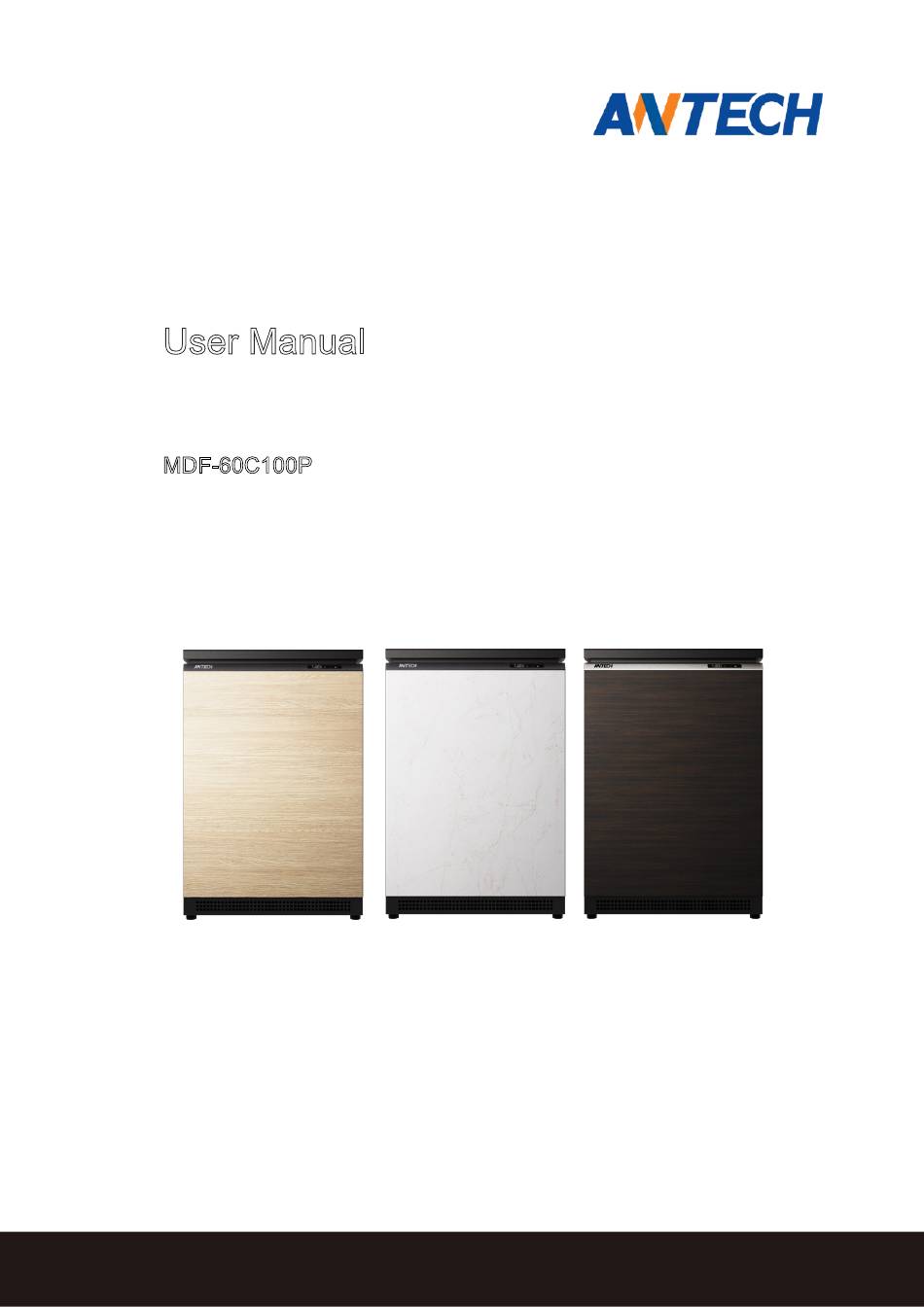

Low Temptrature Freezer
User Manual
Version：LTFM-202401
MDF-60C100P
○
Please read this manual carefully before use.
○
The appearance of the product is subject to the actual product.
○
In case of product technology or software upgrade, without prior notice.
○
Antech Scientific reserves the right of explanation
© all rights reserved
.
Advertisement
Table of Contents
Related Manuals for Antech MDF-60C100P
Summary of Contents for Antech MDF-60C100P
- Page 1 Please read this manual carefully before use. ○ The appearance of the product is subject to the actual product. ○ In case of product technology or software upgrade, without prior notice. ○ Antech Scientific reserves the right of explanation © all rights reserved...
-
Page 3: Table Of Contents
Low Temperature Freezer Manual Contents Product Composition ....................2 Accessories ......................2 Safety Precautions ....................3 Operating environment ..................3 Safety guidelines ..................... 5 Preparation for use ....................6 Function description ....................7 Start-up ........................9 Temperature range ....................9 Cleaning and maintenance ................... 10 Cleaning ...................... -
Page 4: Product Composition
Low Temperature Freezer Manual Product Composition Accessories Items Operation manual Defrost shovel Plastic bag Food basket 1 big & 1 small Due to continuous improvement, the technical data and circuit diagrams are subject to the product nameplate. We apologize for this inconvenience. -
Page 5: Safety Precautions
Safety Precautions before operating the freezer, please read the Thank you for using the products of Antech, following instructions carefully as they contain important information In case of personal injury and damage, please be sure read carefully and comply with the following symbols in this manual. -
Page 6: Electrical Requirements
Low Temperature Freezer Manual This product is intended for domestic and similar purposes, such as: kitchen areas in shops, offices or other places; home and hotel type environments; Catering and similar non-retail applications. Electrical requirements Please use the power supply as required. If the voltage fluctuation range is large , the product may not start, the thermostat or compressor may be damaged, or abnormal noise may occur. -
Page 7: Safety Guidelines
Low Temperature Freezer Manual Safety guidelines Usage This product is only suitable for food storage and cannot be used for other purposes. It is strictly prohibited to put flammable and explosive dangerous goods, as well as highly corrosive acids, alkalis and other chemicals into the box. Do not put bottled beer, drinks and other liquids into the box to prevent freezing and cracking. -
Page 8: Preparation For Use
Low Temperature Freezer Manual Preparation for use 1. Remove all packaging components Including the base and fastening accessories, must also be removed. Waste outer packaging materials are combustible, please discard them in a proper way and do not come into contact with open flames to avoid causing a fire. -
Page 9: Function Description
Low Temperature Freezer Manual Function description Operation panel （The display screen is subject to actual） ①Operation icon ②Temperature display ③ Temperature up ④ Temperature down ⑤Lock, unlock, set functions The touch panel is installed on the control panel of this product, and the digital display can display the actual temperature after the power is turned on. - Page 10 Low Temperature Freezer Manual Operation panel When the following fault code appears on the display, it means that a fault has occurred. The product can still cool under some fault conditions, but it should be used as much as possible. Contact maintenance quickly for optimal operation.
-
Page 11: Start-Up
Low Temperature Freezer Manual Start-up When this product is powered on for the first time or powered on again after a power outage, the display shows the current temperature in the box. In order to protect the compressor, it is set at the factory. -
Page 12: Cleaning And Maintenance
Low Temperature Freezer Manual Cleaning and maintenance Cleaning Be sure to unplug the power before cleaning. When cleaning, please use a soft cloth or sponge, dipped in water (non-corrosive neutral cleaning agent can be used). Do not use organic solvents, alkaline lotion, boiling water, washing powder or acid to clean. ... -
Page 13: Transportation And Decommissioning
Low Temperature Freezer Manual Transportation and decommissioning Transportation Unplug the power plug and cut off the power. Remove all the food in the freezer and close the door tightly. When transporting, the maximum tilt angle cannot exceed 45 degrees (the angle with the vertical direction) to avoid causing damage to the refrigeration system. -
Page 14: Food Storage Instruction
Low Temperature Freezer Manual Food storage instruction When storing food, certain gaps should be left between foods to facilitate air circulation. ■ Food should be sealed before being placed in the freezer to prevent moisture loss and odor transfer. ■ When packaging food, only packaging materials suitable for low-temperature freezing should be used. -
Page 15: Troubleshooting
Low Temperature Freezer Manual Troubleshooting Fault Possible causes Remedy 1. Check whether the plugs, sockets, fuses, etc., are damaged. 1. The power supply is If there is no problem, turn on the disconnected. power. 2. The power supply voltage is Failure to use relevant power... - Page 16 Low Temperature Freezer Manual not sealed. 4. The inside of the box needs to be cleaned. 1. Keep the container in a stable 1. The ground is not flat, and the position. box is not firmly placed. High noise 2. Ensure that the exterior of the 2.
-
Page 17: Technical Data
Low Temperature Freezer Manual Technical data Model MDF-60C100P Capacity 100L Refrigerant Mixed Gas Climatic type SN.N Freezing capacity 10kg/12h 220-240Volt, 50/ 60Hz (please refer to Power supply power supply information on name plate) Rated Current 1.8A 1.5kw.h/24h Power consumption (running at -60°C in 25°C ambient temp) - Page 18 Low Temperature Freezer Manual Technical data description: 1. According to international standards, when the climate type is SN.N, the ambient temperature of this product is 10℃ ~ 32℃. 2. The "noise (sound power level)" marked in the technical data is the product unloaded in the semi-acoustic chamber specified in the national standard.
-
Page 19: Warranty
WHETHER WRITTEN, ORAL, OR IMPLIED. NO WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE SHALL APPLY. Antech shall not be liable for any indirect or consequential damages including, without limitation, damages relating to lost profits or loss of products. - Page 20 Qingdao Antech Scientific Co., Ltd. Tel: +86 532 87890321 Email: info@antechscientific.com Web: www.antechscientific.com...
