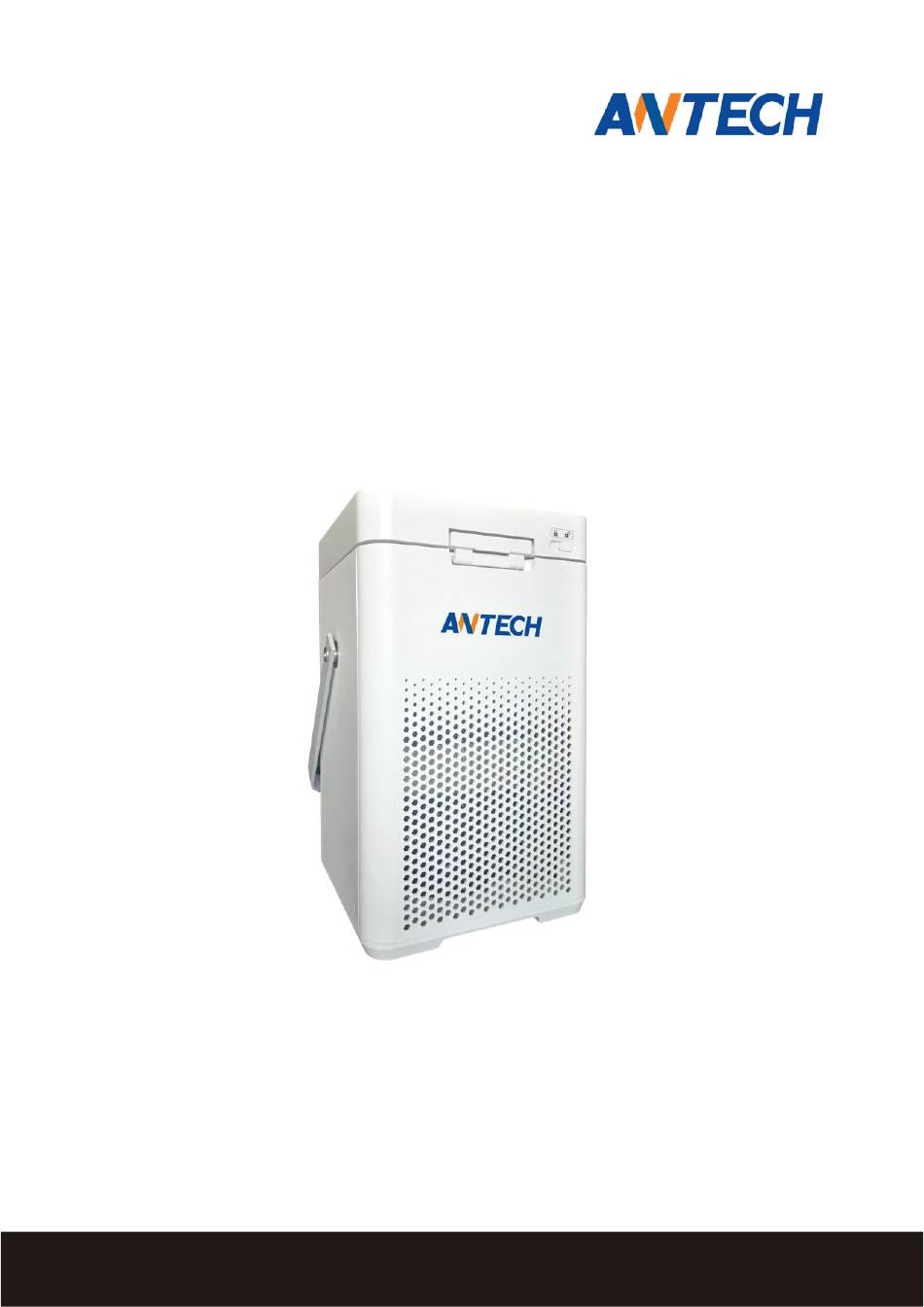

Portable Ultra-low Temperature Freezer
User Manual
Version: PFM-202312
CryoExpress ONE
○
Please read this manual carefully before use.
○
The appearance of the product is subject to the actual product.
○
In case of product technology or software upgrade, without prior notice.
○
Antech Scientific reserves the right of explanation.
© all rights reserved
Advertisement
Table of Contents
Troubleshooting
Related Manuals for Antech CryoExpress ONE
Summary of Contents for Antech CryoExpress ONE
- Page 1 Please read this manual carefully before use. ○ The appearance of the product is subject to the actual product. ○ In case of product technology or software upgrade, without prior notice. ○ Antech Scientific reserves the right of explanation. © all rights reserved...
- Page 2 Qingdao, 266100, China +86 532 8789 0321 | info@antechscientific.com | www.antechscientific.com This manual reviews the operation and maintenance of Antech Portable Ultra-low Temperature Freezer. Read before using this equipment. This product is intended for use by trained personnel only. All...
-
Page 3: Table Of Contents
Portable ULT Freezer Manual Contents Product Introduction ......................3 Precautions for Safe Operation ..................4 Warnings ..........................5 Cautions ..........................6 Features ..........................7 FPSC and Refrigeration .....................7 Power and Temperature Control ..................7 Power Adapter and Cord ....................7 Thermal Insulation ......................7 Graphical User Interface .................... -
Page 4: Product Introduction
It provides high temperature efficiency, deep-temperature cooling in a lightweight package allowing true portable operation. The ANTECH CryoExpress ONE Portable ULT freezer uses direct contact technique for refrigeration, highly advanced free piston Stirling technology, wide temperature range, precise temperature control of ±0.1 °C, light weight, easy to use, specially designed power... -
Page 5: Precautions For Safe Operation
Before use, please read the following safety precautions carefully to prevent from injury or loss. Potential hazards associated with use of the CryoExpress ONE Portable ULT freezer may impact the safety of persons in the workplace in which the freezer is placed. The freezer itself may also be damaged and/or its warranty voided by improper operation or usage. -
Page 6: Warnings
CryoExpress ONE uses Free piston Stirling engine with pressurized Helium gas. Do Not Drill or Puncture Inner core. Do not put CryoExpress ONE near to fire, may catch fire which will cause the internal gas to expand or even explode. -
Page 7: Cautions
Portable ULT Freezer Manual Cautions CAUTIONS! Failure to observe CAUTIONS signs could result in a hazard to personnel injury AND damage to the equipment Operating the unit in extreme environment conditions (35℃ 、RH 80%) using air conditioner is recommended to extend the life span of the unit. Do not fill up the freezer to the top, leave clearance on top for closing the door properly. -
Page 8: Features
FPSC and Refrigeration The ANTECH CryoExpress ONE Portable ULT freezer use a compact Free Piston Stirling Cooler as the refrigeration core. The Stirling engine uses approximately 3 grams of helium gas as a refrigerant. -
Page 9: Main Constructions
Portable ULT Freezer Manual Main Constructions: 1.Touch Screen Touch screen is on top of the freezer lid, easy operate and easy to look. 2.RFID/NFC card swiping area Use RFID/NFC card to unlock screen or electronic lock. 3.Lid lock and latch Freezer have two lock systems, manual lock and electrical NFC lock, for better protection and security of the stored items. -
Page 10: Unpacking And Setup
Portable ULT Freezer Manual Unpacking and Setup NOTE: Prior to setting up the CryoExpress ONE, inspect the unit and ensure there is no shipping damage and accessories are all included. Unpacking Take the freezer and all accessories out from carton. Carefully inspect the freezer and all accessories for any shipping damage. -
Page 11: Using Dc Power Source
Portable ULT Freezer Manual Power Cord Power Adapter During setup, identify the power cord and plug configuration available and then locate the appropriate line cord to attach with power adapter. Use the B-type DC plug to connect the adaptor to freezer, insert the plug into DC socket, press the plug firmly into the connection port. -
Page 12: Operation
The UI is programmed with default values for most parameters. Unless parameters limits are set manually, machine will work on default values. Current program of the CryoExpress ONE freezer is applicable to a PCB board and 4.5 inch IPS resistive touch screen. Program version number cab be seen on the display screen. -
Page 13: The Main Interface
Portable ULT Freezer Manual The main interface 1. USB disk indication 2. Battery level 3. Stirling motor working status (off / cooling) 4. Set temperature 5. Change setting temperature 6. Inner temperature curve 7. Inner temperature 8. Ambient temperature 9. Stirling motor running time 10. -
Page 14: User Setting Interface Operation Instructions
Portable ULT Freezer Manual User setting interface operation instructions 1．Back button, click to return to the previous interface; 2．Password protection ON/OFF. Factory default password is 0000 NFC card 3．Time of screen on 4．Brightness adjustment 5．Lid open numbers since main switch on 6．Language set 7．Freezer information 8．Date set... -
Page 15: Error / Alarms And Troubleshooting
Portable ULT Freezer Manual Error / Alarms and Troubleshooting Errors are displayed on the UI screen as E#, as show below: Possible Phenomenon Possible Code Screen alarm Trouble shooting cause investigation reasons Fuse break Fuse break Replace fuse Voltage DC voltage Fuse not Power Check or replace the power... -
Page 16: Maintenance & Service
Cleaning the Freezer Clean the exterior surfaces of the CryoExpress ONE Portable ULT freezer as needed by using a soft cloth and mild detergent, do not use solvent (such as bleach) or harsh abrasive cleansers or pads. -
Page 17: Troubleshooting
Portable ULT Freezer Manual Troubleshooting Trouble Possible cause Troubleshooting Insert Power plug inside the adapter tightly Power is not getting to the Freezer Assure that the wall plug is firmly seated Freezer does not Turn ON DC plug is not properly Check the DC plug and insert in the inserted socket firmly... -
Page 18: Specifications
Portable ULT Freezer Manual Specifications Freezer Specifications CryoExpress ONE MODEL 100V - 240V, 50/60 Hz, AC Electric Power 12-24V, DC 100 watts Maximum Power 80Hz Operating Frequency Helium charged free-piston Stirling engine with Cooling Engine continuous modulation -86ºC to 8ºC @ 25ºC ambient, adjustable in 1°C... -
Page 19: Freezer Dimensions And Description
Portable ULT Freezer Manual Freezer Dimensions and Description Dimensions of ANTECH Portable ULT freezer are shown in the pictures below, all the dimensions are in mm (millimeter). Major internal parts of the unit is also clearly mentioned in the pictures different views. -
Page 20: Cooling Performance
Portable ULT Freezer Manual Cooling Performance Portable ULT freezer performance test graph is given below. Freezer reach -80℃ from ambient 25℃ in less than two hours when freezer is in empty condition. Warranty ANTECH provide one year warranty for the whole unit. - Page 21 Qingdao Antech Scientific Co., LTD. Tel: +86 532 87890321 Email: info@antechscientific.com Web: www.antechscientific.com...
