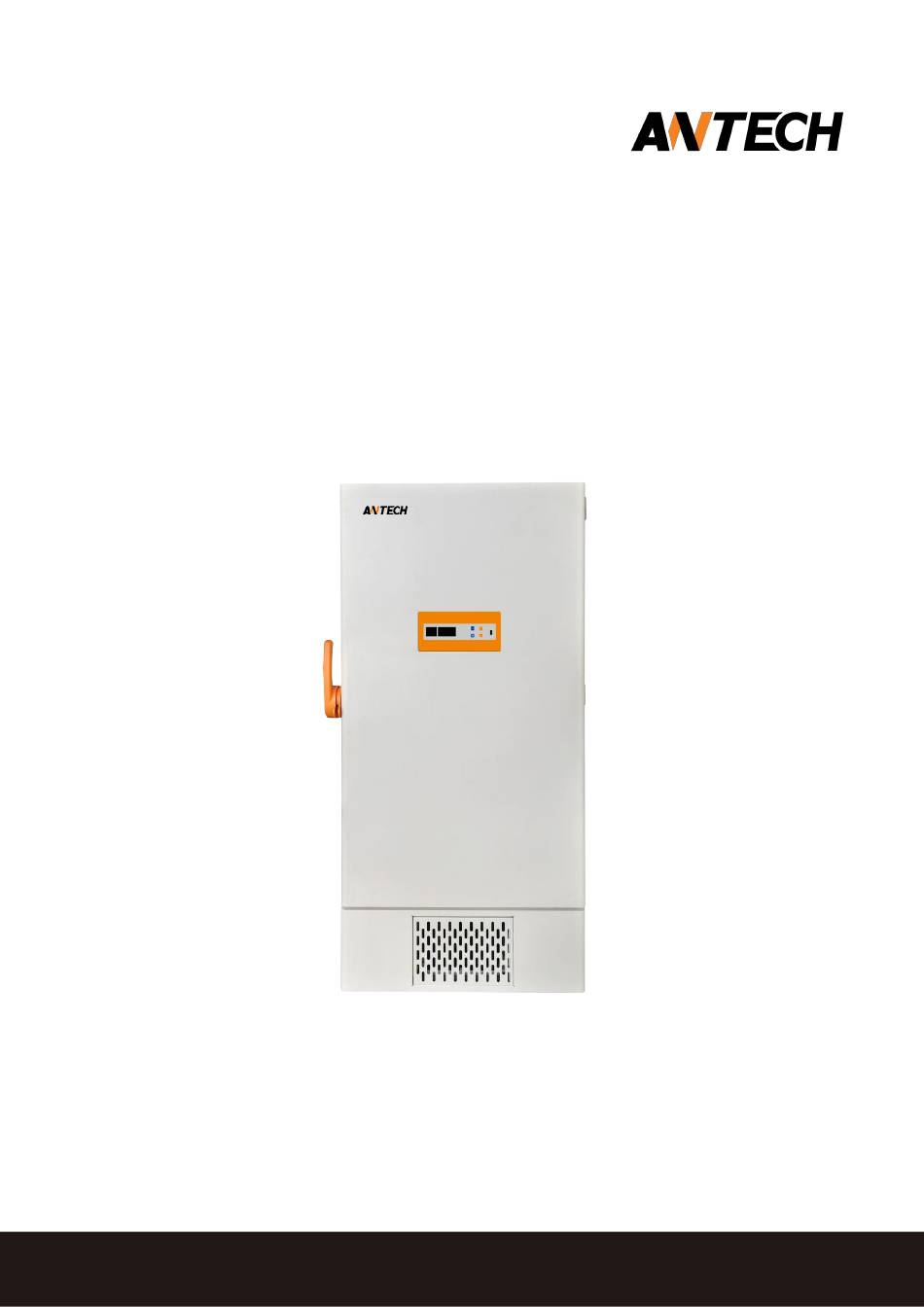

Deep Freezer
User Manual
Version: DFUM-202411
LabSafe series
○
Please read this manual carefully before use.
○
The appearance of the product is subject to the actual product.
○
In case of product technology or software upgrade, without prior notice.
○
Antech Scientific reserves the right of explanation.
@all rights reserved
Advertisement
Table of Contents
Troubleshooting
Related Manuals for Antech LabSafe Series
Summary of Contents for Antech LabSafe Series
- Page 1 Please read this manual carefully before use. ○ The appearance of the product is subject to the actual product. ○ In case of product technology or software upgrade, without prior notice. ○ Antech Scientific reserves the right of explanation. @all rights reserved...
- Page 2 This is the operation and maintenance manual of Antech deep freezer. This manual covers below models: MDF-40U280 MDF-40U360 MDF-40U620 MDF-40U700 Read it before using this equipment. This product is intended to use by trained person only. All service and maintenance should be conducted by Antech or Antech authorized representatives.
-
Page 3: Table Of Contents
Deep Freezer Manual Contents Application ..............................1 Safety Precautions ............................. 1 Handling ................................. 2 Installation ..............................3 1. Installation environment ..........................3 2. First Installation ..............................3 2.1 Preparation before Use ......................... 3 2.2 Power cord..............................4 2.3 First power on............................4 Operation ............................... 5 1. -
Page 4: Application
Deep Freezer Manual Application The freezer keeps chamber temperature within -10 ～ -40℃. It is applicable for hospitals, pharmacies, clinics, health centers, laboratories etc. to store the specified samples in this temperature range. These freezers are not suitable to store flammable or hazardous materials. WARNING Safety Precautions Labels, words and symbols WARNING, CAUTION and NOTICE in this manual and pasted on this... -
Page 5: Handling
♦ The freezer is not considered to be a storage cabinet for flammable or hazardous materials. ♦ Use caution when moving under counter units in a stacked configuration. ♦ REQUIRED: Decontaminate parts before sending for service or repair. Contact Antech or Antech authorized distributor for decontamination instructions. -
Page 6: Installation
Deep Freezer Manual Installation 1. Installation environment The freezer is for in door use, it should be installed in dry and sufficiently ventilated room. Ambient temperature is +16°C~ +32°C, optimal ambient temperature is 16°C ~25°C Humidity should be≤70% RH. The freezer shall be operated at an altitude lower than 2000m. The voltage should be AC 220V or 120V as per nameplate. -
Page 7: Power Cord
Deep Freezer Manual If the unit has not been stored or moved in an upright position, let it stand upright for approximately 12 hours before operation. CAUTION 2.2 Power cord Be careful and don’t twist or compress the power cord It is necessary to use a dedicated independent socket which is grounded reliably. -
Page 8: Operation
Deep Freezer Manual Operation 1. Controller appearance a: LED display screen b: Set key c：Up key d: Down key e: Light key f: USB port g: Indicator screen LED display screen, it displays the inside temperature normally. It can also display parameter code and alarm code. -
Page 9: Controller Panel Operation
Deep Freezer Manual generated. After the data transmission is completed, the buzzer beeps once, displaying "End", and then returning to normal display after 6S. Remarks : when the data is less, "on" and "End" are NOT displayed. Manually export data: Under unlocked state, when U disk connected, and the file is not generated, then export data manually: 1) Press the Up key for 3 seconds, LED displays "D01", 2) Click Up or Down Key to choose the "d00~d12"... -
Page 10: Parameter List
Deep Freezer Manual 5) Press Set key to entry into the correct parameter, it displays current parameter value. 6) Press Up key or Down key to increase or decrease the value 7) Press Set key to temporarily save the value. If other parameters need to be adjusted, follow 4) to 7) steps 8) Press Set button for more than 5 seconds, the adjusted parameters are save and return to normal display. -
Page 11: A Part Of Management Menu Parameter
1～30 Set door open alarm delay time There are also other management menu parameter, Never adjust them if you are without permission or no authorization by Antech or Antech authorized distributor. Maintenance and Service Warning To prevent people from getting electric shock or injury, please cut off the power supply of the equipment before any repairs and maintenance. -
Page 12: Equipment Not In Use
Deep Freezer Manual 2. Equipment not in use Not in use : If the equipment is stored in an unsupervised area for a long time and not used, the power supply should be cut off and the inner and outer surfaces of the cabinet should be cleaned with a warm, damp soft cloth, aired and sealed. -
Page 13: Troubleshooting And Maintenance
Deep Freezer Manual the power plug and turn off the battery switch of the freezer, and the electrical box can only be opened by qualified engineers for maintenance personnel). Pull out the battery connecting cable; (Before unplugging the battery fixing cable, pay attention to the cathode/anode of the battery and the sequence of the connection cables, so as to prevent burning down the control system due to installation of the new battery with cathode/anode reversed, Generally, the red wire is connected to the cathode, and the black wire is connected to the anode.) - Page 14 Communication fault board is failure. Please check the connection between the two boards. If connection is good, replace display board. Notices: If there are other alarm code such as E1, E2...E5, please contact Antech or the Antech authorized distributors for service.
-
Page 15: Problems And Troubleshooting
Deep Freezer Manual 2. Problems and troubleshooting Problems Trouble shooting Check whether the power socket has electricity. the power socket is plugged or loosen. Check whether The freezer does not work the power fuse is disconnected. Check whether the supply voltage is too low or too high. Check whether Please make sure that the temperature is set correctly. -
Page 16: Specification
Deep Freezer Manual Specification Ambient Power Supply Temp Range Effective Model Climate Temperature (V/Hz) (°C) Volume (L) 220 50/60 -10～-40 MDF-40U280 10 ~32°C 120/60 220 50/60 -10～-40 MDF-40U360 10 ~32°C 120/60 220 50/60 MDF-40U620 -10～-40 10 ~32°C 120/60 220 50/60 MDF-40U700 -10～-40 10 ~32°C... -
Page 17: Warranty
WRITTEN, ORAL, OR IMPLIED. NO WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE SHALL APPLY. Antech shall not be liable for any indirect or consequential damages including, without limitation, damages relating to lost profits or loss of products. Printed instruction manuals carefully detail equipment installation, operation, and preventive maintenance. - Page 18 Qingdao Antech Scientific Co., Ltd. Tel: +86 532 87890321 Email: info@antechscientific.com Web: www.antechscientific.com...
